Description

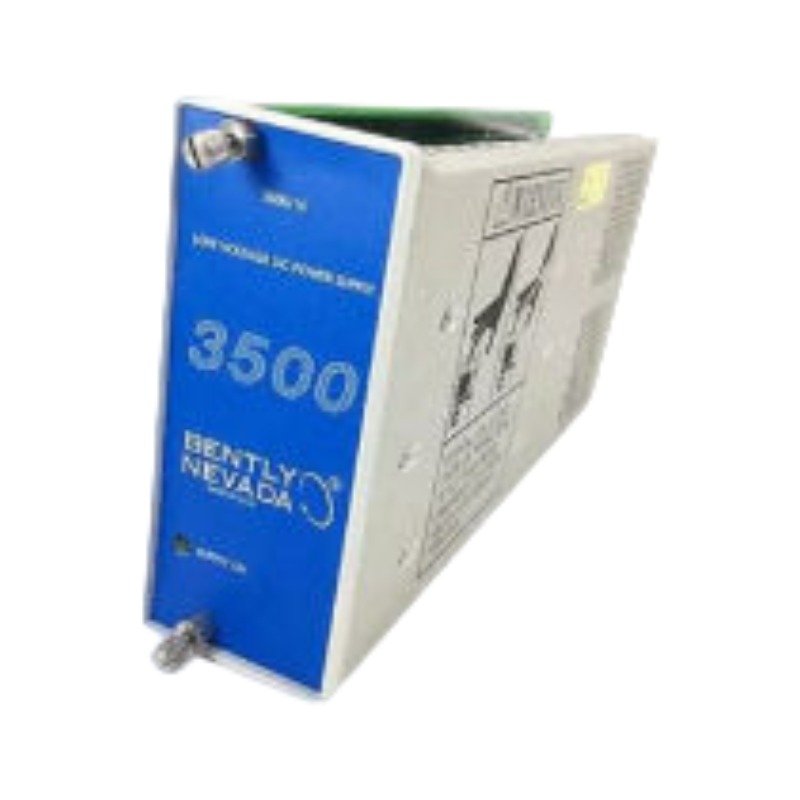

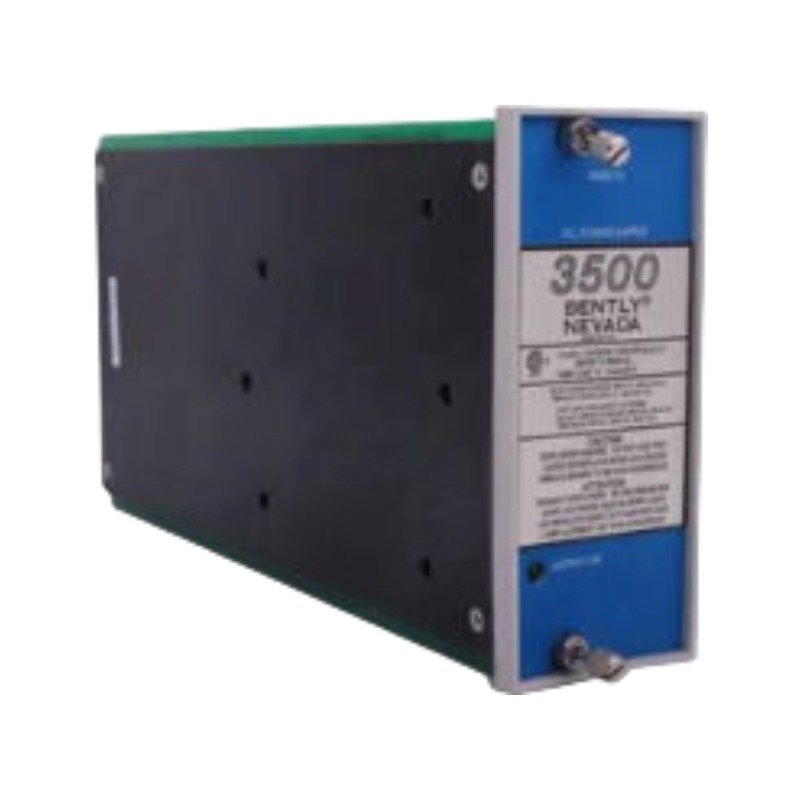

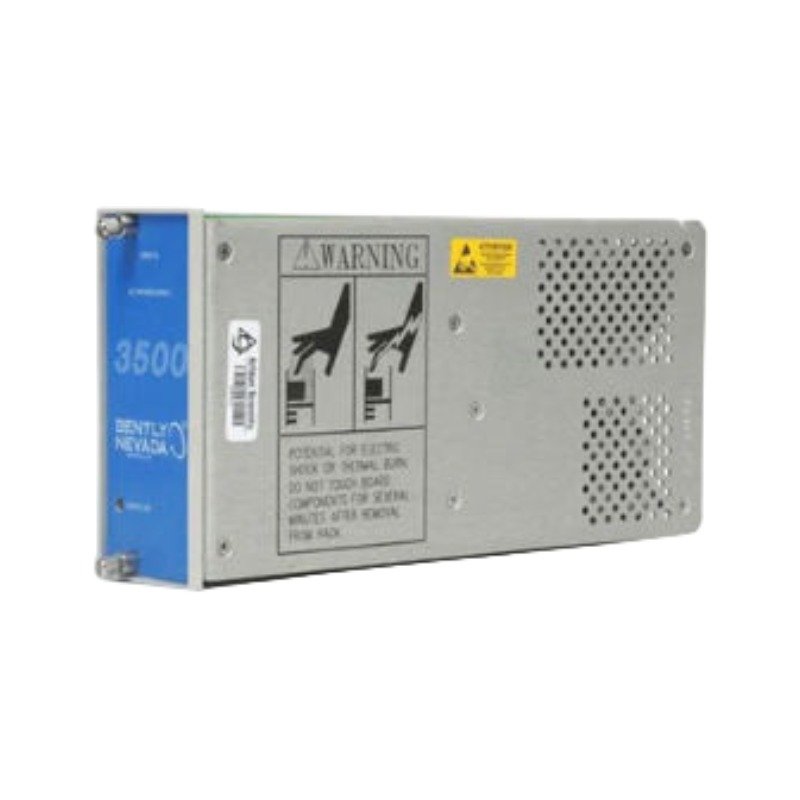

The Bently Nevada 3500/15 106M1079-01 serves as the primary 3500/15 Universal AC Power Supply Module utilized to execute continuous voltage conversion and regulation across Bently Nevada 3500 System Rack platforms. This half-height front-panel card slides into designated slots on the left portion of the monitor chassis. By translating wide-range external AC mains into standardized internal DC operating potentials, the component drives backplane logic and transducer field lines, which enforces deterministic hardware execution under demanding plant conditions.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The Bently Nevada 3500/15 106M1079-01 enforces rigid electrical stability for delicate Turbine Supervisory Instrumentation (TSI) circuits. The underlying high-frequency switching regulator integrates robust electromagnetic interference filters to maintain strict cross-talk suppression between hot-swappable vibration, position, and speed monitoring cards. When routing converted current into the rack backplane, the unit pins its secondary side to the shared chassis frame, preserving precise gap voltage validation against the targeted -10 VDC baseline critical for eddy-current proximity probe accuracy. This internal shielding prevents alternating current ripples from injecting artifacts into high-speed rotor dynamics data, safeguarding precise measurement of sub-synchronous vibration phases and shaft centerline profiles.

Frequently Asked Questions

Q: Can the 106M1079-01 module interface directly with legacy 3500/15 Power Input Modules?

A: No. The 106M1079-01 Universal AC supply is physically and electrically incompatible with legacy High Voltage AC or Low Voltage AC Power Input Modules (PIMs). Plant engineers must pair this card with the corresponding 106M1081-01 Universal AC Power Input Module on the rear backplane interface.

Q: How does the module execute hot-swapping within redundant configurations?

A: Assuming a secondary healthy power module occupies the opposite slot (upper or lower), the internal diode-ORing logic permits direct replacement of a faulted 106M1079-01 without interrupting rack power. The backplane manages the instantaneous load shift within less than 2 microseconds, ensuring zero data drop on active TSI channels.

Field Installation Guidelines

• Chassis Positioning: Insert the 106M1079-01 into the leftmost half-height slots of the 3500 chassis. Slide the card firmly along the internal guide rails until the backplane connectors seat completely, then secure the front-panel captive retention screws to 0.56 Nm (5 in-lb).
• Earthing Continuity: Secure a dedicated, low-impedance copper wire (minimum 4 mm squared cross-section) from the rear PIM terminal ground directly to the main plant instrumentation earth grid. Maintain isolation from heavy motor or drive ground conductors to bypass induced noise loops.
• Field Power Wiring: Strip back the single-phase AC input lines exactly 7 mm, insert them into the rear terminal block pins, and tighten the compression terminal screws to 0.56 Nm (5 in-lb) to eliminate loose contacts near heavy machine vibrations.
