Description

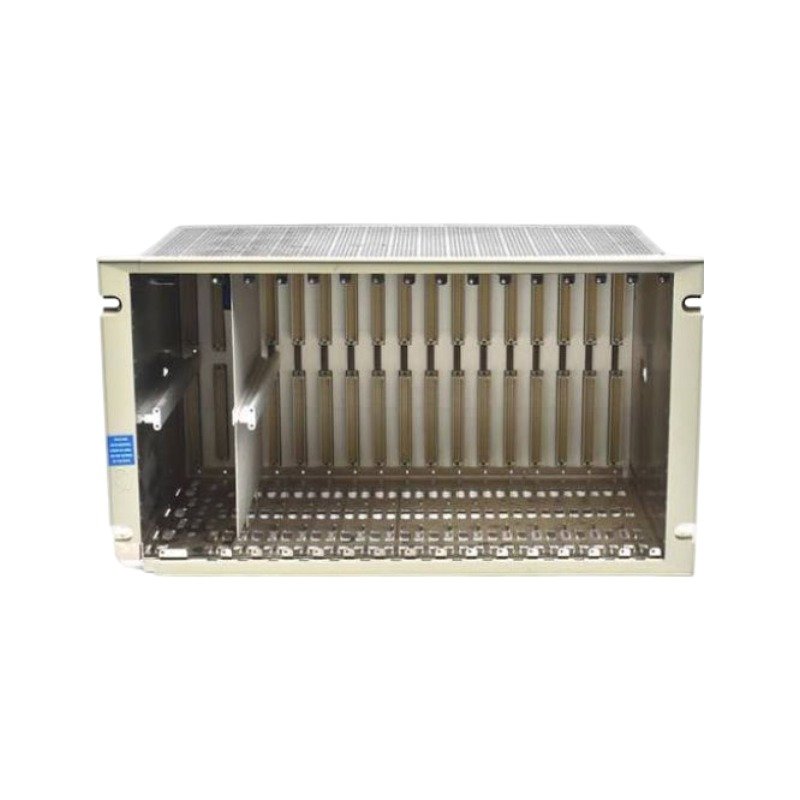

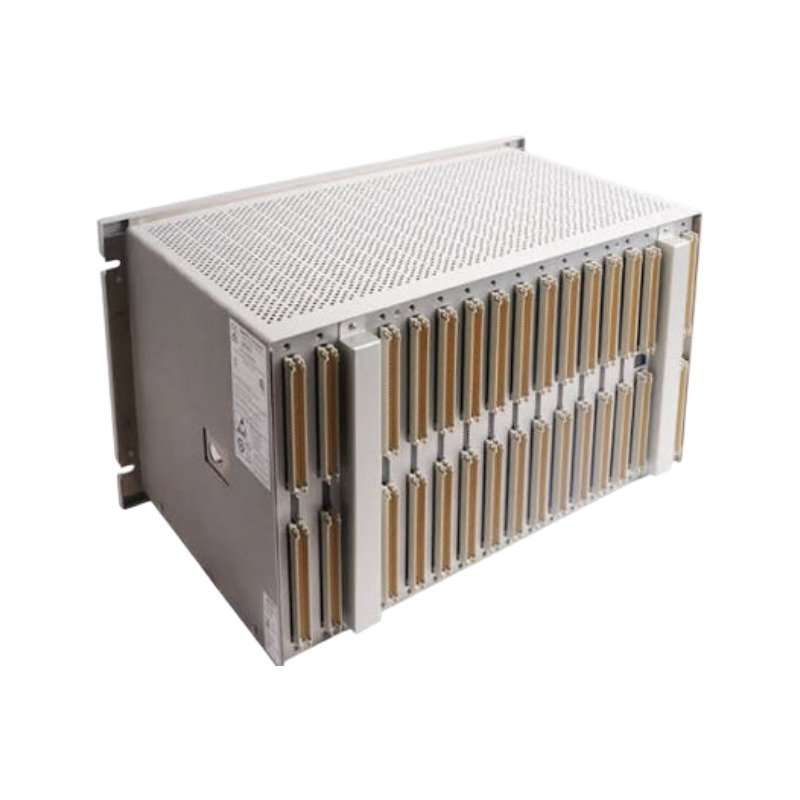

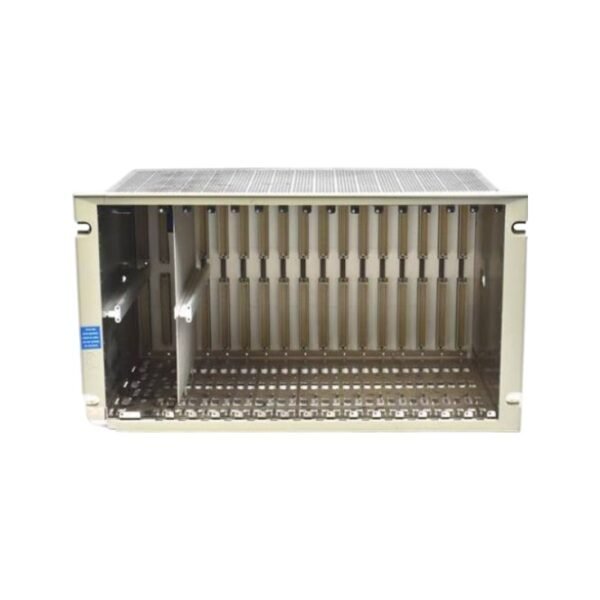

The Bently Nevada 3500/05-02-05-00-00-01, also cataloged as the 3500/05 System Rack, operates as a dedicated hardware component for continuous machinery protection within Bently Nevada 3500 platform configurations. This specific 12-inch Mini-Rack variation houses, powers, and interlinks essential power supplies, transient data interfaces, and monitoring modules. The internal backplane data bus routes multi-channel transducer inputs and operating voltages across seven usable monitor slots, which ensures deterministic execution without external distribution cables.

Suffix Breakdown & Model Matrix

The specific alphanumeric configuration defines the exact structural, positioning, and safety certification criteria for the chassis assembly:

• 3500/05: Base hardware model designating the instrument enclosure and internal backplane unit.
• -02: Specifies the 12-inch Mini-Rack profile containing exactly 7 usable monitor slots plus dedicated power and interface bays.
• -05: Selects the Rack Mount configuration designed for direct insertion into standard 19-inch EIA instrument rails via an integrated adapter panel.
• -00: Standard non-hazardous agency approval layer (no local isolation barriers factory installed).
• -00: Internal reservation code designating standard factory testing parameters.
• -01: ATEX/IECEx Zone 2 and Class I, Division 2 hazardous area compliance rating for explosion-proof installations.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The Bently Nevada 3500/05-02-05-00-00-01 enforces rigid electrical stability for delicate Turbine Supervisory Instrumentation (TSI) circuits. The underlying copper backplane architecture integrates internal shielding to maintain strict cross-talk suppression between high-frequency proximity probe networks. When routing signals from eddy-current probe scaling modules, the rack frame acts as the common reference point, preserving accurate gap voltage validation against the targeted -10 VDC baseline. This structural grounding prevents adjacent slot harmonics from distorting the high-speed rotor dynamics telemetry needed to compute exact shaft centerlines and sub-synchronous vibration vectors. Furthermore, the specialized hazardous area certification allows safe deployment near explosive gas atmospheres without compromising signal fidelity.

Frequently Asked Questions

Q: How does the -01 suffix affect installation compared to standard -00 variants?

A: The -01 suffix designates ATEX/IECEx Zone 2 approvals. While the dimensions remain identical to the standard rack, engineers must install this module inside an enclosure providing at least IP54 protection to comply with hazardous area regulations.

Q: Can an operator hot-swap an interface or monitor module inside this chassis?

A: Yes. The buffered backplane design supports hot-swapping monitoring modules without interrupting data transmission across adjacent slots. However, in Zone 2 environments, personnel must verify that the atmosphere is non-hazardous before extracting modules under power.

Field Installation Guidelines

• Rail Mechanical Alignment: Fasten the 12-inch chassis using all four provided front panel mounting holes directly onto the standard 19-inch EIA rack columns. Ensure the structural gasket rests flat against the bracket to prevent frame twisting.
• Signal Shielding and Earth Grounding: Connect a low-impedance copper wire (minimum 4 mm squared cross-section) from the primary rack ground stud directly to the plant instrument ground grid. Ground all field wiring shields at the corresponding I/O module terminal blocks; do not ground shields at both ends to eliminate induced ground loops.
• Terminal Fastening: Torque all backplane power connections and rear I/O compression screw terminals to exactly 0.56 Nm (5 in-lb) to maintain physical connection integrity under industrial vibration.
