Description

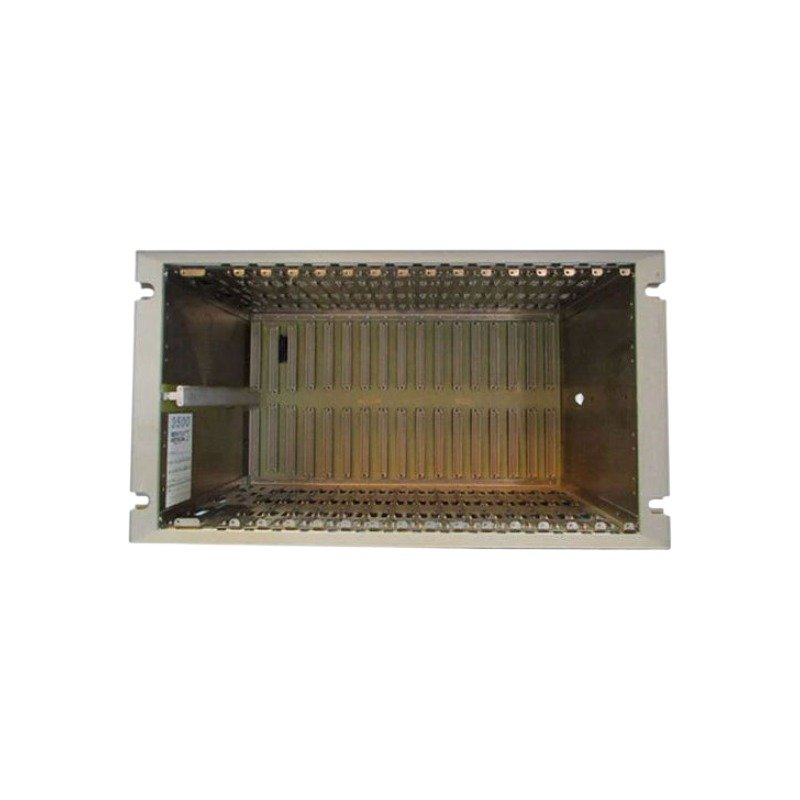

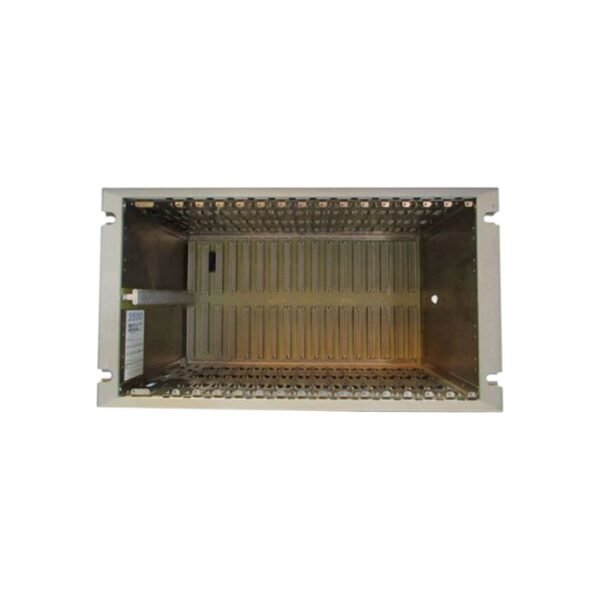

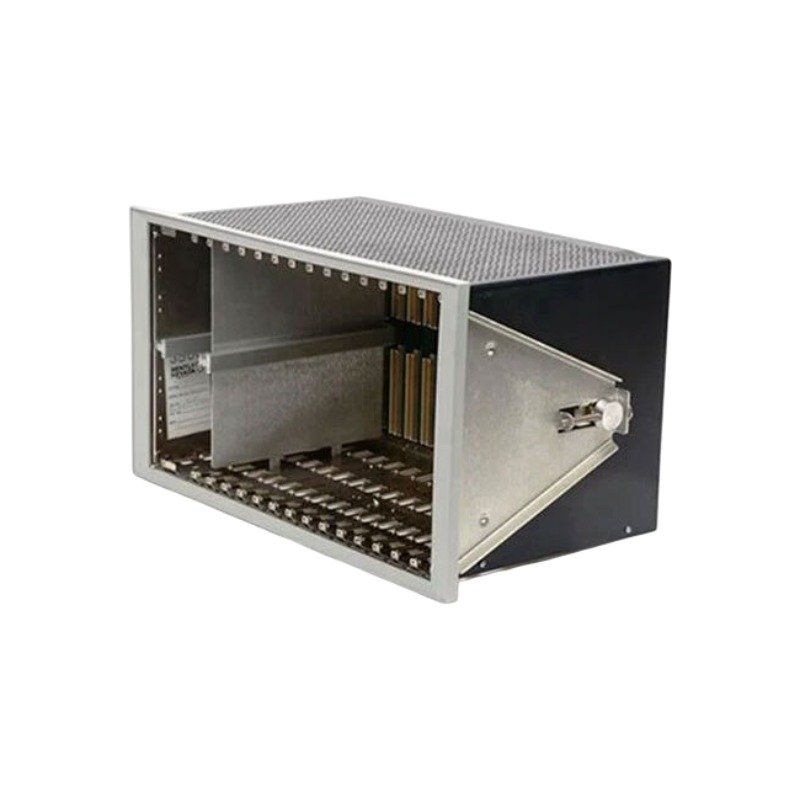

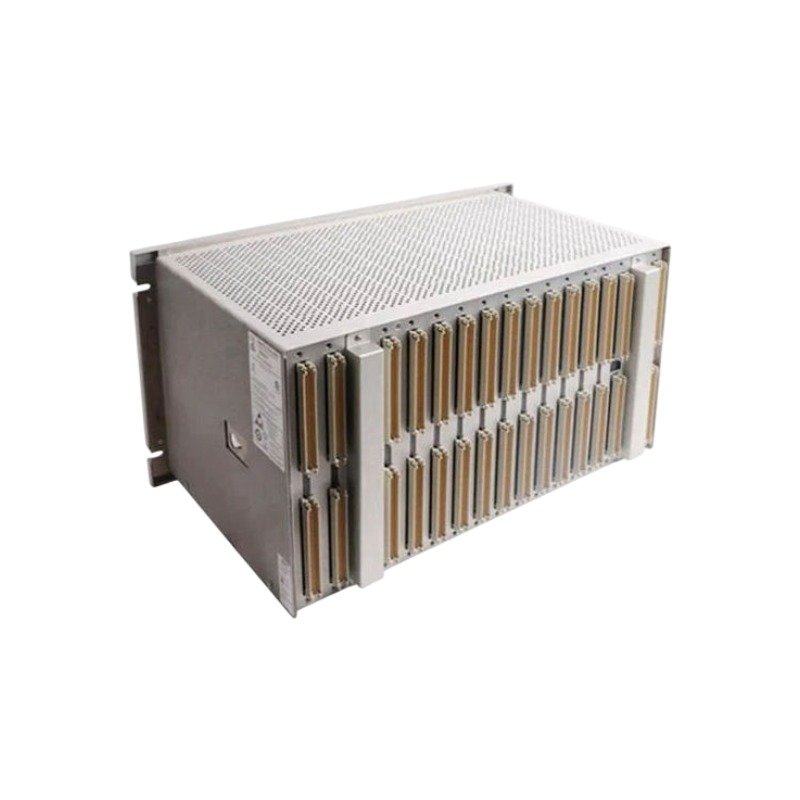

The Bently Nevada 3500/05-01-03-00-00-00, also cataloged as the 3500/05 Instrument Rack, operates as the foundational hardware framework designed to house monitoring modules, power supplies, and internal backplane buses for continuous machinery protection systems complying with API 670 standards.

Hardware Specifications

Rotor Dynamics and TSI Signal Integration

Technicians install monitor modules directly into the 14 available chassis slots, thereby establishing secure backplane communication buses for high-speed vibration and turbine supervisory instrumentation (TSI) data collection. Specifically, the integrated backplane distributes system power and routes transducer signals while maintaining strict gap voltage thresholds (-10 VDC targets) across channel cards. In addition, robust structural shielding and grounding mechanisms minimize electromagnetic interference across internal data highways. Consequently, protection systems execute reliable trip logic and machinery health monitoring while operators avoid signal degradation or communication latency penalties.

Frequently Asked Questions

• Q: How many module slots does the 19-inch 3500/05 instrument rack provide for system configuration?

  A: According to technical specifications, the full-size rack provides 14 available module slots to accommodate power supplies, transient data interfaces, monitor modules, and relay cards.

• Q: What are the operating temperature limits specified for this instrument rack configuration?

  A: Engineers configure the hardware to function within standard operational limits from -20 deg C up to +65 deg C, with an extended operating threshold reaching down to -30 deg C.

Field Installation Guidelines

• Step 1: Secure the 19-inch EIA rack into the industrial panel or cabinet using appropriate mounting hardware, ensuring proper structural support for the 6.15 kg chassis weight.
• Step 2: Connect the main protective earth grounding lug on the rear of the rack to the plant grounding grid before applying primary power.
• Step 3: Insert power supplies, monitor modules, and associated I/O cards into the designated backplane slots, fastening all front panel captive screws to guarantee reliable electrical engagement and mechanical stability.
