Description

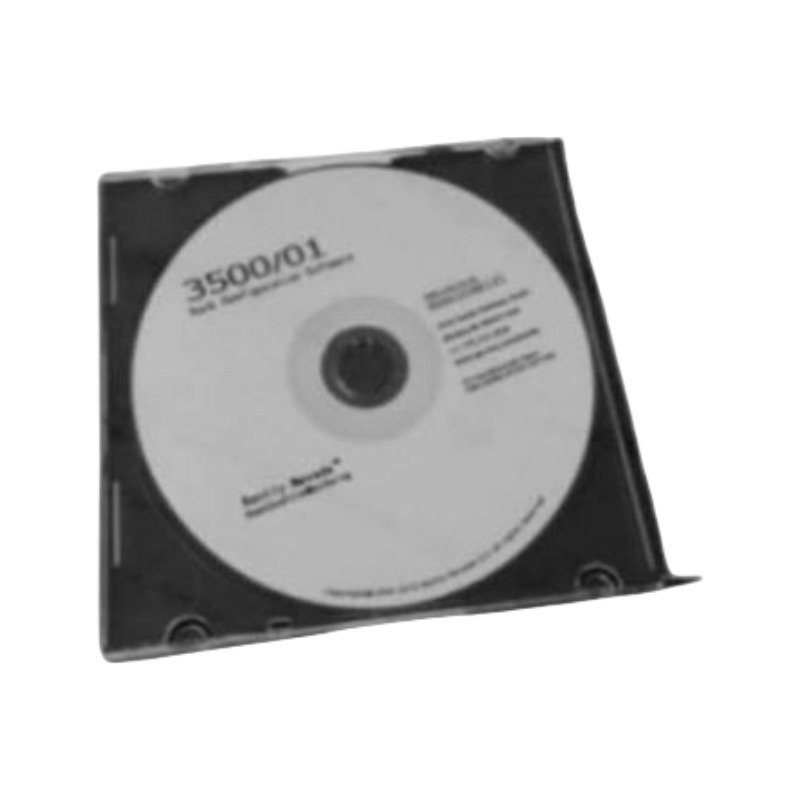

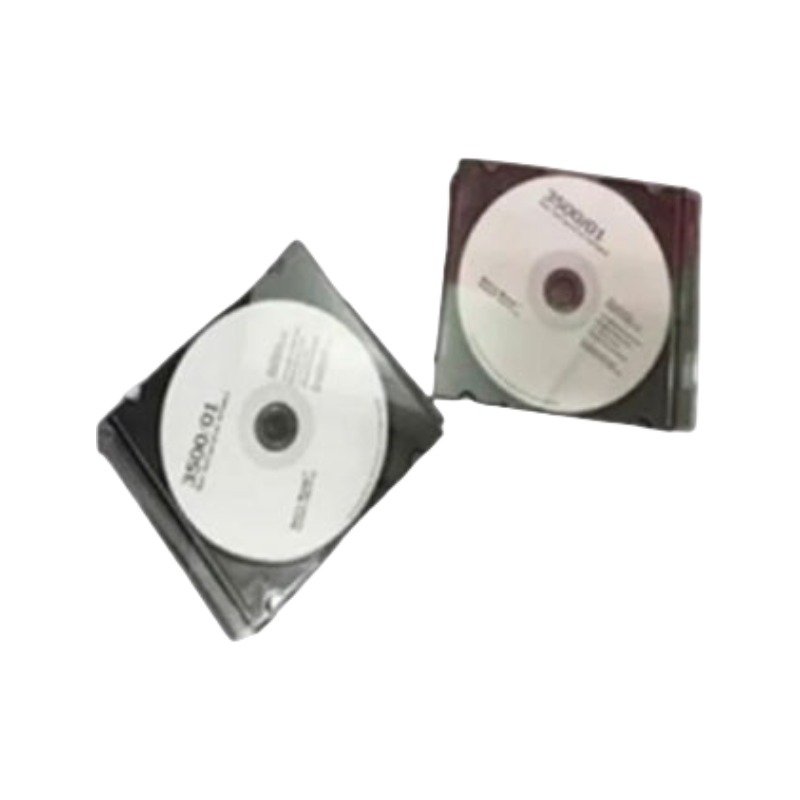

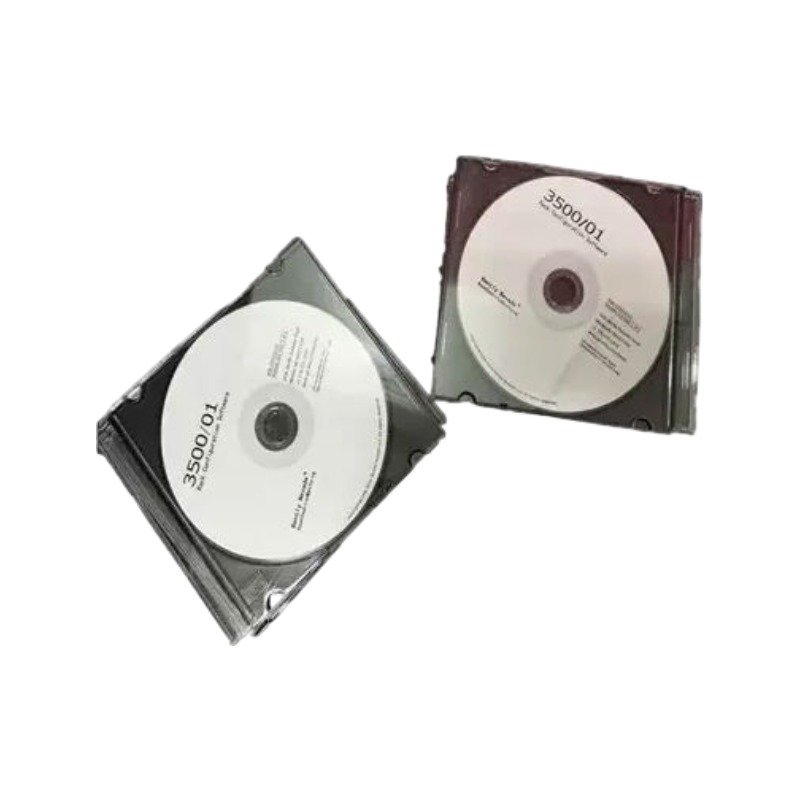

Configured for software-based asset parameter definition in the 3500 Machinery Protection System, the Bently Nevada 3500/01-01 (3500/01 Configuration Software) provides direct physical/electrical execution. This specialized utility enables plant engineers to establish alarm setpoints, configure sensor scale factors, adjust filter options, and program relay logic mapping across the backplane hardware interface. It serves as the primary engineering tool to calibrate individual monitor modules and configure internal channel voting networks via a direct serial or Ethernet link.

Hardware Specifications

Rotor Dynamics and Eddy-Current Probe Scaling

The application manages precise eddy-current probe scaling variables to maintain signal integrity during high-speed rotor dynamics monitoring. It validates the mandatory gap voltage validation (-10 VDC targets) for 3300 XL Proximitor sensors, ensuring that the linear range matches the expected 7.87 V/mm (200 mV/mil) scale factor. Furthermore, the embedded configuration matrix executes cross-talk suppression algorithms by adjusting adjacent channel oscillator frequency channels, which actively prevents mechanical phase errors across dual-thrust or radial vibration pairings.

Frequently Asked Questions

Q: Does the 3500/01-01 software require a continuous connection to the 3500 rack for active machinery protection?

A: No. The software writes configuration files directly to the non-volatile EEPROM memory of the Rack Interface Module and individual monitor cards. Once the download process verifies successfully, you can disconnect the host PC without impacting real-time hardware voting logic, transducer power, or alert/danger relay outputs.

Q: How does the software handle firmware version mismatches during a configuration download?

A: The program runs a pre-download validation routine that compares the compiled configuration file structure with the target module firmware revision. If an incompatibility exists, the software blocks the download execution to prevent register map corruption and triggers a firmware error code in the status register.

Field Installation Guidelines

• Shielding and Grounding Standards: Always terminate instrumentation cable shields at the 3500 rack instrument ground bus bar. Never allow a floating shield condition at the monitor terminal block, as this introduces stray RF interference that can corrupt configuration upload packets.
• Physical Connection Sequence: Connect the communications cable to the front panel of the 3500/20 or 3500/22M module first, before initializing the online communications driver inside the workstation software environment. This sequence protects the interface port from static discharge damage.
• Password Authentication and Security: Engage the hardware security key lock on the front of the 3500 Rack Interface Module before attempting a software write command. The software will reject configuration updates if the physical key switch remains in the “Run” position.
