Description

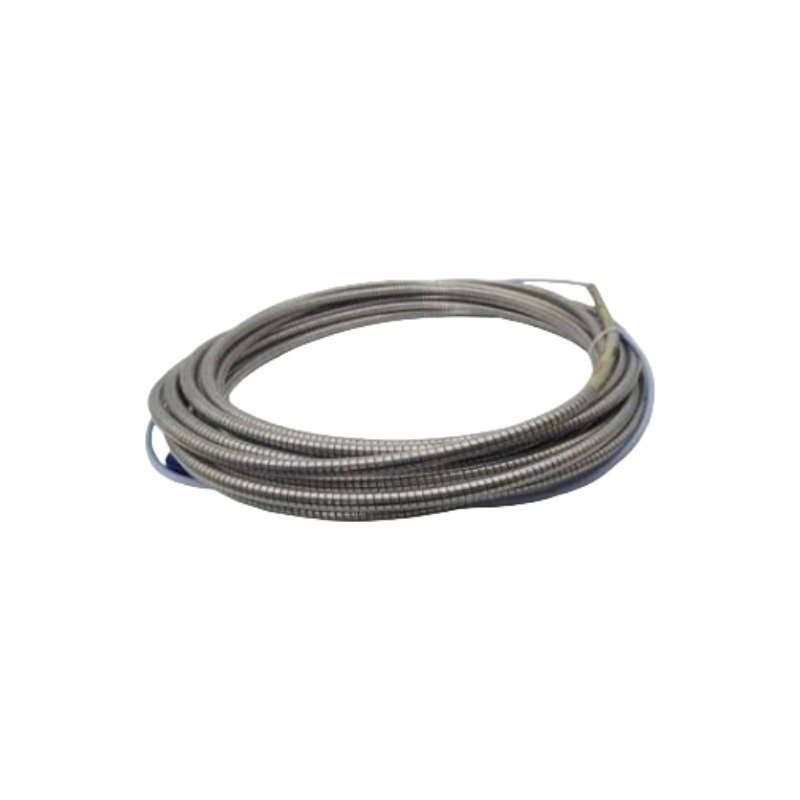

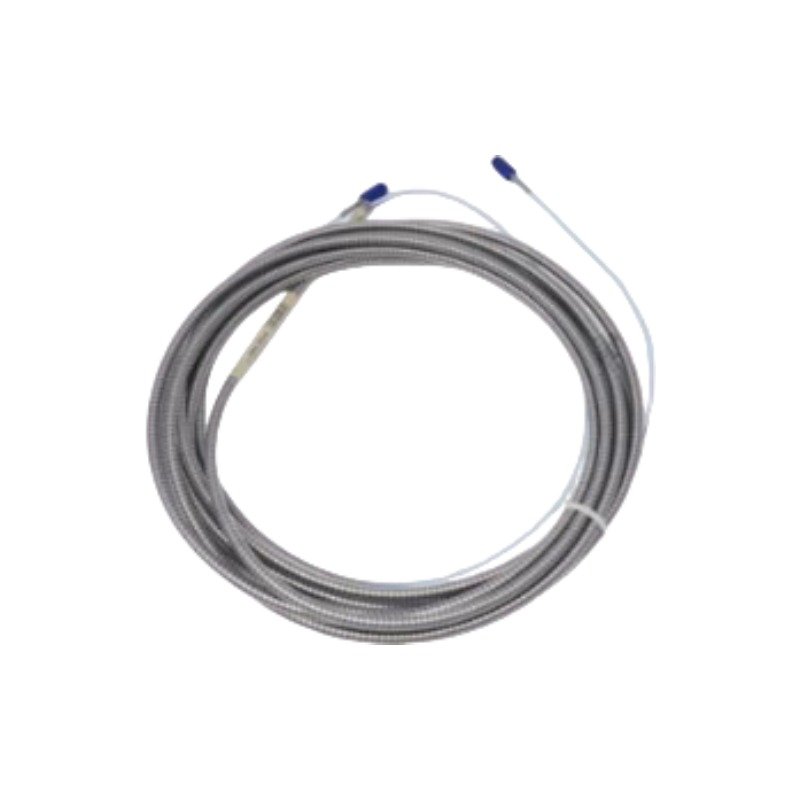

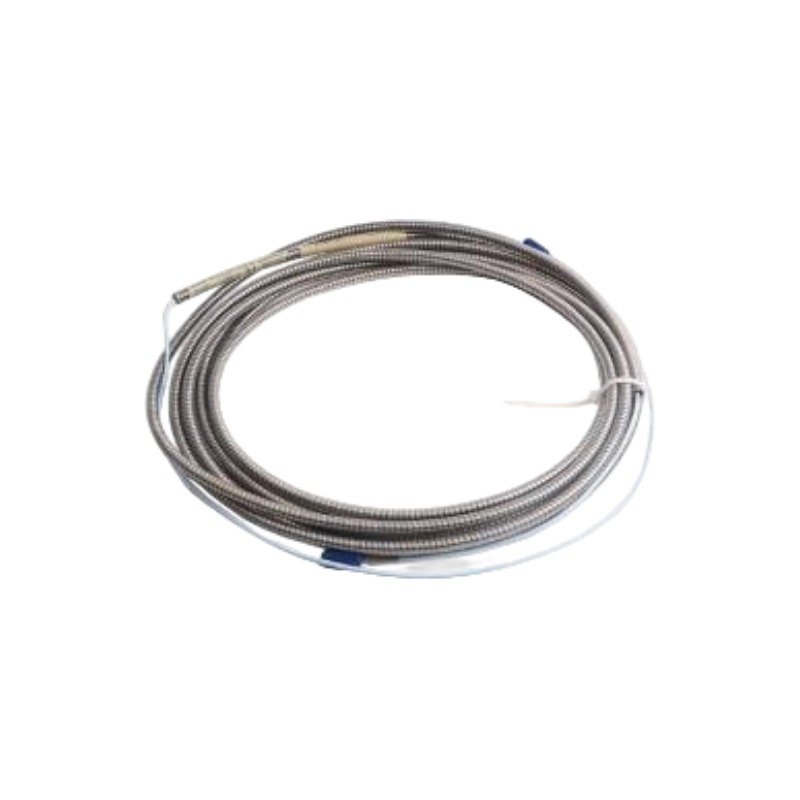

Configured for non-contacting vibration and displacement measurements in 3300 NSv Monitoring System platforms, the Bently Nevada 330930-060-01-CN (330930 Extension Cable) provides direct physical/electrical execution.

Hardware Specifications

Transducer Calibration and Gap Voltage Validation

To establish the linear range centerpoint, field technicians must execute precise gap voltage validation during mechanical commissioning. Specifically, technicians calibrate the sensor to target a nominal -10 VDC gap voltage. Consequently, this voltage tracks the exact physical midpoint of the eddy-current probe scaling matrix. By securing this alignment, the system captures accurate rotor dynamics data and simultaneously maintains high cross-talk suppression when operators deploy multiple 3300 NSv proximity probes in close proximity.

Frequently Asked Questions

Q: How does the total length of this 6.0-meter extension cable affect the overall transducer system calibration?

A: The 3300 NSv transducer system demands a precise total electrical length. Because the system requires a complete 7.0-meter or 9.0-meter loop, technicians must pair this 6.0-meter cable with a matching 1.0-meter or 3.0-meter probe. As a result, this combination maintains the exact eddy-current probe scaling needed for accurate monitoring.

Q: What physical protection advantages does the “01” option provide for industrial environments?

A: The “01” designation indicates that the cable includes a protective stainless steel armor layer over the FEP jacket. Therefore, this structural armor shields the internal coaxial transmission line from aggressive mechanical crush forces, severe abrasion, and potential pinch points encountered inside heavy machinery casings.

Field Installation Guidelines

• Always verify that the combined length of the probe and extension cable matches the specific parameters of the Proximitor Sensor before completing final routing.
• Do not use mechanical tools to tighten the miniature coaxial ClickLoc connectors; instead, rotate the coupling nut by hand until you feel a distinct tactile click.
• Route the armored FEP coaxial cable away from sharp casing edges, and maintain the minimum bend radius to prevent structural fatigue or signal degradation.
• Pull the protective insulation sleeves completely over the outer connector bodies to isolate the interlocking coaxial connections from machine ground loops.
