Description

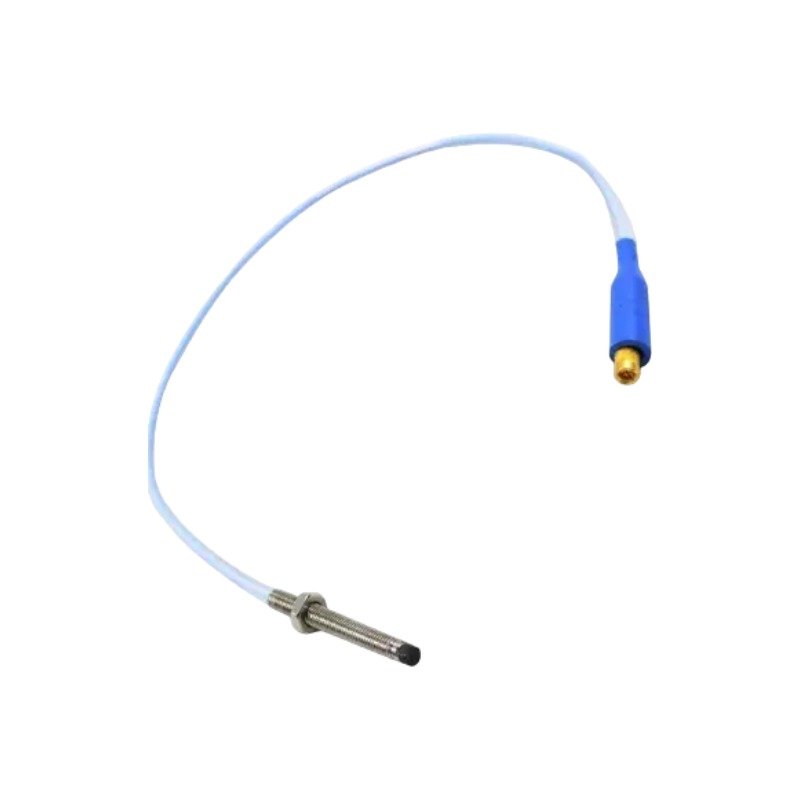

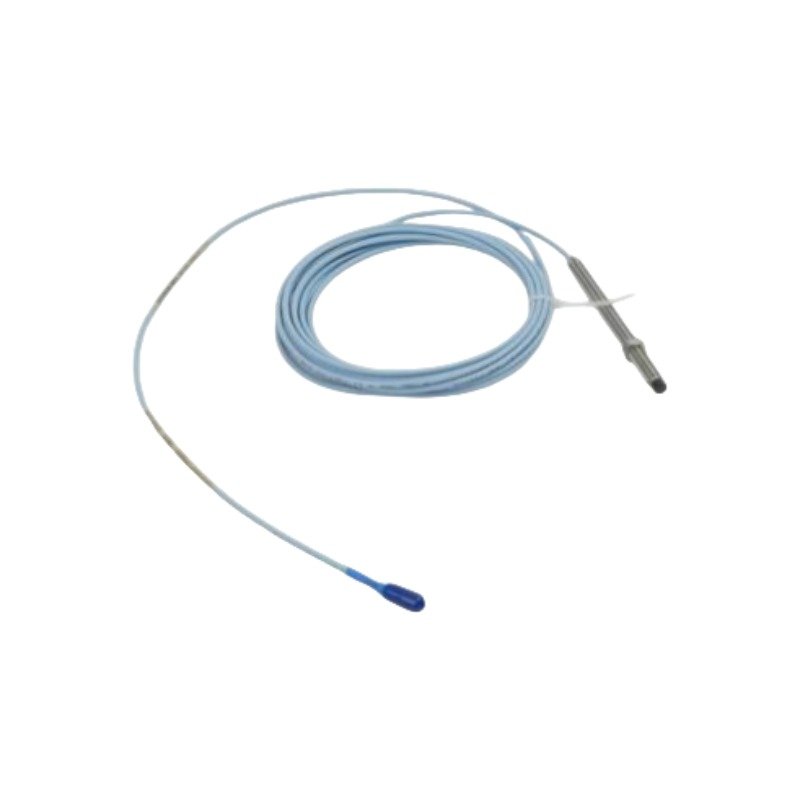

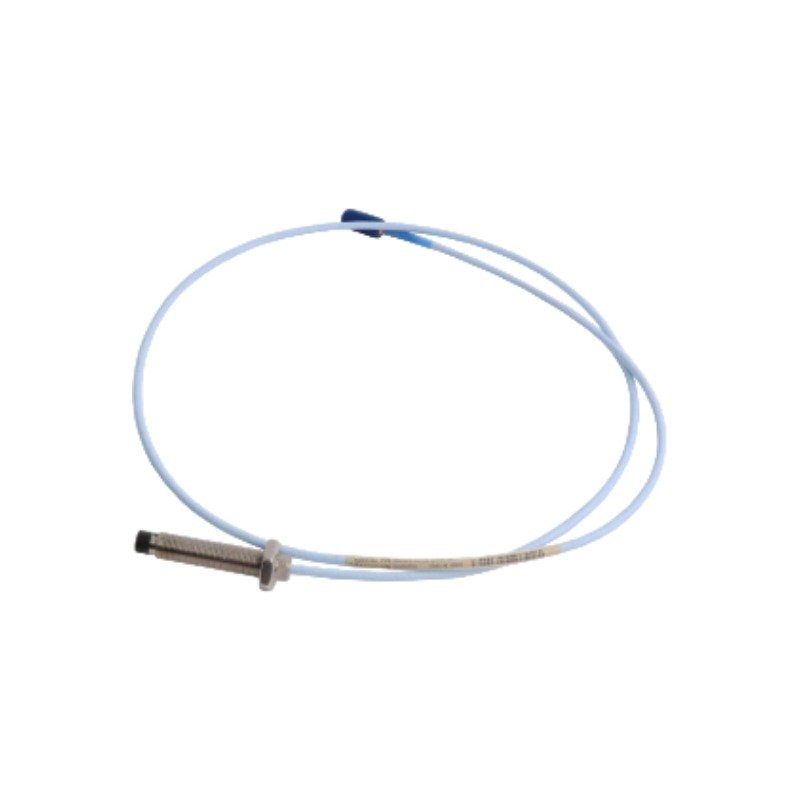

The Bently Nevada 330910-00-07-10-02-00 belongs to the specialized 3300 NSv (Narrow Side-View) Proximity Transducer System family. Engineers deploy this unique probe design in highly confined industrial locations where counterbore constraints, side-view restrictions, or small target profiles prevent the use of standard 5 mm or 8 mm proximity probes.

Suffix Part Number Breakdown

The specific option strings map directly to the following structural specifications:

• 330910: Base Model Number for the 3300 NSv Metric Proximity Probe (M10 x 1 threads).
• 00: 0 mm unthreaded case length.
• 07: 70 mm overall case length.
• 10: 1.0 metre (39 inches) total physical cable length.
• 02: Miniature coaxial ClickLoc connector, standard cable.
• 00: No specialized regional agency approvals required (Standard configuration).

Hardware Specifications

Eddy-Current Signal Conditioning and TSI Characteristics

The hardware executes automated eddy-current probe scaling to output a continuous high-frequency signal directly proportional to the physical gap between the probe tip and the observed conductive target. Because the NSv system optimizes its field for narrow areas, it delivers a precise incremental scale factor of 7.87 V/mm (200 mV/mil). This specialized side-view focus allows the system to monitor tight areas accurately, providing a 1.5 mm (60 mils) linear operating range.

Meanwhile, the high-frequency demodulation circuitry tracks rapid rotor dynamics, capturing critical metrics for radial vibration, axial thrust position, and phase reference (Keyphasor) indication. Furthermore, the probe tip design limits side-view field expansion, which actively prevents target signal distortion from nearby machine structural walls.

Frequently Asked Questions

Q: How does the longer 70 mm case length option alter physical installation depth?

A: The 70 mm case length (-07 option) provides an extended reach compared to shorter variants. This allows technicians to thread the probe deeper through thick bearing housings or machine casings, reaching internal shafts without the need for specialized internal mounting brackets.

Q: Can technicians swap a 3300 NSv probe into a standard 3300 XL 8 mm Proximitor sensor loop?

A: No. The 330910 probe must interface exclusively with a matching 3300 NSv Proximitor Sensor and its corresponding NSv extension cable. Mixing NSv components with standard 8 mm sensors completely alters system capacitance and destroys calibration accuracy.

Field Installation Guidelines

• Thread the metric probe body into the M10 x 1 mounting bracket or machine casing, keeping installation torque within the recommended 5.1 N m (45 in lbf) limit.
• Next, adjust the physical position of the probe tip relative to the target shaft until your monitoring instrument records a center gap voltage of approximately -7 VDC to -10 VDC.
• Subsequently, push the male and female ClickLoc connector halves together firmly until the internal spring mechanism clicks into place.
• After that, wrap self-fusing silicone tape tightly over the exposed coaxial junction to safeguard the raw signal line from moisture and grounding faults against the machine body.
• Finally, route the integrated 1.0-metre coaxial line through a grounded flexible metal conduit, isolating the sensor loop from adjacent high-voltage AC lines to prevent EMI noise.
