Description

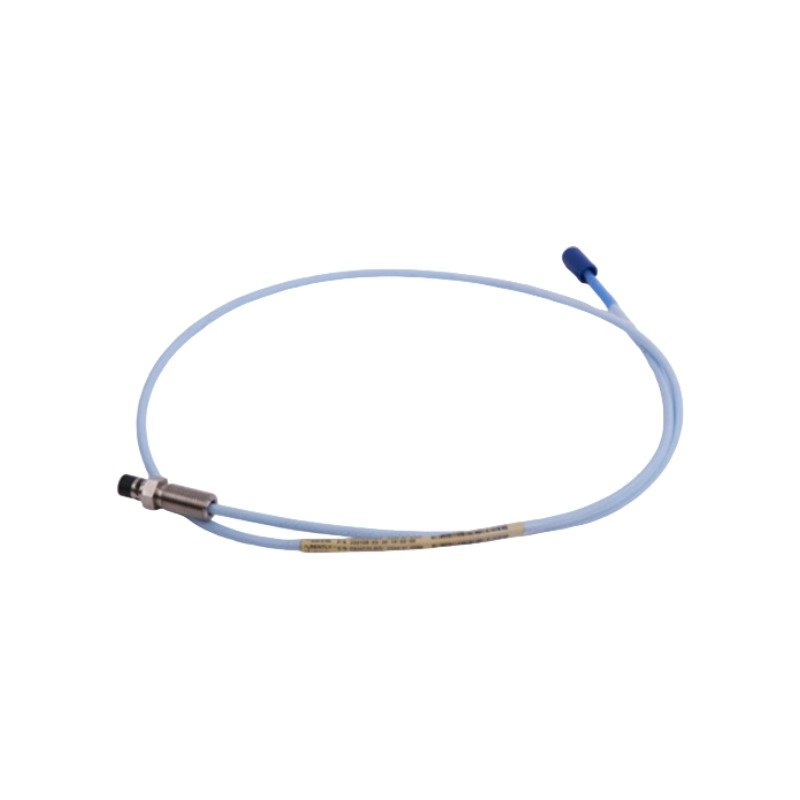

Configured for non-contacting vibration and displacement measurements in 3300 NSv Monitoring System platforms, the Bently Nevada 330907-05-30-10-02-00 (330907 Proximity Transducer) provides direct physical/electrical execution.

Hardware Specifications

Transducer Calibration and Gap Voltage Validation

The hardware requires precise gap voltage validation during mechanical commissioning to establish the linear range centerpoint. Field technicians must calibrate the sensor to target a nominal -10 VDC gap voltage, which corresponds to the physical midpoint of the eddy-current probe scaling matrix. This positioning ensures accurate rotor dynamics acquisition and minimizes the risks associated with signal cross-talk suppression when multiple 3300 NSv proximity probes are installed in tight axial or radial arrangements.

Frequently Asked Questions

Q: What is the significance of the -10 VDC target during the mechanical installation of this probe?

A: The -10 VDC value corresponds to the center of the calibrated linear range for the eddy-current loop. Deviations from this voltage indicate that the physical distance between the probe tip and the target material is misaligned, which can lead to clipped vibration readings or inaccurate DC gap data.

Q: Can this 1.0-meter probe be directly paired with a 5.0-meter or 9.0-meter Proximitor Sensor without an extension cable?

A: No. The total electrical length of the proximity probe and extension cable assembly must match the electrical length specified on the Proximitor Sensor. Mixing a 1.0-meter probe with unmatched system components will degrade the eddy-current probe scaling and void the system calibration accuracy.

Field Installation Guidelines

• Verify that the target surface area meets the minimum diameter requirements to completely contain the eddy-current field generated by the 5.0 mm tip.
• Achieve proper thread engagement during insertion; follow standard industrial practices to prevent cross-threading the probe case into the machine housing.
• Route the coaxial cable using dedicated conduit or tray systems to prevent mechanical pinching, stretching, or sharp bends below the minimum specified radius.
• Ensure the miniature coaxial ClickLoc connectors are clean, dry, and fully locked inside their protective silicone sleeves to maintain electrical isolation and prevent grounding loops.
