Description

Brief Product Description

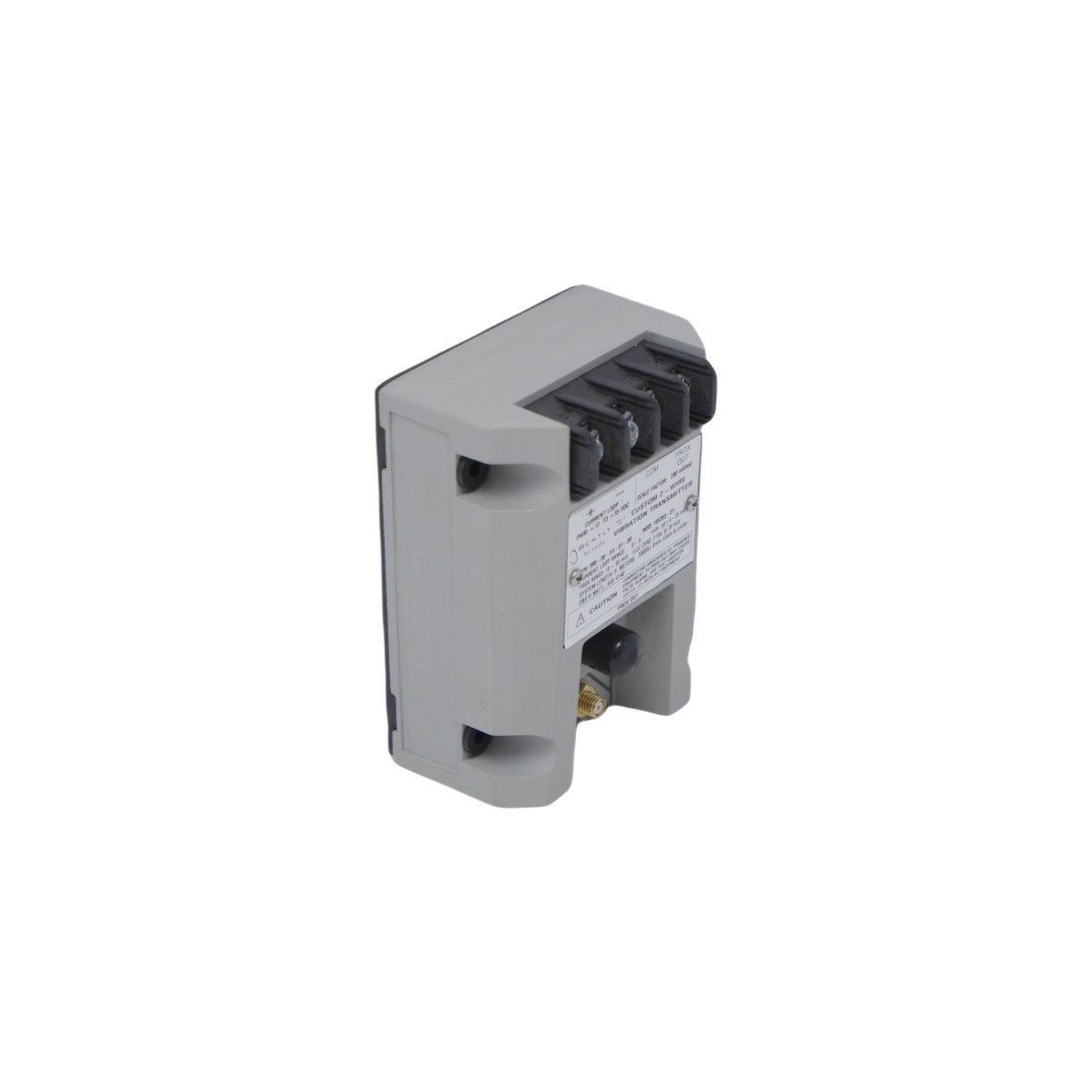

The Bently Nevada 990-08-XX-01-00 MOD:165353-01 is a high-precision 2-wire vibration transmitter designed to provide continuous radial vibration or axial position data directly to a PLC or DCS. This modular transmitter simplifies machinery protection by converting proximity probe signals into a standardized 4-20 mA output.

Streamlined Radial and Axial Vibration Monitoring

The 990-08-XX-01-00 MOD:165353-01 serves as a standalone solution for integrating non-contact proximity sensors into standard industrial control architectures. By processing raw eddy current signals, this transmitter provides an accurate 4-20 mA proportional output that represents vibration levels or shaft position. This direct integration eliminates the need for specialized monitor racks in many applications. Consequently, plants can implement essential machinery protection on smaller balance-of-plant equipment, such as centrifugal pumps and fans, without the overhead of complex monitoring systems.

Intelligent Signal Processing and False Alarm Mitigation

Precision remains the primary focus of the 990-08-XX-01-00’s internal circuitry. The module employs advanced filtering and signal conditioning algorithms to differentiate between genuine mechanical faults and electrical interference or normal operational noise. This high level of discrimination ensures that operators receive reliable alerts for misalignment, unbalance, or bearing wear while significantly reducing the frequency of nuisance alarms. Furthermore, the MOD:165353-01 variant includes specific enhancements for improved signal stability during thermal transients, making it highly effective for monitoring turbines and compressors during critical startup and shutdown phases.

Industrial Durability and Simplified Field Installation

Bently Nevada designed the 990 series to thrive in the hazardous and corrosive conditions typical of petrochemical and power generation facilities. The 990-08-XX-01-00 transmitter features a rugged housing that provides excellent electrical isolation and environmental protection. Its compact footprint (9.8 x 7.3 cm) allows for high-density mounting in local junction boxes near the monitored machinery. Because the unit utilizes a loop-powered 2-wire configuration, installation costs decrease through reduced wiring requirements and simplified power distribution. This design philosophy empowers reliability engineers to expand their predictive maintenance coverage efficiently across the entire facility.

Key Technical Characteristics

• 4-20 mA Loop-Powered Output: Facilitates direct connection to DCS and PLC analog input cards.
• Proximity Probe Interface: Designed to work seamlessly with Bently Nevada 3300 XL 8mm proximity sensors.
• Dynamic Signal Output: Includes a buffered “Prox Out” BNC connector for portable vibration analyzers and diagnostic tools.
• Wide Operating Environment: Engineered for stable performance in high-humidity and high-vibration industrial zones.
• Hazardous Area Certifications: Built to meet stringent safety standards for explosive and volatile atmospheres.
• 2-Wire Configuration: Minimizes wiring complexity and installation time by combining power and signal.
