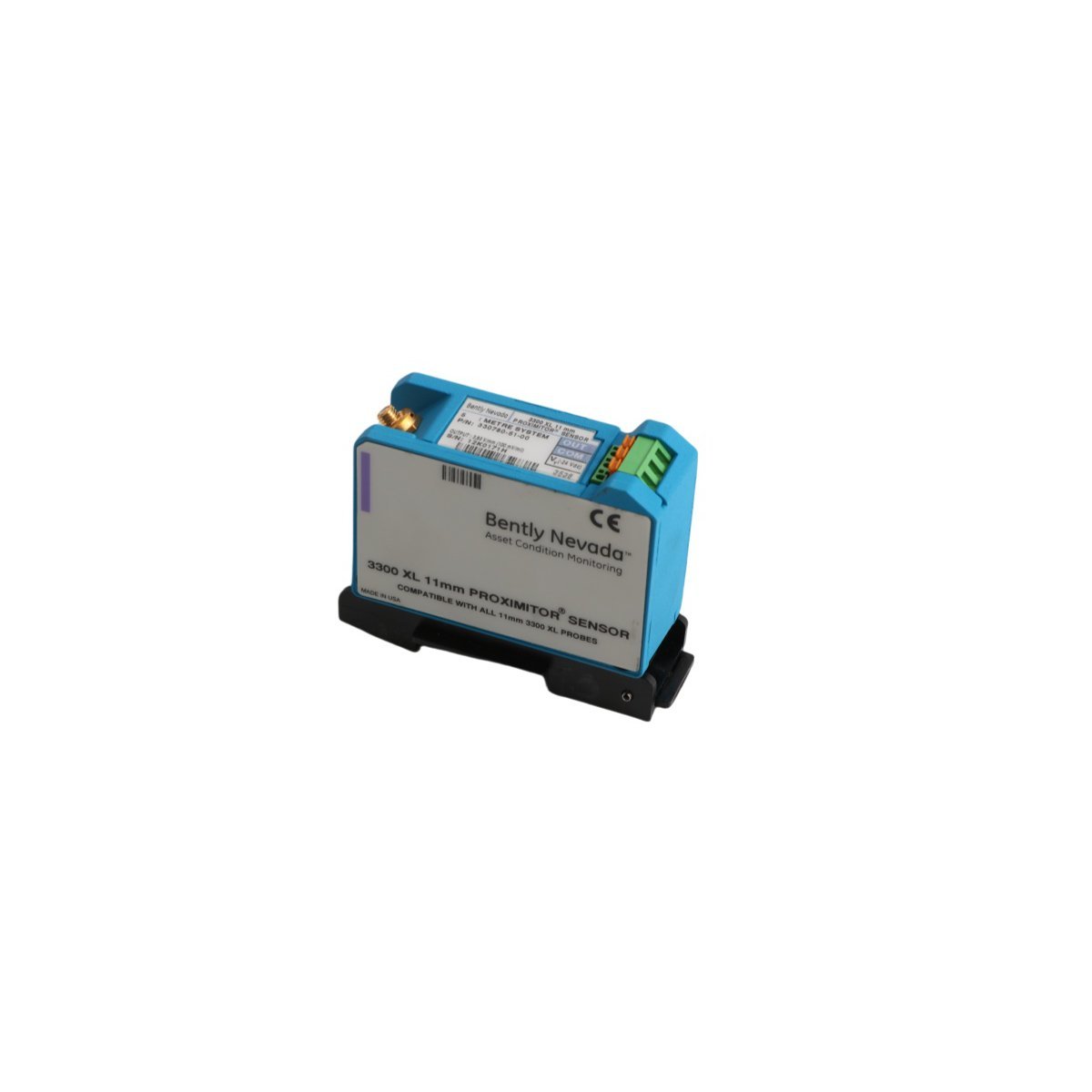

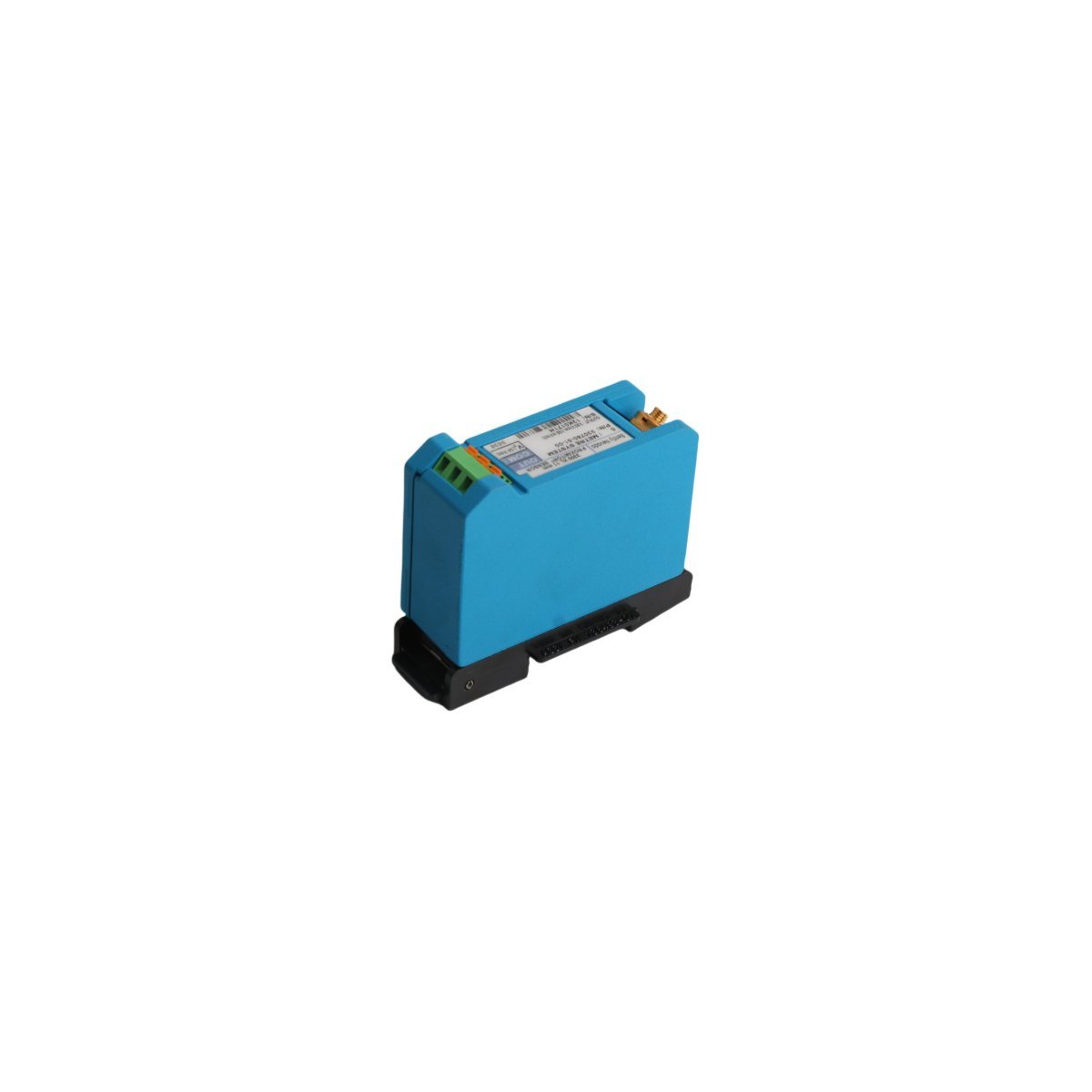

Bently Nevada 330780-51-00 3300 XL 11mm Proximitor Sensor

The Bently Nevada 330780-51-00 is a specialized signal conditioning unit engineered for the 3300 XL 11mm Proximity Transducer System. This Proximitor sensor serves as the primary interface between an eddy current probe and the machinery monitoring system, converting the radio frequency signal into a linear voltage output proportional to the gap between the probe tip and the target. This specific 11mm system is designed for applications where a standard 8mm probe lacks the necessary linear range, particularly in large-scale rotating assets.

Advanced Signal Processing and Industrial Resilience

This Proximitor sensor provides a stable and accurate measurement of radial vibration and axial position, even in the presence of severe industrial interference. Specifically, the 330780-51-00 is optimized for a 5.0-meter total system length, ensuring that the electrical impedance of the probe and extension cable are perfectly matched for high-fidelity data acquisition. Furthermore, the unit is housed in a robust enclosure that provides substantial immunity to radio frequency interference (RFI) and electromagnetic interference (EMI). In addition, the sensor’s design allows for high-density DIN rail mounting, facilitating streamlined installation within local junction boxes or machine-side enclosures.

Technical Specification Matrix

Asset Protection and Integration

By providing continuous, real-time data to Bently Nevada 3500 monitoring racks or plant DCS systems, the 330780-51-00 enables a proactive approach to machinery health. As a result, maintenance teams can identify shaft misalignments, bearing instabilities, or rotor imbalances before they lead to catastrophic equipment failure. Moreover, the 11mm system’s extended linear range makes it the preferred choice for thrust position monitoring on large steam turbines and compressors where significant axial movement is expected. Therefore, this sensor is a critical component for maximizing the operational uptime and safety of high-value industrial assets.

FAQ

What does the 5.0-meter system length option signify?

The “51” in the 330780-51-00 model number indicates calibration for a total electrical length of 5.0 meters. Specifically, this represents the sum of the probe cable and the extension cable. Accordingly, you must ensure your physical cabling matches this length exactly to maintain the stated scale factor and measurement linearity.

Is this Proximitor compatible with standard 8mm probes?

No, this unit is specifically tuned for the electrical characteristics of the 11mm probe. Furthermore, using it with an 8mm probe will result in significant calibration errors and unreliable vibration data. Consequently, you should always match the Proximitor diameter to the probe tip diameter being used in the field.

How does the sensor handle moisture and dust in the environment?

While the Proximitor itself is designed for industrial durability, it should be installed within a protective housing if located in an area with direct exposure to liquid spray. In addition, the connectors feature a secure ClickLoc design that helps prevent the ingress of contaminants. Therefore, when properly mounted, the system provides long-term reliability in humid or dusty processing plants.

What is the standard output signal for this device?

The 330780-51-00 provides a negative voltage output where the DC component represents the gap and the AC component represents vibration. Specifically, it outputs a standard 100 mV/mil signal. Ultimately, if a 4-20mA signal is required for your PLC, you must interface this sensor with a compatible Bently Nevada monitor or signal converter.
