Description

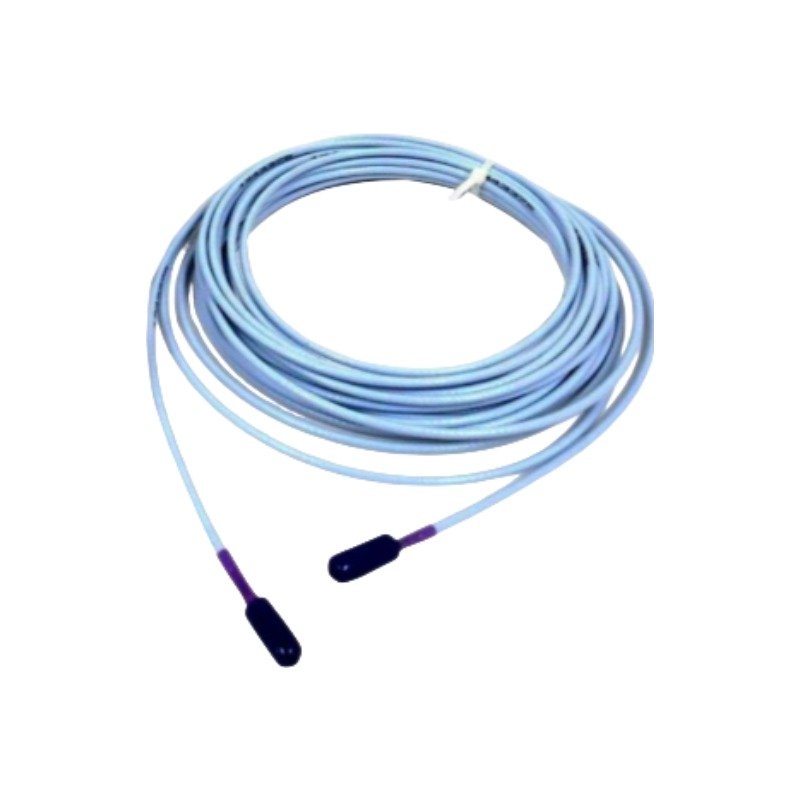

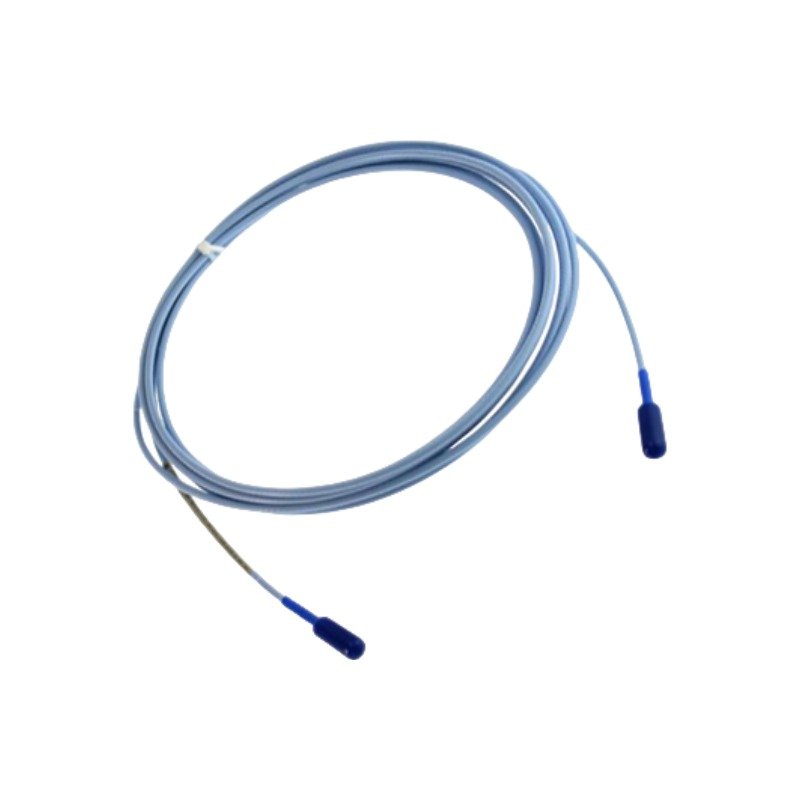

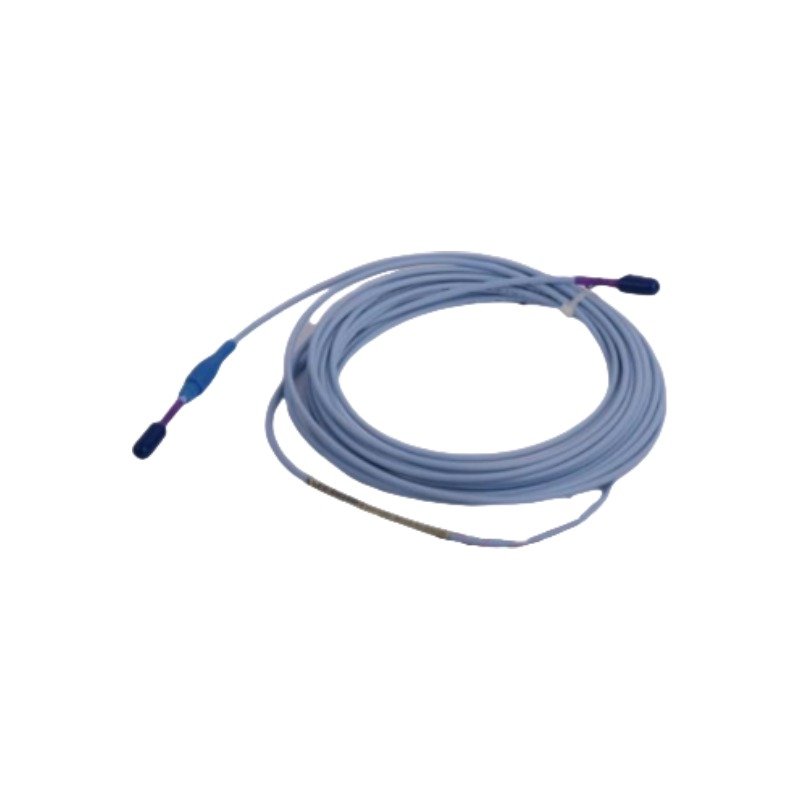

The Bently Nevada 330730-040-03-00, also cataloged as the 330730 Extension Cable, operates as a dedicated hardware component for high-frequency RF signal transmission within 3300 XL 11 mm Proximity Transducer System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This hardware configuration directly drives exact eddy-current probe scaling within rotating machinery monitoring frameworks. Specifically, the balanced coaxial design maintains precise structural and electrical tuning, which successfully eliminates cross-talk suppression failures when technicians route the line through high-density conduit runs. Furthermore, the physical impedance matching provides instantaneous gap voltage validation. Consequently, the cable maintains stable targeting around -10 VDC operational centers and prevents the signal attenuation that typically degrades the standard 3.94 V/mm (100 mV/mil) scale factor required to evaluate rotor dynamics.

Frequently Asked Questions

Q: What does the -03 option signify in the 330730-040-03-00 hardware part matrix?

A: The -03 option designation indicates that the factory builds the assembly with standard fluid-resistant armor wrapped around the coaxial core, along with pre-installed connector protectors on the terminals. Therefore, it provides robust mechanical defense without requiring field-installed conduit sleeves.

Q: How does the external protective armor modify the electrical performance of the transmission line?

A: The outer mechanical armor layer isolates the inner conductor lines from physical crush risks but does not change the core electrical physics. Thus, the inner core maintains identical 75 ohm system impedance matching across the transmission spectrum.

Field Installation Guidelines

• Connector Engagement: Technicians must fully engage the connectors via the ClickLoc design interface. Finger-tighten the coupling mechanism until a physical click occurs, and avoid mechanical pliers to protect the internal 75 ohm contacts.
• Routing Radii: Always route the armored physical cable path with a minimum bend radius of 31.8 mm (1.25 in). Otherwise, over-bending distorts the external steel interlocks and risks crimping the internal coaxial line.
• Ground Isolation: Verify that the pre-installed connector protectors completely isolate the ClickLoc junction. This step prevents physical metal-to-metal contact with the machine housing and halts ground loops.
