Description

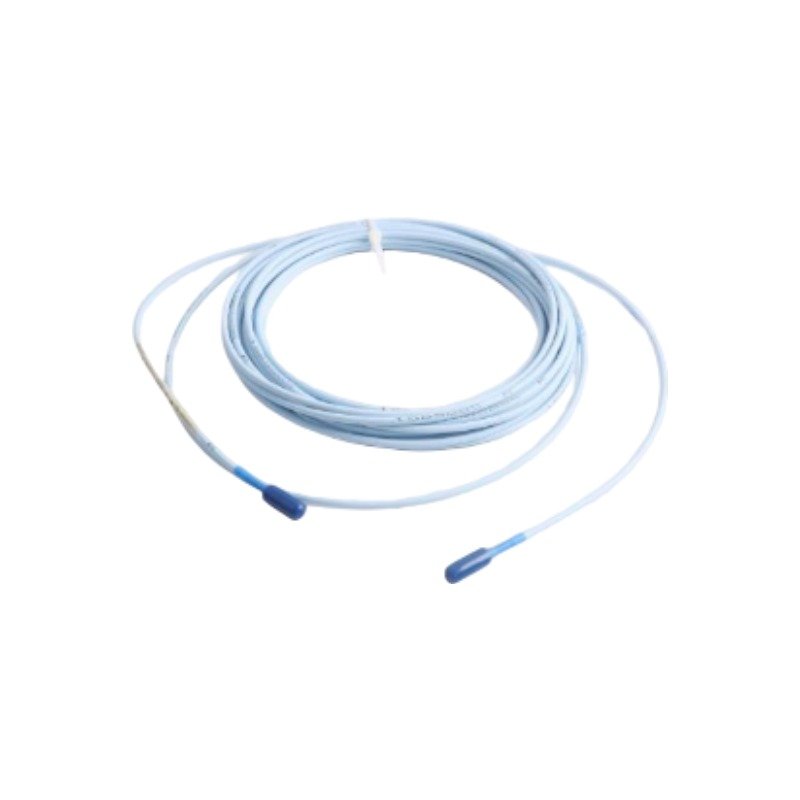

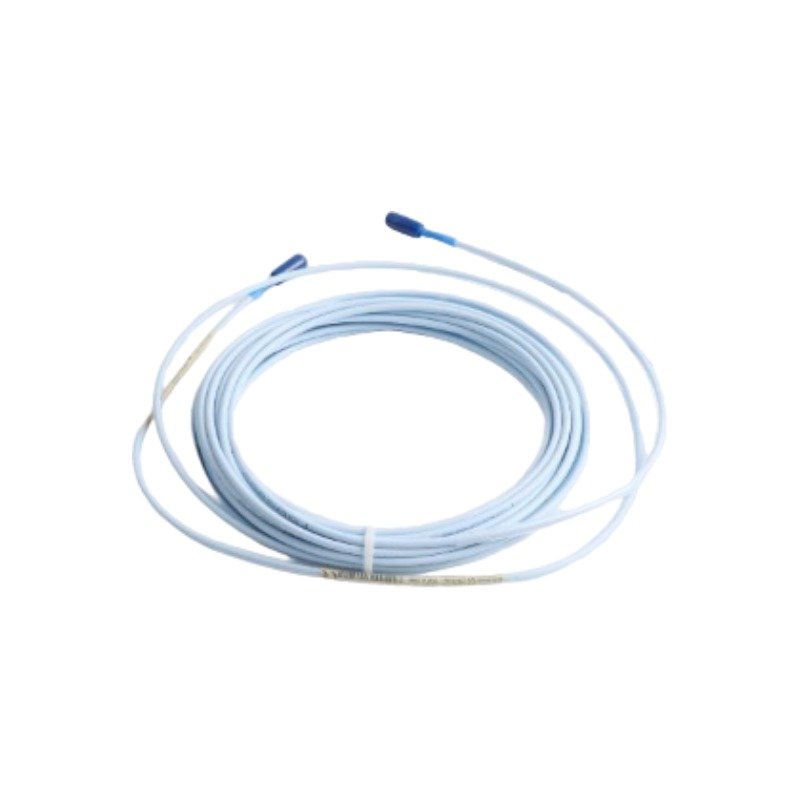

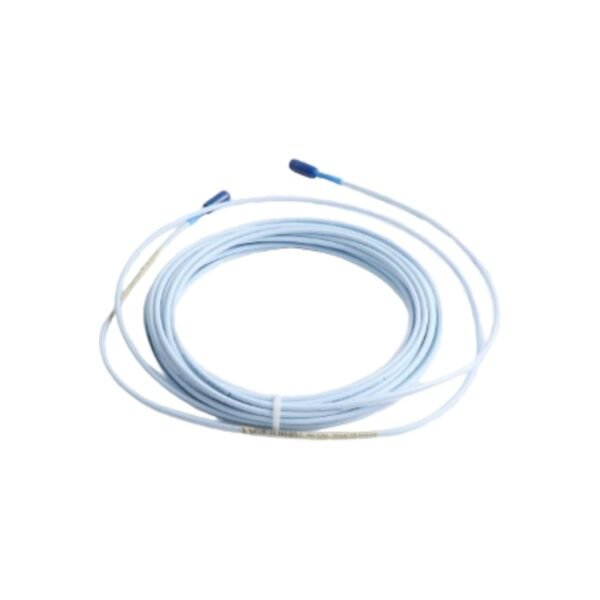

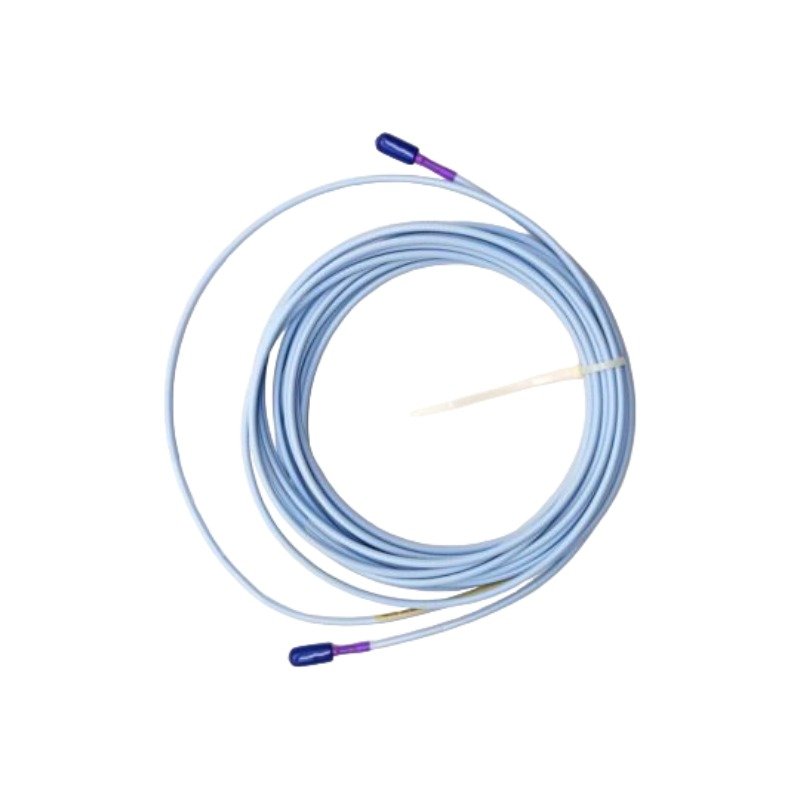

The Bently Nevada 330730-080-00-00, also cataloged as the 330730 Extension Cable, serves as the primary 330730 Extension Cable utilized to execute high-frequency RF signal transmission across 3300 XL 11 mm Proximity Transducer System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This hardware configuration directly drives exact eddy-current probe scaling within rotating machinery monitoring frameworks. Specifically, the balanced coaxial design maintains precise structural and electrical tuning, which successfully eliminates cross-talk suppression failures when technicians route the line through high-density conduit runs. Furthermore, the physical impedance matching provides instantaneous gap voltage validation. Consequently, the cable maintains stable targeting around -10 VDC operational centers and prevents the signal attenuation that typically degrades the standard 3.94 V/mm (100 mV/mil) scale factor required to evaluate rotor dynamics.

Frequently Asked Questions

Q: How does the longer 8.0 meters length of the 330730-080-00-00 modify the selection of the system probe and sensor?

A: The 8.0 meters extension cable matches specifically with a 1.0 meter proximity probe to form a calibrated 9.0 meters total system length. Therefore, pairing this cable with a 2.0 meters probe will disrupt the system calibration and introduce measurement errors.

Q: Can installation teams shorten the 330730-080-00-00 cable in the field if the routing run is less than 8.0 meters?

A: No, field trimming is prohibited. Cutting the cable permanently shifts the physical capacitance and inductance parameters, which directly alters the calibrated eddy-current probe scaling and ruins the accuracy of the TSI loop.

Field Installation Guidelines

• Connector Engagement: Technicians must fully engage the connectors via the ClickLoc design interface. Finger-tighten the coupling mechanism until a physical click occurs, and avoid mechanical pliers to protect the internal 75 ohm contacts.
• Routing Radii: Always route the physical cable path with a minimum bend radius of 25.4 mm (1.0 in). Otherwise, tight bends degrade the internal coaxial shielding and cause signal reflections.
• Ground Isolation: Apply silicone tape or standard Bently Nevada connector protectors directly over the ClickLoc junction. This isolation prevents physical contact with the machine housing and stops ground loops.
