Description

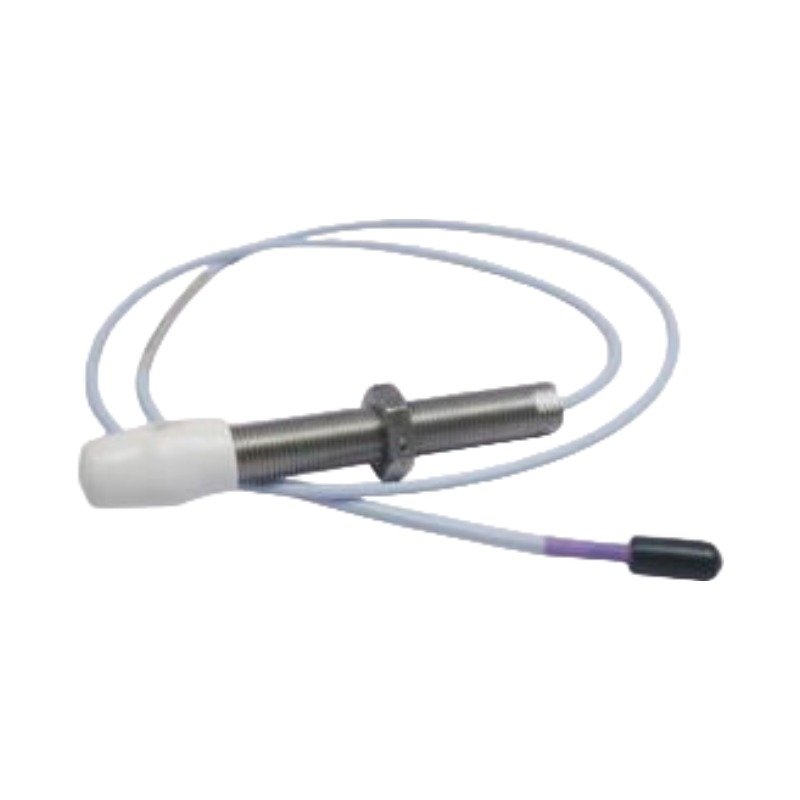

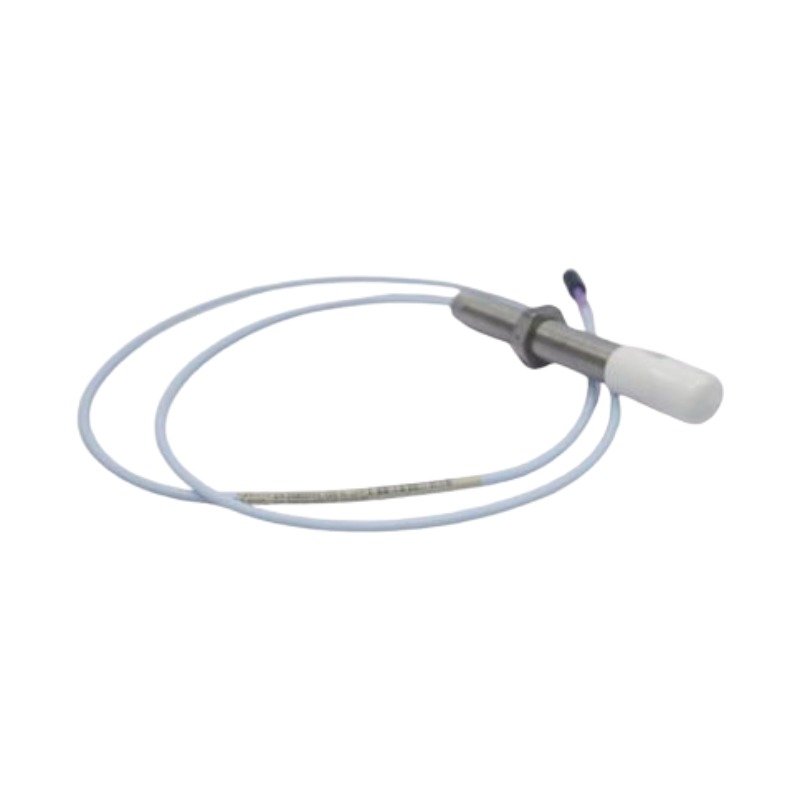

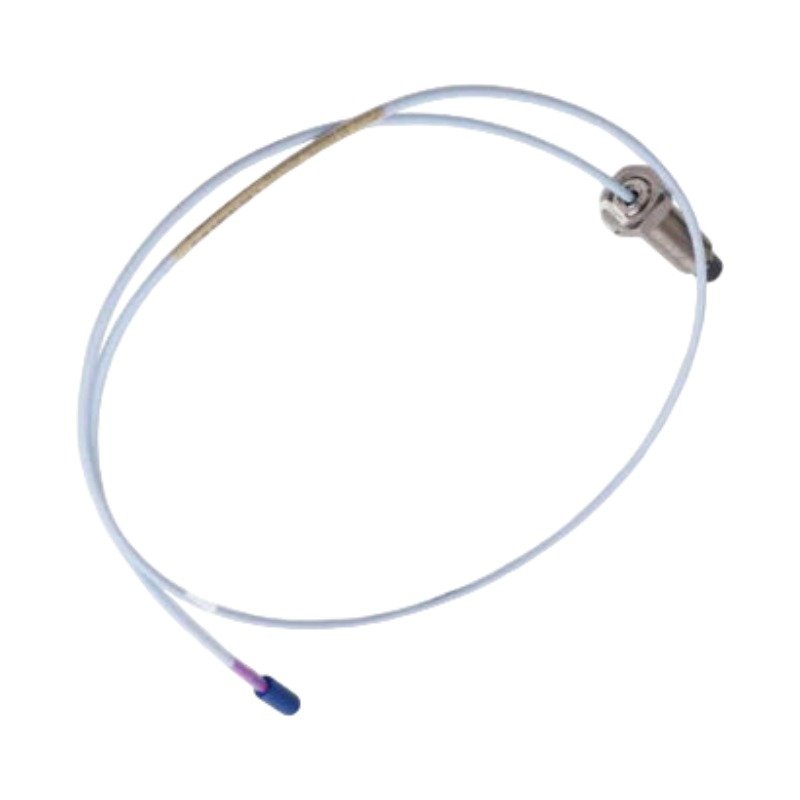

The Bently Nevada 330709-000-060-50-02-05 serves as the primary 330709 3300 XL 11mm Proximity Probe utilized to execute non-contacting shaft displacement and axial position measurements across Bently Nevada machinery protection platforms. The device translates the physical gap separating the probe tip from the rotating target surface into a proportional electrical variation.

Suffix Breakdown & Model Matrix

The specific alphanumeric configuration breakdown of the 330709-000-060-50-02-05 matrix defines the physical characteristics of the hardware:

• 330709: Designates the base 3300 XL 11mm Proximity Probe configuration with metric threads (M14 x 1.5).
• 000: Specifies an unthreaded barrel length option of 0 mm.
• 060: Establishes a total threaded case length option of 60 mm.
• 50: Sets a total cable length option of 5.0 meters (16.4 feet).
• 02: Equips the module with a miniature coaxial ClickLoc connector and standard unarmored FEP cable.
• 05: Mandates multiple international hazardous area certifications for explosive atmospheres.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 330709-000-060-50-02-05 utilizes extended eddy-current probe scaling to establish an output of 3.94 V/mm (100 mV/mil), enabling a wider linear window than standard 8mm assemblies. Prior to active operations, technicians establish an electrical baseline via gap voltage validation, targeting a nominal -10 VDC output. Consequently, this extended measurement window monitors slow-moving or large-amplitude rotor dynamics concurrently with mechanical thermal growth. The large probe tip minimizes cross-talk suppression failures when tracking shaft position variations or counterbore transitions on large steam turbine shafts.

Frequently Asked Questions

Q: Why does this specific variant require a 5.0 meter total cable length selection?

A: The integrated 5.0 meter cable connects directly to a matching 3300 XL 11mm Proximitor Sensor without an intermediate extension cable, thereby eliminating a physical mating connection inside the machine housing.

Q: Can an 11mm probe operate into an existing 8mm Proximitor loop infrastructure?

A: No. The internal electronic parameters of the Proximitor must match the 11mm tip diameter. Connecting an 11mm probe to an 8mm Proximitor disrupts the inductive scale factor, producing catastrophic measurement errors.

Field Installation Guidelines

• Thread Alignment: Thread the M14 x 1.5 probe casing directly into the bracket interface manually. Ensure zero thread binding occurs prior to using a mechanical wrench.
• Gap Voltage Target: Advance the probe toward the target surface while monitoring the Proximitor output terminals with a voltmeter. Lock the assembly when the meter stabilizes at the required -10.0 VDC gap verification mark.
• Connector Contamination Control: Join the miniature coaxial ClickLoc interfaces until a tactile engagement is confirmed. Subsequently, slide the approved connector protection sleeve over the interface to prevent ingress from lube oil or process water.
