Description

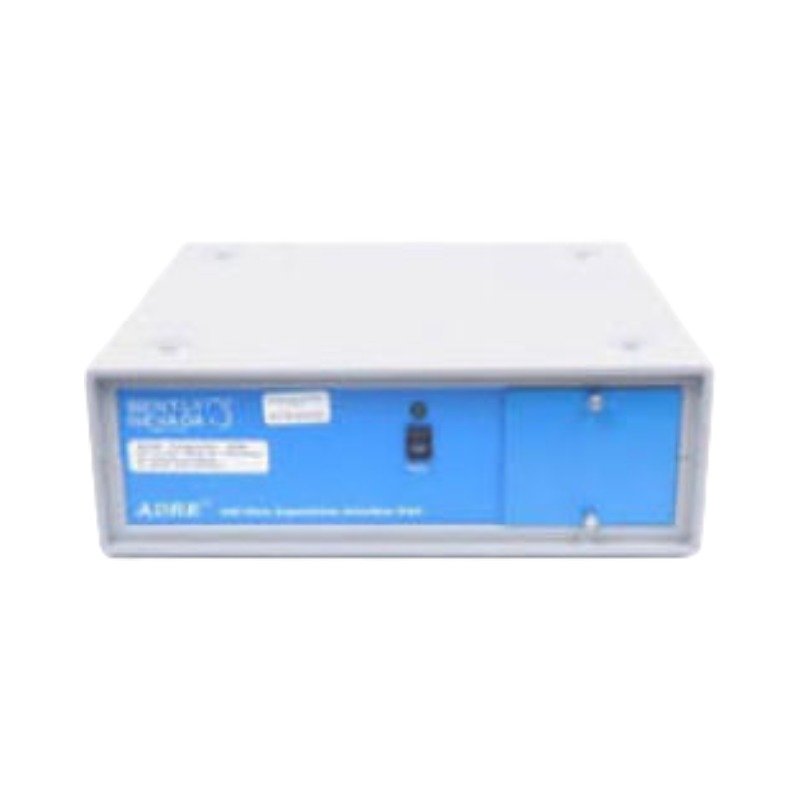

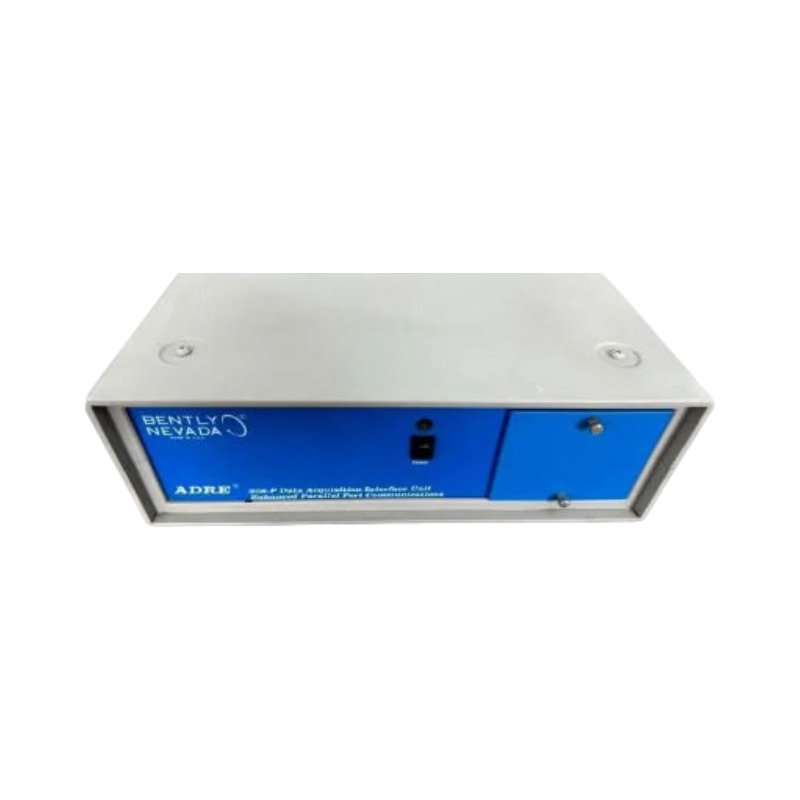

The Bently Nevada 102351-04-01, also cataloged as the 102351 ADRE 208-P Data Acquisition Interface Unit (DAIU), serves as the primary 102351 Data Acquisition Interface Unit utilized to execute synchronized multi-channel vibration data acquisition across ADRE for Windows diagnostic platforms. The system handles physical signal routing and conditioning for specialized transient machinery analysis.

Suffix Breakdown & Model Matrix

The 102351-04-01 alphanumeric configuration denotes specific factory hardware selections based on the 208-P product selection matrix:

• 04 (Adapter Type Option): Establishes communication via the Enhanced Parallel Port (EPP) interface, allowing the unit to bypass standard ISA or docking port dependencies for laptop and desktop hosts.
• 01 (Battery Type Option): Equips the internal autonomous logging assembly with a standard temperature backup battery pack.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 102351-04-01 performs real-time synchronous sampling across all 16 dynamic channels to isolate multi-plane rotor dynamics parameters. When processing inputs from eddy-current probe scaling matrices, the DAIU maps transient wave profiles alongside gap voltage validation (-10 VDC targets) without inducing phase anomalies or channel lag. This simultaneous ingestion tracks sub-synchronous or non-synchronous waveforms during machine startup and coast-down windows, preventing cross-talk suppression failures when logging high-frequency acceleration data immediately adjacent to steady-state proximity inputs.

Frequently Asked Questions

Q: What is the primary functional purpose of the -04 EPP option on the 102351-04-01?

A: The -04 option provides an Enhanced Parallel Port communication driver, which bypasses older proprietary ISA bus installation cards and interfaces directly with standard computing parallel architectures.

Q: Can the internal -01 battery pack be exchanged while the unit is processing dynamic data streams?

A: No. Memory mapping and real-time clock alignment require shutting down ongoing sample acquisition routines before servicing the internal battery housing to prevent data degradation.

Field Installation Guidelines

• Interface Interconnection: Connect the specialized parallel cable directly between the DAIU EPP connector and the host computer interface port prior to powering on either hardware assembly.
• Transducer Terminal Shielding: Route individual sensor wires (Proximitor, Velomitor, or Keyphasor) to the front panel BNC or terminal blocks. Maintain independent cable shields up to the frame grounding stud to protect signal inputs from ambient electromagnetic interference.
• Cooling Clearance: Ensure a minimum peripheral clearance of 100 mm around the external ventilation grilles when operating the portable case in enclosed test stands to prevent inner components from exceeding design thresholds.
