Description

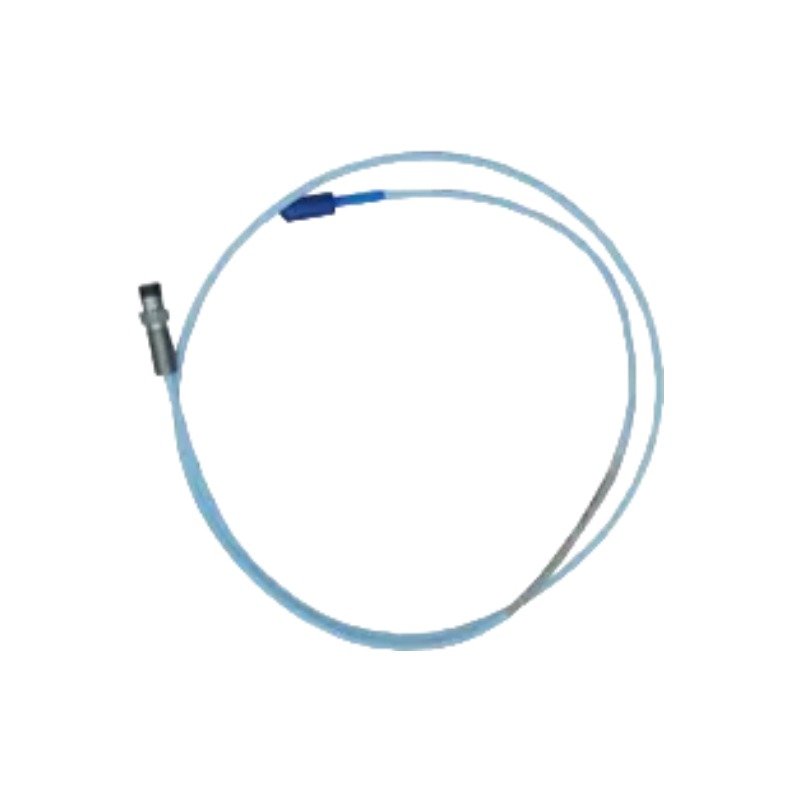

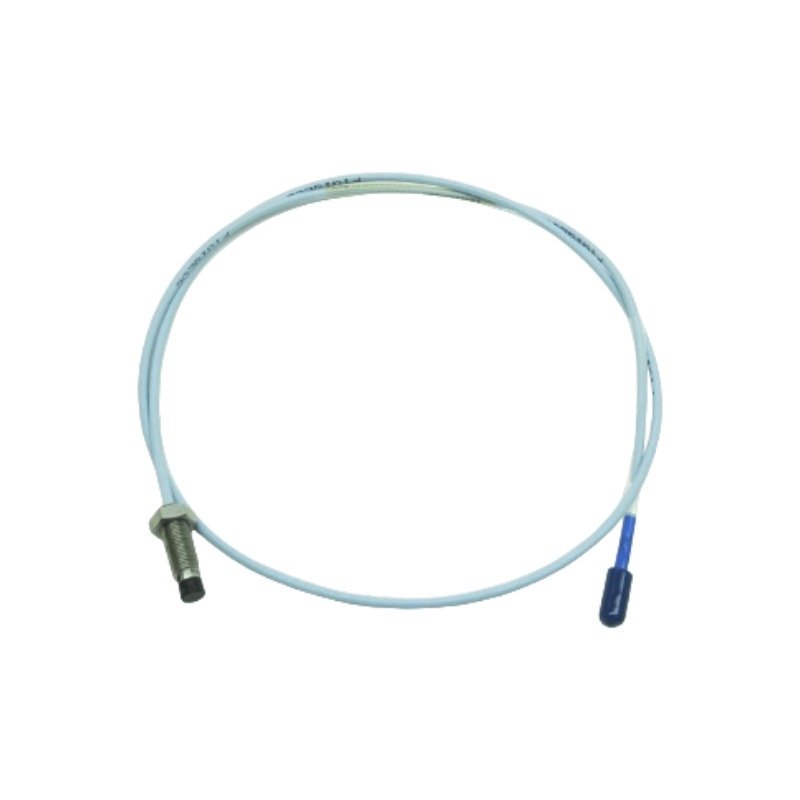

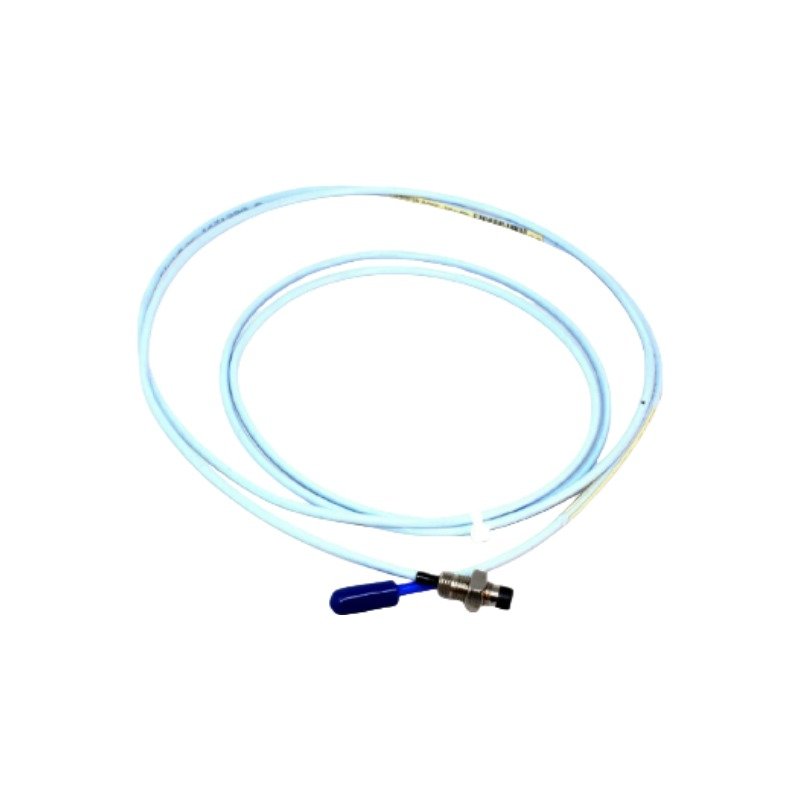

Configured for eddy-current signal generation and non-contact displacement measurement in 3300 5 mm Proximity Transducer System platforms, the Bently Nevada 330171-12-41-10-02-05 (330171 Proximity Probe) provides direct physical/electrical execution.

Hardware Specifications

Eddy-Current Signal Conditioning and TSI Characteristics

The hardware executes automated eddy-current probe scaling to output a continuous analog voltage directly proportional to the physical gap between the probe tip and the observed conductive target. Consequently, during commissioning, the field technician must perform gap voltage validation (-10 VDC targets) to verify that the transducer operates within the linear midpoint of the calibration curve. Meanwhile, the high-frequency demodulation circuitry tracks high-velocity rotor dynamics, capturing precise metrics for radial vibration, axial thrust position, and phase reference indication. Furthermore, internal cross-talk suppression features actively prevent signal degradation from electromagnetic coupling when technicians install multiple probes in close proximity on the same machine bearing housing.

Frequently Asked Questions

Q: Can technicians hot-swap the Bently Nevada 330171-12-41-10-02-05 probe while the machinery protection system runs online?

A: No. Operators must isolate and de-energize the associated Proximitor Sensor loop prior to disconnecting or connecting the probe coaxial joint, because this precaution prevents voltage transients and inadvertent trip signals in the monitoring rack.

Q: How does the 1.2-inch unthreaded length option affect physical installation within a bracket?

A: The -12 suffix dictates that the first 1.2 inches of the 4.1-inch total case length remain smooth and without threads. Consequently, technicians must account for this unthreaded clearance zone when positioning external locknuts or choosing the depth of the tapped entry hole in the bearing housing.

Field Installation Guidelines

• Thread the probe body into the 1/4-28 UNF mounting bracket, taking care not to exceed the maximum rated structural installation torque.
• Next, adjust the physical position of the probe until the multi-meter records a gap voltage reading of -10 VDC, which indicates the center of the linear calibration range.
• Connect the miniature coaxial ClickLoc connector to the extension cable or Proximitor interface, applying finger-tight torque until the internal mechanism clicks.
• Subsequently, route the integrated 1.0-metre cable through flexible metal conduit, keeping the line separate from high-voltage AC cables to minimize electromagnetic interference.
• Finally, utilize the factory-provided multi-approval hardware paths to ground the system housing safely in hazardous area zones according to local code requirements.
