Description

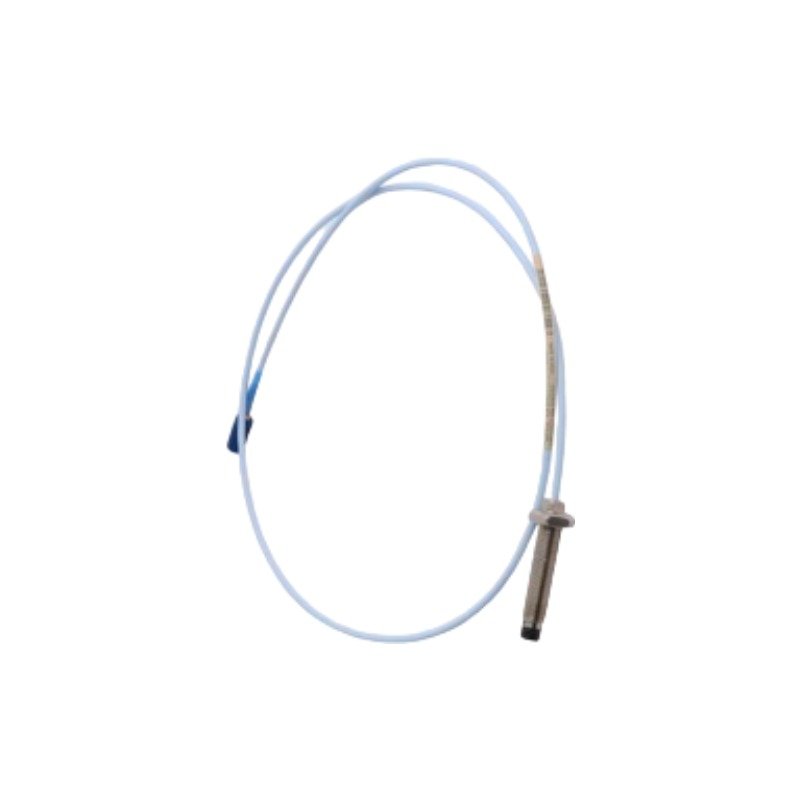

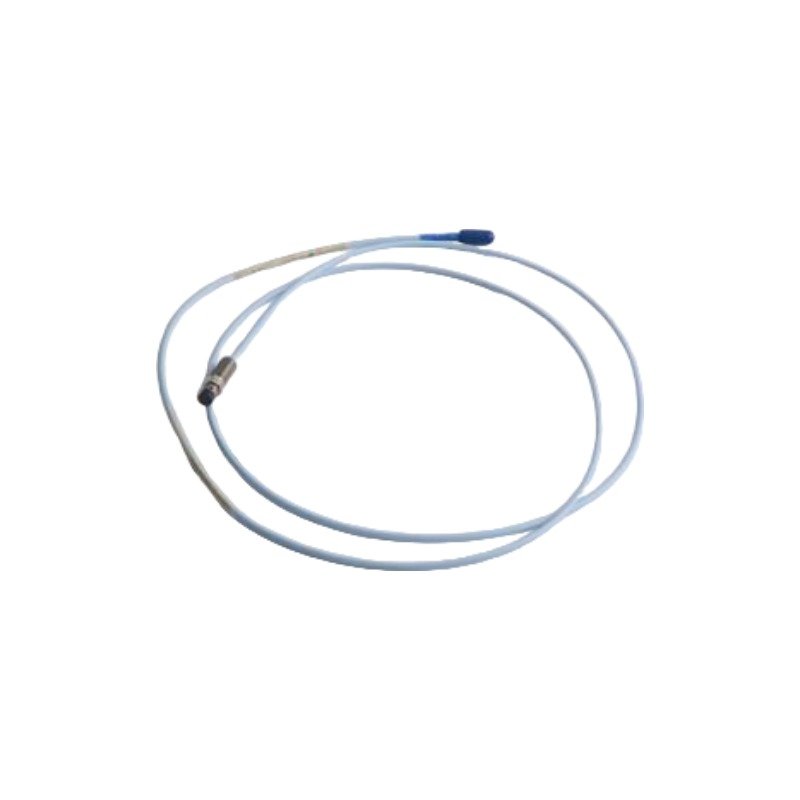

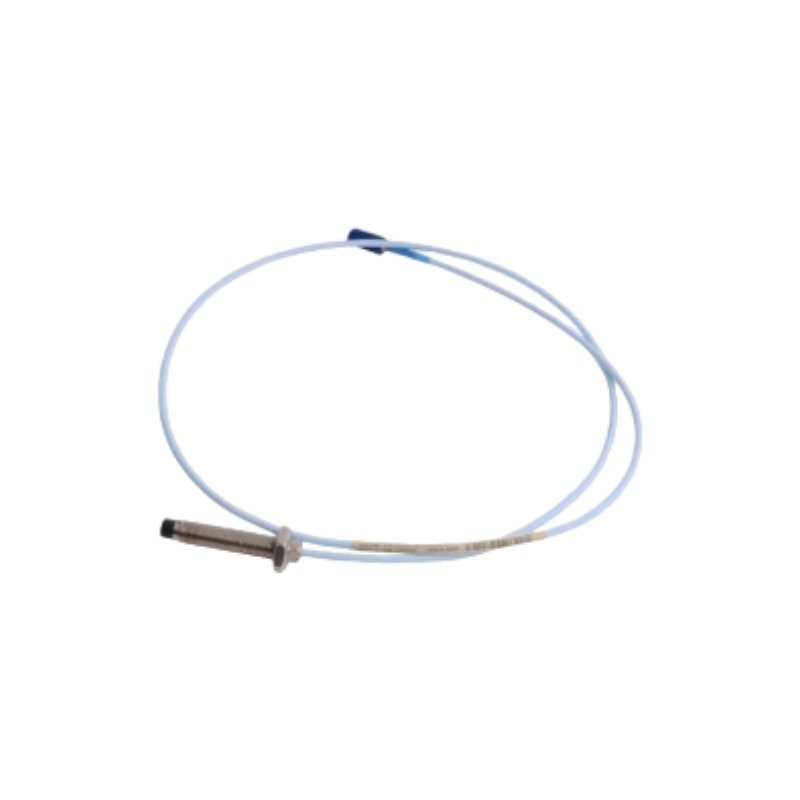

The Bently Nevada 330145-14, also cataloged as the 330145 Proximity Probe, operates as a dedicated hardware component for non-contact vibration and position measurements within 3300 XL eddy current transducer systems.

Hardware Specifications

Transducer Signal Conditioning & Rotor Dynamics

The 330145-14 transfers raw radio frequency signal modulation generated by shaft proximity changes directly to an external Proximitor sensor. Internal physical scaling relies on eddy-current probe scaling coefficients (typically 7.87 V/mm or 200 mV/mil) to convert physical gap displacement into proportional voltage outputs. The probe execution path supports precise gap voltage validation (-10 VDC nominal targets) to establish target centering and static position tracking, while low-loss FEP insulation provides effective cross-talk suppression during high-frequency rotor dynamics measurements.

Frequently Asked Questions

Q: How does the 330145-14 maintain electrical isolation across wide thermal operating bands?

A: The probe utilizes polyphenylene sulfide (PPS) tip material combined with fluoroethylene propylene (FEP) cable insulation to maintain dielectric stability from -51 deg C to +177 deg C.

Q: What mounting options does the 330145-14 probe body feature?

A: The stainless steel probe case is threaded with either 1/4-28 UNF or M8 x 1 threads, depending on field casing requirements.

Field Installation Guidelines

• Thread the 330145-14 body into the designated mounting bracket or machine casing port, ensuring standard mechanical engagement without over-torquing.
• Adjust the physical probe gap until multimeter readings at the Proximitor sensor test points indicate the target gap voltage validation setting (-10 VDC nominal).
• Route the integral FEP cable through grounded metal conduit, keeping signal leads isolated from high-voltage AC motor drives.
• Secure all coaxial cable connectors using dedicated connector protectors to prevent ambient oil and dirt ingress.
