Description

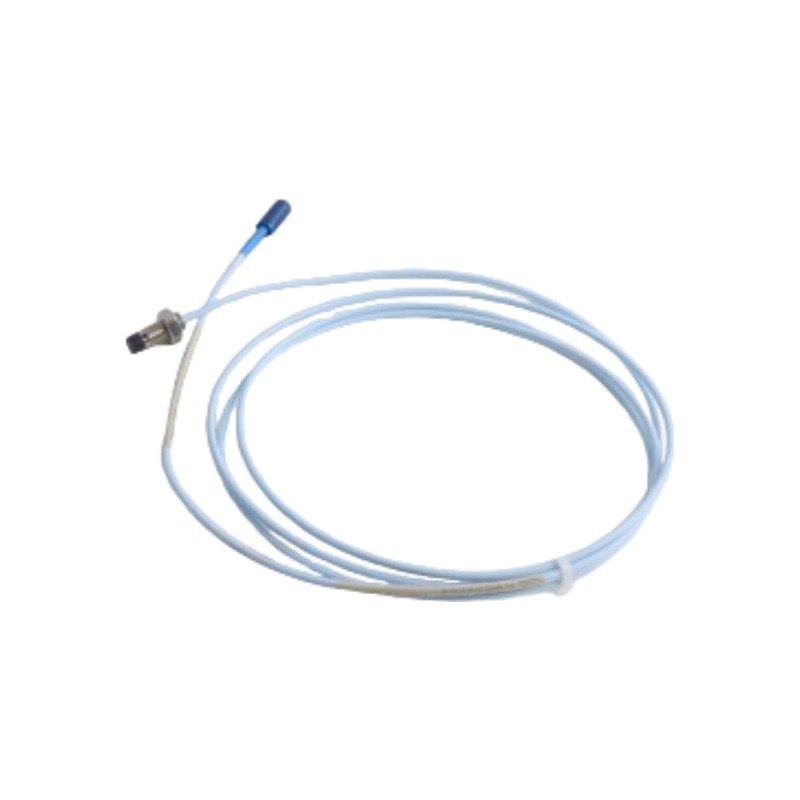

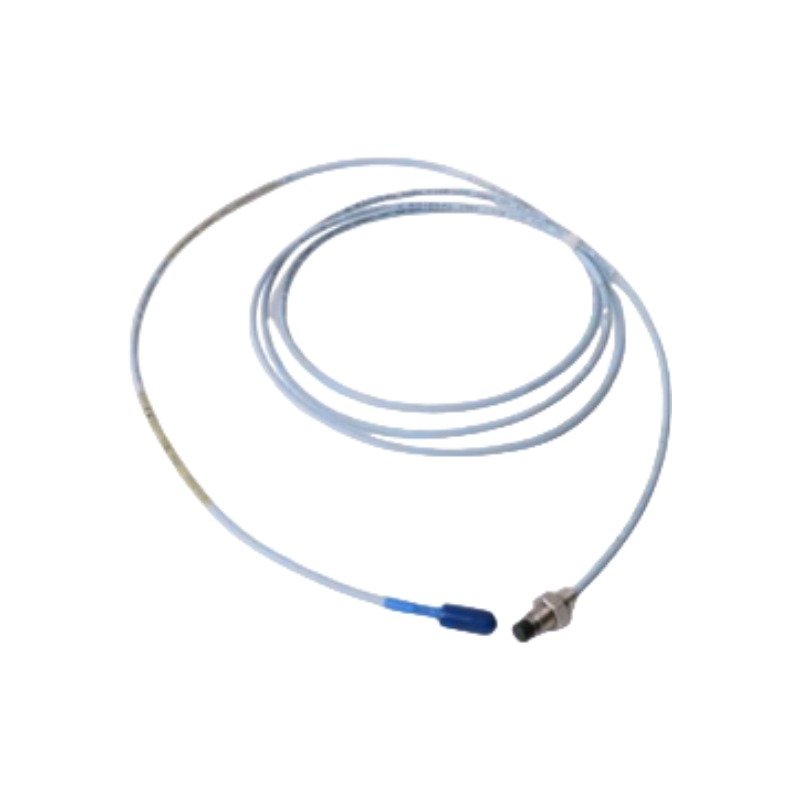

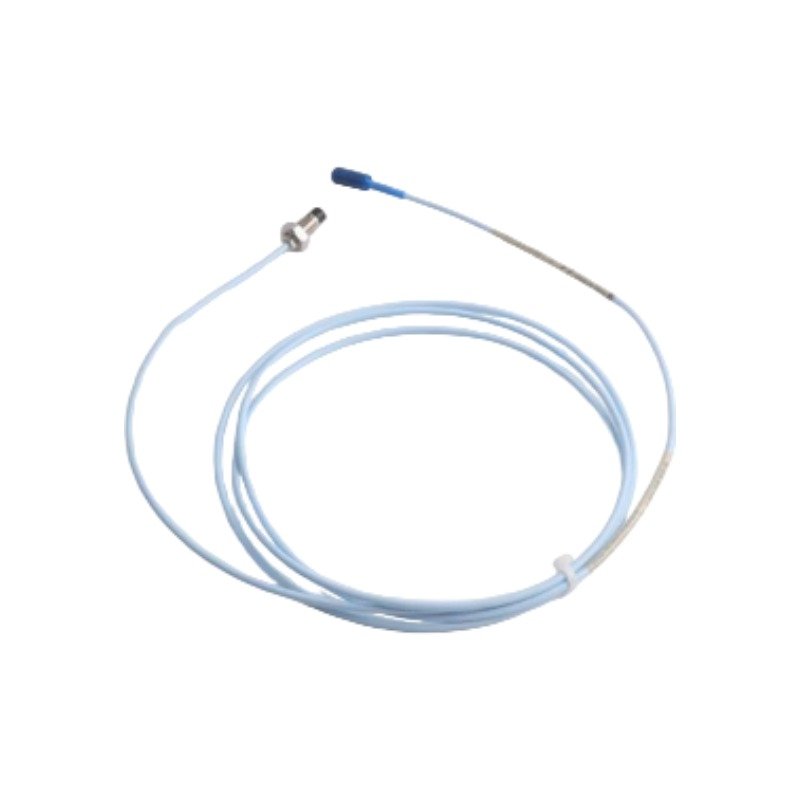

The Bently Nevada 330130-080-02-CN, also cataloged as the 330130 Standard Extension Cable, operates as a dedicated hardware component for eddy-current signal transmission within 3300 XL Proximity Transducer System networks.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

This triaxial cable actively manages eddy-current probe scaling because it preserves the strict impedance integrity of high-frequency RF signals between the probe tip and the Proximitor sensor. Consequently, stable electrical properties ensure precise gap voltage validation across the nominal -10 VDC targets required for linear displacement calibration. Because the pre-installed connector protector seals the critical physical junction against fluids and particulate contamination, the component transmits clear rotor dynamics data, including static axial position and dynamic radial vibration measurements, without introducing phase error or calibration drift.

Frequently Asked Questions

Q: Does this extension cable support hot-swapping while the Proximitor sensor is powered?

A: Yes. Technicians can physically disconnect and reconnect the passive cable without disrupting the transducer electronics, provided they verify the surrounding environment as non-hazardous.

Q: What structural design feature distinguishes the “-02” option from standard options?

A: The “-02” option integrates standard factory connector protectors directly onto the ends. Consequently, this hardware component forms an environmental seal that prevents penetration from fluids, moisture, and fine dust particles at the junction.

Q: How does the “-CN” designation impact deployment in regional installations?

A: The “-CN” suffix specifies that the cable complies with national industrial safety regulations in China, providing certified NEPSI hazardous area protection marks necessary for formal industrial compliance.

Field Installation Guidelines

• Shielding and Grounding: Terminate the coaxial outer shield only at the Proximitor sensor ground point. Do not ground the cable shield at the machine casing or intermediate junction boxes, because doing so creates ground loop interference.
• Routing Constraints: Avoid routing the triaxial cable parallel to high-voltage AC power lines. Instead, cross power conduits at right angles to minimize electromagnetic cross-talk.
• Bend Radius Limits: Maintain a minimum physical bend radius of 25.4 mm during installation. Tight bends degrade the internal FEP insulation and alter the core conductor properties.
