Description

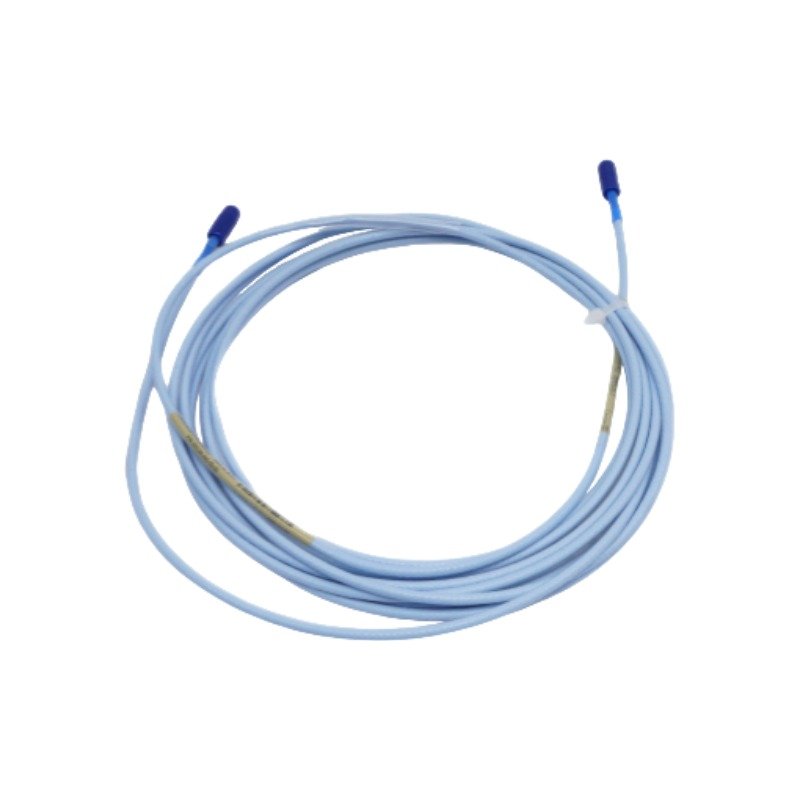

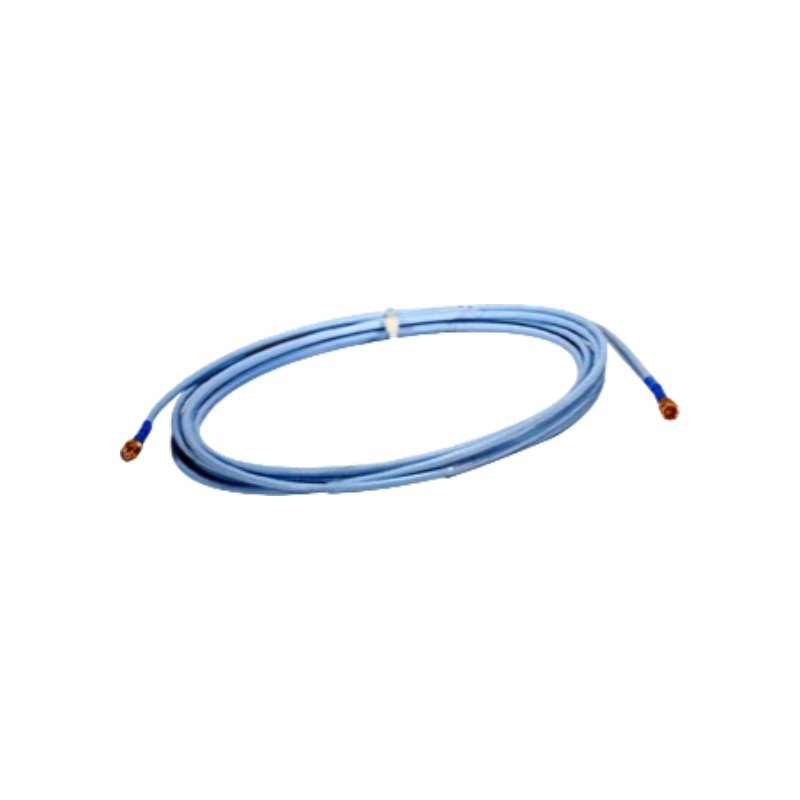

The Bently Nevada 330130-045-01-05 serves as the primary 330130 Standard Extension Cable utilized to execute RF signal transmission across Bently Nevada 3500 and 3300 Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and TSI Characteristics

Consequently, the Bently Nevada 330130-045-01-05 maintains precise electrical impedance matching to ensure accurate eddy-current probe scaling across the entire system loop. During installation, field technicians must execute calibrated physical routing because impedance shifts will skew the required gap voltage validation (-10 VDC targets) that determines accurate rotor dynamics. Furthermore, the integrated shielding within the cable core provides robust cross-talk suppression. As a result, this shielding mitigates external electromagnetic interference and prevents false vibration spikes in the machinery protection system monitor.

Frequently Asked Questions

Q: What specific hardware configuration requires this 4.5-meter extension cable length?

A: This 4.5-meter cable pairs with a 0.5-meter proximity probe to form a complete 5.0-meter electrical length system, or with a 4.5-meter probe to establish a 9.0-meter total system loop.

Q: What protection advantages does the -01 option provide for severe industrial environments?

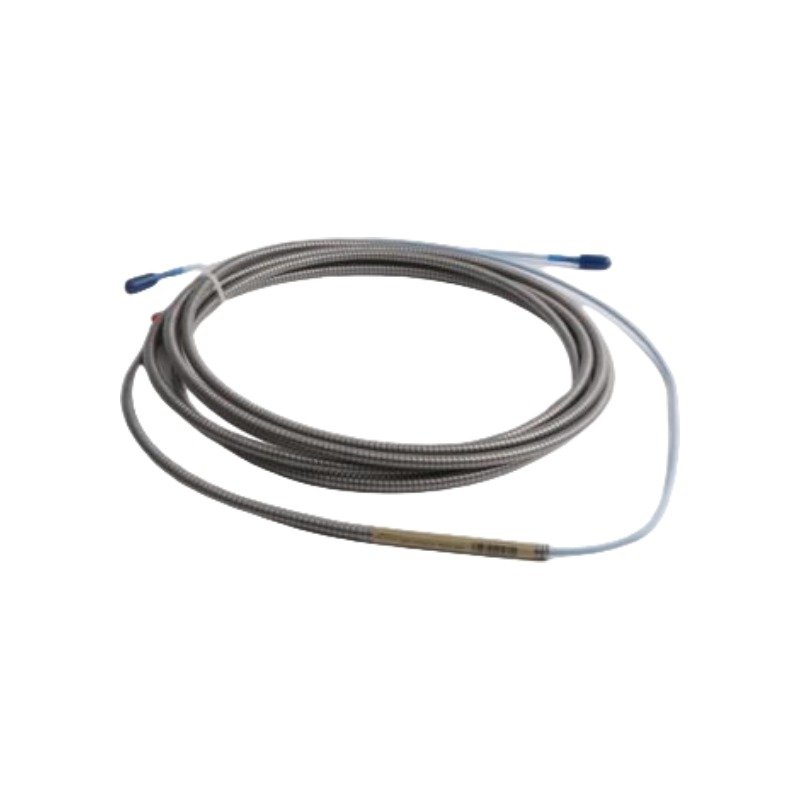

A: The -01 suffix provides a flexible stainless steel armor jacket that mechanically insulates the inner coaxial core from sharp edges and physical abrasion. Additionally, the factory-installed connector protector prevents liquid contamination directly at the junction terminal.

Field Installation Guidelines

• Minimum Bend Radius: Maintain a minimum physical bend radius of 25.4 mm (1.0 inch) throughout the armored cable routing; otherwise, you risk structural damage or mechanical kinking of the stainless steel external layer.
• Connector Torque and Insulation: First, tighten the miniature coaxial connectors using appropriate finger torque. Next, slide the integrated connector protector securely over the terminal junction to establish a fluid-isolated barrier.
• Isolation from High-Voltage Lines: Always route the extension cable in dedicated, grounded metal conduits. In addition, separate these runs from high-voltage AC or variable frequency drive (VFD) motor cables to preserve signal integrity.
