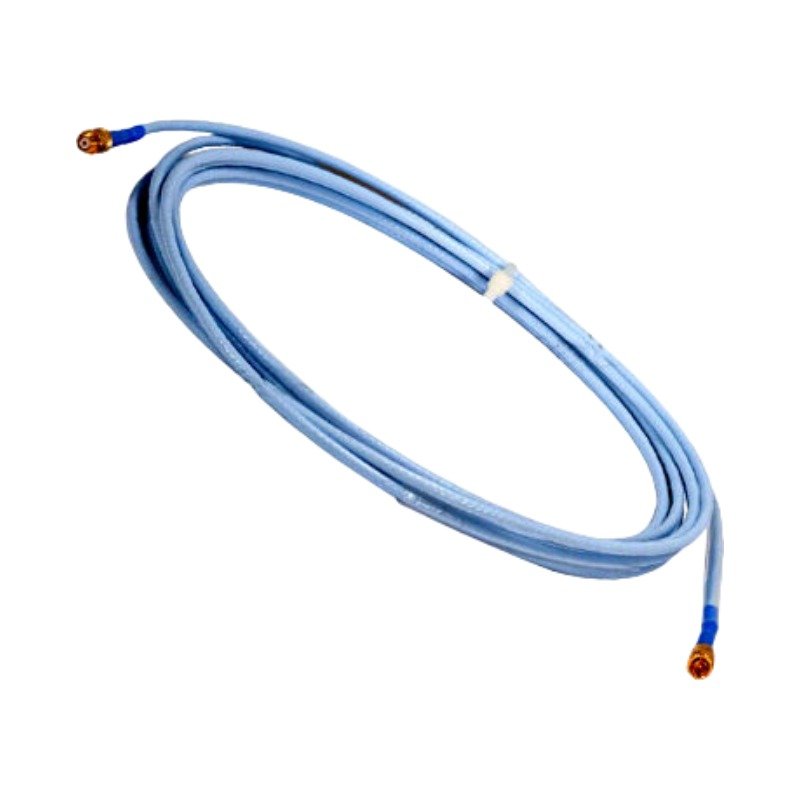

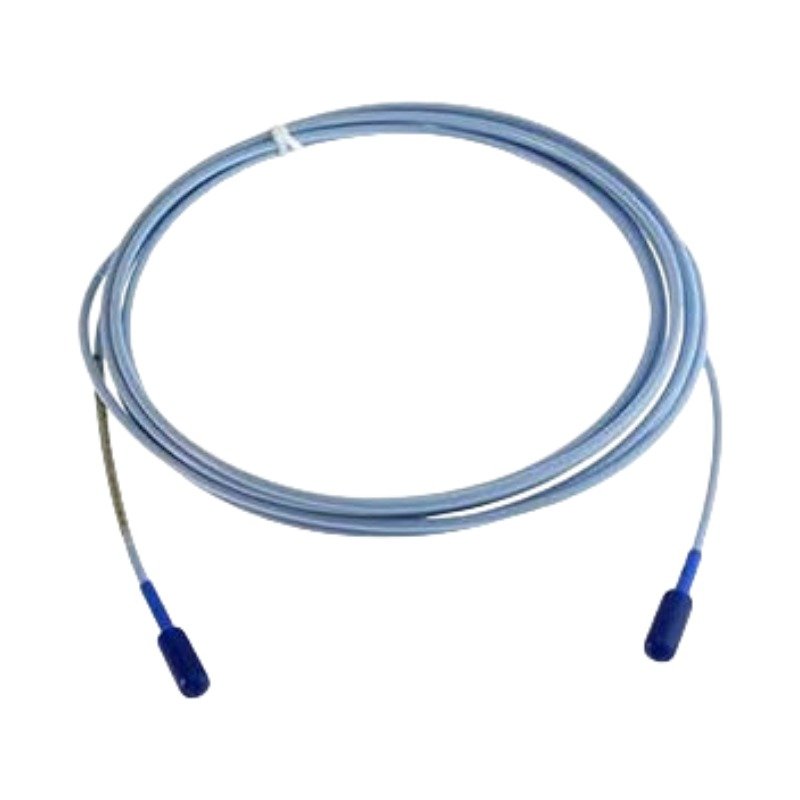

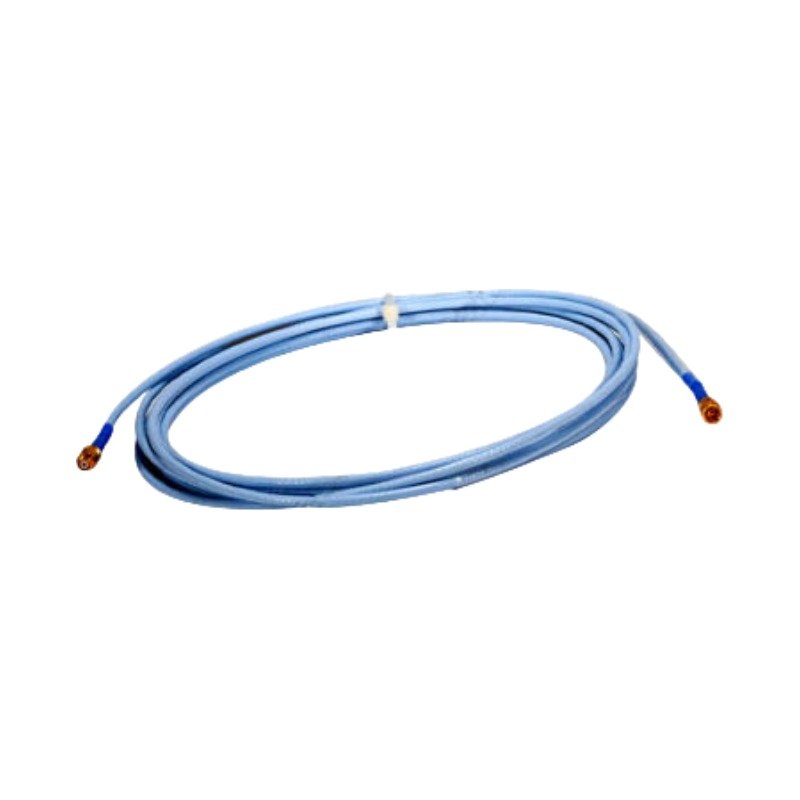

Bently Nevada 330130-045-01-00 3300 XL 8mm Extension Cable
Bently Nevada 330130-045-01-00 armored extension cable specifications. Brand New unit from Original Stock with Global Shipping.
Description
The Bently Nevada 330130-045-01-00, also cataloged as the 330130 Standard Extension Cable, operates as a dedicated hardware component for non-contact shaft vibration and position monitoring within Bently Nevada 3300 and 3500 Machinery Protection Systems.
Suffix Breakdown & Model Matrix
| Code Segment | Configuration Option | Selected Specification |
|---|---|---|
| 330130 | Base Model | 3300 XL Standard Extension Cable, 8 mm system |
| -045 | Cable Length | 4.5 meters (14.8 feet) physical length |
| -01 | Connector Protector & Cable | Armored triaxial cable configuration |
| -00 | Agency Approval | No regional hazardous area approvals required |
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330130-045-01-00 |
| Brand | Bently Nevada |
| Origin | United States |
| Weight | 2.00 kg |
| Dimensions | 4.5 m (14.8 feet) total length |
| Operating Temp | -40 to +85 deg C |
| Power Consumption | Passive RF transmission line component |
| Cable Construction | Armored triaxial configuration |
| Nominal Capacitance | 69.9 pF/m (21.3 pF/ft) typical |
| Insulation Resistance | Greater than 100 MOhm @ 500 VDC |
| Minimum Bend Radius | 25.4 mm (1.0 inch) |
| Connector Type | Gold-plated miniature coaxial ClickLoc connectors |
Machinery Monitoring and TSI Characteristics
This armored transmission medium preserves precise eddy-current probe scaling by supplying controlled electrical impedance between the transducer head and the driver hardware. Consequently, the transmission line passes high-frequency analog signals representing rotor dynamics straight to processing modules without phase distortion or signal attenuation. Technicians execute gap voltage validation after inserting the cable to verify that total loop resistance satisfies factory engineering baselines. Furthermore, the integrated stainless steel armor jacket provides robust mechanical defense and ensures high cross-talk suppression when routing transducer wiring bundles inside industrial enclosures.
Frequently Asked Questions
Q: How does the specific 4.5-meter hardware length option constrain overall transducer system pairing?
A: The 330130-045-01-00 features a calibrated 4.5-meter physical length. Consequently, field installation crews must pair this cable exclusively with a 0.5-meter proximity probe to achieve the total 5.0-meter electrical length required by standard Proximitor sensors.
Q: What protective benefits does option 01 deliver to the miniature coaxial connection junctions?
A: Option 01 supplies a rugged, flexible armor casing over the triaxial dielectric insulation layer. Because this design shields the internal gold-plated ClickLoc connectors, it effectively resists structural crushing, shear stresses, and process fluid contamination.
Field Installation Guidelines
- Maintain a physical bend radius greater than 25.4 mm (1.0 inch) across the entire routing run to safeguard internal capacitance properties.
- Press and rotate the miniature coaxial ClickLoc interfaces together until they click firmly, which establishes a stable, low-resistance signal bridge.
- Encase all unarmored connector joints inside specialized connector protector sleeves to isolate the gold terminals from cutting oils and industrial moisture.
- Anchor the armored conduit runs securely to structural steel framing to prevent mechanical friction wear from machine case vibrations.
Additional information
| Weight | 2 kg |
|---|---|
| Dimensions | 320 × 220 × 50 mm |
