Description

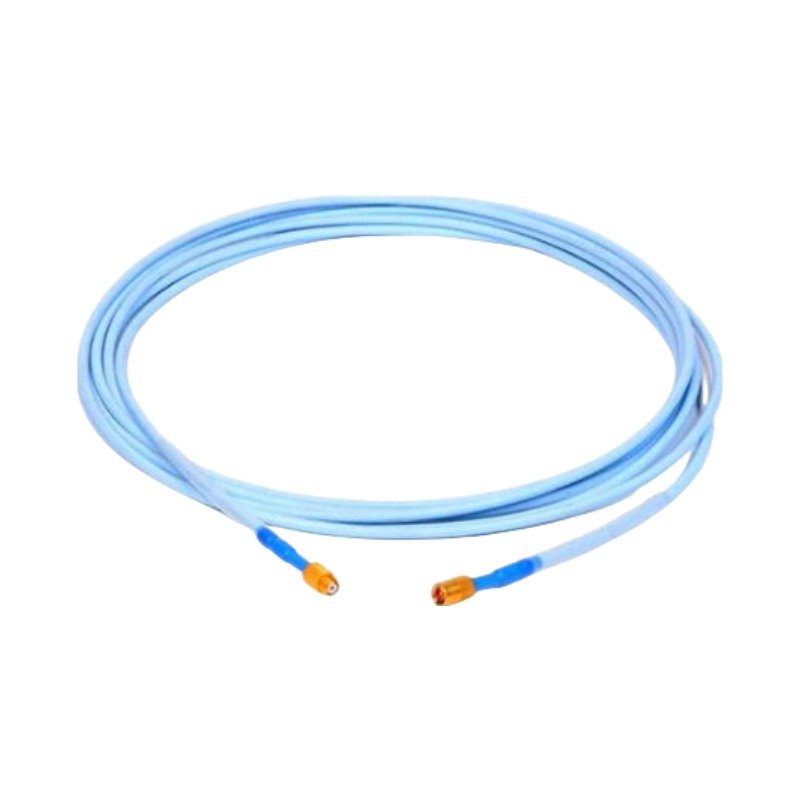

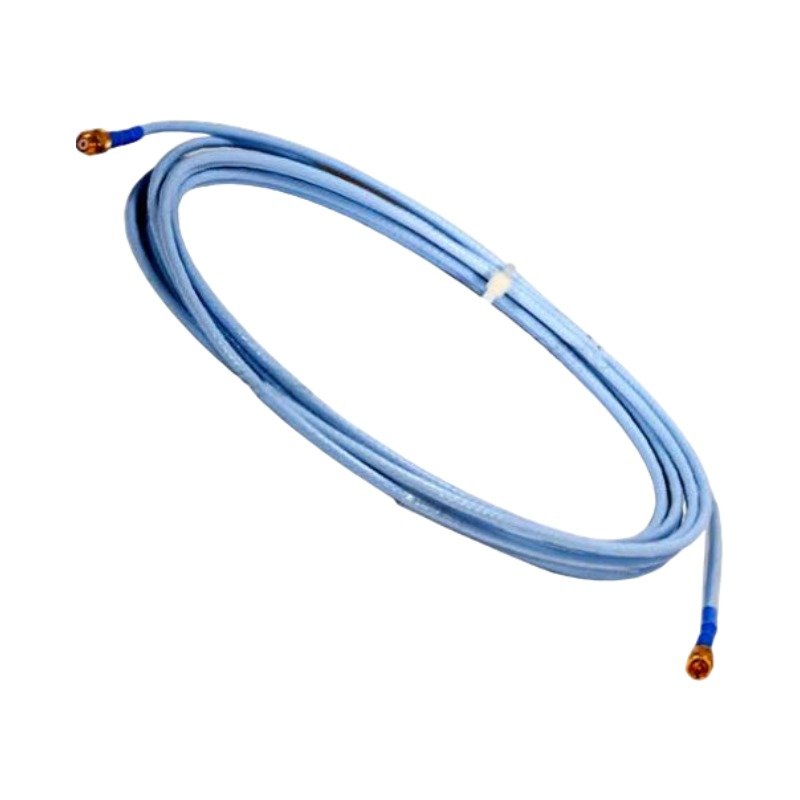

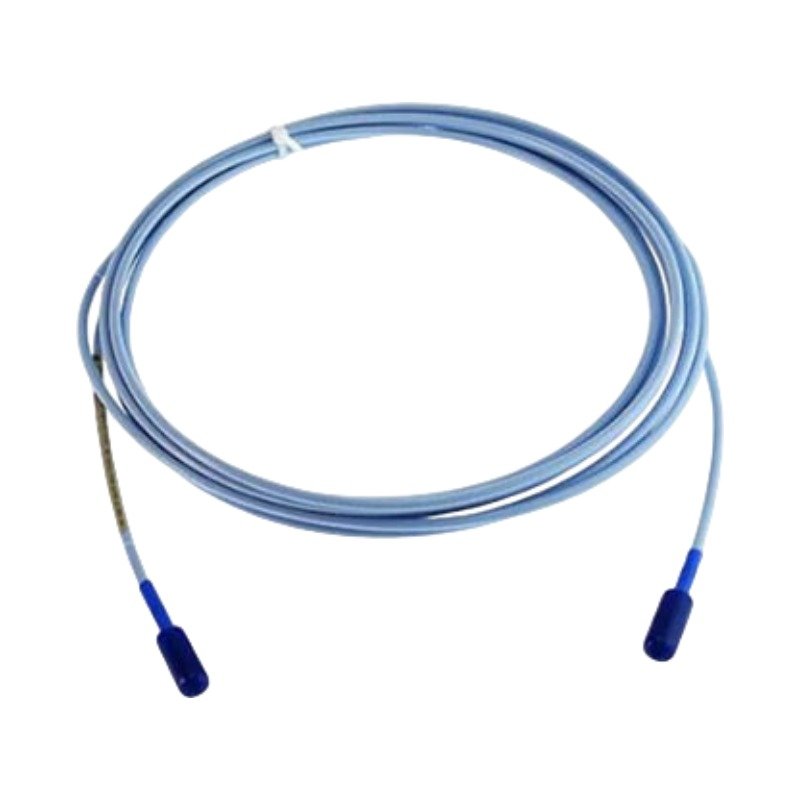

The Bently Nevada 330130-040-01-00, also cataloged as the 330130 Standard Extension Cable, operates as a dedicated hardware component for non-contact shaft vibration and position monitoring within Bently Nevada 3300 and 3500 Machinery Protection Systems.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This armored transmission medium preserves precise eddy-current probe scaling by supplying controlled electrical impedance between the transducer head and the driver. Consequently, the hardware passes high-frequency analog signals representing rotor dynamics directly to processing modules without phase distortion or attenuation. Technicians execute gap voltage validation after inserting the cable to verify that total loop resistance satisfies engineering baselines. Furthermore, the robust physical shield provides critical cross-talk suppression and blocks electromagnetic interference when routing cables adjacent to high-power generation hardware.

Frequently Asked Questions

Q: How does this specific physical cable length affect overall system calibration accuracy?

A: The 330130-040-01-00 cable features a calibrated 4.0-meter length. Therefore, field crews must pair it exclusively with a 1.0-meter proximity probe to fulfill the total 5.0-meter system configuration required by the matching Proximitor sensor.

Q: What specific mechanical protection does the 01 option provide to the coaxial junctions?

A: Option 01 supplies an integrated flexible armor casing over the FEP insulation along with a connector protector. Consequently, this assembly shields the delicate gold-plated ClickLoc joints from mechanical crushing, shear forces, and moisture ingress inside the machine housing.

Field Installation Guidelines

• Maintain a minimum physical bend radius of 25.4 mm (1.0 inch) during routing to prevent internal dielectric damage and preserve signal integrity.
• Align the coaxial ClickLoc connectors and rotate them until they produce a distinct mechanical click, verifying a locked, low-resistance connection.
• Wrap all exposed connector interfaces with self-fusing silicone insulation tape to isolate the gold-plated terminals from industrial oils and cutting fluids.
• Anchor the armored conduit sections to the structural framing using chemical-resistant brackets to eliminate wind-induced friction and cable wear.
