Description

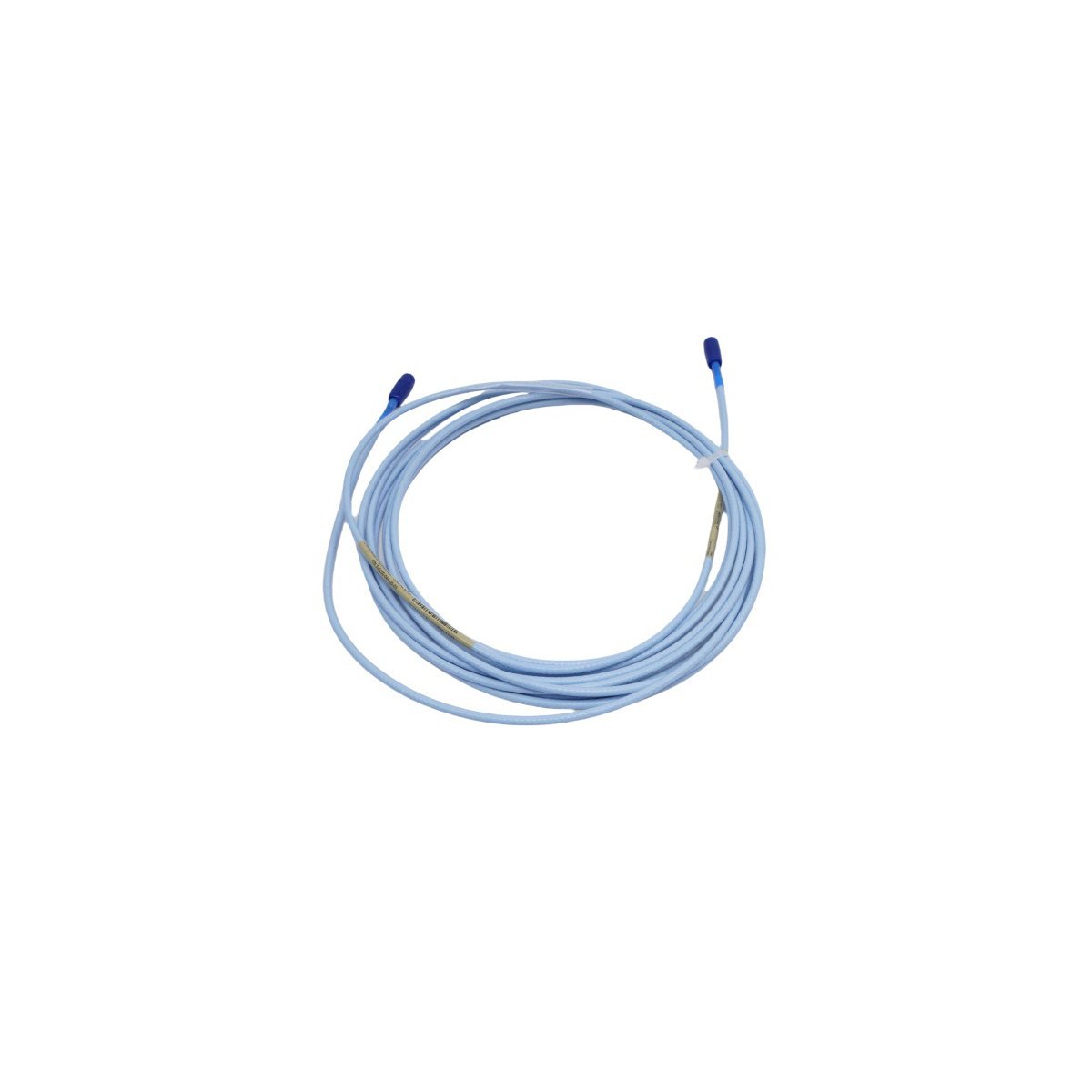

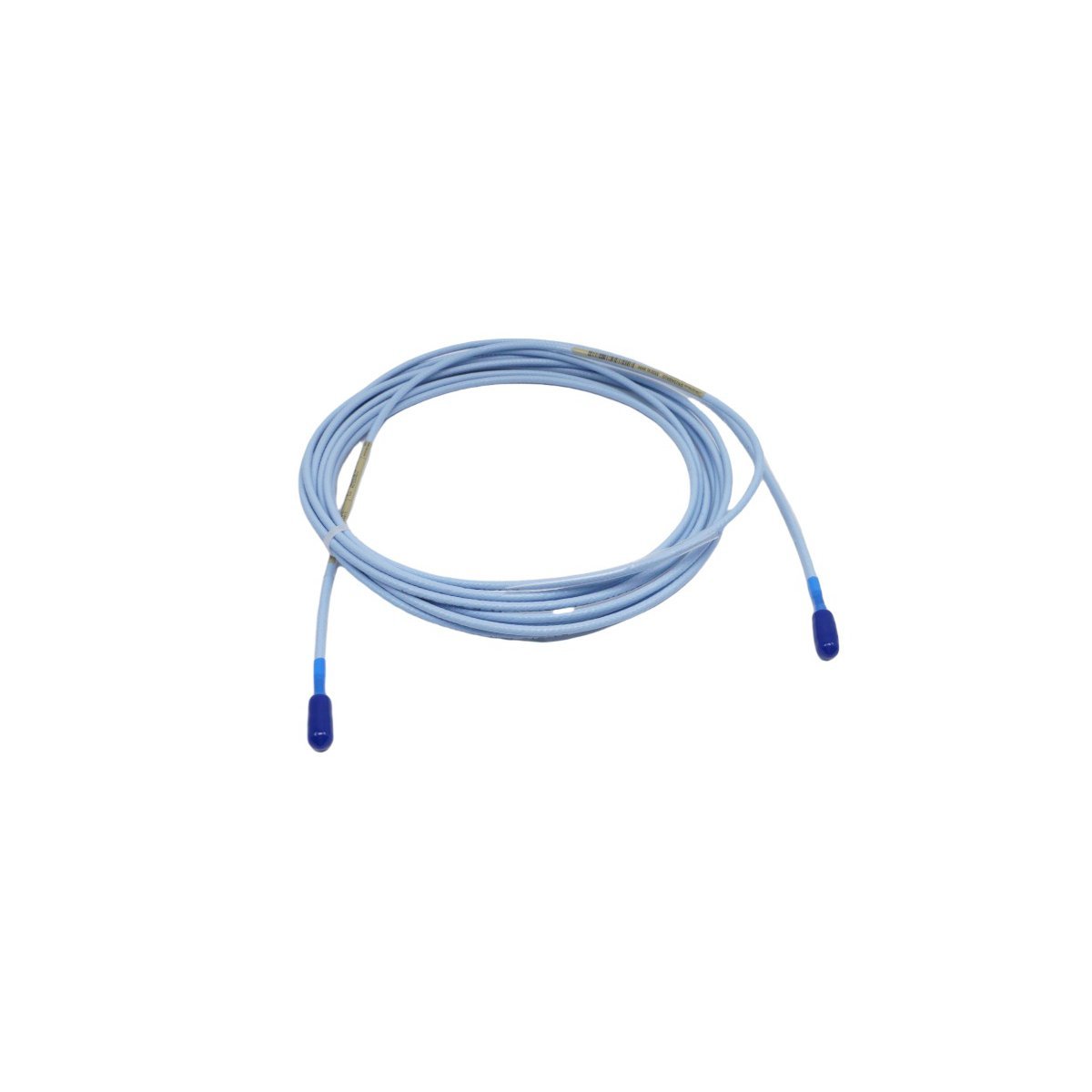

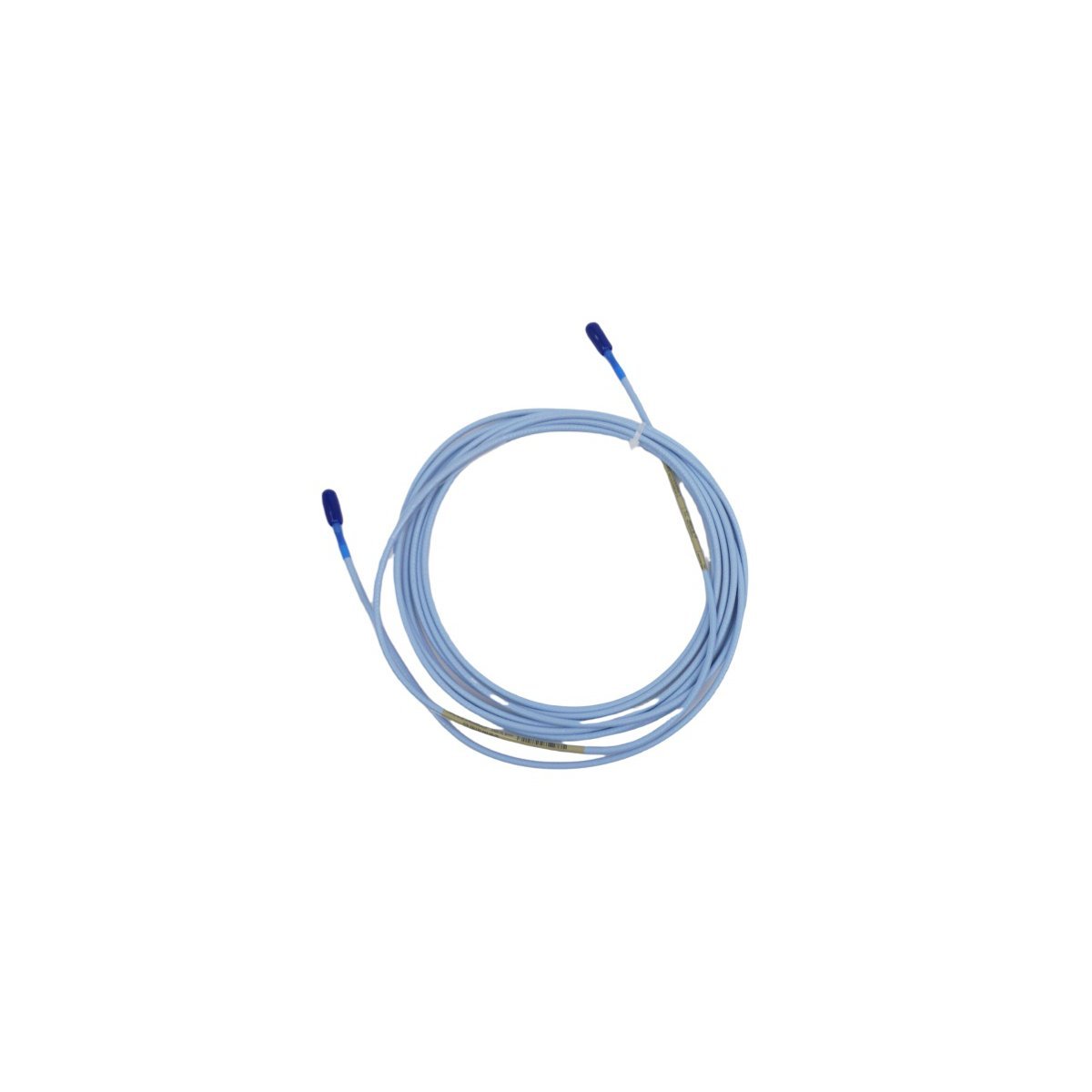

The Bently Nevada 330130-045-00-05 serves as a vital link within the 3300 XL 8mm Proximity Transducer System. This specialized extension cable facilitates precise signal transmission between the proximity probe and the Proximitor sensor. Engineers design this component to maintain signal integrity over specific distances in demanding industrial environments. It supports critical vibration monitoring and position measurements for rotating machinery.

Technical Specifications and Configuration

The part number 330130-045-00-05 defines specific physical and electrical characteristics. Each segment of the numeric code represents a particular configuration for the cable assembly.

• Model Series: 3300 XL 8 mm Extension Cable
• Cable Length: 4.5 meters (14.8 feet)
• Connector Protector Option: Without stainless steel armor
• Agency Approval: Multiple world-wide approvals (ATEX, CSA, IECEx)
• Weight: Approximately 0.2 kg
• Dimensions: 20.5 x 22.4 x 3.3 cm (packaged)
• System Compatibility: Bently Nevada 3300 and 3500 Series
• HS Code: 8537101190

Key Operational Features

The 330130-045-00-05 utilizes patented technology to improve linearity and temperature stability. It features gold-plated brass ClickLoc connectors that resist corrosion and ensure secure physical connections. The coaxial design provides superior shielding against electromagnetic interference. Furthermore, the cable jacket resists degradation from moisture and common industrial lubricants. This durability ensures the transducer system remains accurate during long-term machine operation.

Industrial Applications

Turbomachinery protection systems rely on this cable for high-speed monitoring. It functions effectively in power plants, oil refineries, and chemical processing facilities. The cable integrates seamlessly with Turbine Supervisory Instrumentation (TSI) to monitor axial thrust and radial vibration. Because it meets rigorous safety standards, it operates reliably in hazardous locations. This component helps operators prevent catastrophic machine failure through continuous condition monitoring.

Installation and Maintenance

Proper installation requires following specific bend radius guidelines to prevent signal attenuation. Technicians can easily connect the cable using the threaded coupling nuts without specialized tooling. The 4.5-meter length allows for flexible routing from the machine housing to local junction boxes. Since the 3300 XL system is “active” and widely supported, replacement parts remain readily available for maintenance schedules. Regular inspection of the connectors ensures the monitoring system provides peak performance.
