Description

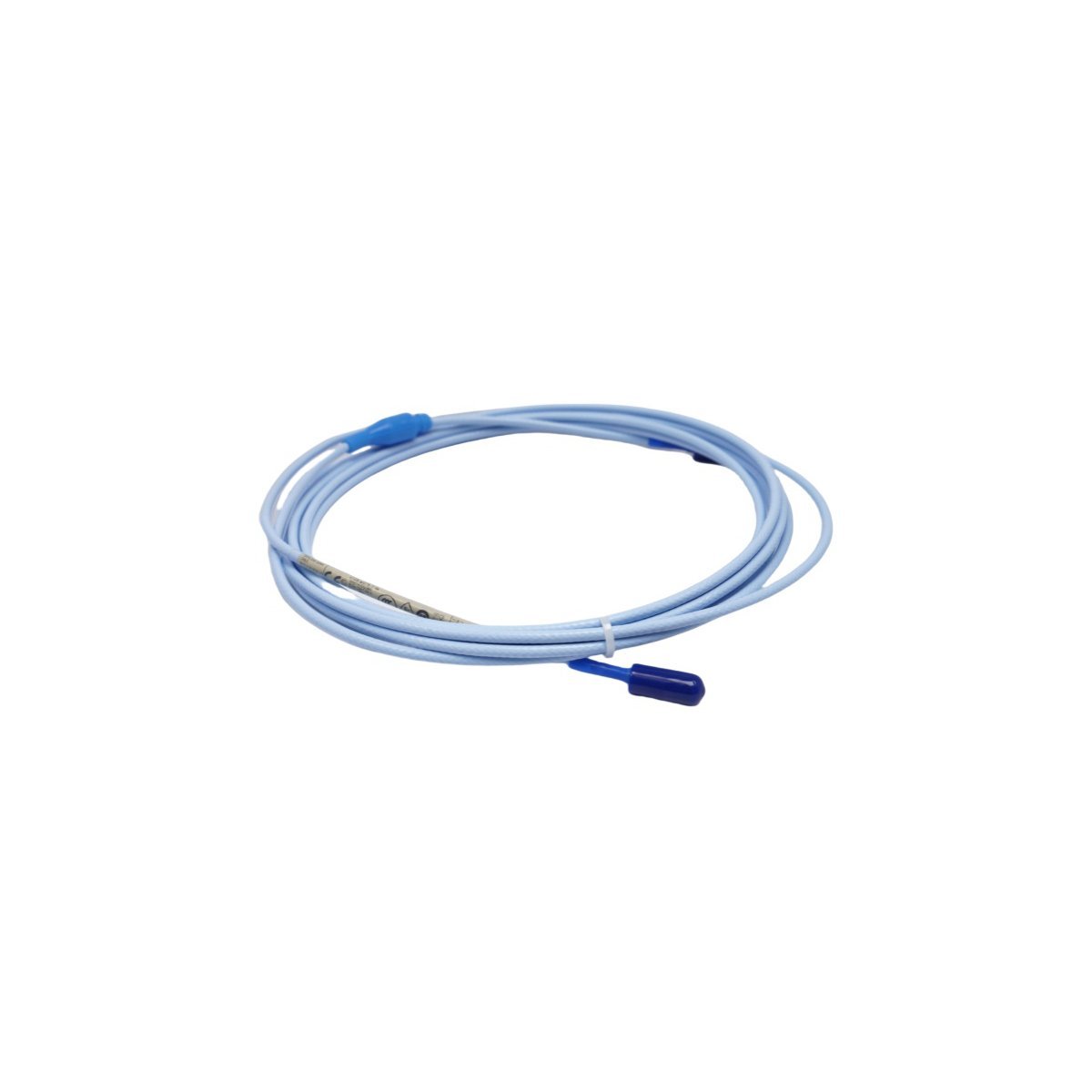

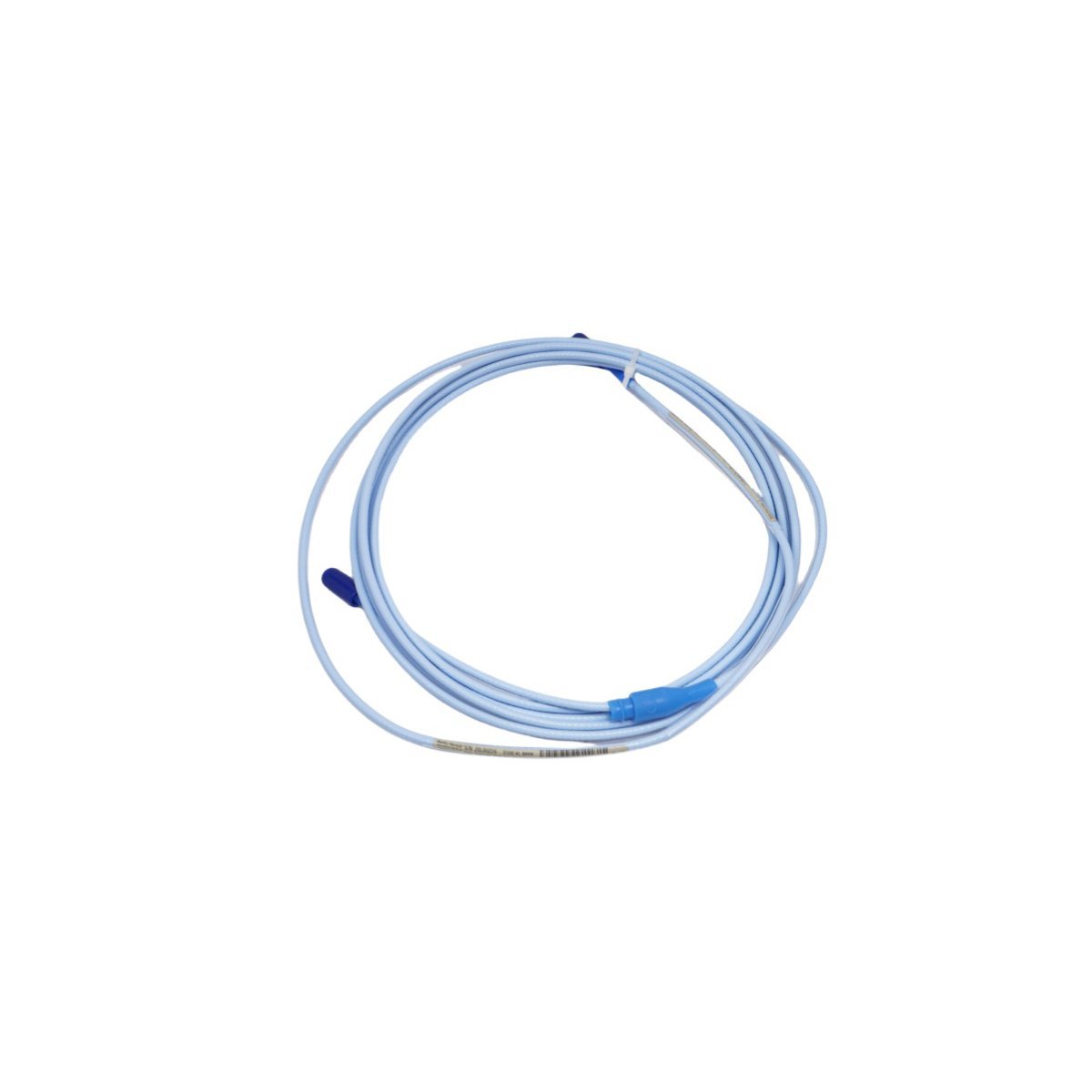

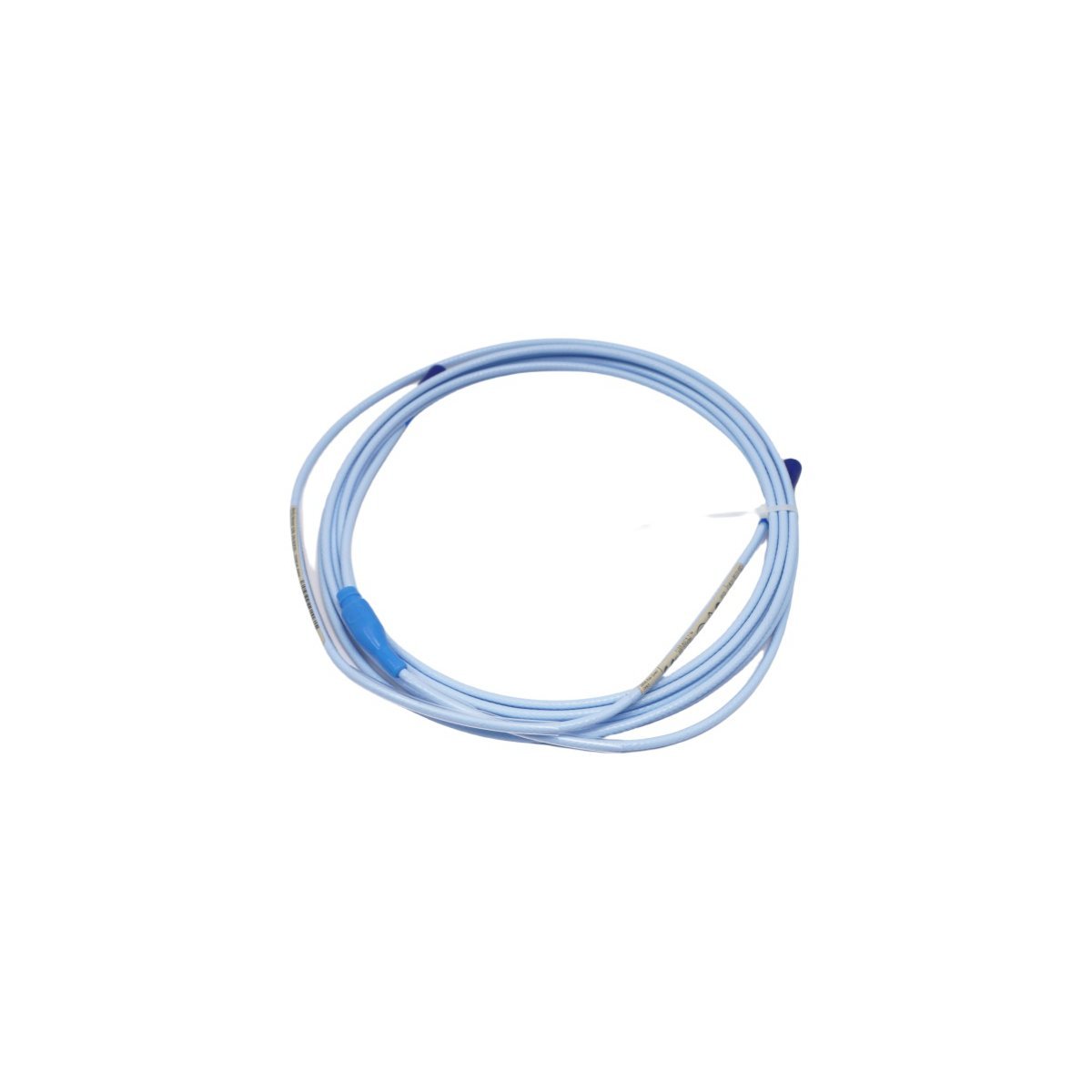

Bently Nevada 330130-040-02-CN 3300 XL 8mm Extension Cable

The Bently Nevada 330130-040-02-CN is a high-integrity signal transmission component engineered for the 3300 XL 8mm Proximity Transducer System. This extension cable acts as the essential electrical bridge between the proximity probe and the Proximitor sensor, ensuring the accurate delivery of eddy current signals. Specifically calibrated for vibration and position monitoring, this “CN” variant is localized for the Chinese industrial market, meeting regional regulatory standards while maintaining the global performance benchmarks associated with Baker Hughes’ Bently Nevada line.

Precision Signal Integrity and Industrial Application

Designed for critical rotating machinery, this cable is a fundamental part of Turbine Supervisory Instrumentation (TSI). Specifically, the 330130-040-02-CN is optimized for monitoring steam turbines, centrifugal compressors, and large-scale industrial pumps. Furthermore, the cable is manufactured with specialized shielding to prevent electromagnetic interference (EMI) from distorting the high-frequency displacement signals. As a result, maintenance teams can rely on stable, low-noise data to identify shaft instability or axial thrust issues before they lead to mechanical failure.

Technical Specification Matrix

FAQ

What is the difference between a CN and a non-CN version of this cable?

The CN suffix indicates that the product has been certified for use within the Chinese market. Specifically, it adheres to local documentation and regulatory standards, though the core technical performance and materials are identical to the standard 3300 XL series.

Can I combine this 4.0-meter cable with any 3300 XL probe?

This cable is designed to create a 5-meter or 9-meter total system length. Furthermore, you must match it with a probe and Proximitor sensor calibrated for the same total electrical length. For example, a 1.0-meter probe combined with this 4.0-meter cable requires a 5-meter Proximitor.

What temperature range can this extension cable withstand?

Standard 3300 XL extension cables are rated for temperatures between -51 °C and +177 °C. Accordingly, they are suitable for use near turbine housings and other high-heat zones without signal degradation.

How does the ClickLoc connector help during installation?

ClickLoc connectors are designed to prevent accidental loosening due to machine vibration. Ultimately, the “click” provides tactile feedback that the connection is secure, reducing the risk of intermittent signals during operation.
