Description

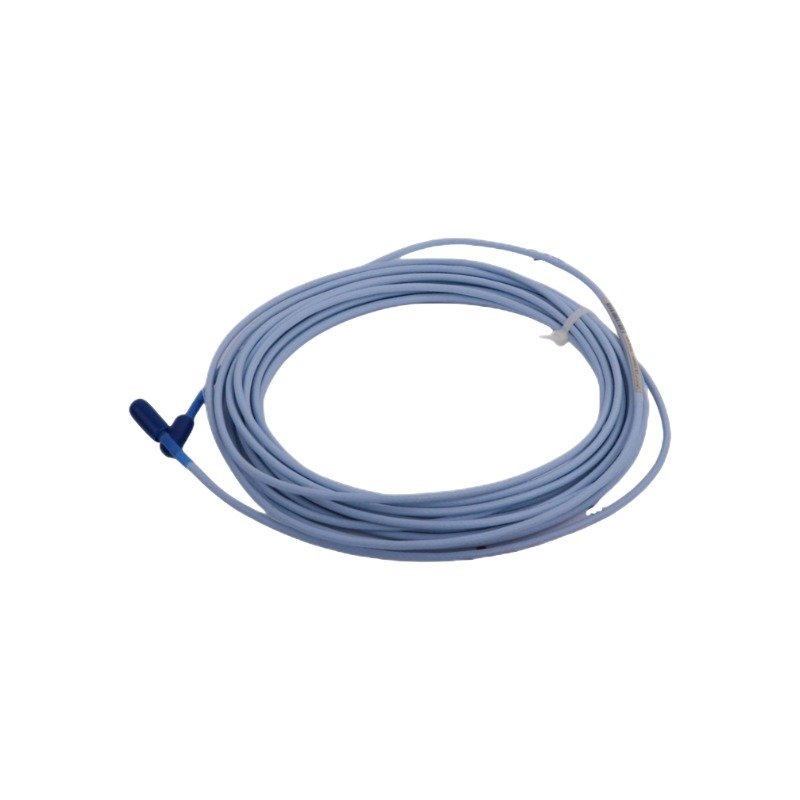

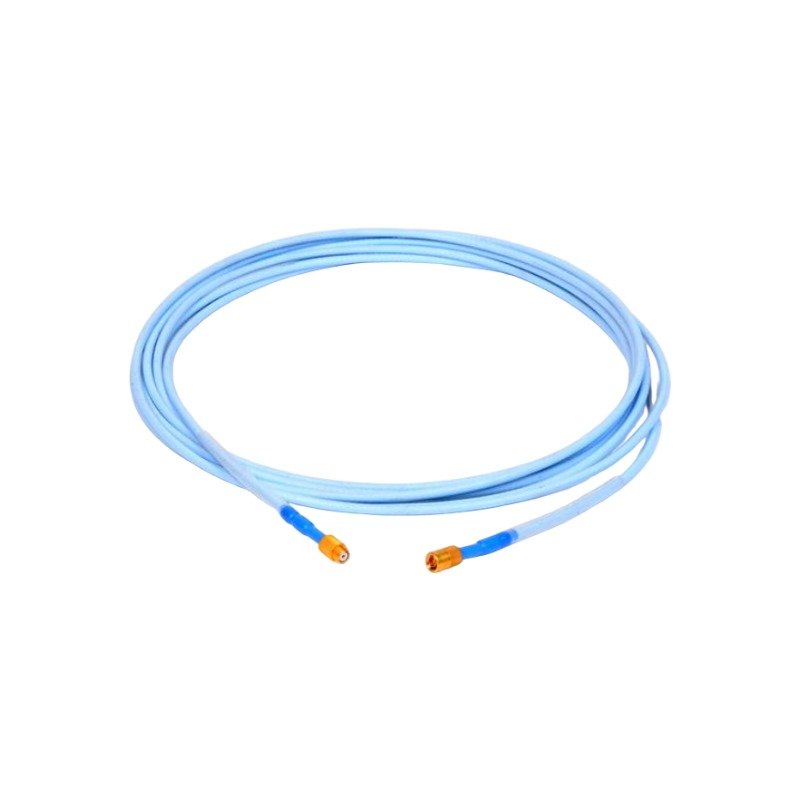

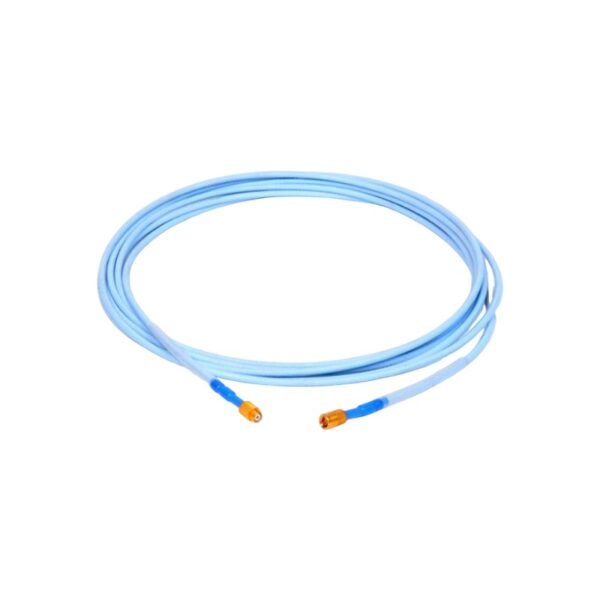

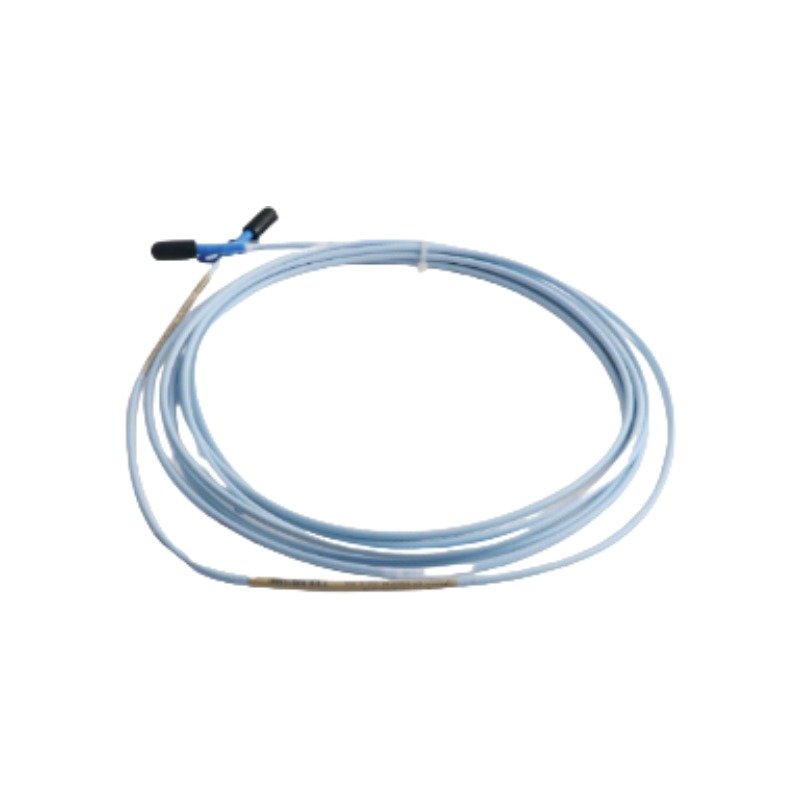

The Bently Nevada 330130-040-00-00, also cataloged as the 330130 Standard Extension Cable, operates as a dedicated hardware component for RF signal transmission within Bently Nevada 3500 and 3300 Proximity Transducer Systems.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The Bently Nevada 330130-040-00-00 maintains precise electrical impedance matching to ensure accurate eddy-current probe scaling across the entire system loop. During installation and routine verification, calibrated physical routing is necessary to prevent impedance shifts that skew the required gap voltage validation (-10 VDC targets) critical for accurate rotor dynamics assessment. Integrated shielding within the cable core provides robust cross-talk suppression and external electromagnetic interference mitigation, preventing false vibration spikes in the machinery protection system monitor.

Frequently Asked Questions

Q: Does the 330130-040-00-00 extension cable support hot-swapping or live disconnection during machine operation?

A: Physical disconnection of the extension cable breaks the transducer loop circuit, causing the associated 3500 monitor channel to enter an error state (Not OK). While the module itself will not sustain physical damage, the channel must be bypassed or placed in bypass mode prior to disconnection to prevent unexpected trip execution.

Q: What is the impact on calibration if this 4.0-meter cable is modified or combined with alternative lengths?

A: The total electrical length of the proximity transducer system must equal exactly 5.0 meters or 9.0 meters depending on the selected Proximitor Sensor. Altering, cutting, or splicing the 330130-040-00-00 cable changes the physical capacitance and inductance, destroying the eddy-current calibration and invalidating linear scale factors.

Field Installation Guidelines

• Minimum Bend Radius: Ensure the cable routing adheres to a minimum physical bend radius of 25.4 mm (1.0 inch) for unarmored variants to prevent internal dielectric damage.
• Connector Torque and Insulation: Tighten the miniature coaxial connectors using appropriate finger torque. Apply the required silicone self-locking tape or connector protectors around the junctions to prevent fluid ingress and ground loops.
• Isolation from High-Voltage Lines: Route the extension cable in dedicated, grounded metal conduits separated from high-voltage AC or variable frequency drive (VFD) motor cables to ensure signal integrity.
