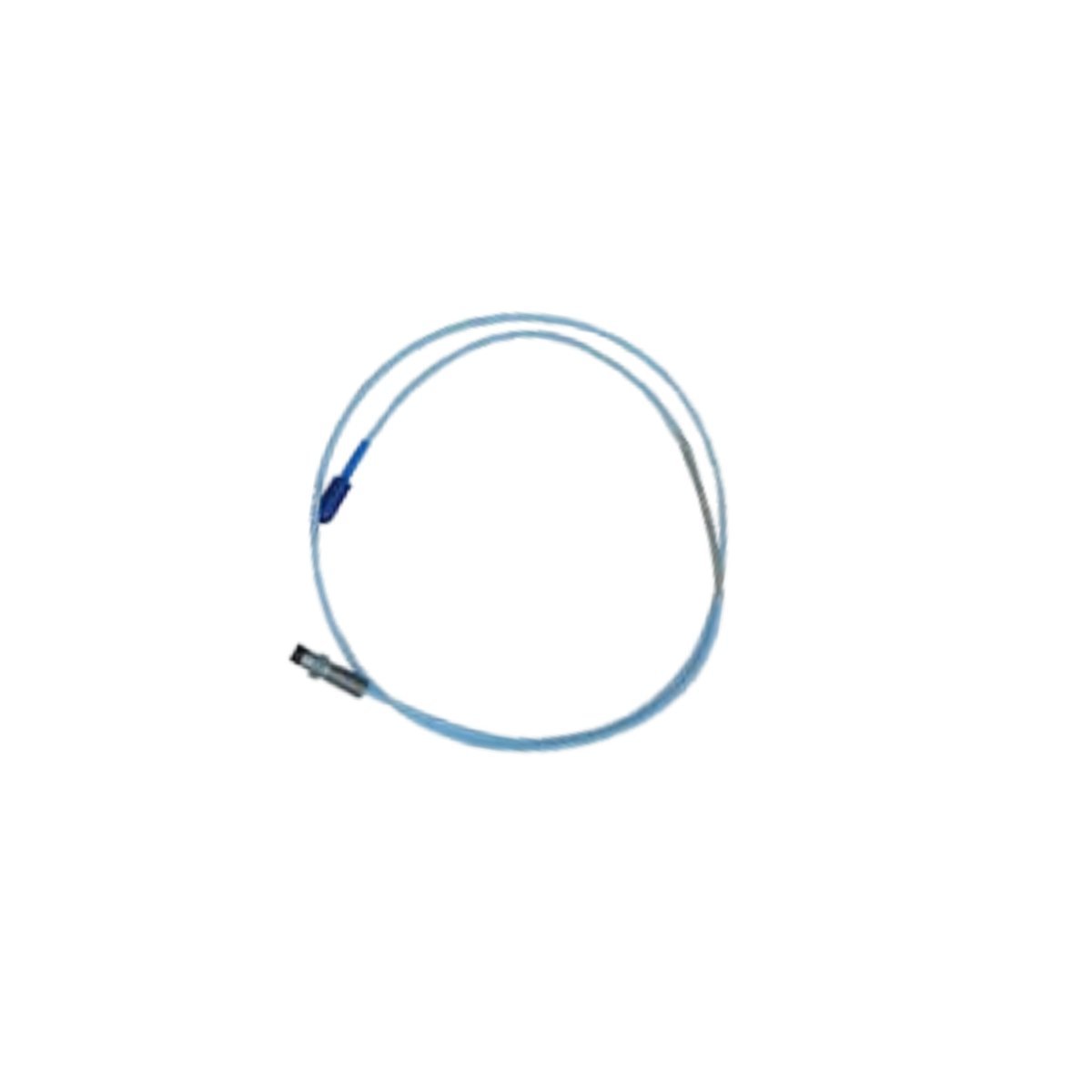

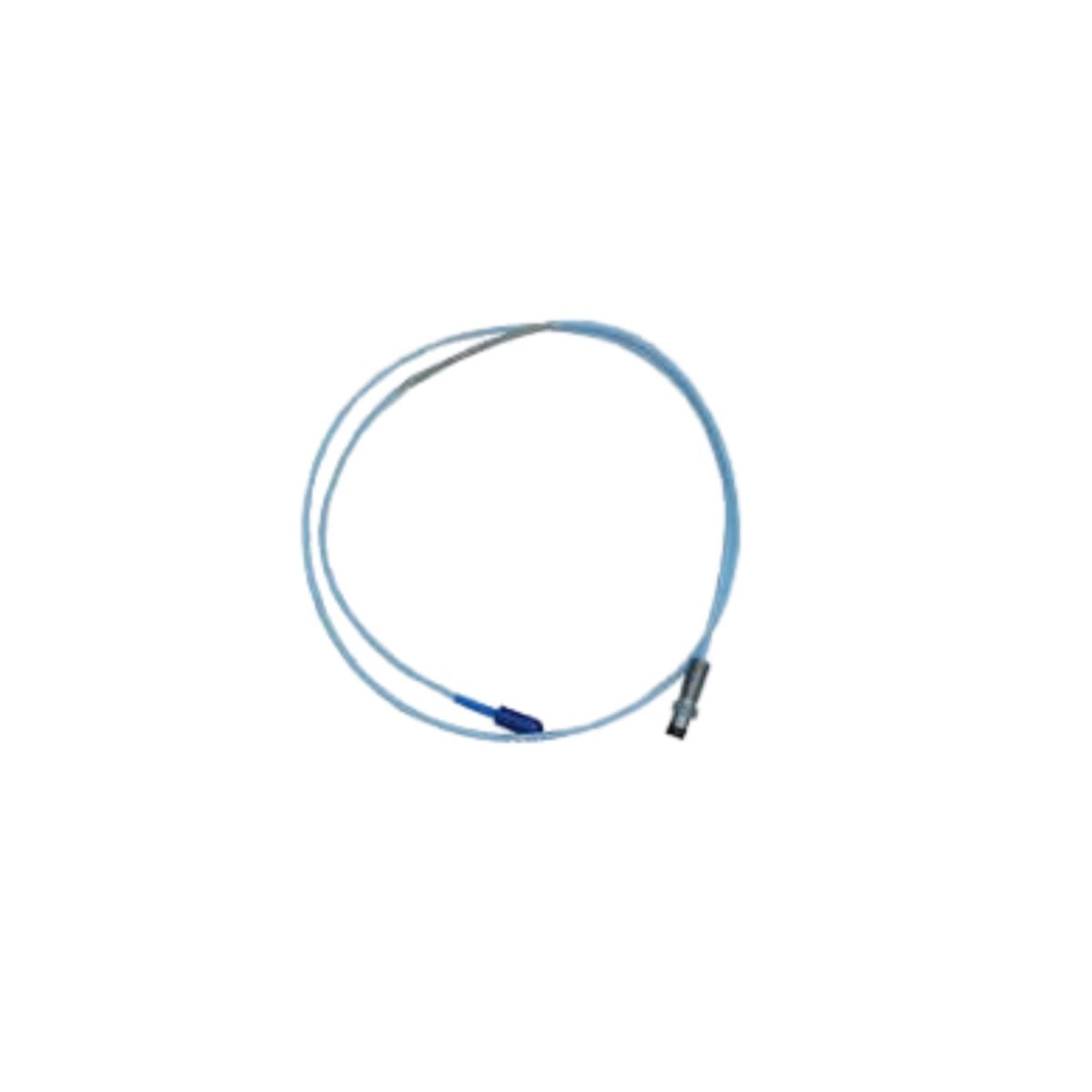

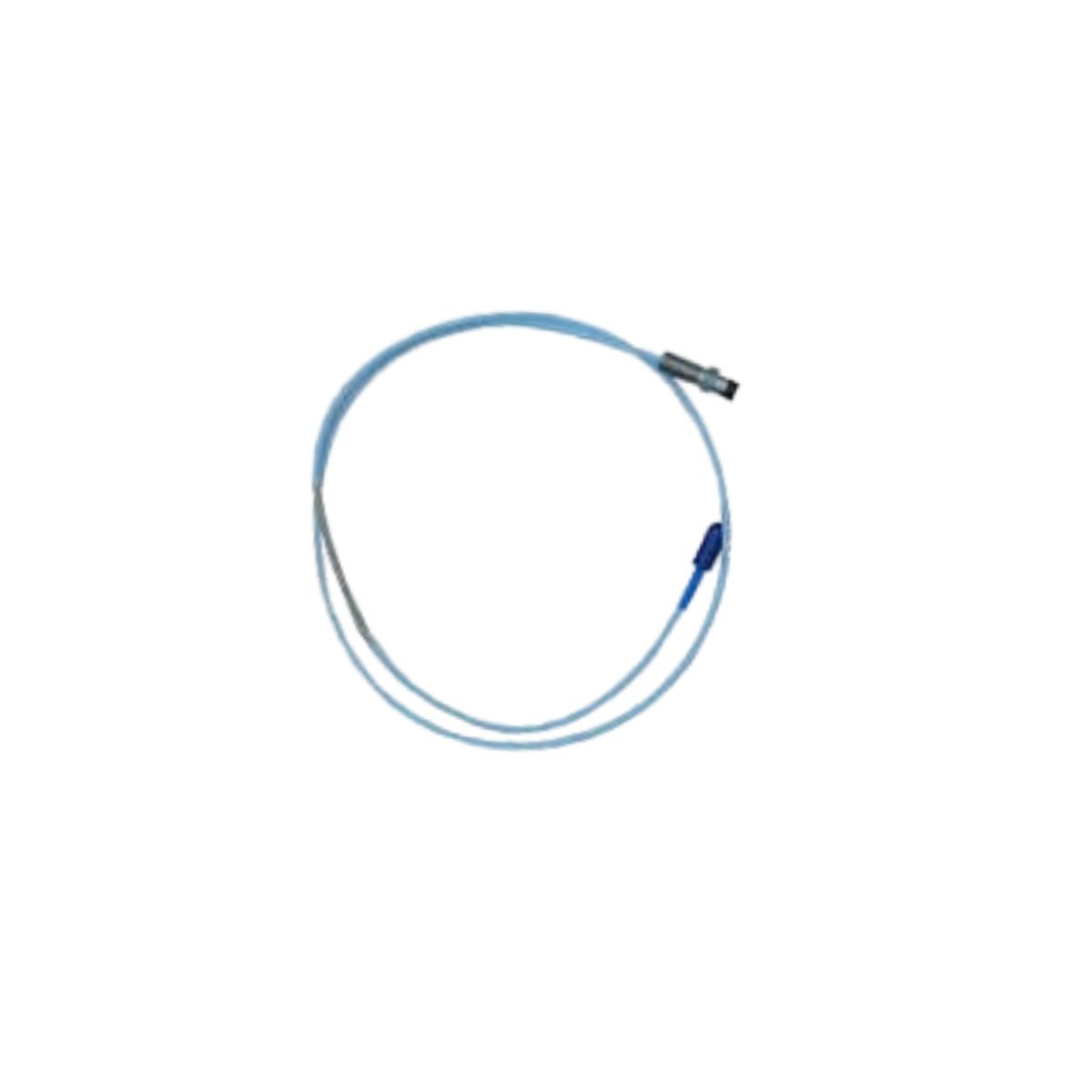

Bently Nevada 330105-02-12-10-02-05 | 3300 XL 8mm Reverse Mount Proximity Probe

The Bently Nevada 330105-02-12-10-02-05 is a precision-engineered Reverse Mount Probe designed for the 3300 XL 8mm Proximity Transducer System. This specialized sensor captures shaft displacement and dynamic vibration data from rotating machinery where traditional forward-mounting is restricted. By utilizing eddy current technology, the probe facilitates non-contact measurement of critical parameters, including radial vibration and axial thrust position. Consequently, this data allows reliability engineers to identify early-stage mechanical faults such as rotor imbalance or shaft misalignment. Ultimately, integrating this probe into a protection suite ensures that mission-critical assets remain within safe operational limits.

Environmental Resilience and Signal Fidelity

Bently Nevada constructs the 330105 series to excel in high-stress industrial landscapes. This probe features a ruggedized design that effectively resists high thermal loads, moisture ingress, and corrosive chemical exposure. Furthermore, the cable assembly employs high-density shielding to neutralize electromagnetic interference (EMI), which ensures that the transducer signal remains clean and accurate. Because the “02” option includes a connector protector, the internal coaxial interface stays shielded from physical impact and environmental debris. As a result of these engineering choices, the probe maintains consistent performance across various industrial sectors, from petrochemical processing to large-scale power generation.

Technical Specifications

• Manufacturer: Bently Nevada (Baker Hughes)

• Model Number: 330105-02-12-10-02-05

• Product Type: Reverse Mount Proximity Probe

• System Series: 3300 XL 8mm

• Total Length: 1.0 meter (Approximately 3.3 feet)

• Connector Option: Miniature coaxial ClickLoc connector

• Connector Protector: Included (Option 02)

• Agency Approvals: Multiple international certifications (Option 05)

• Operating Temperature: -51 °C to +177 °C (-60 °F to +350 °F)

• Jacket Material: High-durability Fluoropolymer

• Weight: 0.06 kg (0.13 lbs)

• Thread Size: 3/8-24 UNF

Industrial Utility and Asset Management

Strategic deployment of the 330105-02-12-10-02-05 enables plant operators to transition toward more effective predictive maintenance models. By providing a continuous stream of vibration data to 3500 Series Monitoring Systems, the probe supports sophisticated trend analysis and automated alarm logic. This proactive monitoring approach significantly reduces the likelihood of unplanned downtime and helps extend the overall service life of turbines, compressors, and pumps. Moreover, the reverse mount configuration allows for easier installation in tight housing clearances where standard probes cannot be serviced. Transitioning to this high-performance sensor ultimately lowers the total cost of ownership by preventing expensive secondary damage to internal machine components.

Frequently Asked Questions

What is the difference between a reverse mount and a standard mount probe?

A reverse mount probe, like the 330105, is designed to be installed from the “inside-out” or through specialized housings where the connector end is fed through the mounting hole first. This is ideal for applications where external access to the probe tip is limited by the machinery casing.

Can I use this probe with a standard 3300 XL Proximitor?

Yes, the 330105 series is fully compatible with standard 3300 XL Proximitor sensors. However, you must ensure that the total electrical length—combined with your extension cable—matches the 5.0m or 9.0m calibration of your specific Proximitor.

Is the “05” agency approval necessary for all installations?

The “05” option provides multiple approvals (ATEX, CSA, IECEx), which are essential for installations in classified hazardous areas. If your facility operates in an environment with potentially explosive atmospheres, this certification ensures compliance with international safety regulations.

How does the ClickLoc connector improve reliability?

The ClickLoc mechanism features a tactile locking system that prevents the connection from loosening under the intense vibrations common in rotating equipment. This ensures a stable, low-resistance signal path that eliminates intermittent data drops during critical monitoring phases.
