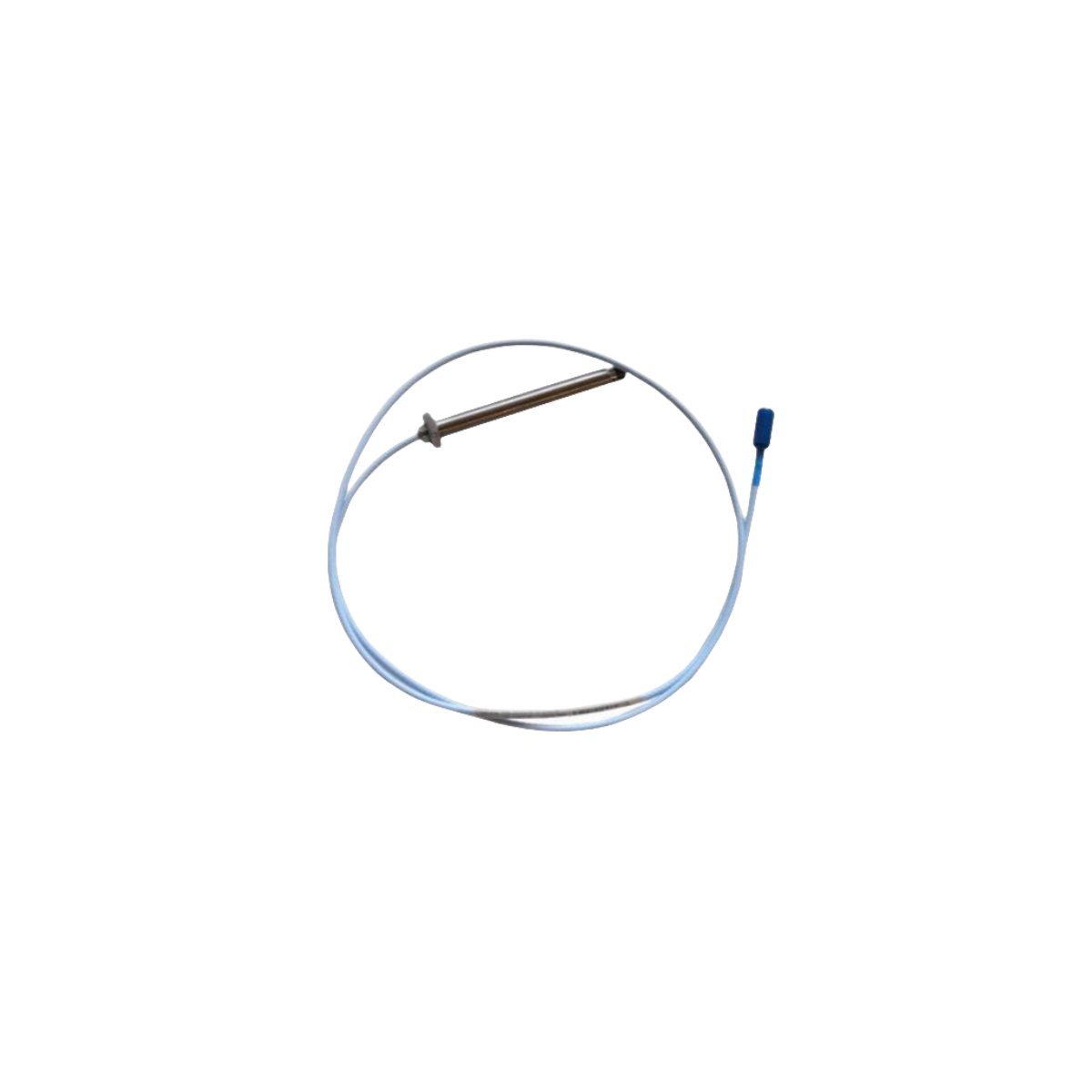

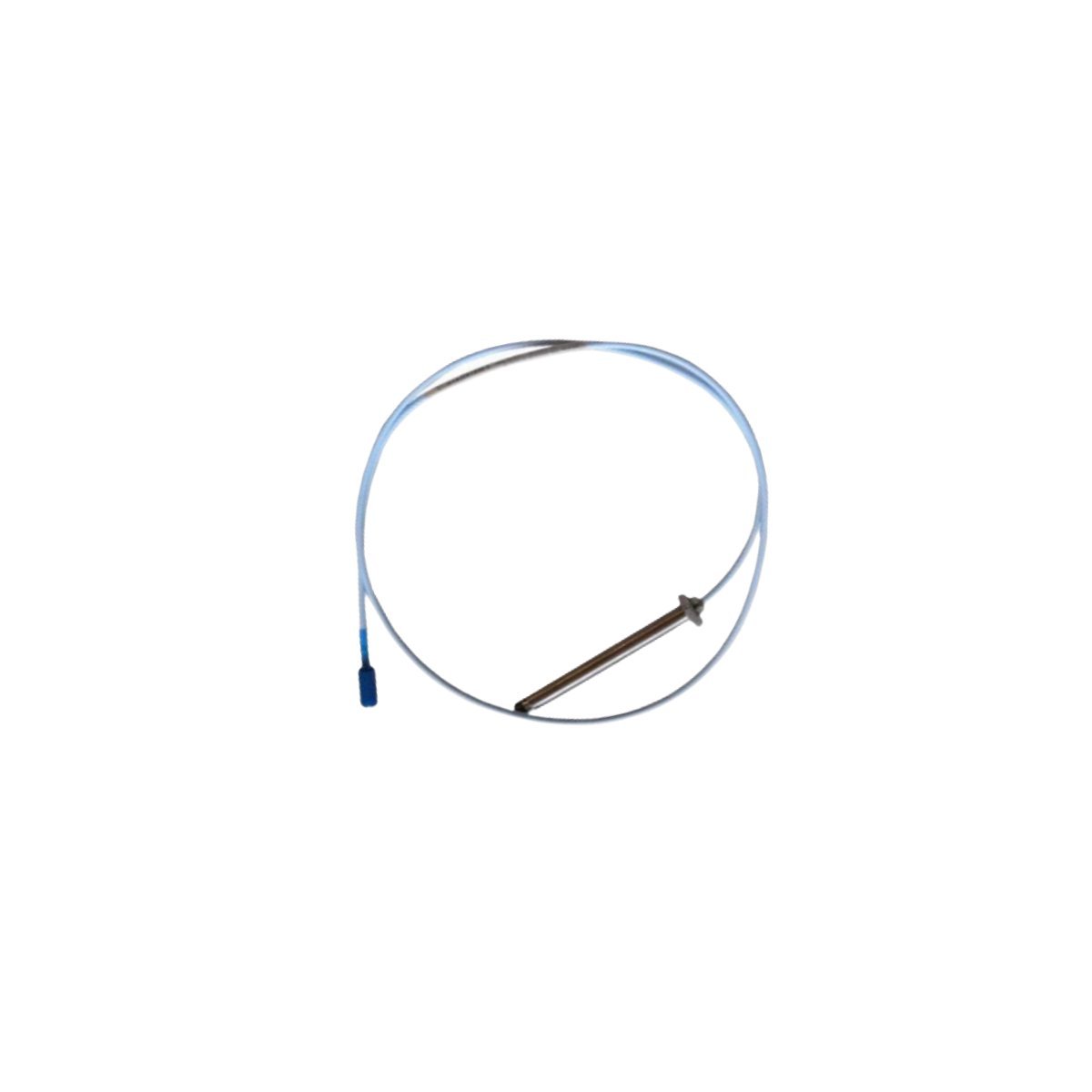

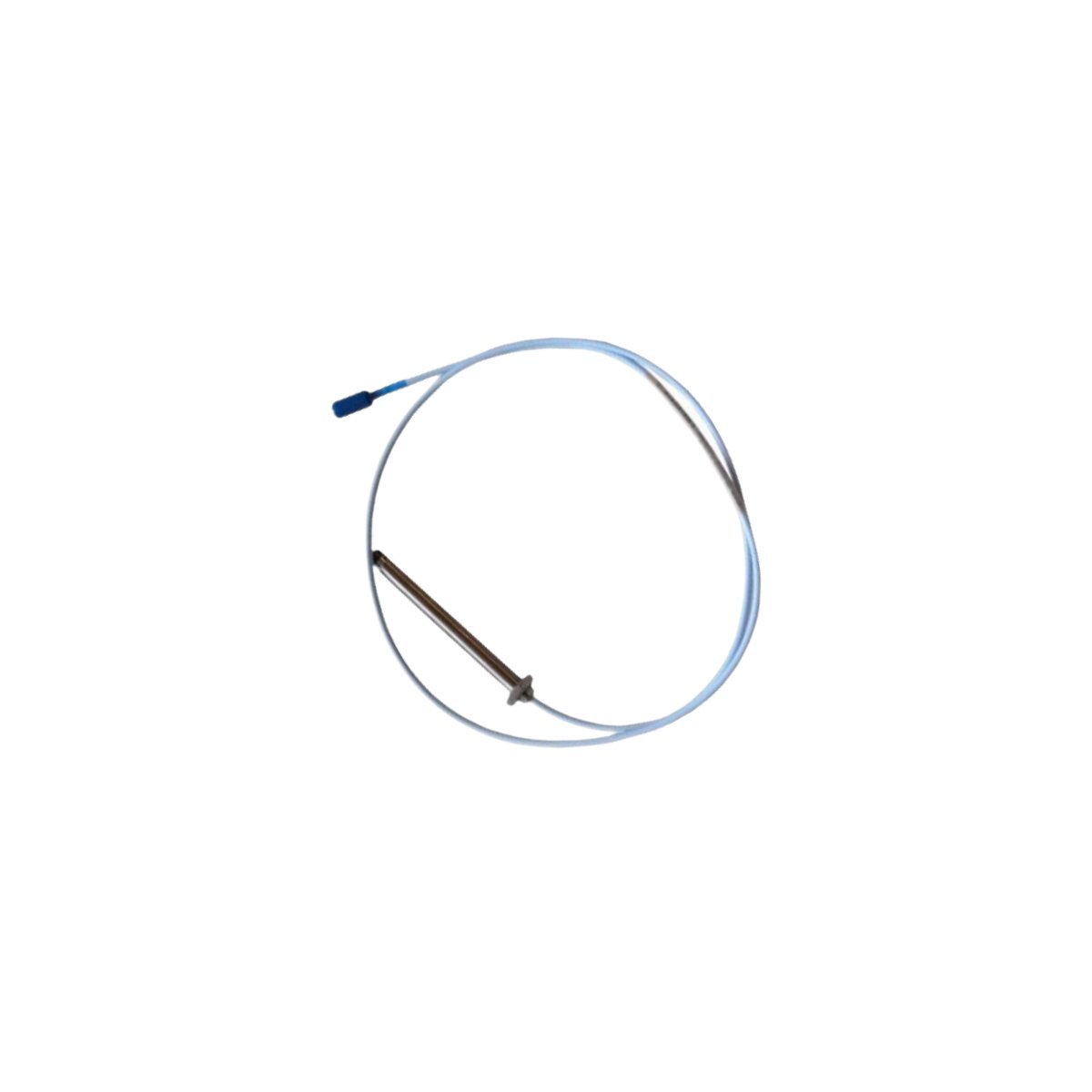

Bently Nevada 330103-00-04-50-11-00 3300 XL 8 mm Proximity Probe

The Bently Nevada 330103-00-04-50-11-00 is a high-precision 8 mm proximity probe designed for the 3300 XL Transducer System. This sensor serves as a fundamental element in machinery protection, measuring both radial vibration and axial position on rotating shafts. By utilizing eddy current technology, the probe captures non-contacting displacement data with extreme accuracy. Consequently, it allows maintenance teams to detect mechanical instabilities such as rotor imbalance or shaft misalignment at an early stage. This proactive monitoring is essential for preventing catastrophic equipment failure and ensuring the operational health of high-speed industrial assets.

Rugged Design and Signal Precision

A primary feature of the 330103-00-04-50-11-00 probe is its ability to maintain signal stability in demanding environments. Bently Nevada constructs these probes with high-performance polyphenylene sulfide (PPS) tips, which provide superior resistance to moisture and chemical corrosion. Furthermore, the 3300 XL system architecture reduces the sensitivity of the probe to temperature fluctuations. This design ensures that the data remains consistent whether the machine is at a cold start or full operating temperature. The probe’s integration with the 3500 Machinery Protection System enables real-time diagnostic analysis, allowing operators to optimize machinery performance across power generation and oil and gas facilities.

Technical Specifications

The 330103-00-04-50-11-00 is engineered to meet rigorous industrial standards, including API 670. Key technical details include:

• Manufacturer: Bently Nevada (Baker Hughes)
• Model Number: 330103-00-04-50-11-00
• Probe Tip Diameter: 8 mm
• Thread Size: 3/8-24 UNF
• Unthreaded Length: 0.0 inches (Option 00)
• Overall Case Length: 0.4 inches (Option 04)
• Total Length: 5.0 meters (Option 50)
• Connector Option: Miniature coaxial ClickLoc connector with connector protector (Option 11)
• Agency Approval: Standard (Option 00)
• Operating Temperature: -51°C to +177°C (-60°F to +350°F)
• Weight: 0.8 kg
• Dimensions: 5.1 x 20.3 x 33.0 cm

Application in Predictive Maintenance

Industrial facilities rely on this proximity sensor to support sophisticated predictive maintenance strategies. By providing a continuous stream of shaft vibration data, the 330103-00-04-50-11-00 assists in the early identification of bearing wear and fluid-film instability. This intelligence allows for planned interventions rather than reactive repairs, which significantly reduces unplanned downtime. Moreover, the probe’s ClickLoc connectors offer a secure, vibration-resistant link to the extension cable, ensuring that the critical data path remains unbroken even in high-vibration environments like those found near steam turbines or large compressors.

Operational Safety and System Longevity

Implementing the Bently Nevada 3300 XL series enhances the overall safety of industrial operations. The 330103-00-04-50-11-00 probe works seamlessly with Bently Nevada monitoring racks to trigger alarms or automatic shutdowns when vibration levels exceed safe thresholds. This protection not only safeguards the machinery but also protects plant personnel and the surrounding environment. Additionally, the robust hardware design contributes to a lower total cost of ownership by extending the service life of both the sensor and the monitored industrial equipment.
