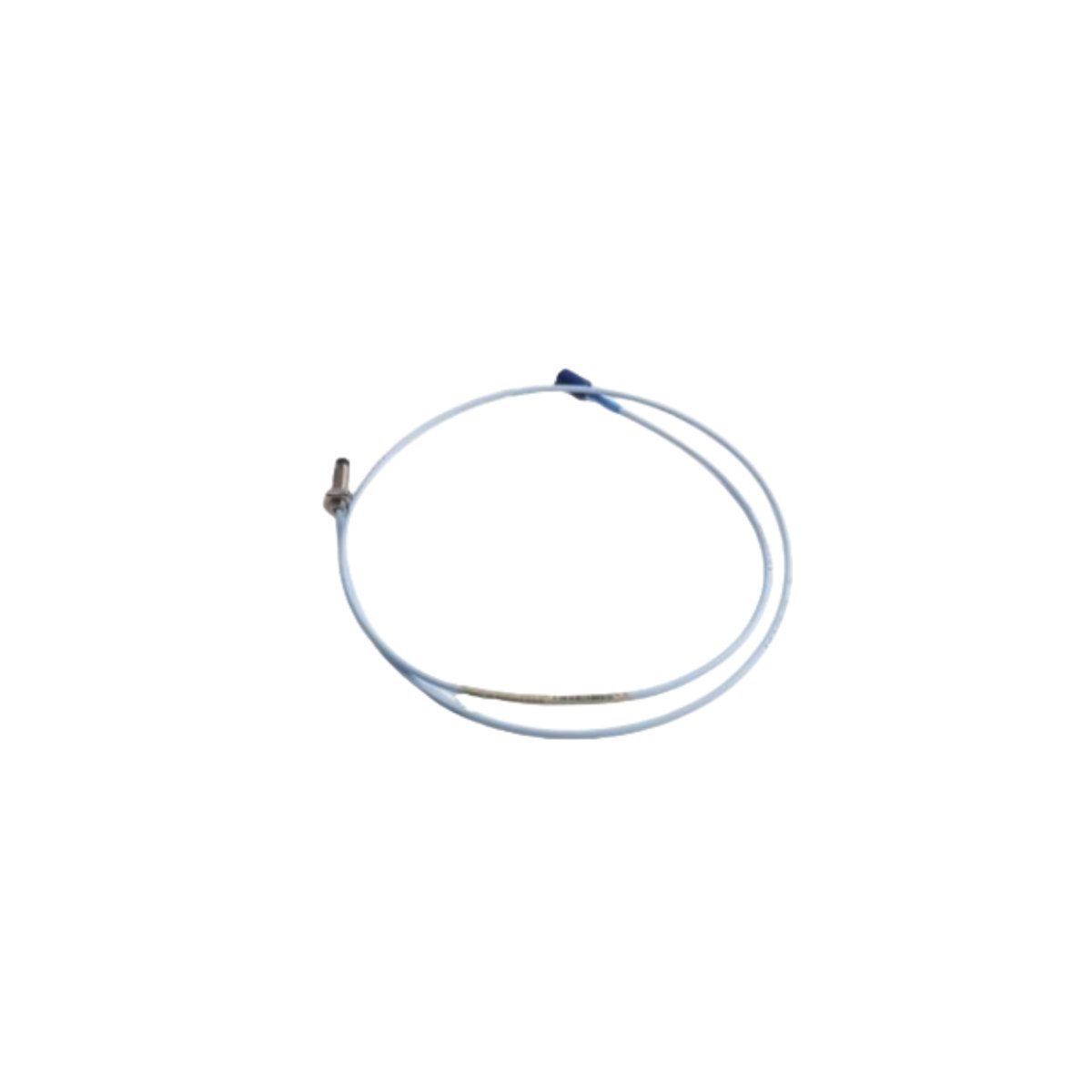

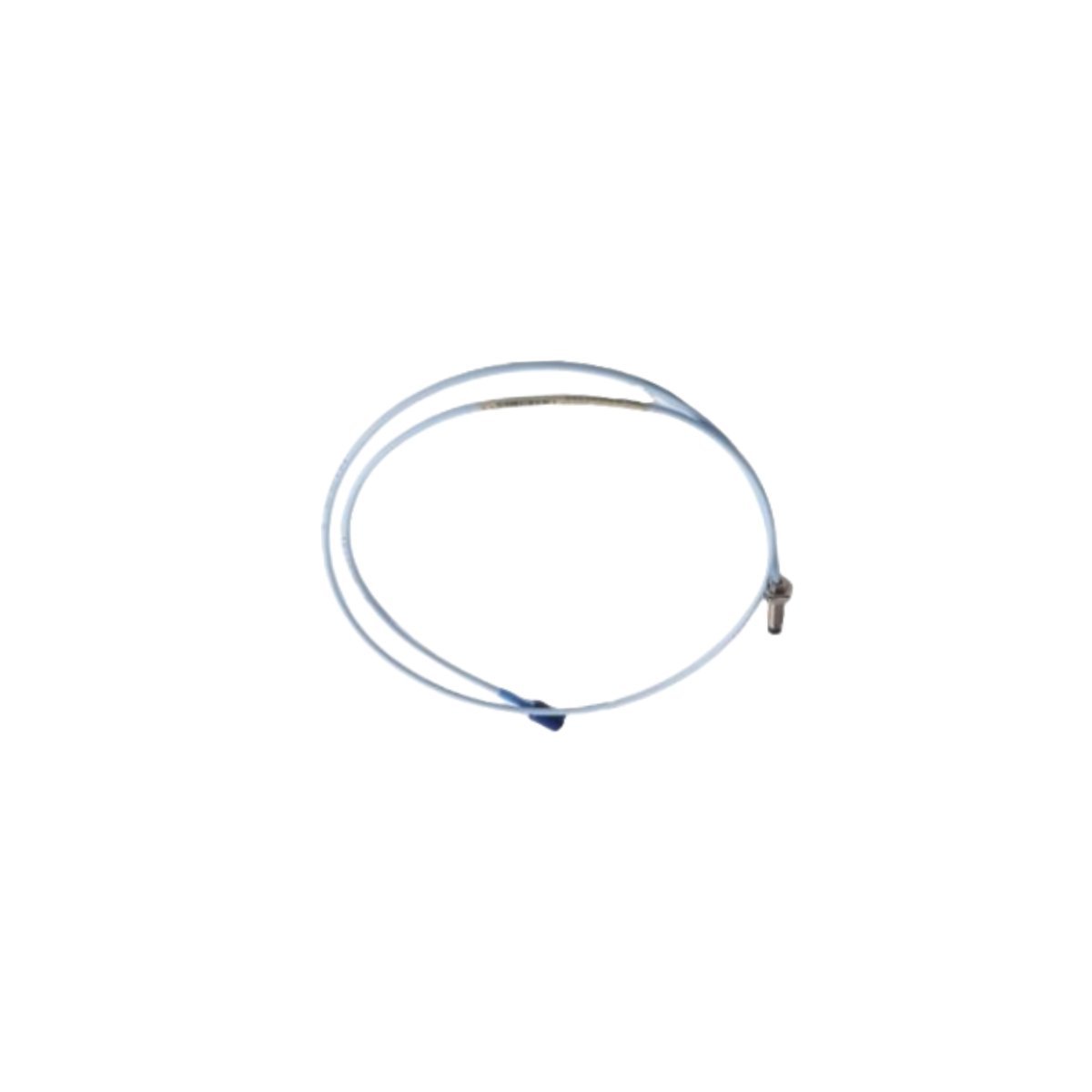

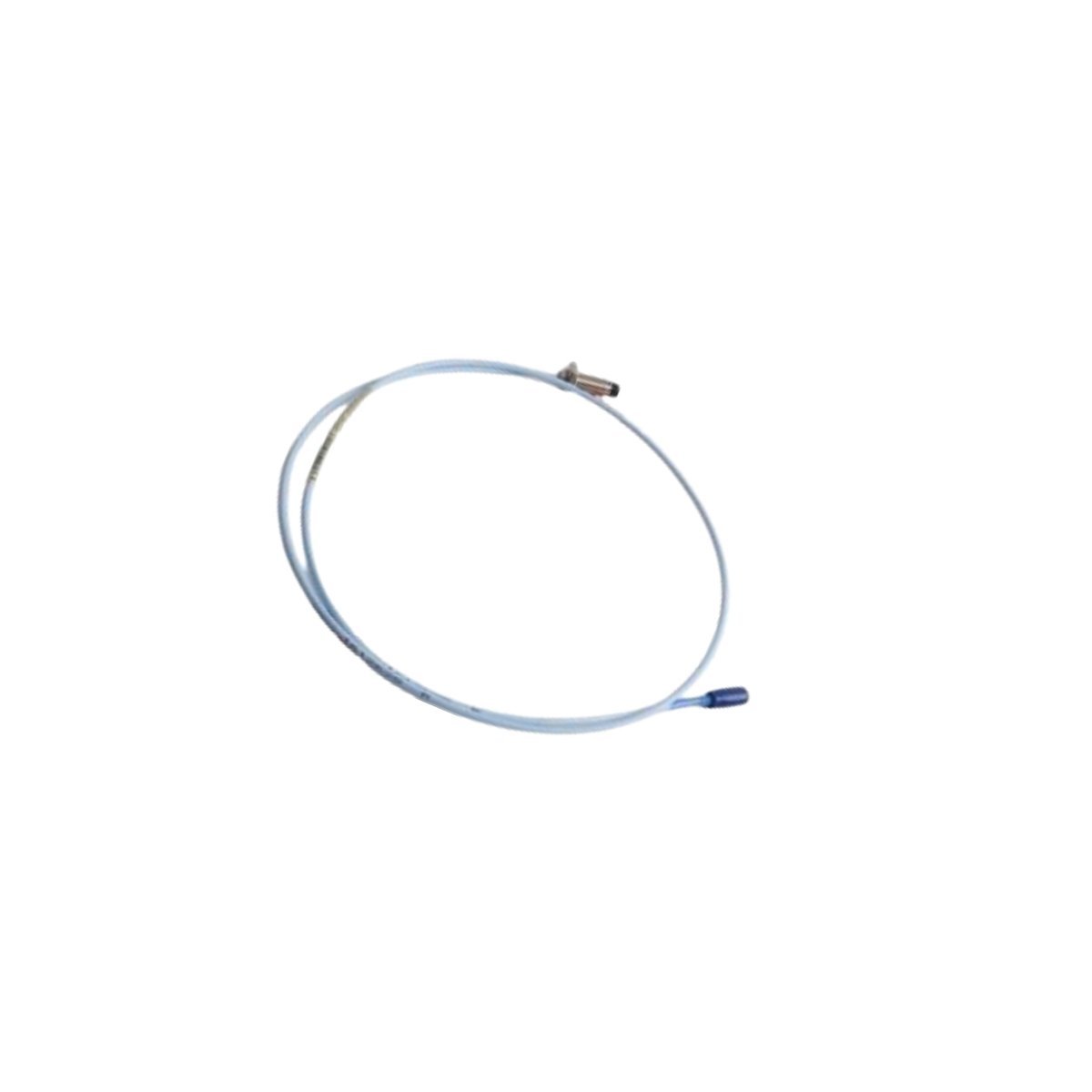

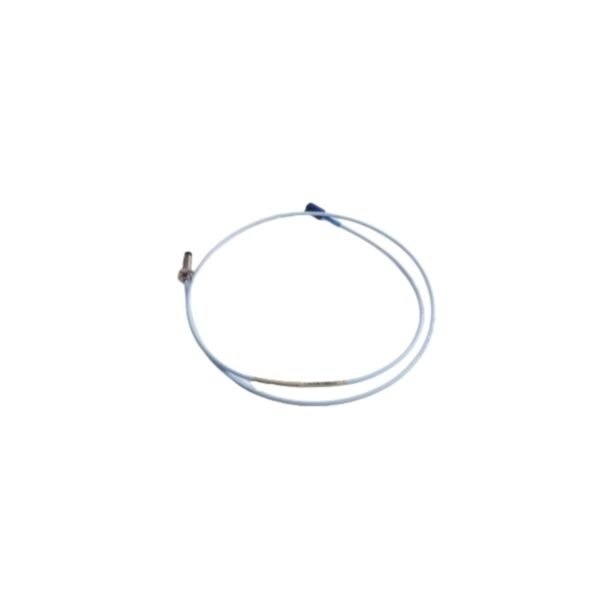

The Bently Nevada 330103-00-03-10-01-05 is a high-precision 3300 XL 8mm extension cable designed to facilitate the transmission of eddy current signals between proximity probes and Proximitor sensors. This specialized component ensures the integrity of vibration and position data for critical rotating machinery in demanding industrial environments.

Precision Signal Transmission for Machinery Protection

The 330103-00-03-10-01-05 extension cable functions as a critical link within the Bently Nevada 3300 XL proximity transducer system. By maintaining a constant 75-ohm impedance, this cable preserves the accuracy of high-frequency signals as they travel from the sensor probe to the processing electronics. This capability allows the system to monitor minute changes in radial vibration and axial displacement with extreme precision. Consequently, maintenance teams can identify early mechanical warnings—such as shaft unbalance or bearing degradation—allowing for proactive intervention before equipment failure occurs.

Engineering for Harsh Industrial Conditions

Industrial facilities often subject monitoring hardware to extreme thermal and chemical stress; therefore, Bently Nevada engineered the 330103-00-03-10-01-05 with a robust Fluorinated Ethylene Propylene (FEP) jacket. This high-performance insulation protects the internal conductors from corrosive lubricants, moisture, and high-temperature exposure. Moreover, the cable features advanced shielding that effectively rejects electromagnetic interference (EMI), ensuring that signal noise does not compromise the data reported to the 3500 series monitoring rack or DCS. This hardware resilience translates to a lower total cost of ownership by reducing the frequency of sensor recalibration and cable replacement.

Versatile Integration and Operational Efficiency

The 330103-00-03-10-01-05 integrates seamlessly with both standard 3300 XL and 3300 XL NSv proximity systems, providing the flexibility required for diverse industrial setups. Its standardized connectors allow for rapid field installation, which significantly streamlines both new equipment commissioning and the retrofitting of existing assets. Furthermore, the cable supports a wide variety of machinery applications, including high-speed steam turbines, centrifugal compressors, and industrial motors. By providing stable and repeatable telemetry, this extension cable empowers reliability engineers to optimize machinery uptime and refine predictive maintenance schedules across the plant.

Key Technical Characteristics

• Optimized Impedance: Features a 75-ohm coaxial design to eliminate signal attenuation and reflection.
• Enhanced Shielding: Protects critical vibration data from industrial electrical noise and EMI.
• FEP Insulation: Provides superior resistance to chemicals, moisture, and high-heat environments.
• Gold-Plated Terminal: Ensures a low-resistance connection and prevents long-term contact corrosion.
• High Temperature Stability: Maintains consistent electrical properties across a broad operating range.
• Click-Loc Connectors: Facilitates secure, finger-tight connections that resist loosening under vibration.

Technical Specifications
