Description

Brief Product Description

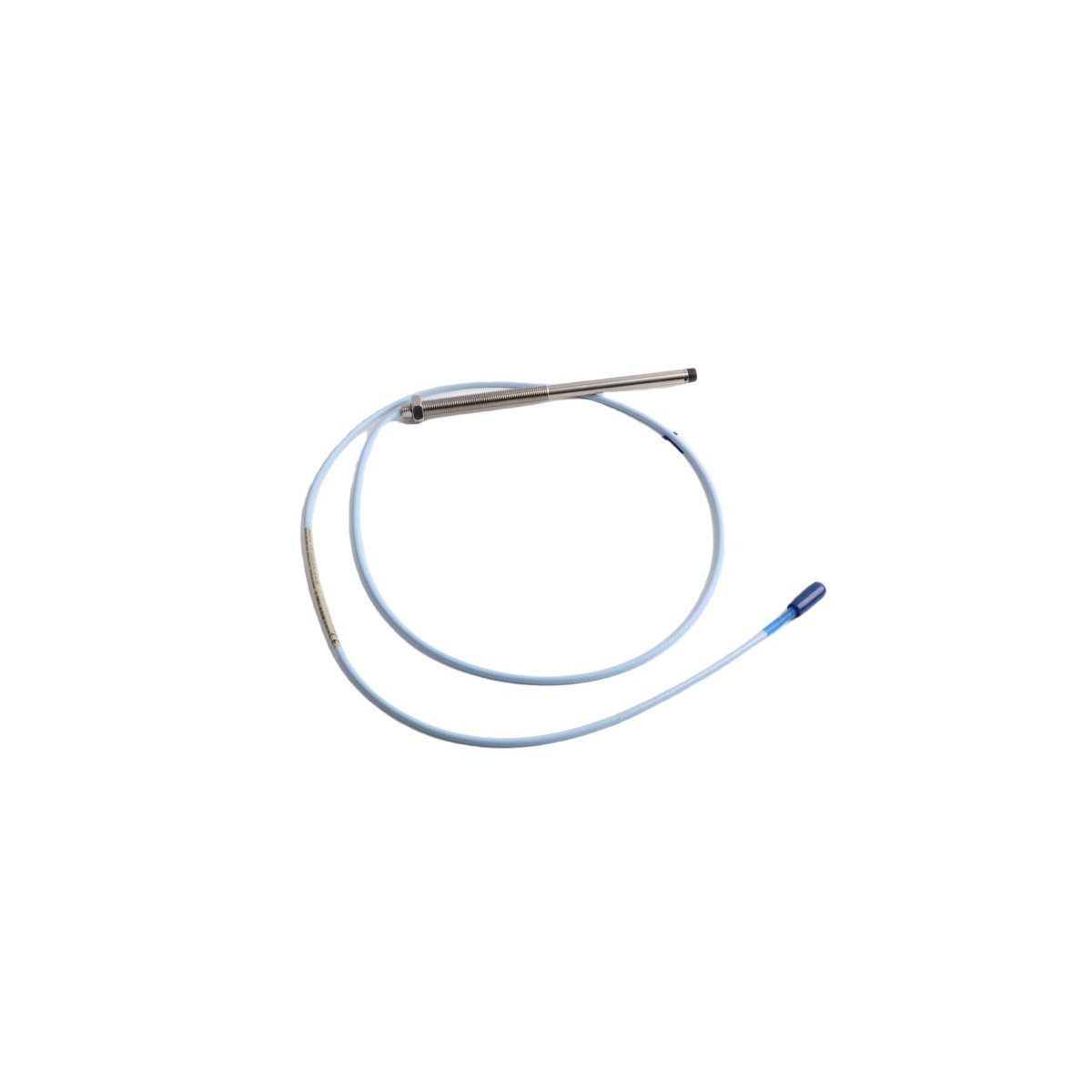

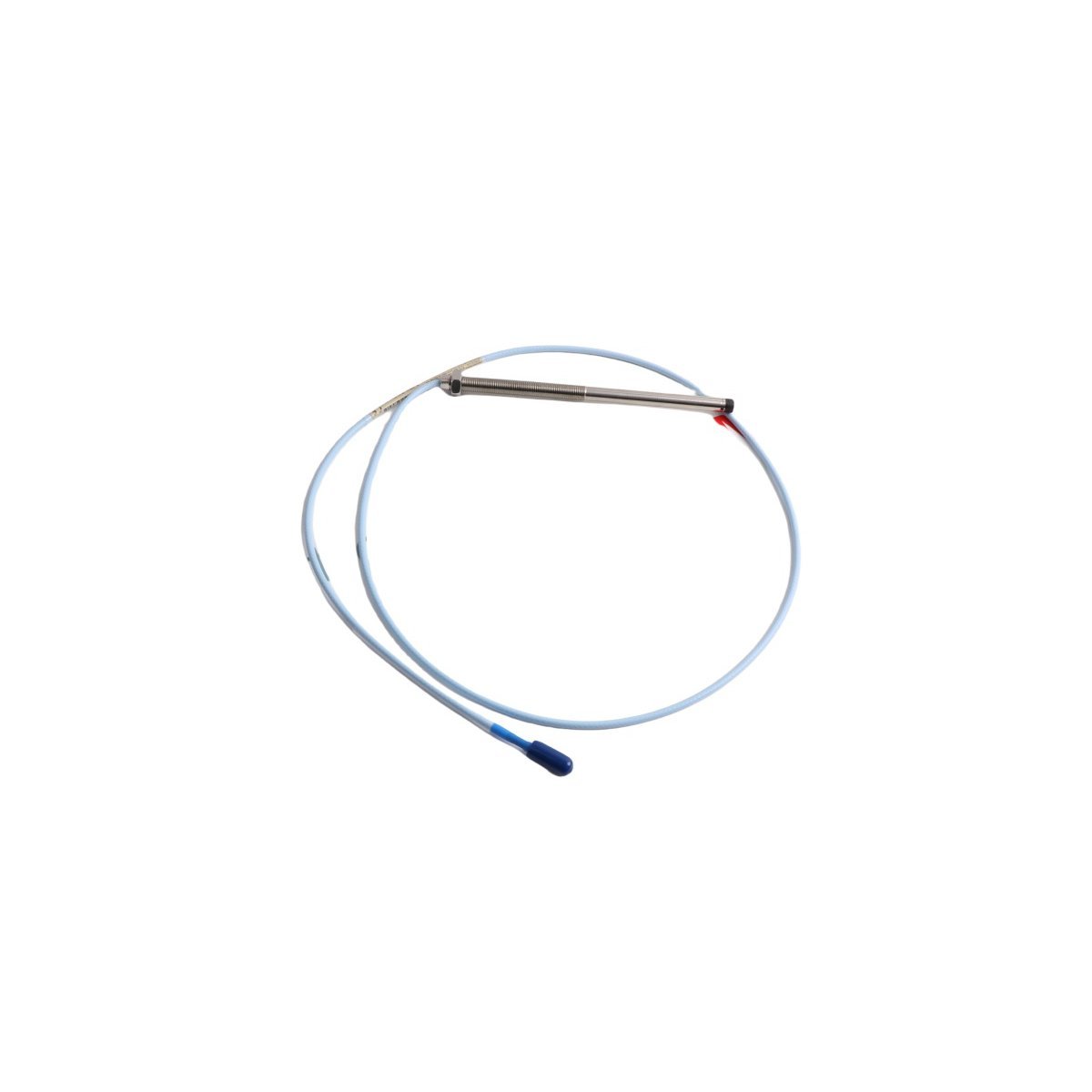

The Bently Nevada 330101-00-63-10-02-00 is a high-precision 3300 XL 8mm proximity probe designed for non-contacting vibration and displacement measurements. This sensor provides critical data for the protection of high-speed rotating assets like turbines, compressors, and industrial pumps.

High-Accuracy Displacement and Vibration Monitoring

The 330101-00-63-10-02-00 functions as a fundamental sensing component within the 3300 XL 8mm Proximity Transducer System. By employing advanced eddy current technology, the probe observes the microscopic distance between its tip and the target shaft. This non-contacting method allows for the continuous tracking of radial vibration and axial position without any mechanical wear. Consequently, the sensor delivers real-time telemetry to monitoring racks, enabling the early detection of shaft instability or bearing issues. These proactive insights help operators prevent catastrophic equipment failure and optimize machinery performance.

Specialized Engineering for Extreme Industrial Service

Bently Nevada constructs the 330101-00-63-10-02-00 to maintain exceptional signal stability while operating in severe environments. The probe features a polyphenylene sulfide (PPS) tip that is hermetically sealed to resist moisture, steam, and aggressive lubricating oils. Furthermore, the 3300 XL series design effectively suppresses electromagnetic interference (EMI) and minimizes thermal drift, ensuring repeatable measurements even in unconditioned turbine housings. The integrated 112cm lead includes a gold-plated Click-Loc connector, which prevents terminal oxidation and maintains a secure electrical link under constant machinery vibration.

Strategic Asset Protection and System Compatibility

This proximity probe integrates seamlessly with Bently Nevada 3500 series machinery protection systems and standard Proximitor sensors. Because it follows standardized calibration curves, the 330101-00-63-10-02-00 ensures a linear response across its entire measurement range. Transitioning to this 3300 XL hardware allows facilities to implement robust predictive maintenance strategies that reduce unplanned downtime. Ultimately, this sensor serves as a critical safeguard for mission-critical rotating equipment, helping to extend the operational lifespan of industrial assets in power generation and petrochemical sectors.

Key Technical Characteristics

• 8mm Sensor Diameter: Engineered for the standard linear range required in radial and axial measurements.
• Non-Contacting Design: Eliminates friction and mechanical wear by measuring via electromagnetic fields.
• PPS Tip Encapsulation: Provides a durable, oil-resistant seal for high-temperature and high-pressure zones.
• Gold-Plated Terminals: Ensures a low-resistance, corrosion-free signal path for long-term data integrity.
• Click-Loc Interconnect: Features a self-locking mechanism to prevent accidental disconnection during operation.
• EMI Suppression: Protects sensitive telemetry from the electrical noise of nearby motors and generators.

Technical Specifications
