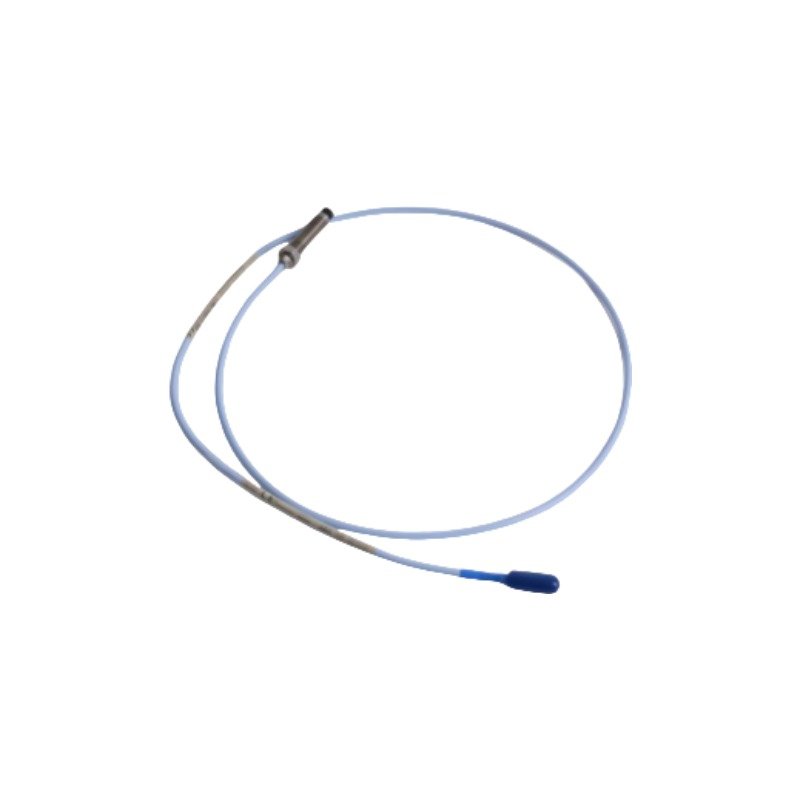

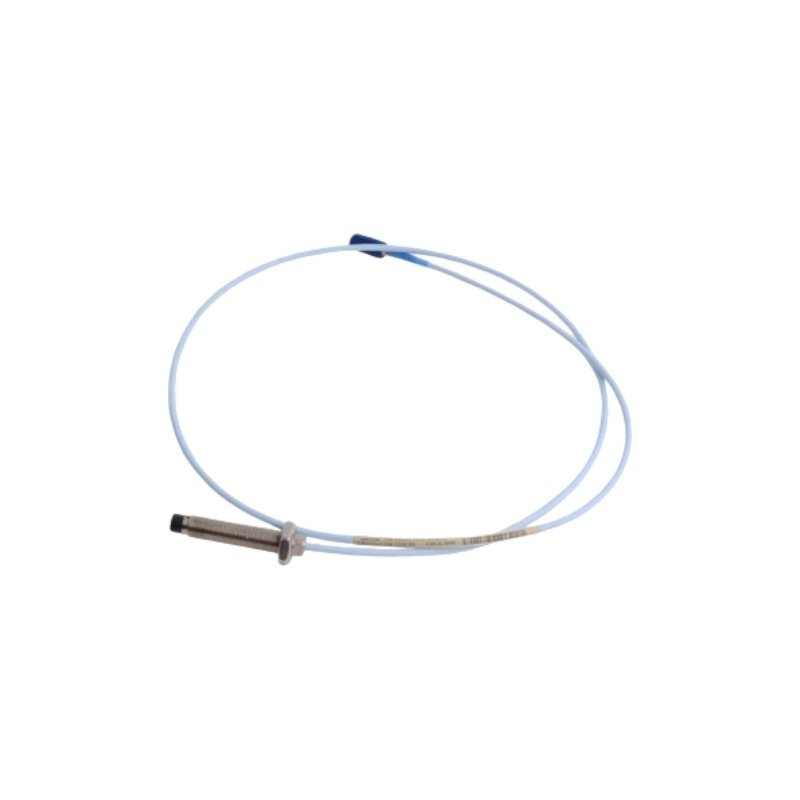

Bently Nevada 330103-00-03-10-01-05 3300 XL 8 mm Proximity Probe
Brand new 330103-00-03-10-01-05 original stock 8 mm proximity probe with a 30mm metric case and factory connector protector. Available with worldwide global shipping for industrial monitoring applications.
Description
The Bently Nevada 330103-00-03-10-01-05 serves as a vital component within the 3300 XL 8 mm Proximity Transducer System. Consequently, industrial facilities deploy this specialized unarmored probe to execute continuous, non-contacting shaft vibration and displacement monitoring across critical turbomachinery platforms.
Hardware Specifications
| Parameter | Specification |
|---|---|
| Model | 330103-00-03-10-01-05 |
| Brand | Bently Nevada |
| Origin | USA |
| Weight | Approximately 0.20 kg |
| Dimensions | 8.0 mm tip diameter, 1.0 m total length |
| Operating Temp | -51 deg C to +177 deg C |
| Thread Type | M10 x 1 thread (Metric forward mount) |
| Unthreaded Length | 0 mm (0.0 in) |
| Overall Case Length | 30 mm (1.2 in) |
| Total Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc connector with factory connector protector |
| Armor Option | Without stainless steel armor (Standard standard cable) |
| Agency Approvals | 05 option (Multiple Approvals – CSA, ATEX, IECEx) |
Transducer Calibration and Gap Voltage Validation
To establish the linear range centerpoint, field technicians must execute precise gap voltage validation during mechanical commissioning. Specifically, technicians calibrate the sensor to target a nominal -10 VDC gap voltage. Consequently, this voltage tracks the exact physical midpoint of the eddy-current probe scaling matrix. By securing this alignment, the system captures accurate rotor dynamics data and simultaneously maintains high cross-talk suppression when operators deploy multiple proximity probes in close proximity.
Frequently Asked Questions
Q: How does the 1.0-meter total probe length affect the overall configuration of the loop?
A: The 3300 XL system strictly enforces total electrical matching length rules. Because this probe measures exactly 1.0 meter, technicians must pair it with a 4.0-meter or 8.0-meter extension cable. As a result, this loop satisfies the 5.0-meter or 9.0-meter total system parameters mandatory for corresponding Proximitor Sensors.
Q: What distinct operational protection does the “01” connector option provide?
A: The “01” designation indicates that the coaxial lead arrives with a factory-installed connector protector already in place over the ClickLoc interface. Therefore, this specialized boot prevents oil, dust, and moisture from contaminating the gold-plated connection points before and after final assembly mating.
Field Installation Guidelines
- Always verify that the target surface area meets the minimum diameter requirements to completely contain the eddy-current field generated by the 8.0 mm tip.
- Achieve proper thread engagement during insertion; follow standard industrial practices to prevent cross-threading the metric probe case into the machine housing.
- Route the unarmored coaxial cable using dedicated conduit or tray systems to prevent severe pinching, stretching, or sharp kinks below the minimum bend radius.
- Pull the protective insulation sleeves completely over the final connector interface to isolate the internal coaxial system from problematic machine ground loops.
