Description

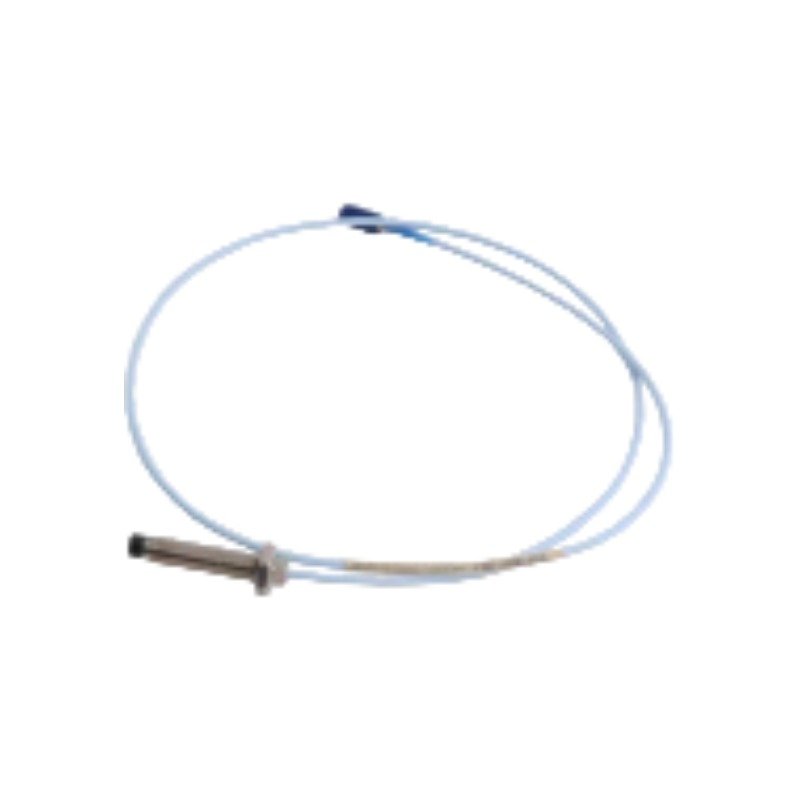

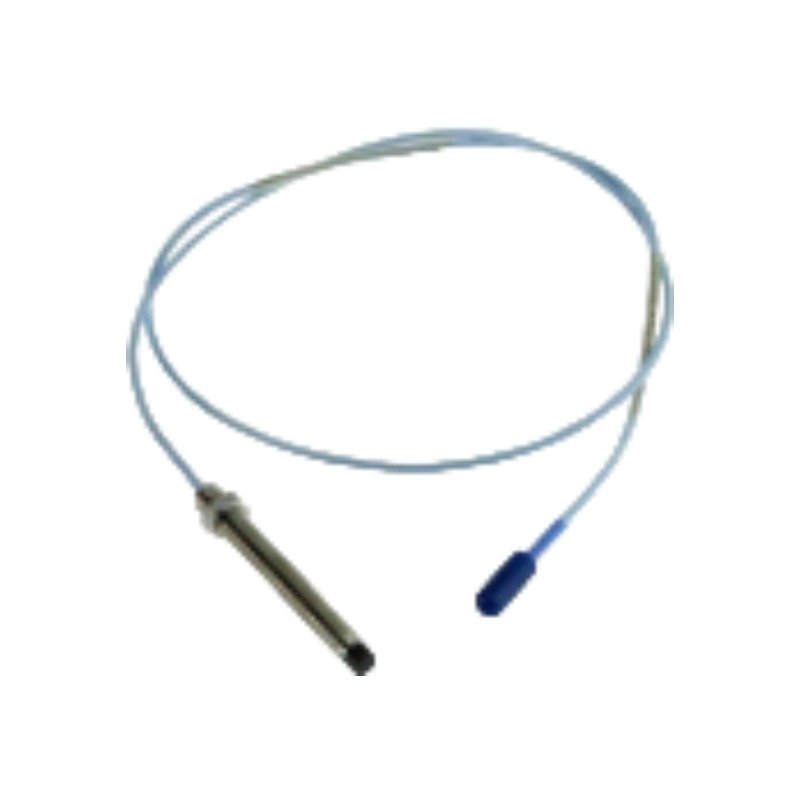

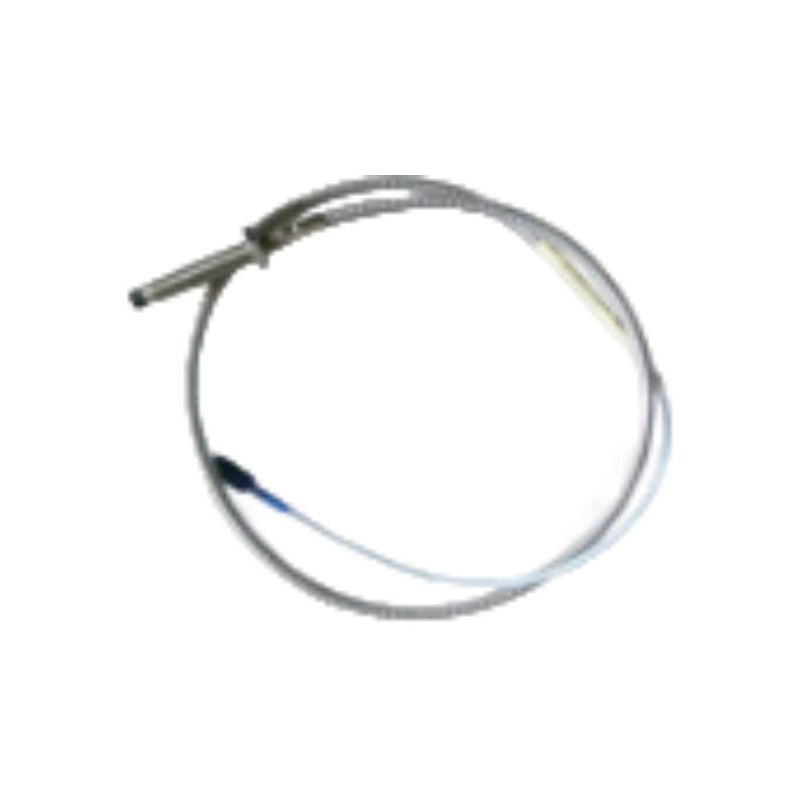

The Bently Nevada 330102-40-62-05-02-05, also cataloged as the 330102 8 mm Proximity Probe, operates as a dedicated hardware component for contactless displacement and vibration measurements within 3300 XL Proximity Transducer System platforms.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 8 mm proximity probe utilizes eddy-current technology to execute high-precision distance scaling relative to a rotating shaft target. During operation, the 3300 XL Proximitor Sensor drives an RF signal through the integrated 5.0 m cable to the probe tip, generating an electromagnetic field. As the target undergoes rotor dynamics perturbations, changes in the physical gap modulate the eddy-current density on the target material surface. This translates to an output voltage modulation directly proportional to the physical clearance. Proper gap voltage validation requires biasing the probe to target a baseline of -10 VDC at the physical midpoint of the linear range. Strict impedance matching across the 75 ohm coaxial network suppresses cross-talk interference between adjacent channels monitoring the same rotor plane.

Frequently Asked Questions

Q: How does the 4.0 in unthreaded length configuration impact physical installation?

A: The unthreaded portion allows the probe to pass through oil-filled housings or deep counterbores without thread engagement binding, enabling precise positioning before the 2.2 in threaded section engages the mounting bracket.

Q: Can this 5.0 m probe be joined to any 3300 XL Proximitor Sensor?

A: No. It must be paired specifically with a 3300 XL Proximitor configured for a 5.0 m system. Mismatching a 5.0 m probe with a 9.0 m sensor alters the calibration and shifts the standard 7.87 V/mm scale factor.

Field Installation Guidelines

• Thread Engagement: Ensure a minimum thread engagement of 5 full turns within the mounting bracket or housing to prevent mechanical looseness under high-frequency structural vibration.
• Shield Grounding: Terminate the external coaxial extension cable outer shield only at the Proximitor Sensor housing. Do not allow the probe case or coaxial connector bodies to touch intermediate conduit boxes or structural steel to prevent ground loops.
• Bend Radius Limits: Maintain a minimum physical bend radius of 25.4 mm for the coaxial cable lead during routing to eliminate internal conductor degradation and signal impedance shifts.
