Description

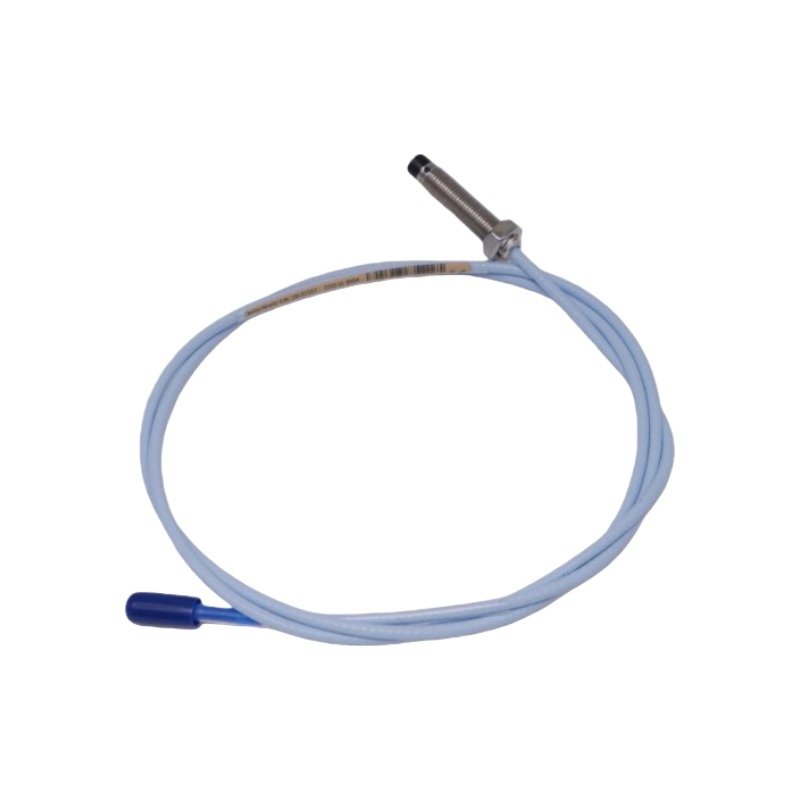

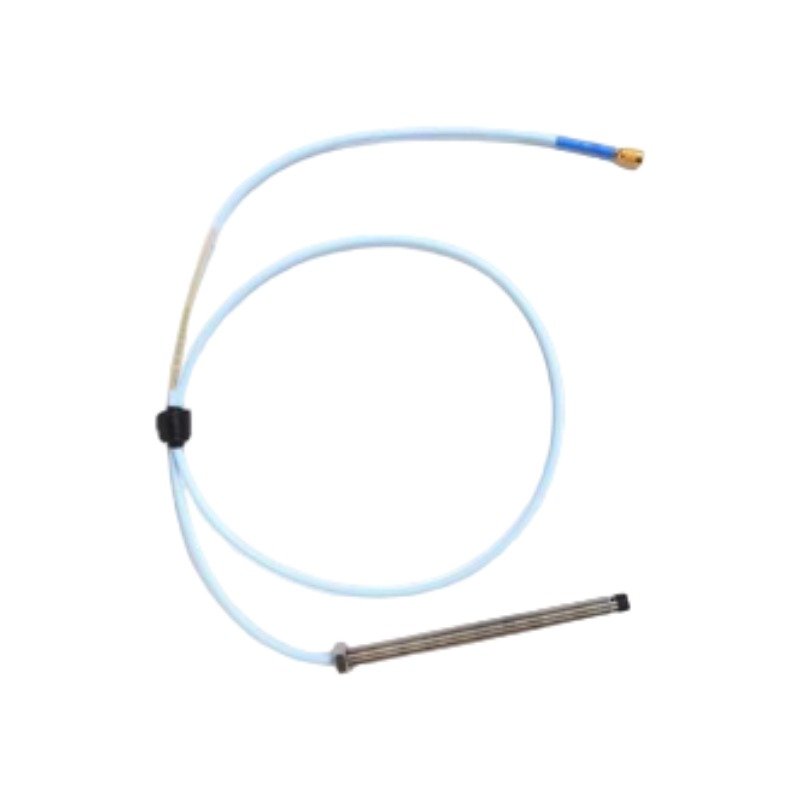

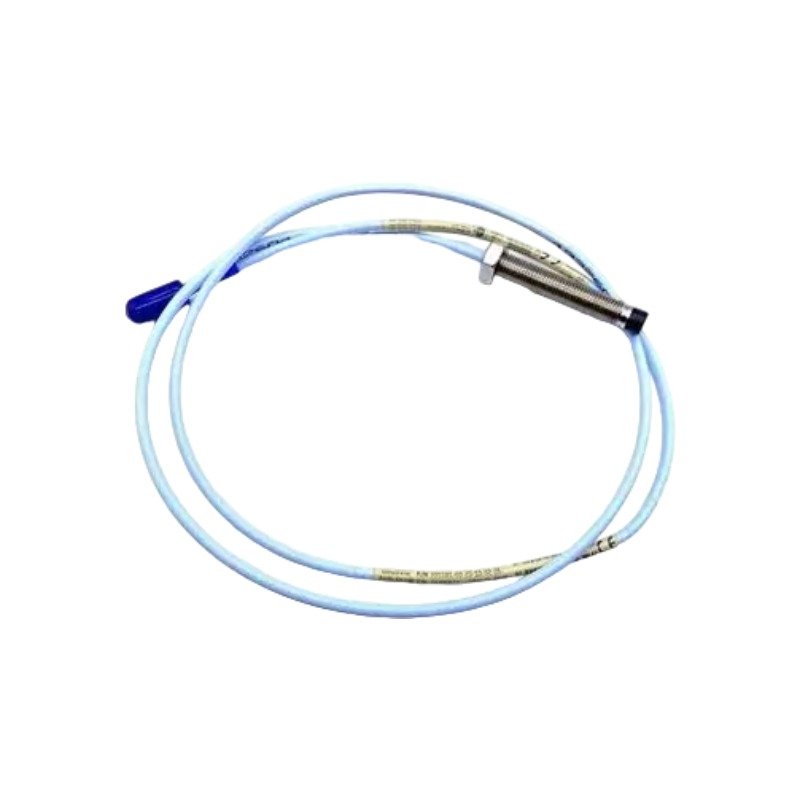

The Bently Nevada 330101-37-57-10-02-05 serves as the primary 330101 Proximity Probe utilized to execute eddy-current displacement measurements across 3500 and 3300 Machinery Protection System platforms. The probe tip continuously projects a high-frequency electromagnetic field toward the target rotating shaft. Consequently, the internal circuitry translates the shifting physical gap distance into a proportional negative DC voltage signal. This dynamic output allows the monitoring system to track real-time radial vibration and axial position.

Suffix Breakdown & Model Matrix

• 330101: 3300 XL 8mm Proximity Probe, 3/8-24 UNF thread, without armor
• -37: Unthreaded length option (3.7 in unthreaded smooth barrel section)
• -57: Overall case length option (5.7 in total case length)
• -10: Total length option (1.0 metre / 3.3 feet)
• -02: Connector option (Miniature coaxial ClickLoc connector, standard cable)
• -05: Agency approval option (Multiple Approvals including ATEX/IECEx intrinsic safety and non-incendive zones)

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The 330101-37-57-10-02-05 drives high-frequency eddy currents directly into the target rotor surface. During standard configuration, the installation technician must validate the gap voltage to establish an operational midpoint of -10 VDC within the nominal -24 VDC supply loop. This specific voltage targets the exact center of the linear calibration spectrum.

Furthermore, this precise calibration maximizes cross-talk suppression when field engineers array multiple probe tips in close radial proximity. Ultimately, proper mechanical gapping isolates true rotor dynamics from superficial shaft runout, thereby guaranteeing highly accurate phase angle and radial vibration tracking under approved hazardous area conditions.

Frequently Asked Questions

Q: Why does this installation require a 3.7 in unthreaded section (-37)?

A: This design allows the smooth barrel to pass completely through thick machine casings or internal fluid baffles before the rear threads engage. Consequently, it prevents thread galling during deep-pocket insertions.

Q: How does the technician verify the gap voltage during a physical installation?

A: The technician measures the DC output voltage directly at the Proximitor sensor terminals. Specifically, they adjust the probe depth until the multimeter reads exactly -10 VDC at the target operational midpoint.

Q: Can the field team slice or shorten the 1.0 m coaxial cable?

A: No, modifying the cable alters the factory-tuned loop impedance. As a result, any physical alterations corrupt the eddy-current probe scaling and introduce non-linear measurement errors.

Field Installation Guidelines

1. Align the probe tip and the shaft surface perfectly perpendicular to eliminate geometric measurement errors.
2. Guide the 3.7 in unthreaded smooth barrel section carefully through the access sleeve to protect the casing from scratches.
3. Thread the remaining 3/8-24 UNF rear portion into the bracket until a digital multimeter confirms a gap voltage of -10 VDC at the Proximitor sensor output terminals.
4. Torque the locknut tightly against the threaded segment; this action anchors the assembly securely against high-amplitude rotor dynamics.
5. Route the 1.0 m coaxial cable through a dedicated conduit, keeping it separate from high-voltage lines to eliminate electrical noise interference.
6. Connect all safety grounds according to the -05 agency approval matrix to maintain strict hazardous zone isolation.
