Description

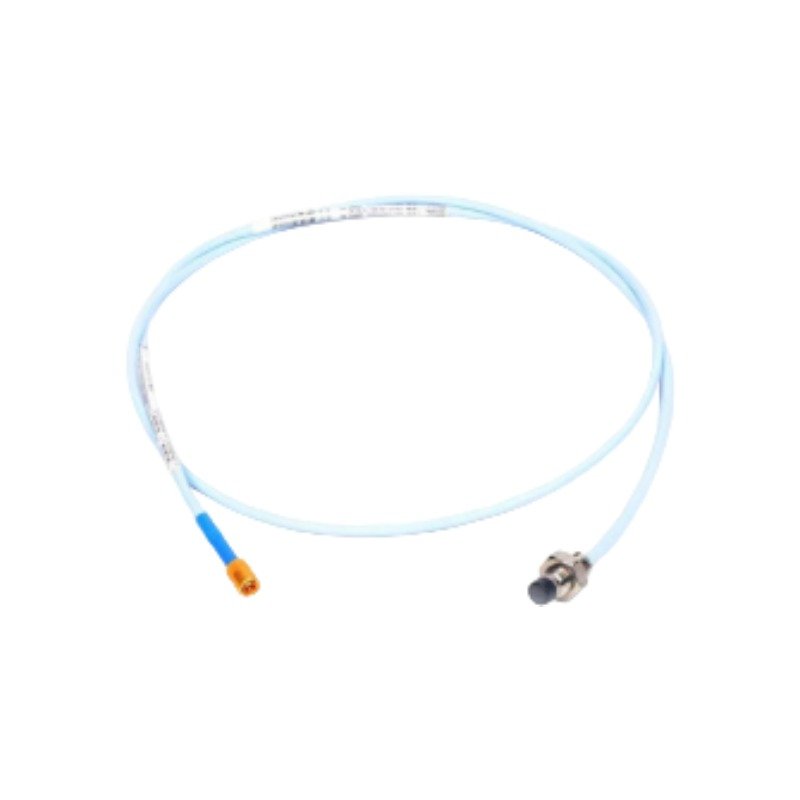

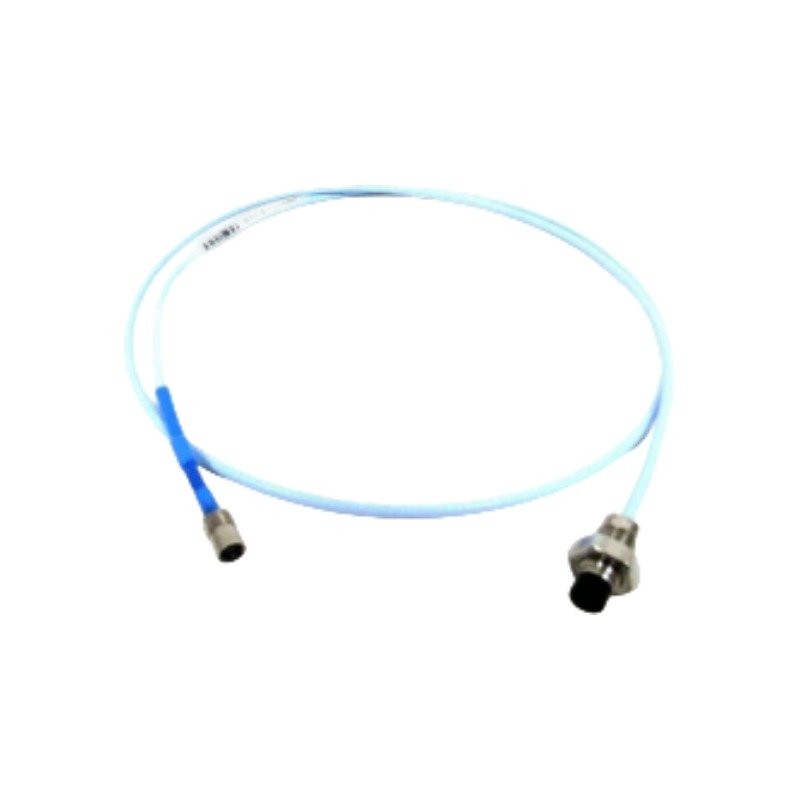

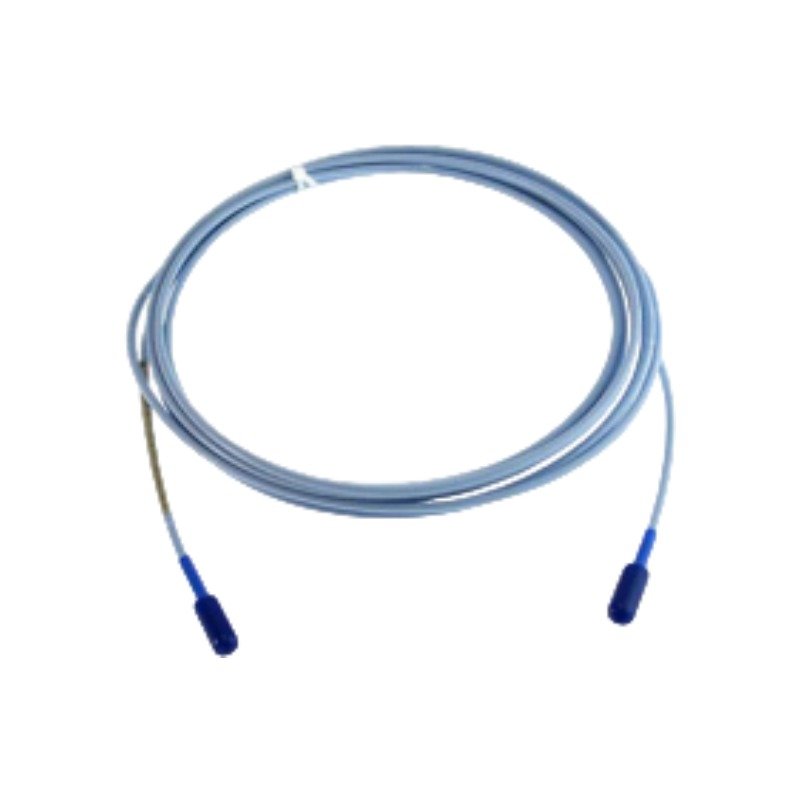

The Bently Nevada 330101-00-12-15-02-05 serves as the primary Bently Nevada 330101 Proximity Probe utilized to execute non-contacting shaft displacement and vibration measurements across 3300 XL proximity transducer platforms. Consequently, the hardware converts the physical distance between the probe tip and the target shaft into a proportional electrical signal. Furthermore, this specific variant incorporates an integrated coaxial cable connection to interface directly with an extension cable. Meanwhile, the mechanical casing seals the internal sensor components against high-pressure fluid lubrication environments.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling and Gap Voltage Validation

To ensure accurate data acquisition, the physical placement of the Bently Nevada 330101 must strictly comply with standard eddy-current probe scaling protocols. Therefore, the field engineer adjusts the mechanical position of the probe tip relative to the target shaft to establish a gap voltage target of -10 VDC. This exact baseline corresponds to the absolute center of the linear calibration envelope for standard 200 mV/mil transducer loops. Additionally, precise mechanical gapping ensures proper cross-talk suppression when placing multiple sensors in close radial proximity on the machinery casing. Conversely, failure to maintain the -10 VDC baseline shifts the quiescent operating point, causing signal saturation and corrupting the rotor dynamics telemetry transmitted to the processing backplane.

Frequently Asked Questions

Q: How does the installation engineer verify the gap voltage target during physical commission?

A: First, the engineer applies power to the corresponding Proximitor module. Next, the engineer connects a digital multimeter across the module terminal strip or utilizes the front-panel BNC jack to verify that the gap voltage stabilizes at -10 VDC when the probe reaches its final mechanical position.

Q: What are the primary limits regarding hot-swap actions for the probe connection?

A: The probe itself is a passive component and does not support separate hot-swapping while the monitoring rack channel is active. Therefore, technicians must disconnect power from the Proximitor sensor or bypass the related alert loops before separating the ClickLoc coaxial connector to prevent accidental ESD transients or false machine trips.

Field Installation Guidelines

• Secure the primary mounting threads with matching lock nuts to prevent mechanical drift induced by high-amplitude rotor dynamics and casing vibration.
• Maintain a minimum structural bend radius of 25.4 mm (1.0 inch) across all sections of the integrated coaxial cable to prevent dielectric layer distortion.
• Verify that the terminal shielding runs continuously through the junction box without making physical contact with the aluminum conduit or local earth ground to prevent electrical ground loops.
• Ensure that the final installation allows a minimum of 5 full threads of mechanical engagement into the probe sleeve or machine casing to maintain pressure sealing integrity.
