Description

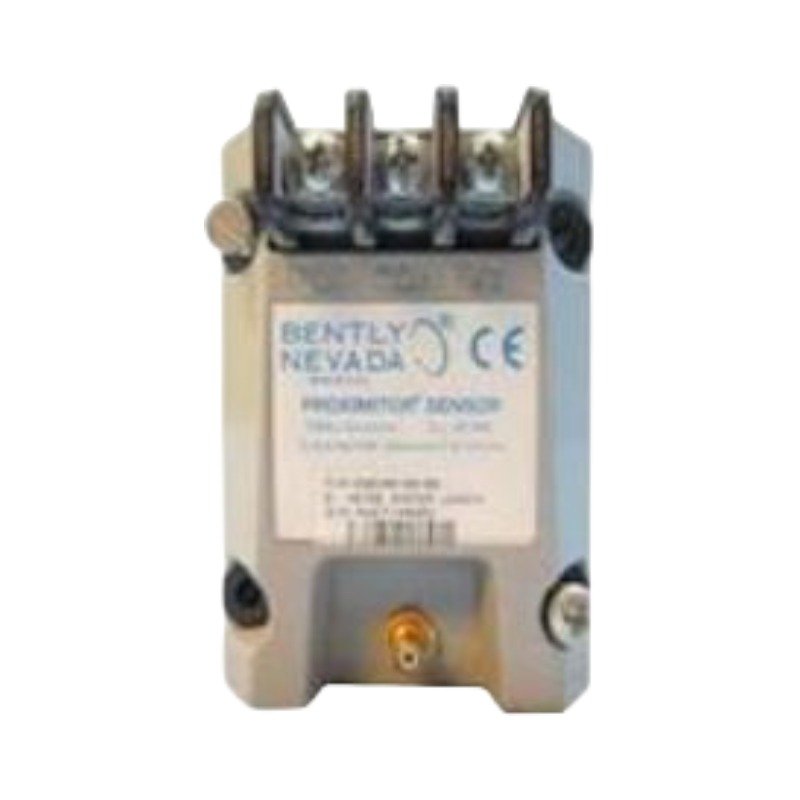

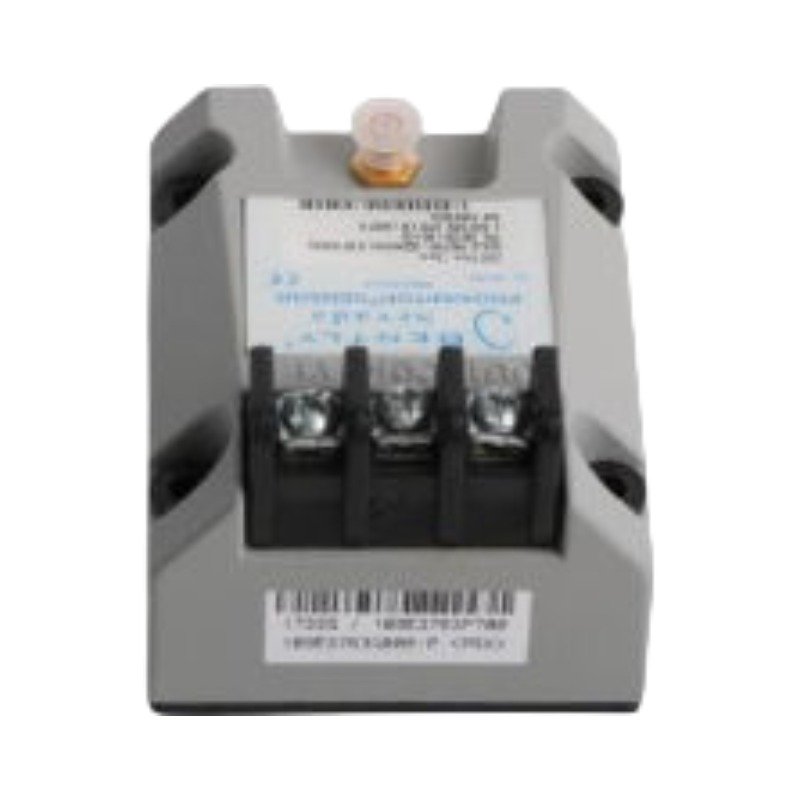

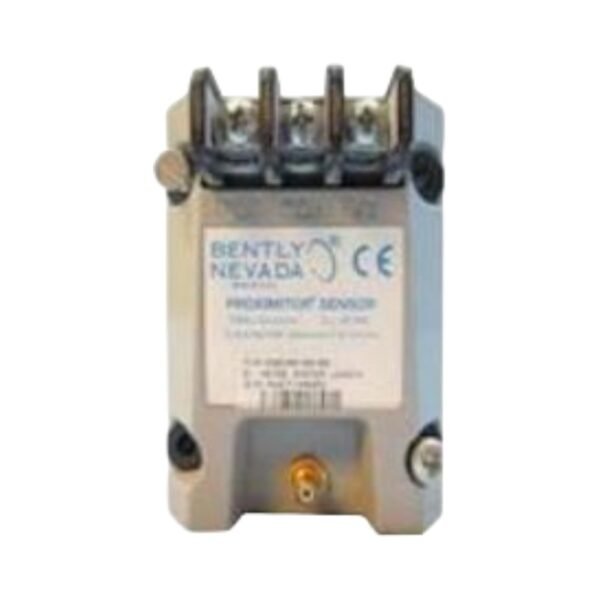

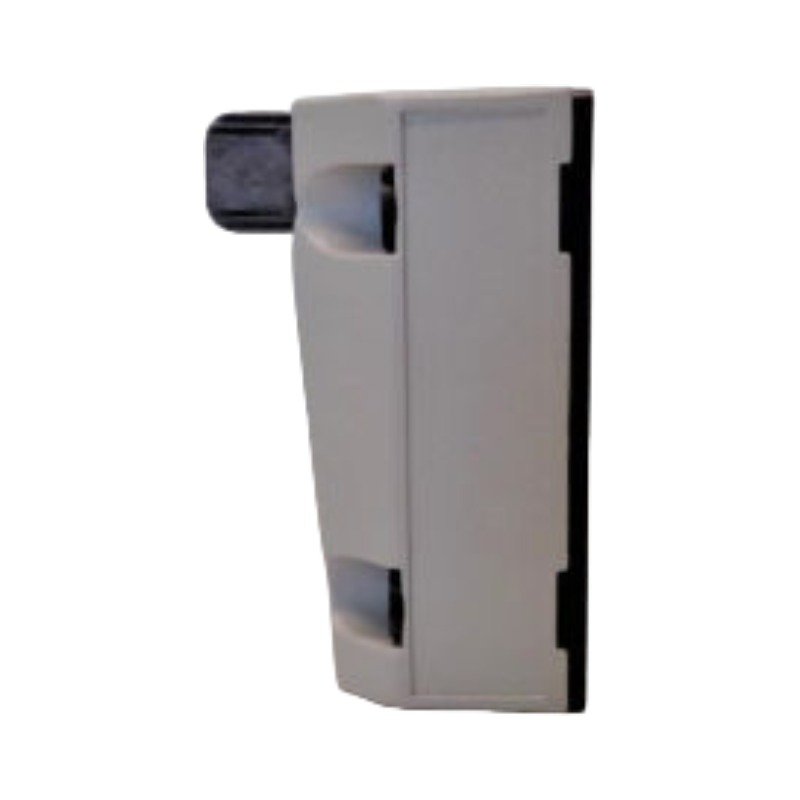

The Bently Nevada 330100-90-05, also cataloged as the 330100 Proximitor Sensor, operates as a dedicated hardware component for noncontacting displacement measurement within 3300 Machinery Protection System platforms.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

This sensor tracks critical dynamic position metrics during high-velocity rotor dynamics evaluation. Specifically, the internal electronics convert high-frequency RF oscillations from the probe tip into a linear analog output voltage. Consequently, the device preserves a highly accurate 7.87 mV/um eddy-current probe scaling ratio across the entire measurement band. Furthermore, the internal filtration networks maximize cross-talk suppression between parallel proximity sensor links. Therefore, the processing circuit maintains highly repeatable gap voltage validation metrics targeting the standard -10 VDC operational benchmark.

Frequently Asked Questions

Q: How does the 9.0-meter system length calibration affect component replacement?

A: The internal tuning circuit balances specifically against a 9.0-meter combined cable capacitance. Subsequently, you must match this sensor with a probe and extension cable configuration that sums to exactly 9.0 meters, or the system shifts its base frequency and invalidates the factory-calibrated scale factor.

Q: What physical installation flexibility does the 05 agency approval option provide?

A: The 05 option designates a multiple approvals certification. Consequently, this configuration allows the hardware to comply with both North American and European standards for hazardous area installations without changing the underlying physical sensor unit.

Field Installation Guidelines

First, mount the sensor housing securely onto a stable backing plate within a sealed, weatherproof junction box. Subsequently, torque all ClickLoc coaxial connectors using only nominal hand pressure to prevent dielectric deformation. Always isolate the signal output wiring from any concurrent high-voltage AC electrical lines. Consequently, this physical separation preserves clean loop signals and eliminates electromagnetic noise corruption. Finally, attach the cable shield firmly to the single-point common ground terminal to intercept parasitic common-mode ground currents.
