Description

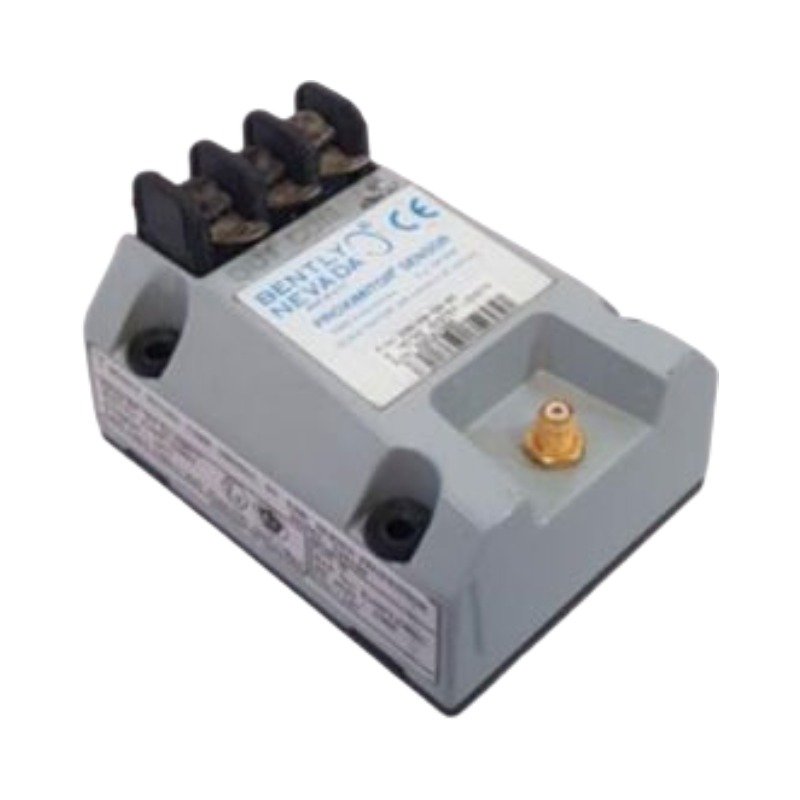

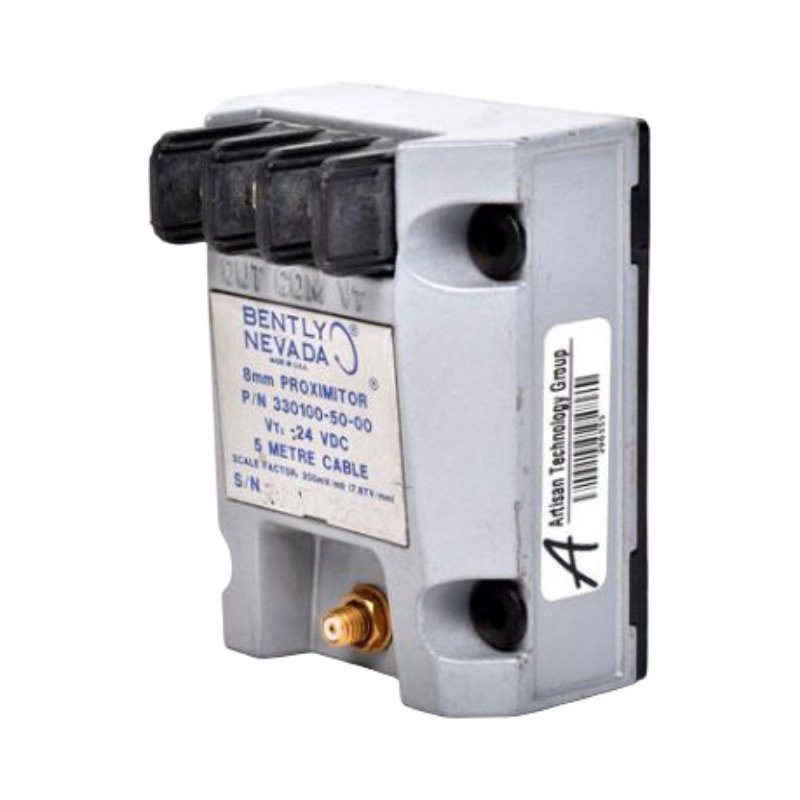

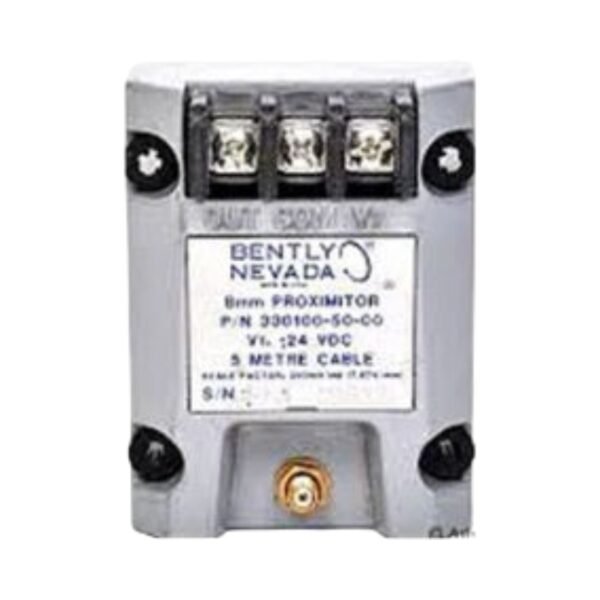

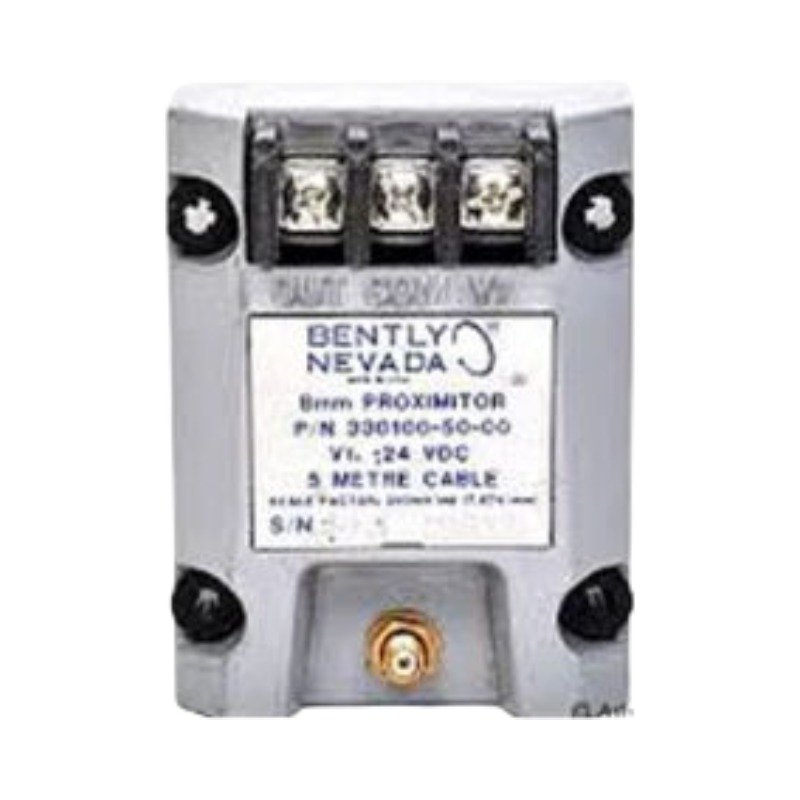

The Bently Nevada 330100-50-01, also cataloged as the Bently Nevada 330100 Proximity Transducer Probe, operates as a dedicated hardware component for non-contacting shaft displacement and dynamic vibration measurement within machinery protection networks. The threaded sensor tip utilizes eddy-current principles to observe physical gap variations relative to a moving target. Consequently, the probe passes raw high-frequency electrical fields back to a localized Proximitor sensor without introducing phase shift or transmission packet latency.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The internal coil structure stabilizes loop impedance variables to facilitate precise eddy-current probe scaling configurations across high-velocity machine trains. Therefore, the physical gap layout supports real-time gap voltage validation (-10 VDC targets) within the center of the 2.0 mm linear window to confirm optimal physical sensor centering. Furthermore, the robust coaxial shield layout supplies strict cross-talk suppression between adjacent probe lines. As a result, this isolation blocks inductive noise fields from corrupting raw telemetry tracks to secure clear calculation of complex rotor dynamics.

Frequently Asked Questions

Q: Can maintenance teams replace or service this proximity probe while the machinery loop is under power?

A: Yes, operators can disconnect the miniature coaxial connector string while the core monitoring rack remains powered. However, breaking the sensor circuit creates an instant open-circuit fault; therefore, operators must place the matching tracking channel into bypass mode beforehand to eliminate the risk of accidental plant trips.

Q: What happens if this probe is mounted facing a material other than AISI 4140 steel?

A: Operating the sensor against a non-standard target shifts the electromagnetic response and skews the nominal 200 mV/mil scale factor. Consequently, the calibration profile will drift, necessitating custom bench re-calibration to maintain accurate machinery protection metrics.

Field Installation Guidelines

1. Thread the probe body smoothly into the mounting bracket, adjusting the physical position until a calibrated digital voltmeter reads a target baseline of -10 VDC across the sensor loop.
2. Tighten the localized locknuts firmly against the mounting bracket assembly to lock the position, ensuring that the sensor tip cannot back out under heavy machine vibration.
3. Apply localized protective sleeving or connector boxes over the miniature coaxial links, taking care to isolate the outer shield layer from touching any machine frame ground tracks.
4. Separate external transducer signal links from active alternating current transmission conduits by a minimum spatial clearance of 300 mm to suppress inductive noise coupling.
