Description

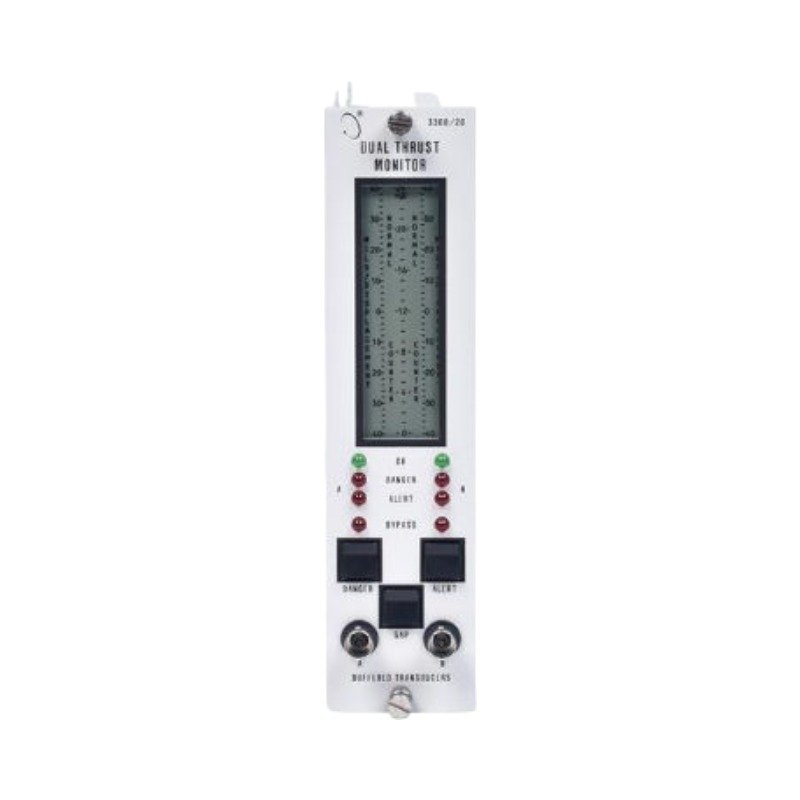

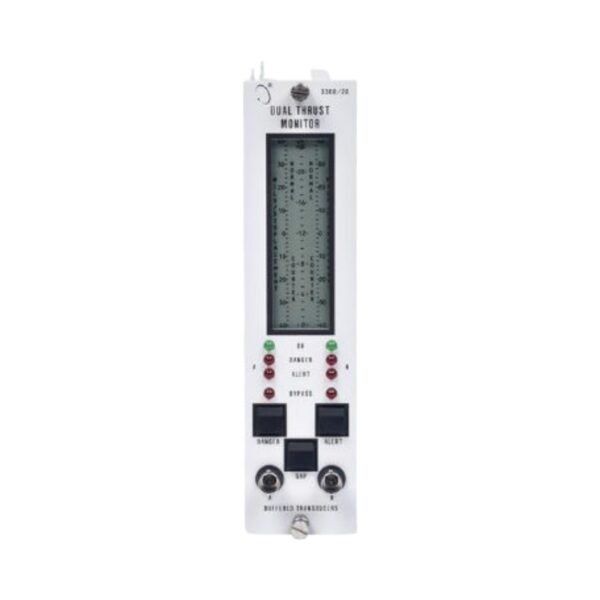

The Bently Nevada 3300/20-13-03-01-00-00, also cataloged as the Bently Nevada 3300/20 Dual Thrust Position Monitor, operates as a dedicated hardware component for continuous axial shaft displacement verification within 3300 Series Machinery Protection System networks. The module processes high-speed analog signals from two independent proximity transducer channels simultaneously. Consequently, the monitoring platform executes deterministic emergency alarm trip generation to mitigate risk of rotating element contact against thrust bearing assemblies.

Suffix Breakdown & Model Matrix

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The dual-channel interface facilitates direct eddy-current probe scaling configurations to track continuous shaft micro-movements accurately. Thus, the integrated hardware supports rapid gap voltage validation (-10 VDC targets) by evaluating sensor bias lines to isolate structural sensor failure states from real mechanical shifts. Furthermore, the specialized circuit layer configuration enforces strict cross-talk suppression between proximal probe leads, preventing mutual signal contamination and ensuring pure data resolution during the telemetry mapping of complex rotor dynamics.

Frequently Asked Questions

Q: Can maintenance teams replace or hot-swap this specific monitor while the rack remains active?

A: Yes, this hardware accommodates online removal and insertion into a live 3300 chassis slot. However, because interrupting the transducer feed path severs protective interlocking data streams, operators must activate the channel bypass loop before extraction to avoid false relay trips.

Q: What voting logic does the module utilize to drive the emergency Danger alarm relays?

A: The device supports both AND and OR configuration frameworks via on-board structural hardware jumper selection. Utilizing AND voting ensures that a single transducer line fault cannot execute an accidental plant trip if the adjacent redundant channel tracks parameters within safe parameters.

Field Installation Guidelines

1. Slide the module completely down the targeted slot tracks of the 3300 rack chassis until the rear multi-pin connections fit firmly into the backplane matrix.
2. Fasten the faceplate retention screws tightly to a target constraint of 0.6 N-m to construct a continuous earth ground link with the outer enclosure frame.
3. Keep low-voltage transducer signal leads strictly segregated from parallel alternating current power infrastructure lines by a physical separation boundary of at least 300 mm.
4. Fasten all field terminations securely at the backplane card blocks, maintaining clean single-point coaxial shield terminations at the designated Proximitor docking ground.
