Description

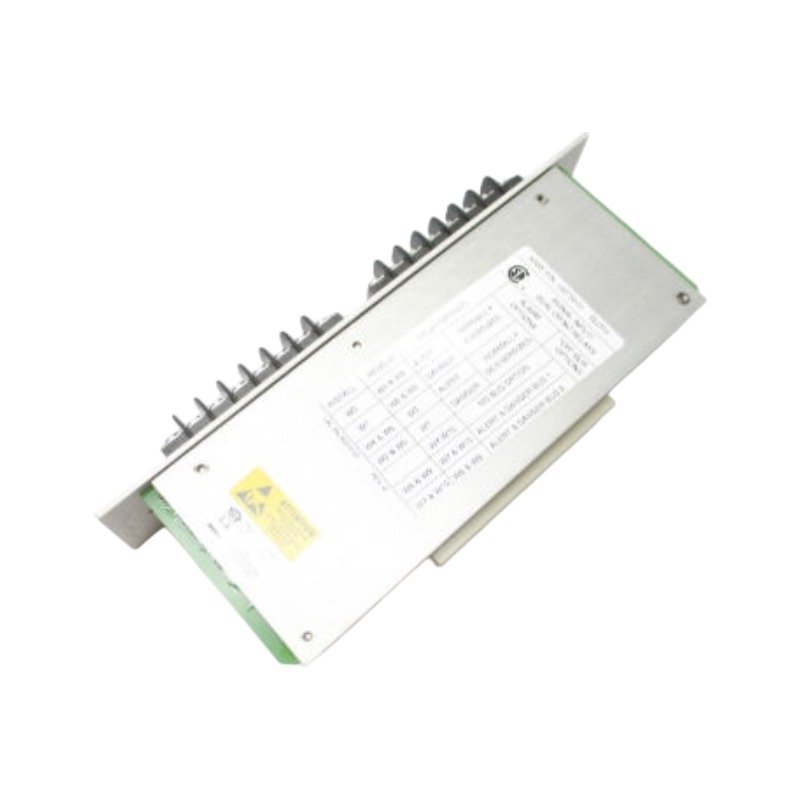

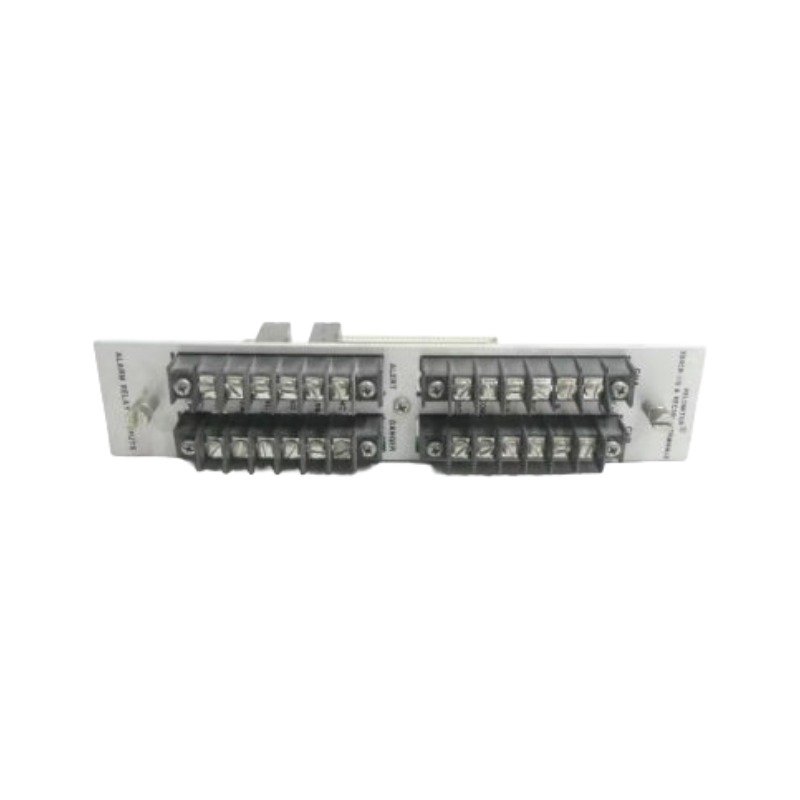

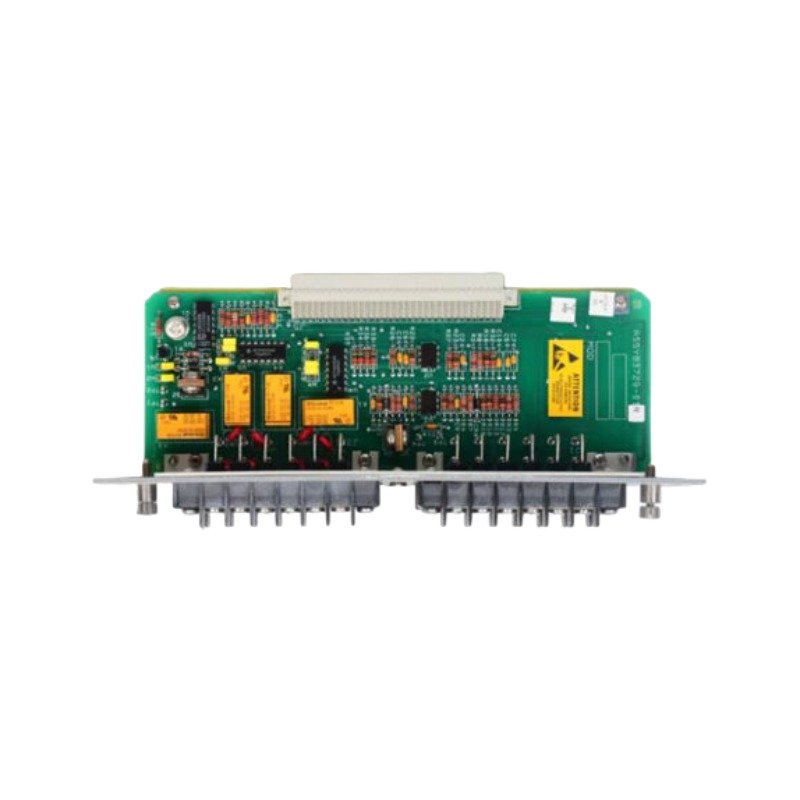

The Bently Nevada 130730-01, also cataloged as the Bently Nevada 130730 Signal Input/Relay Card, operates as a dedicated hardware component for physical vibration signal processing and protective relay output routing within machinery protection networks. The module interfaces raw transducer data directly with host monitoring racks. Consequently, this connectivity enables localized system buses to execute deterministic emergency alert generation without adding processing cycle delays to critical trip loops.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The component executes precise eddy-current probe scaling to translate raw electrical fluctuations into absolute mechanical displacement variables. Therefore, the internal conversion layer provides constant gap voltage validation (-10 VDC targets) across active input paths, allowing operators to verify physical transducer health during runtime. Furthermore, the grounding path distribution supplies rigid cross-talk suppression between proximal signal pathways, isolating adjacent sensor channels to maintain baseline data purity during the assessment of complex high-speed rotor dynamics.

Frequently Asked Questions

Q: Does this signal input and relay interface card support online hot-swap operations?

A: Yes, maintenance personnel can extract or insert this card while the monitoring chassis remains active. However, because breaking the signal loop instantly interrupts the transducer link, operators must bypass the associated protective channel logic beforehand to prevent inadvertent machinery trip states.

Q: How do the localized relay contacts react to a total loss of power?

A: The onboard dry contacts utilize a fail-safe mechanical configuration that defaults to an unpowered open-circuit or closed-circuit state based on the hardware jumper layout. Consequently, this design forces an immediate alarm or trip status indicator across external automation safety networks during a total power disruption.

Field Installation Guidelines

1. Guide the circuit card straight into the designated chassis slot tracks, ensuring complete pin engagement with the primary backplane socket array before securing retention blocks.
2. Fasten the faceplate assembly mounting hardware to a target constraint of 0.6 N-m to ensure structural grounding path continuity across the metal enclosure frame.
3. Terminate incoming field sensor coaxial shields at the designated terminal strip common point, establishing a single-point grounding framework to eliminate common-mode noise loops.
4. Route all low-level signal input wires away from heavy alternating current transmission lines by a minimum physical distance of 300 mm to suppress inductive noise coupling.
