Description

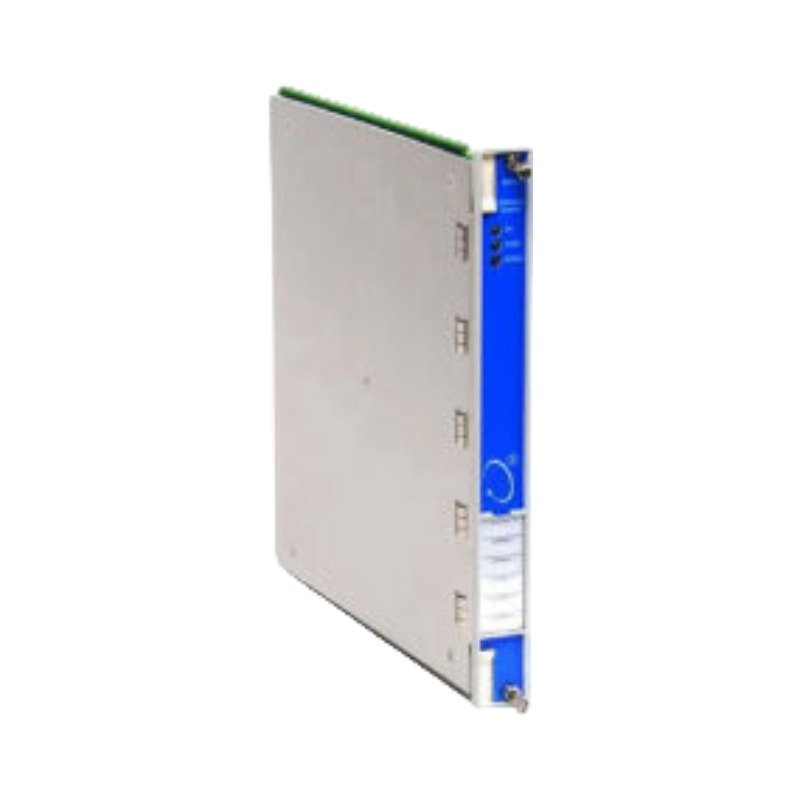

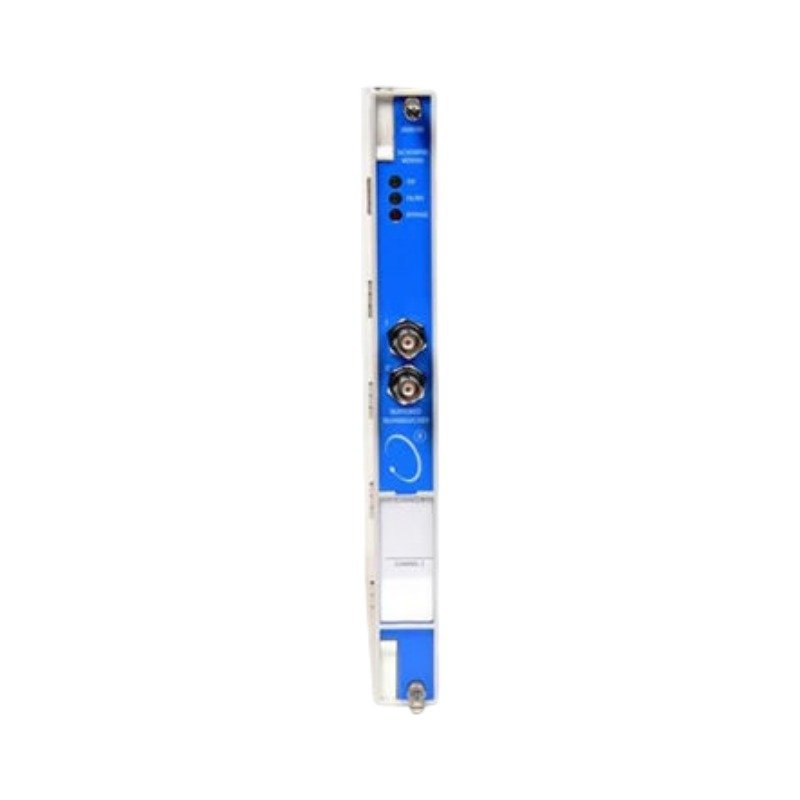

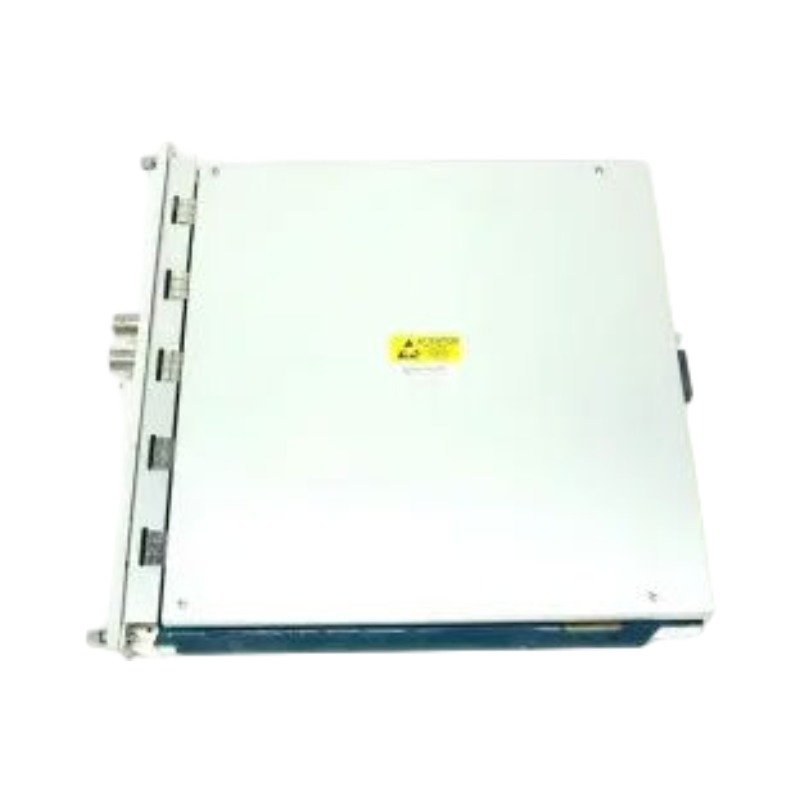

The Bently Nevada 286566-02, also cataloged as the 3500/50M Tachometer Module, operates as a dedicated hardware component for frequency-to-voltage signal conversion and speed monitoring within the 3500 Machinery Protection System. The module processes inputs from passive magnetic pickups or non-contact eddy-current proximity probes, delivering physical execution of continuous speed verification, rotor acceleration measurements, and shaft direction monitoring across the system backplane.

Hardware Specifications

Eddy-Current Probe Scaling and Rotor Dynamics

The processing core provides precision conversion metrics necessary to extract transient rotor dynamics from pulse trains. When calibrated for eddy-current probe scaling, the internal threshold circuitry performs real-time gap voltage validation, tracking variations relative to the target -10 VDC baseline. To prevent interference inside dense machine enclosures, the dual-channel layout integrates localized electronic cross-talk suppression. This architecture isolates high-frequency pulse edges on adjacent channels, preserving phase data integrity when routing Keyphasor signals directly over the rack backplane.

Frequently Asked Questions

Q: Does the 286566-02 module support full hot-swap capabilities inside the standard 3500 rack?

A: Yes, you can hot-swap the monitor module while the rack is powered. However, removing the module eliminates speed-related machinery protection and status monitoring for those two physical channels during the swap window.

Q: What is the accurate threshold requirement for a passive magnetic pickup to trigger the input?

A: Passive magnetic pickups require a minimum input frequency of 3.3 Hz and a minimum signal amplitude of 1.0 V peak-to-peak to achieve reliable pulse edge detection across the conditioning circuits.

Field Installation Guidelines

• Shield Grounding Execution: Terminate signal cable shields strictly at one single point, preferably at the instrument rack chassis ground. Do not ground the shield at the sensor end to eliminate ground loops that introduce electrical noise into the speed calculation loop.
• Backplane Seating Procedure: Insert the main module firmly into the front slot of the 3500 chassis until the top and bottom chassis levers click into lock positions. Tighten the rear thumbscrews to secure the corresponding I/O module panel.
• Terminal Wire Routing: Route the low-voltage transducer wiring away from high-voltage AC power loops or variable frequency drive cables. Maintain a minimum separation distance of 305 mm inside all open wiring trays to avoid magnetic pulse induction.
