Description

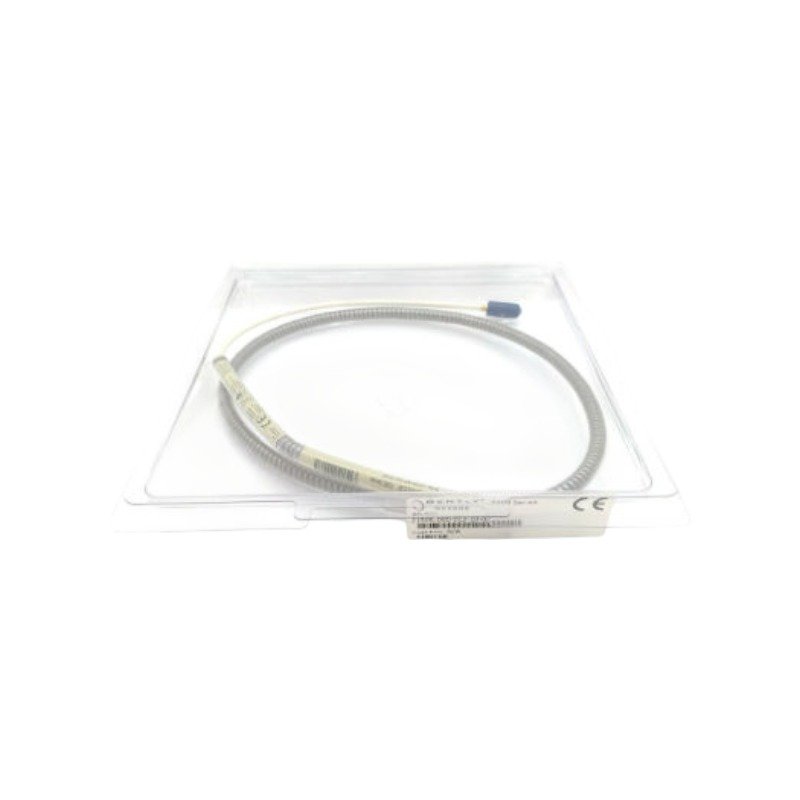

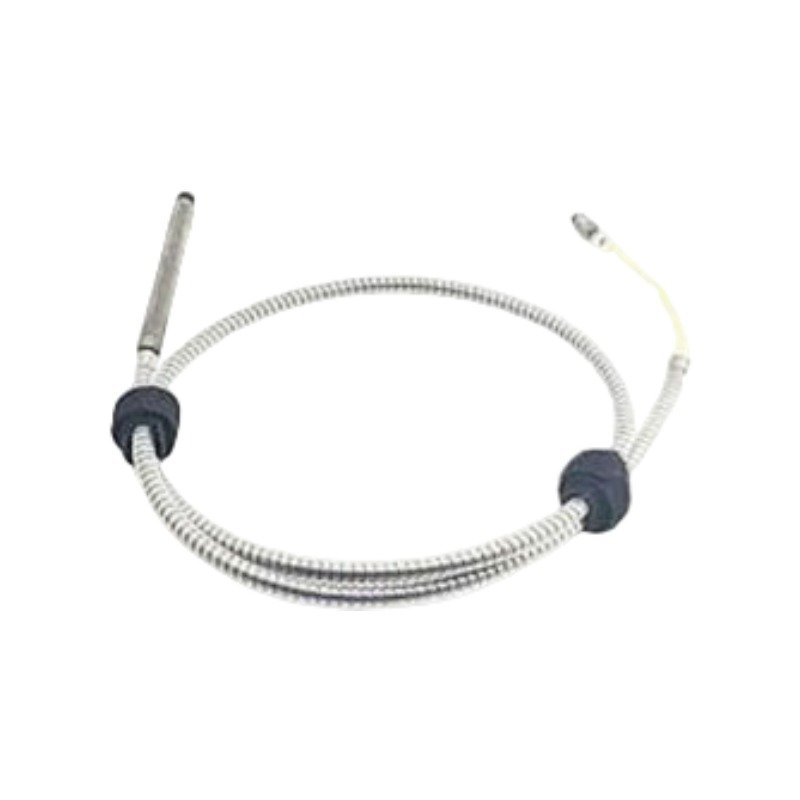

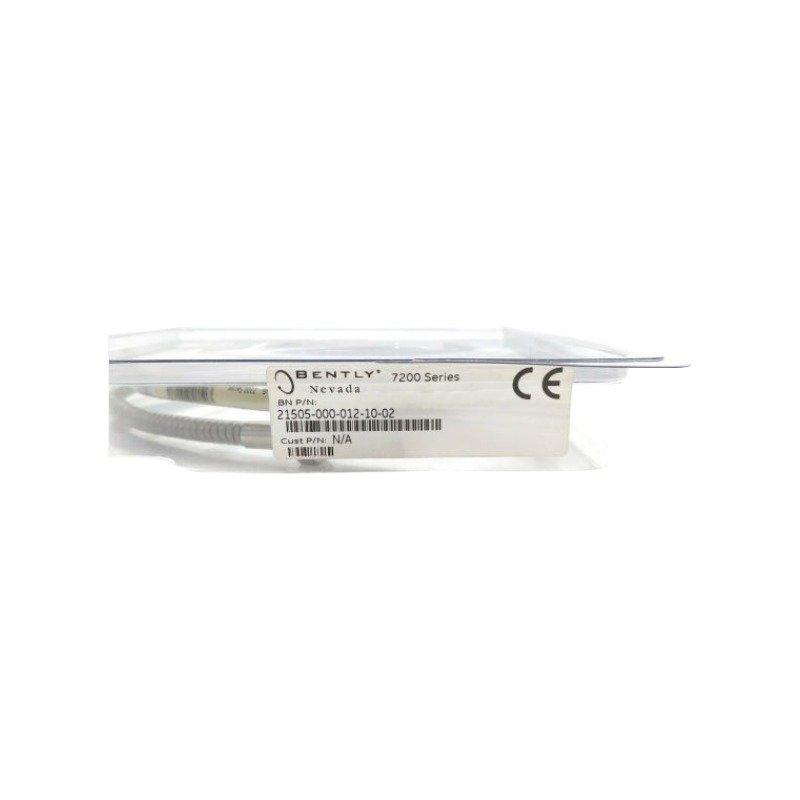

Configured for high-accuracy shaft vibration and position measurements within industrial machinery protection environments, the Bently Nevada 21505-00-72-10-02 (21505 8mm Proximity Probe) provides direct physical/electrical execution.

Suffix Breakdown & Model Matrix

Hardware Specifications

Rotor Dynamics and Eddy-Current Probe Scaling

The proximity sensor assembly utilizes a high-frequency RF field emitted from the 8 mm tip to interact with the target rotor shaft. As the shaft moves, eddy currents form on its surface, changing the impedance of the probe tip coil. This variation is routed back to a matching 7200 Series Proximitor Sensor, which applies eddy-current probe scaling to convert the impedance profile into a linear voltage signal. Consequently, during system commissioning, technicians perform gap voltage validation against -10 VDC targets to ensure the probe tip sits in the exact middle of its linear operating window. This precise positioning enables the monitor to isolate actual mechanical displacement from external electrical noise, providing active cross-talk suppression during complex rotor dynamics analysis.

Frequently Asked Questions

Q: How is the physical gap verified mechanically prior to connecting system power?

A: You must use non-magnetic feeler gauges or a mechanical micrometer fixture to set the physical distance between the 8 mm tip and the target shaft before executing final electrical verification.

Q: What is the purpose of the 02 suffix designation on this proximity sensor?

A: The 02 suffix indicates that the factory integrates a miniature coaxial connector paired with a rugged connector protector shell, which seals the connection against fluid ingress and accidental decoupling.

Field Installation Guidelines

• Thread Engagement Stability: Thread the probe body into the mounting bracket or casing sleeve. Consequently, you must ensure a minimum of 5 full threads of engagement to achieve long-term mechanical stability against machinery vibration.
• Coaxial Cable Insulation: Wrap the connection points between the integrated 1.0 m lead and any field extension cable with self-fusing silicone tape to prevent electrical grounding failures against the machine frame.
• Cable Routing Separation: Run the transducer cable within grounded metal conduits. Additionally, separate these conduits from high-power AC lines to eliminate inductive noise from interfering with the dynamic signal.
