Description

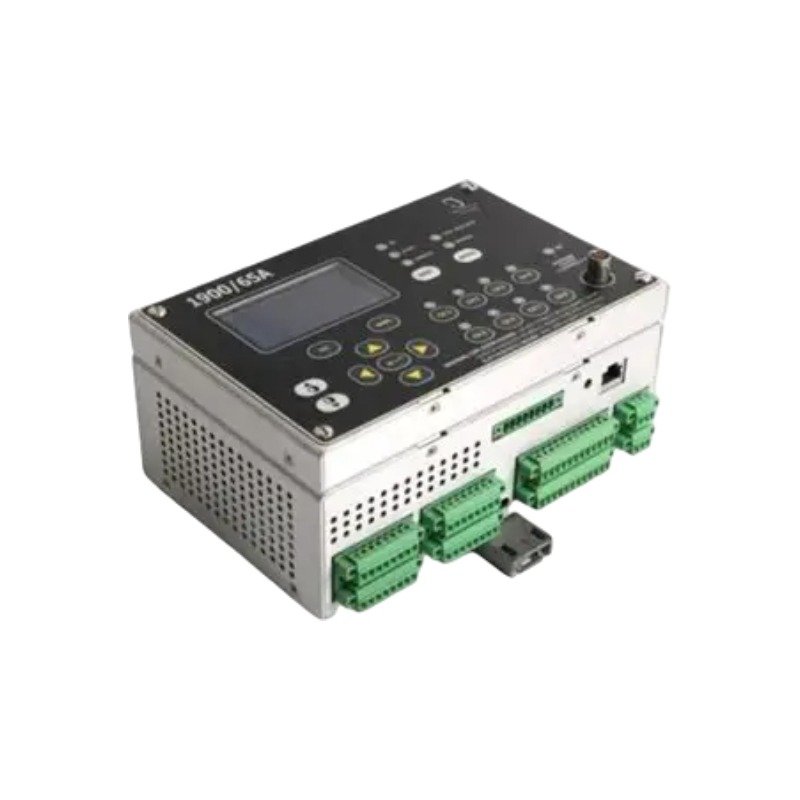

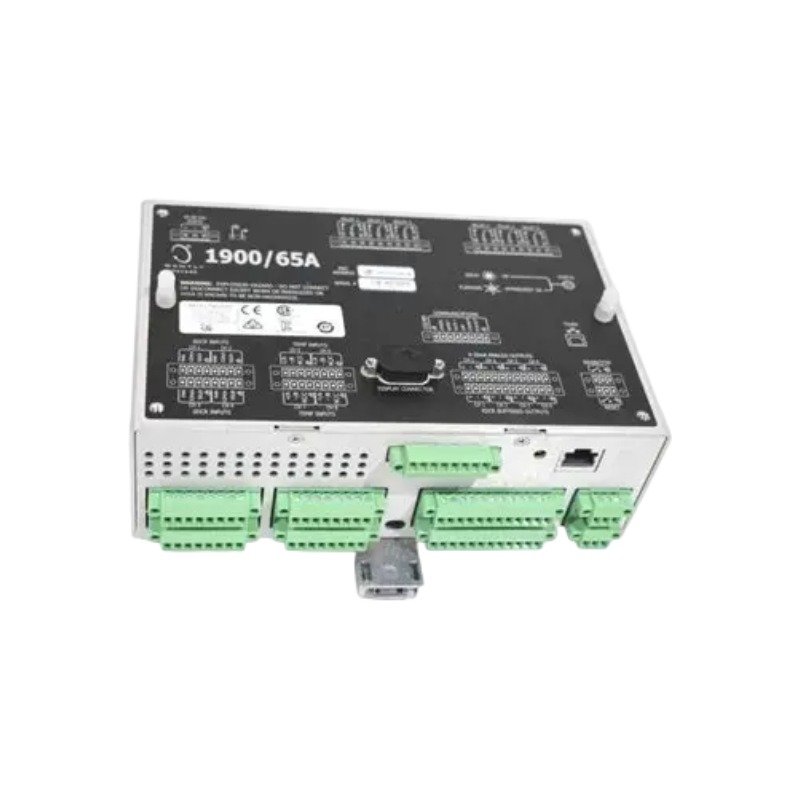

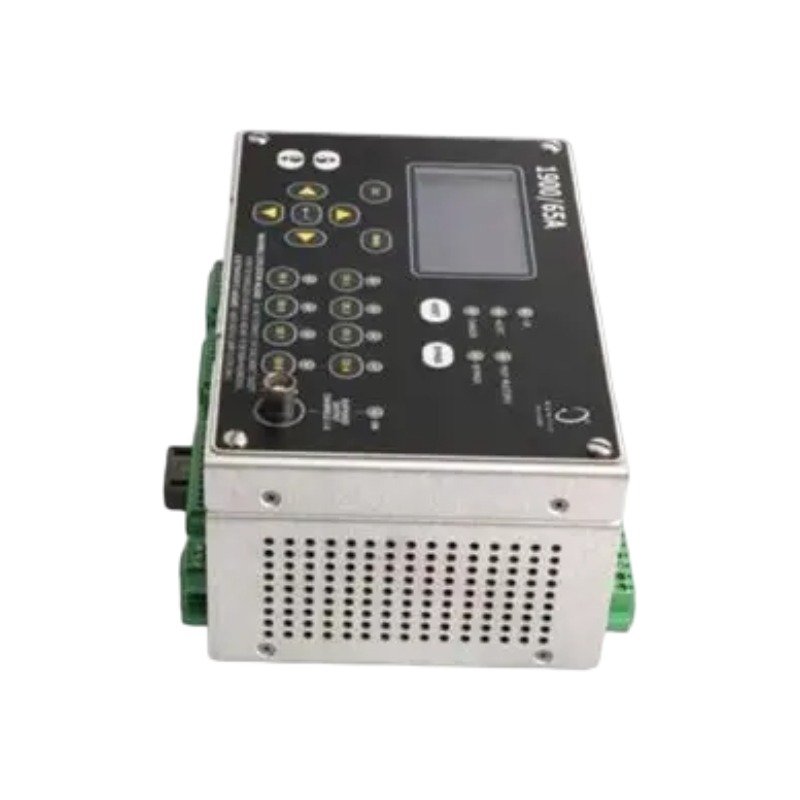

Configured for continuous vibration monitoring and thermal signal processing in machinery protection systems, the Bently Nevada 1900/65A-01-01-03-00-01 (1900/65A General Purpose Equipment Monitor) provides direct physical/electrical execution. Specifically, the system processes signals from four independent transducer inputs alongside four discrete temperature channels, thereby converting physical machinery mechanics into digitized state variables and Modbus network registers.

Suffix Breakdown & Model Matrix

The complete catalog number code structure dictates the hardware options factory-configured for this tracking block assembly:

Hardware Specifications

Machinery Monitoring and Transducer Interface Dynamics

The processing hardware executes real-time eddy-current probe scaling to accurately translate physical displacement into precise electrical potentials. Consequently, gap voltage validation enforces an operational baseline of -10 VDC for standard proximity sensors, which ensures that the transducer maintains its linear range during high-frequency rotor dynamics observations. Furthermore, dynamic signal isolation circuitry constrains cross-talk suppression to under -60 dB across adjacent measurement paths, thereby preventing electrical resonance interference from corrupting critical vibration calculations.

Frequently Asked Questions

Q: How does the module handle configuration memory retention during a complete loss of primary DC power?

A: The monitor permanently writes and archives all user configuration maps to on-board non-volatile EEPROM memory. As a result, the system requires no backup battery or external voltage source to retain structural operational profiles during extended power outages.

Q: What operational limitation does the 01 Display Option place on physical asset separation?

A: Suffix 01 indicates an attached display assembly affixed directly to the main monitor faceplate inside the fiberglass housing. Consequently, real-time value viewing requires direct line-of-sight to the physical installation location rather than remote cabinet mounting.

Field Installation Guidelines

1. Terminal Block Wiring and Grounding: Maintain dedicated shield integrity across all transducer cables. To avoid ground faults, float the shield at the sensor housing and terminate the drain wire exclusively at the designated monitor chassis ground terminal, thereby mitigating industrial ground loop interference.
2. Separation of Signal and Power Conduits: Route high-voltage AC power lines and relay contact control circuits through separate physical conduits. In doing so, isolate these lines completely from the low-voltage 4-20 mA analog outputs and sensor input wiring.
3. Weatherproof Enclosure Sealing: Ensure the fiberglass NEMA 4X housing door clamps tightly lock after commissioning. Run all cables through bottom-entry water-tight cord grips to protect internal circuit assemblies from moisture entry.
