Description

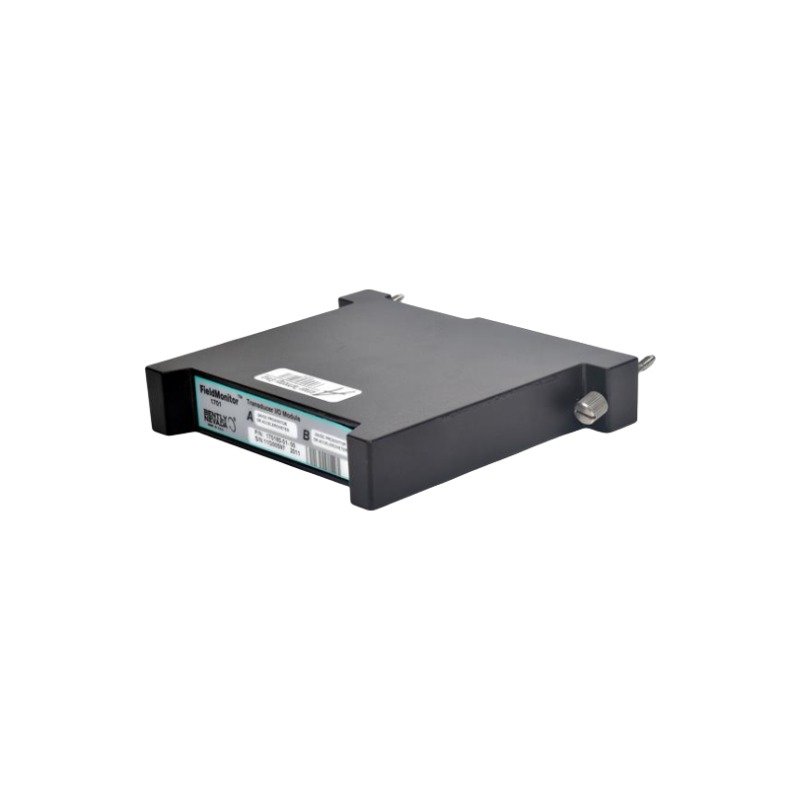

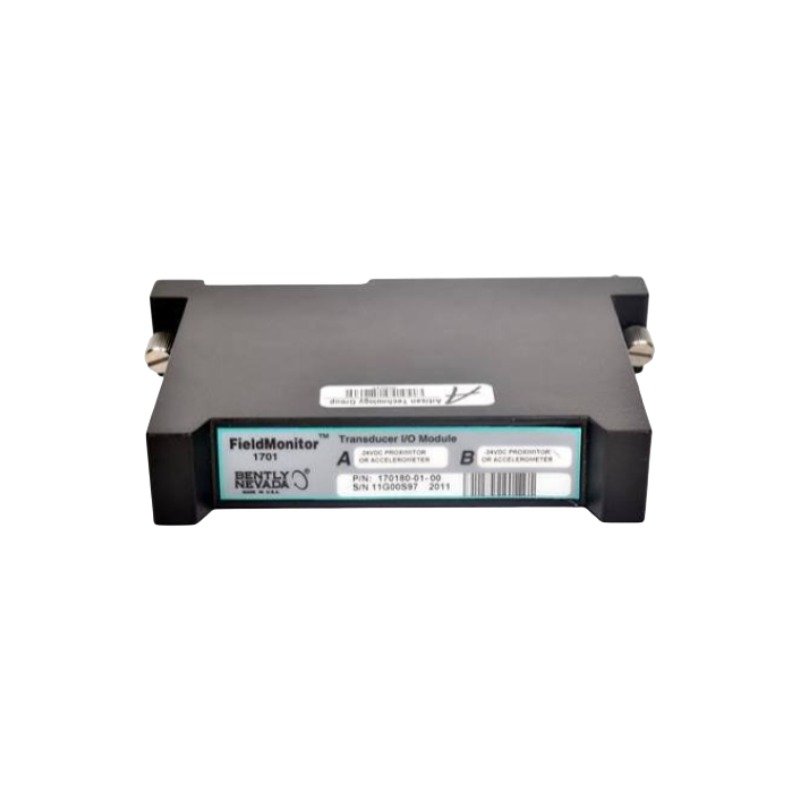

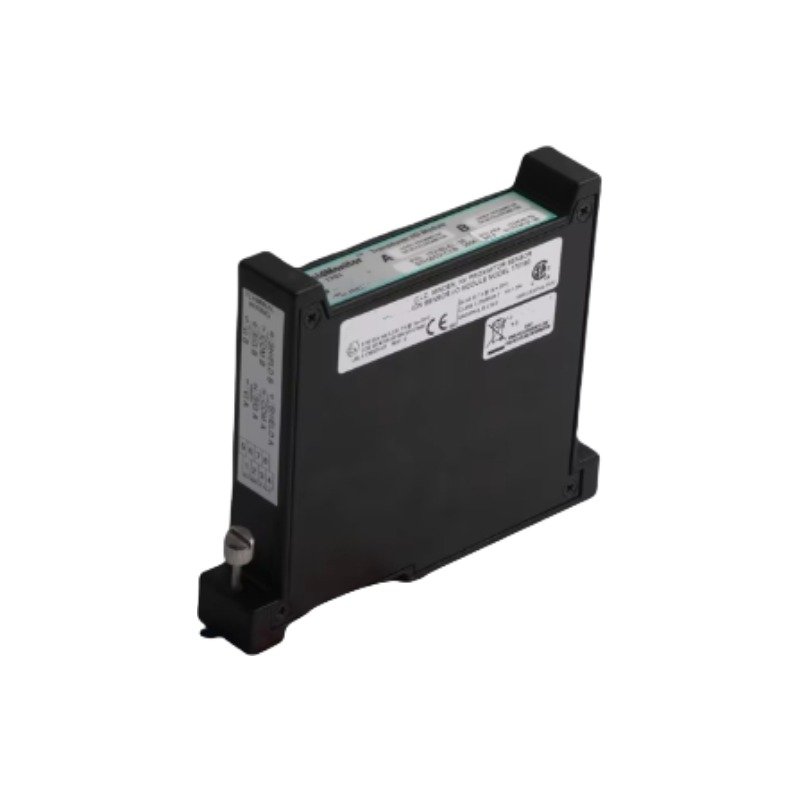

The Bently Nevada 170180-01-00, also cataloged as the 170180-01-00 I/O Modules, operates as a dedicated hardware component for field transducer signal conditioning and power distribution within Bently Nevada monitoring platforms.

Hardware Specifications

Gap Voltage Validation and Rotor Dynamics

The Bently Nevada 170180-01-00 conditions field signals from proximity probes and acceleration sensors before passing processed static and dynamic signals to system processing units. Proper gap voltage validation ensures that field transducer bias voltages remain within target operating windows (such as -10 VDC targets) for linear shaft displacement measurement. This accurate signal conditioning supports the real-time tracking of rotor dynamics, vibration monitoring, and mechanical protection loops.

Frequently Asked Questions

Q: Does the 170180-01-00 module support hot-swapping during rack operation?

A: Field I/O modules connected directly to transducer loops should not be removed while active unless the channel or monitor rack is placed in bypass to prevent false alarm trips.

Q: What power input is required to operate the 170180-01-00 transducer interface module?

A: The module requires a nominal power supply of 24 VDC routed via the system backplane or field interface terminal housing.

Field Installation Guidelines

• First, inspect the 170180-01-00 terminal connectors and housing guide rails for mechanical integrity prior to rack insertion.
• Next, align the card with the assigned backplane module guide slot and push firmly until the rear connector fully engages.
• Additionally, connect all field transducer wiring to designated terminal connections using shielded twisted-pair cables, grounding shields exclusively at the designated system chassis earth.
• Finally, apply 24 VDC bus power and verify gap voltage levels across transducer channels using front panel test points or diagnostics software.
