Description

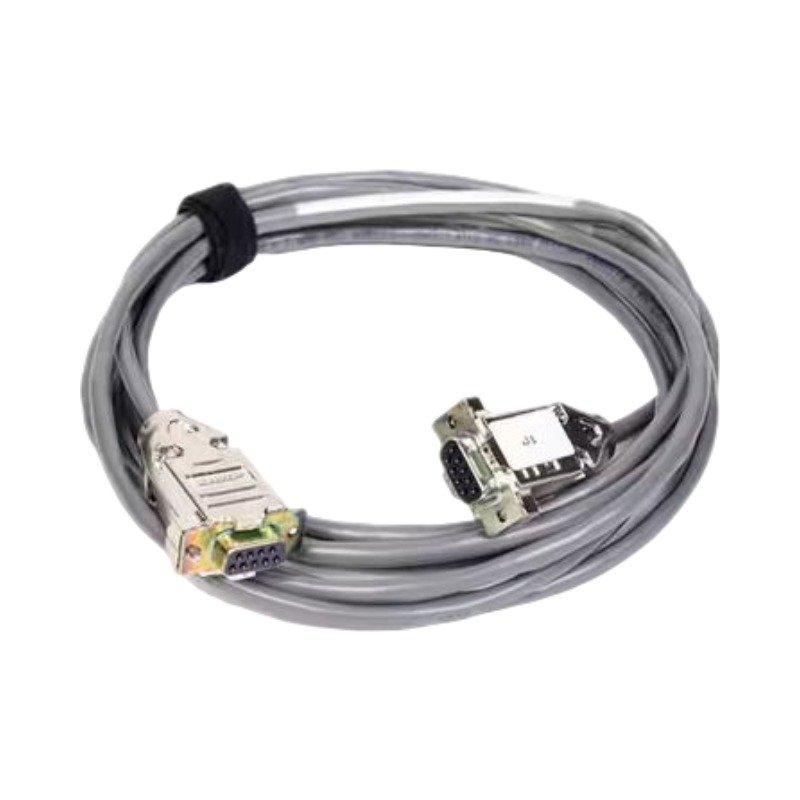

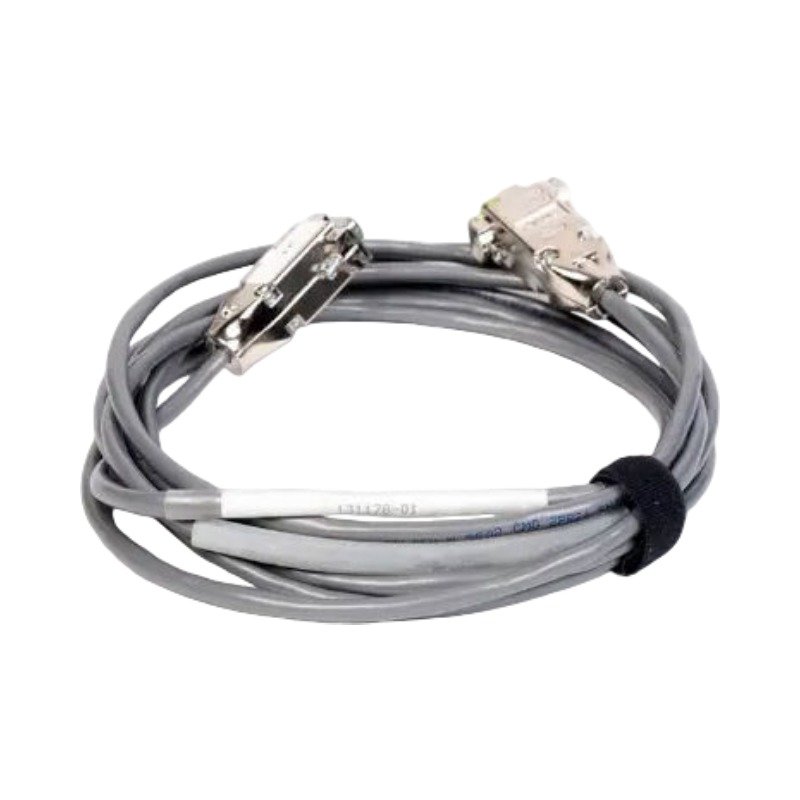

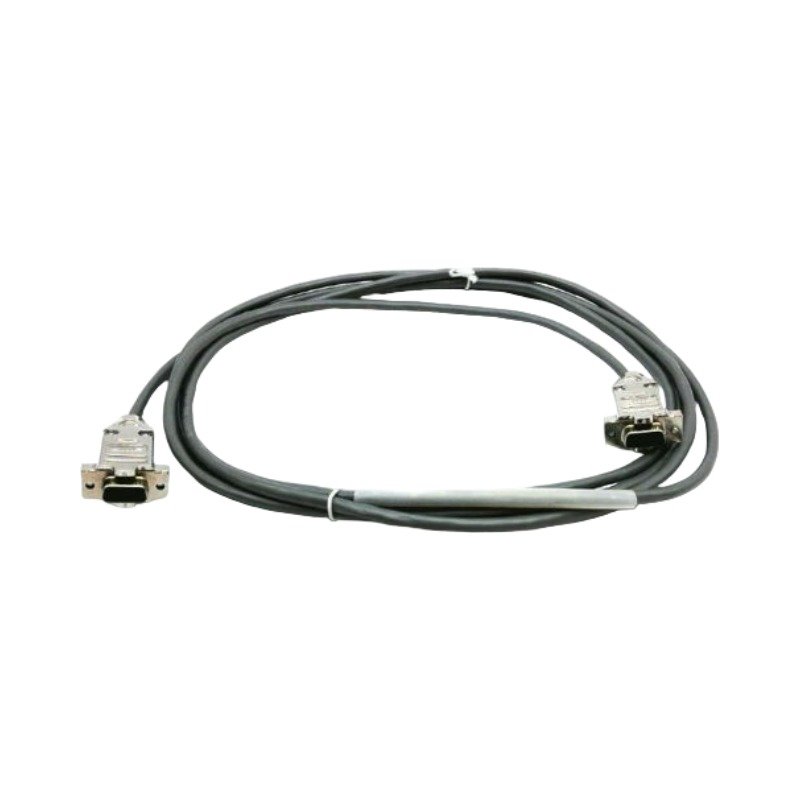

The Bently Nevada 131178-01, also cataloged as the 131178-01 DB9 Serial Communication Cable, serves as the primary 131178 hardware component utilized to execute RS-232 serial data transfers across Bently Nevada 3500 Series machinery protection system platforms.

Hardware Specifications

Rotor Dynamics and Cross-Talk Suppression

The communication link routes serial commands between external computing assets and the 3500/20 Rack Interface Module (RIM) or 3500/22M Transient Data Interface (TDI) positioned in Slot 1. Consequently, this data path allows configuration software to extract critical diagnostics without interrupting backplane voting routines. Because heavy machinery rooms generate high levels of electromagnetic interference, the cable shielding works to ensure active cross-talk suppression between diagnostic lines and adjacent power buses. As a result, engineers can perform accurate eddy-current probe scaling updates and verify gap voltage validation outputs safely during active rotor dynamics testing.

Frequently Asked Questions

Q: Does the 131178-01 cable affect the critical machinery shutdown protection loop?

A: No. The cable handles diagnostic configuration and transient data transfers. Consequently, removing or connecting this cable has no effect on the automatic machinery protection path execution.

Q: Can this cable be extended past its standard 3-meter length without signal loss?

A: Extending RS-232 lines past standard lengths increases capacitance. Therefore, you must use low-capacitance shielded wiring if the installation environment requires distances beyond the factory 3-meter specification to avoid data corruption.

Field Installation Guidelines

• Connector Fastening: Tighten both integrated thumbscrews on the DB9 shell assemblies directly into the mating module receptacles. Consequently, this prevents accidental detachment from structural machine vibrations.
• Bend Radius Limits: Maintain a minimum structural bend radius of 60 mm along the cable run. As a result, this precaution prevents internal conductor binding or tearing of the aluminum-mylar shield foil.
• Interference Segregation: Avoid laying the serial communication cable parallel to high-current motor lead conduits. Additionally, cross high-voltage lines at right angles to minimize inductive noise coupling.
