Description

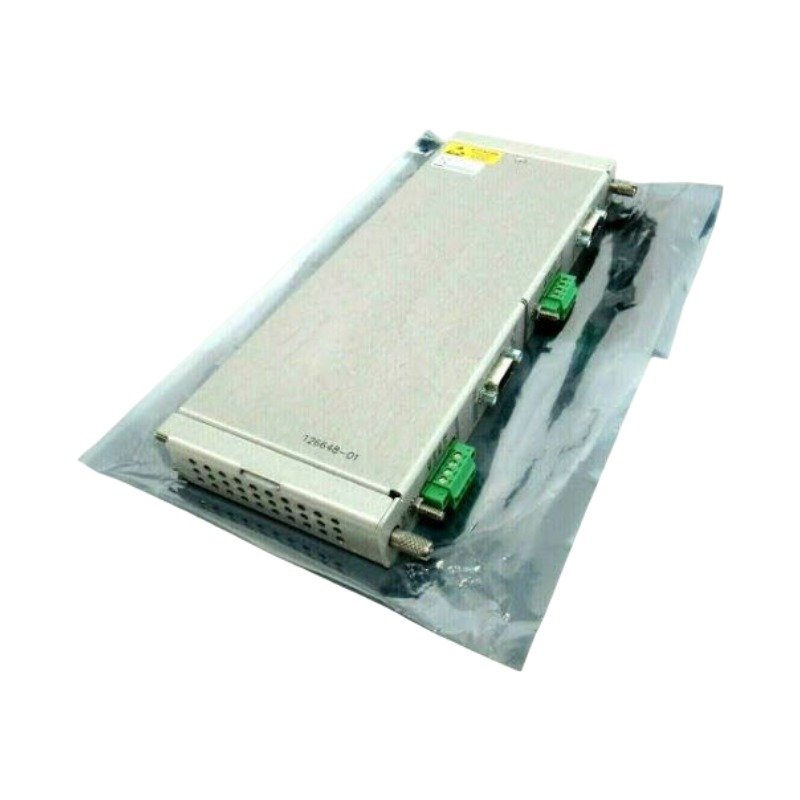

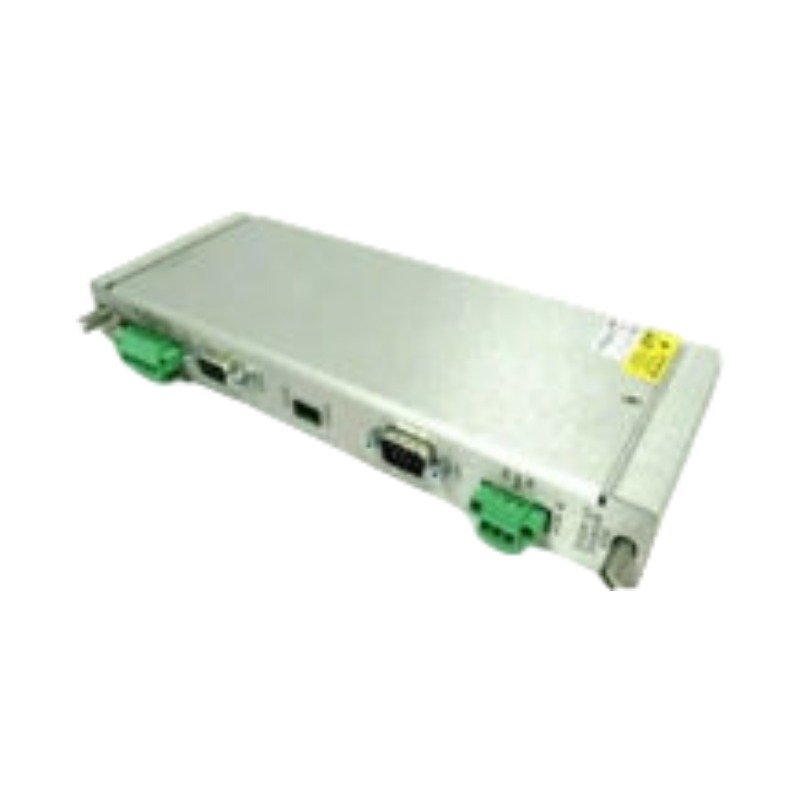

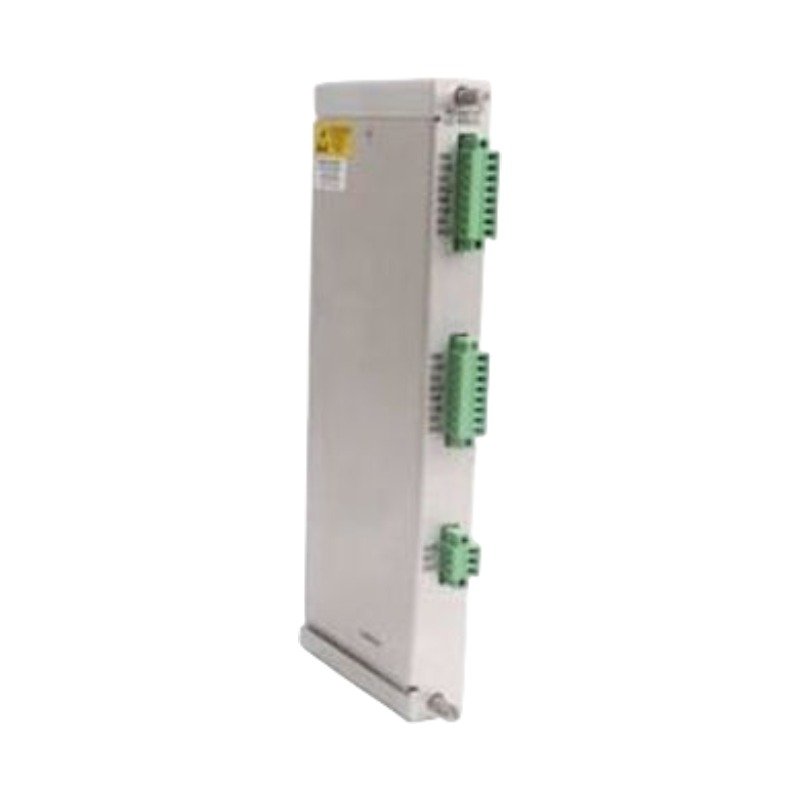

The Bently Nevada 126648-01, also cataloged as the 126648-01 Enhanced Keyphasor I/O Module, operates as a dedicated hardware component for physical signal conditioning within a Bently Nevada 3500 Series Machinery Protection System. Concurrently, the module accepts raw speed and phase timing marks from external transducers, converting these pulses into precise digital timing inputs across the 3500 backplane.

Hardware Specifications

Machinery Monitoring and TSI Characteristics

The 126648-01 drives multi-channel synchronous data acquisition across the entire rack architecture by establishing absolute phase references. Prior to distribution, the card conditions raw voltage pulses from proximity sensors or magnetic pickups, matching the target thresholds required for gap voltage validation (-10 VDC targets). Subsequently, the module applies high-speed cross-talk suppression logic to eliminate high-frequency noise from adjacent eddy-current probe scaling modules. Consequently, this signal conditioning preserves clear timing events, allowing adjacent monitoring cards to track complex rotor dynamics and shaft rotation speeds with precision.

Frequently Asked Questions

Q: How does the 126648-01 card handle input signal types differently?

A: The card hardware handles both magnetic pickups and proximity transducers concurrently, whereby field engineers adjust on-board threshold settings via the 3500 configuration software to match the specific sensor voltage curve.

Q: Can maintenance crews pull this I/O module while the 3500 system remains powered?

A: No. Prior to removing the 126648-01 card, technicians must shut down system rack power. Pulling the module during active operation risks triggering false machine trips and corrupting backplane communication.

Field Installation Guidelines

• Chassis Positioning: Slide the 126648-01 I/O card into the rear slot directly opposing the front-panel 3500/25 monitor card. Subsequently, tighten the retaining fasteners to secure the module to the ground plane.
• Transducer Wiring: Route the raw Keyphasor transducer field lines into the internal terminal strip blocks. Always terminate the signal wire, return wire, and power supply lines into their designated positions according to the system wiring drawing.
• Shield Continuity Control: Land the outer braided shield of the coaxial instrumentation cable cleanly at the chassis ground strip. Do not attach the shield to ground at the machine end, as dual-point grounding introduces unwanted electrical ground loops.
