Description

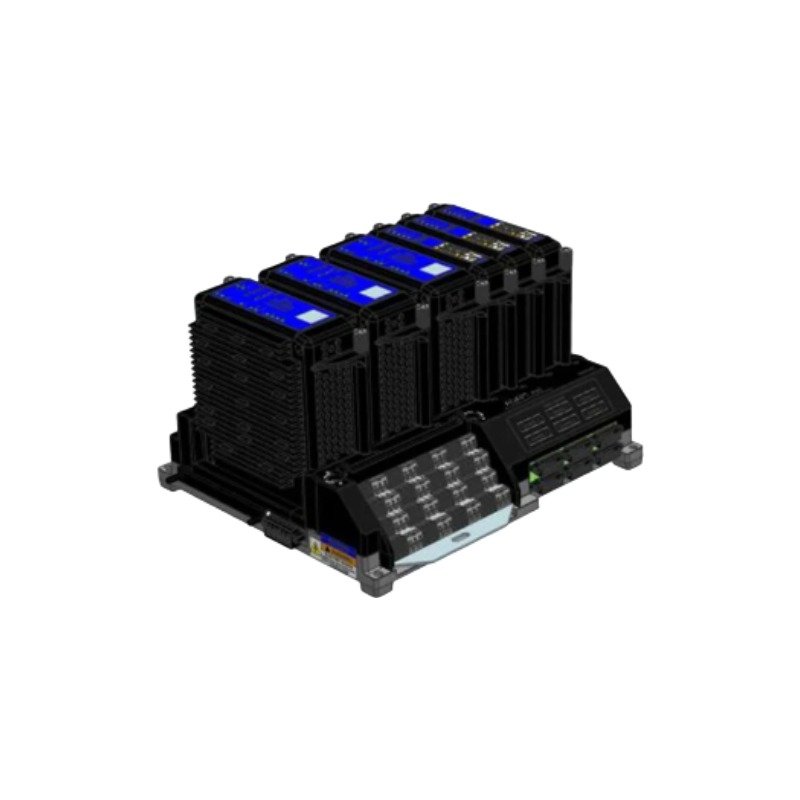

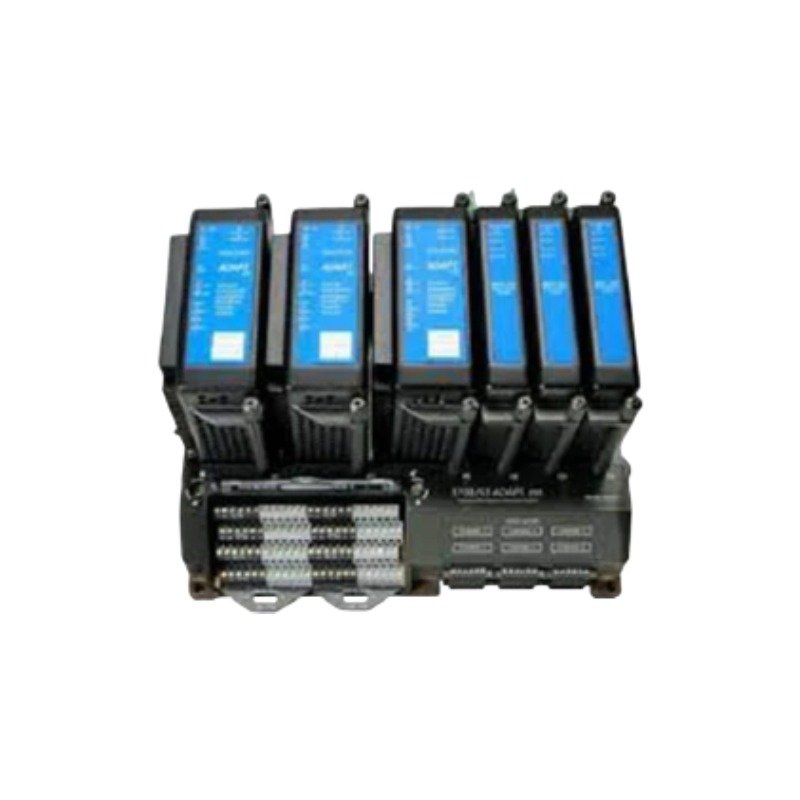

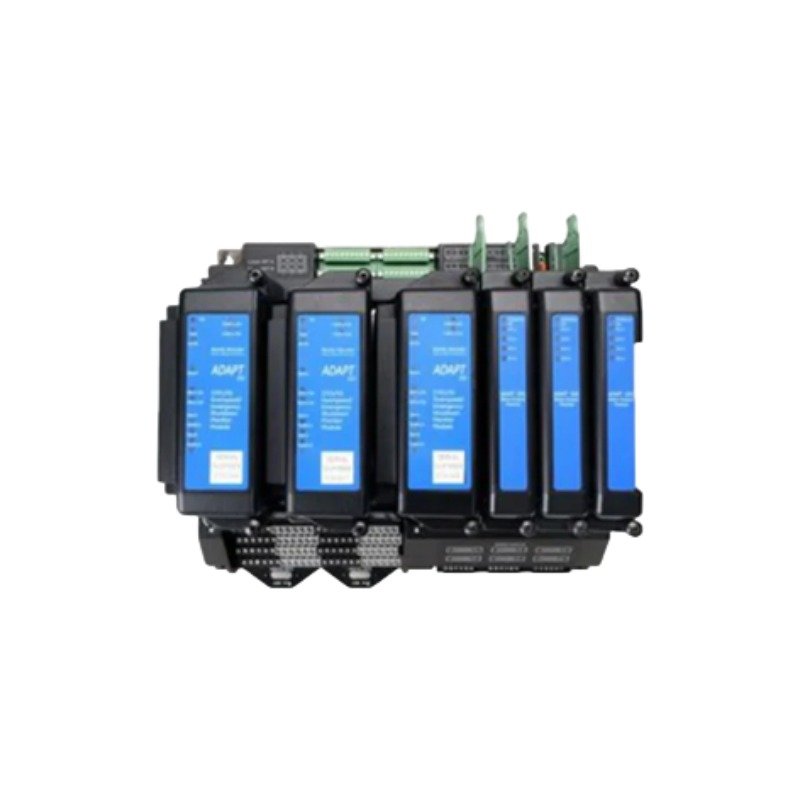

The Bently Nevada 105M6001-01, also cataloged as the 105M6001-01 Positive Input Modules, operates as a dedicated hardware component for positive voltage signal conditioning and transducer processing within ADAPT 3701 machinery monitoring platforms and rack chassis systems.

Hardware Specifications

Gap Voltage Validation and Cross-Talk Suppression

The Bently Nevada 105M6001-01 conditions positive voltage transducer inputs, converting dynamic signals for high-speed processing without signal attenuation. Internal hardware differential stages implement cross-talk suppression to isolate adjacent transducer channels from electromagnetic interference and signal leakage. Integrated gap voltage validation constantly verifies DC bias integrity across positive-bias sensor loops, ensuring accurate rotor dynamics tracking, peak displacement acquisition, and reliable fault detection across demanding machinery operating profiles.

Frequently Asked Questions

Q: How is operating power supplied to the 105M6001-01 Positive Input Module?

A: Power is drawn directly from the system rack backplane assembly, eliminating external power supply wiring to the individual module.

Q: What environmental limits apply to the storage and operation of the 105M6001-01 card?

A: The module operates reliably between -30 deg C and +65 deg C, with storage ratings extending from -40 deg C to +85 deg C under non-condensing humidity levels up to 95%.

Field Installation Guidelines

• First, confirm that the target rack slot inside the chassis is clear of dust, metallic debris, or pin obstruction.
• Next, align the card edges of the 105M6001-01 module with the slot guides and slide the unit inward until the backplane connector fully seats.
• Additionally, secure the front-panel retaining hardware to establish firm chassis grounding and prevent mechanical loosening under vibration.
• Finally, connect transducer input wiring using properly shielded cabling, landing all cable shields at the dedicated rack ground lug.
