Description

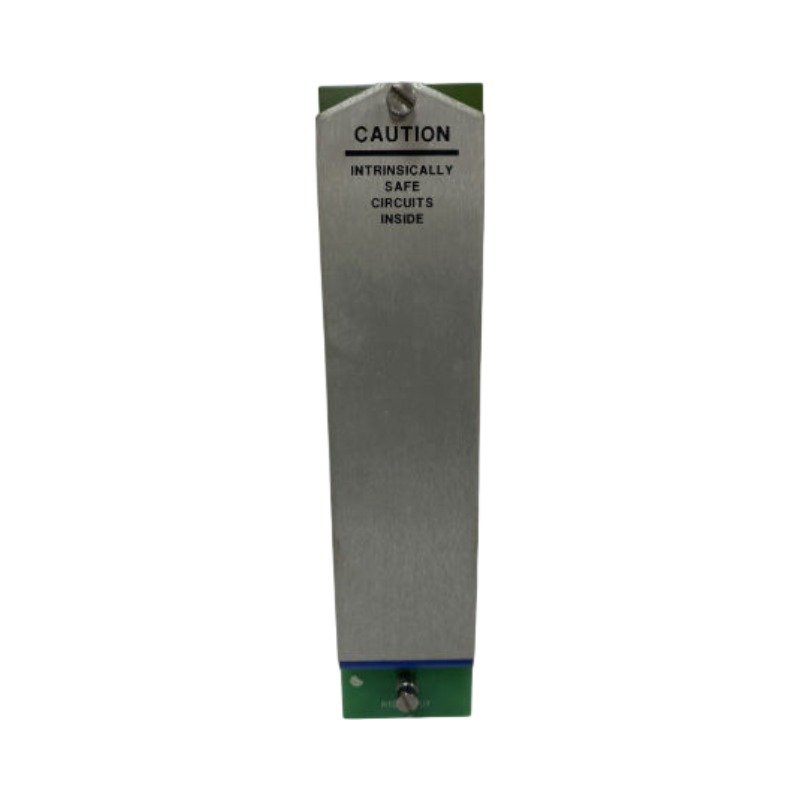

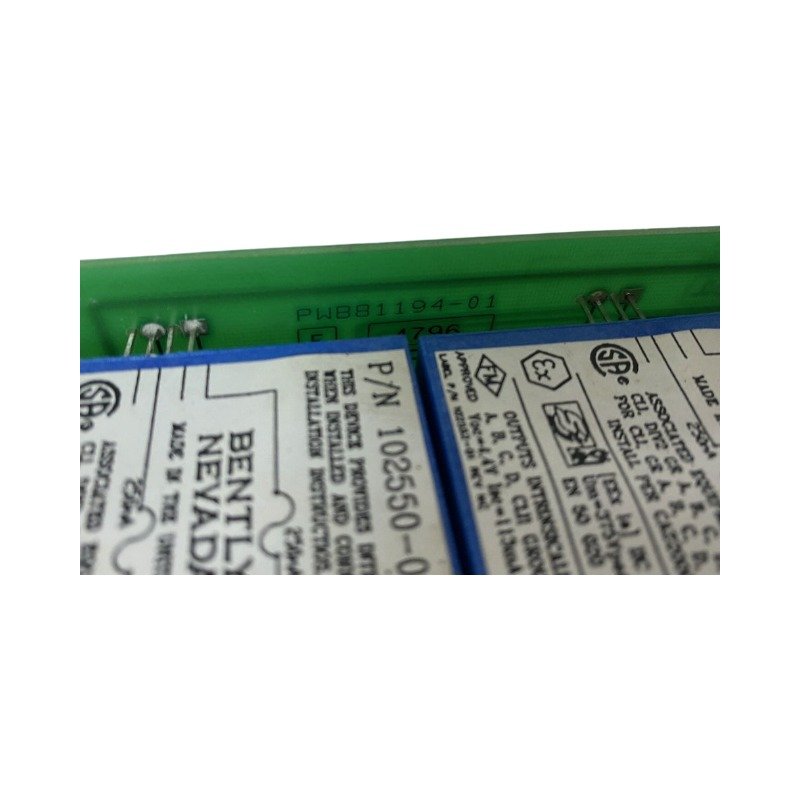

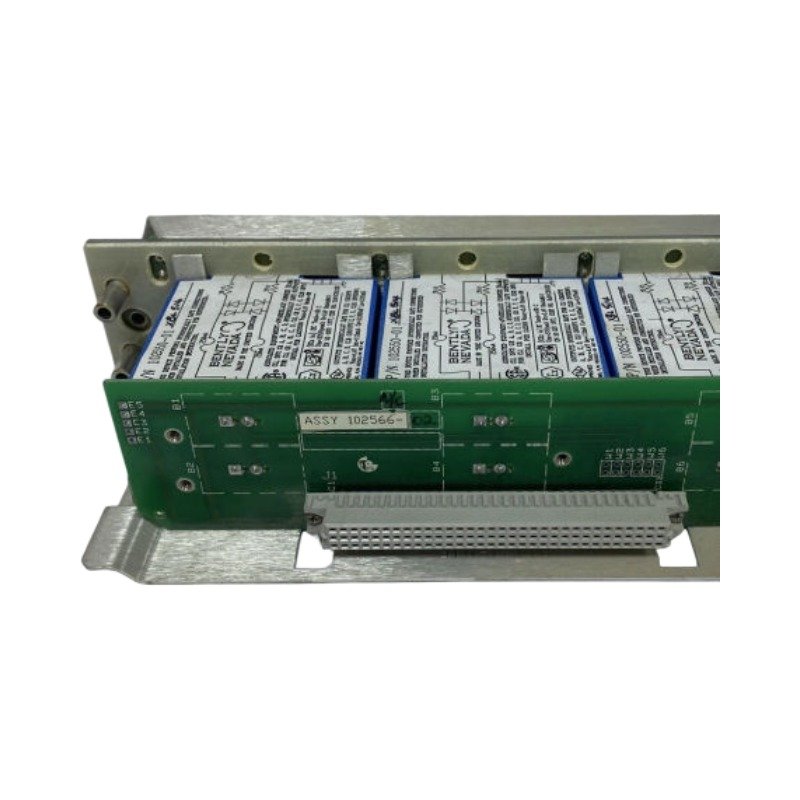

The Bently Nevada 102550-01, also cataloged as the 102550-01 Tachometer Module, operates as a dedicated hardware component for processing shaft rotational speed and keyphase signals within Bently Nevada 3500 Series machinery protection system platforms.

Hardware Specifications

Rotor Dynamics and Cross-Talk Suppression

The hardware circuitry incorporates internal filtering routines optimized for rotor dynamics monitoring. The channel architecture relies on specific eddy-current probe scaling to convert analog voltage transitions into precise digital pulses. During normal operations, the module executes gap voltage validation against -10 VDC targets to ensure the connected transducers remain within their linear range. To prevent false triggering in high-density rack configurations, the internal differential inputs employ active cross-talk suppression algorithms, maintaining pulse verification integrity even during high-acceleration transients.

Frequently Asked Questions

Q: Can the 102550-01 module be hot-swapped while the 3500 rack is energized?

A: Yes. The module supports live insertion and removal under power without disrupting the operation of adjacent rack components, provided the rack power supplies are not overloaded.

Q: What action should be taken if the gap voltage falls outside the -10 VDC target?

A: A gap voltage deviation typically indicates an incorrect physical distance between the proximity probe tip and the target shaft. You must adjust the mechanical positioning of the probe until the field multimeter or configuration software registers the correct DC bias voltage.

Field Installation Guidelines

• Chassis Grounding: Secure the module faceplate screws directly into the 3500 rack chassis to ensure low-impedance electrical bonding.
• Shield Terminations: Terminate all field wiring shield drains at the designated instrument ground bus within the internal terminal block, keeping unshielded wire lengths below 25 mm.
• Cable Routing: Separate transducer input cables from high-voltage AC power distribution conduits to mitigate external electromagnetic interference.
