System Capability and Overview

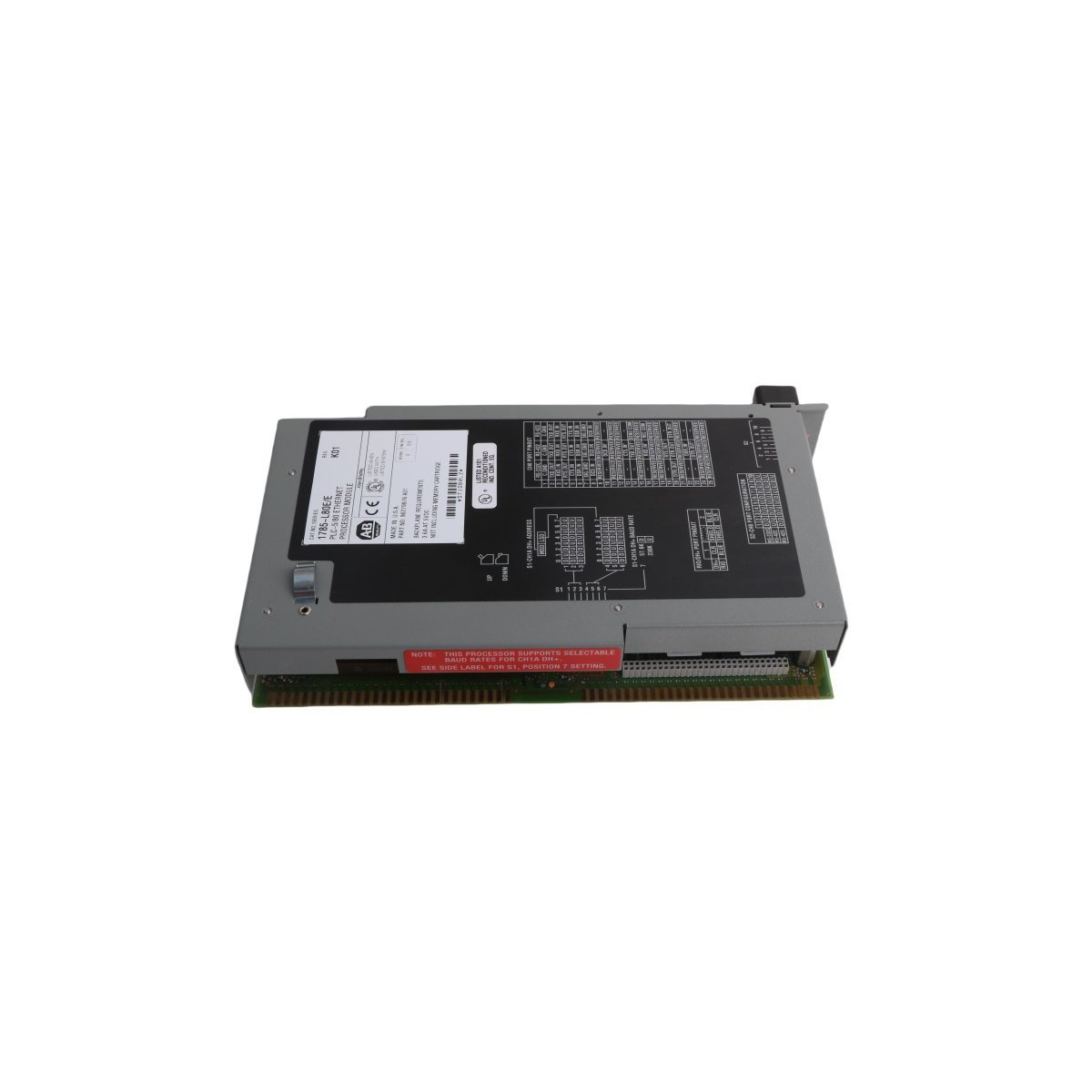

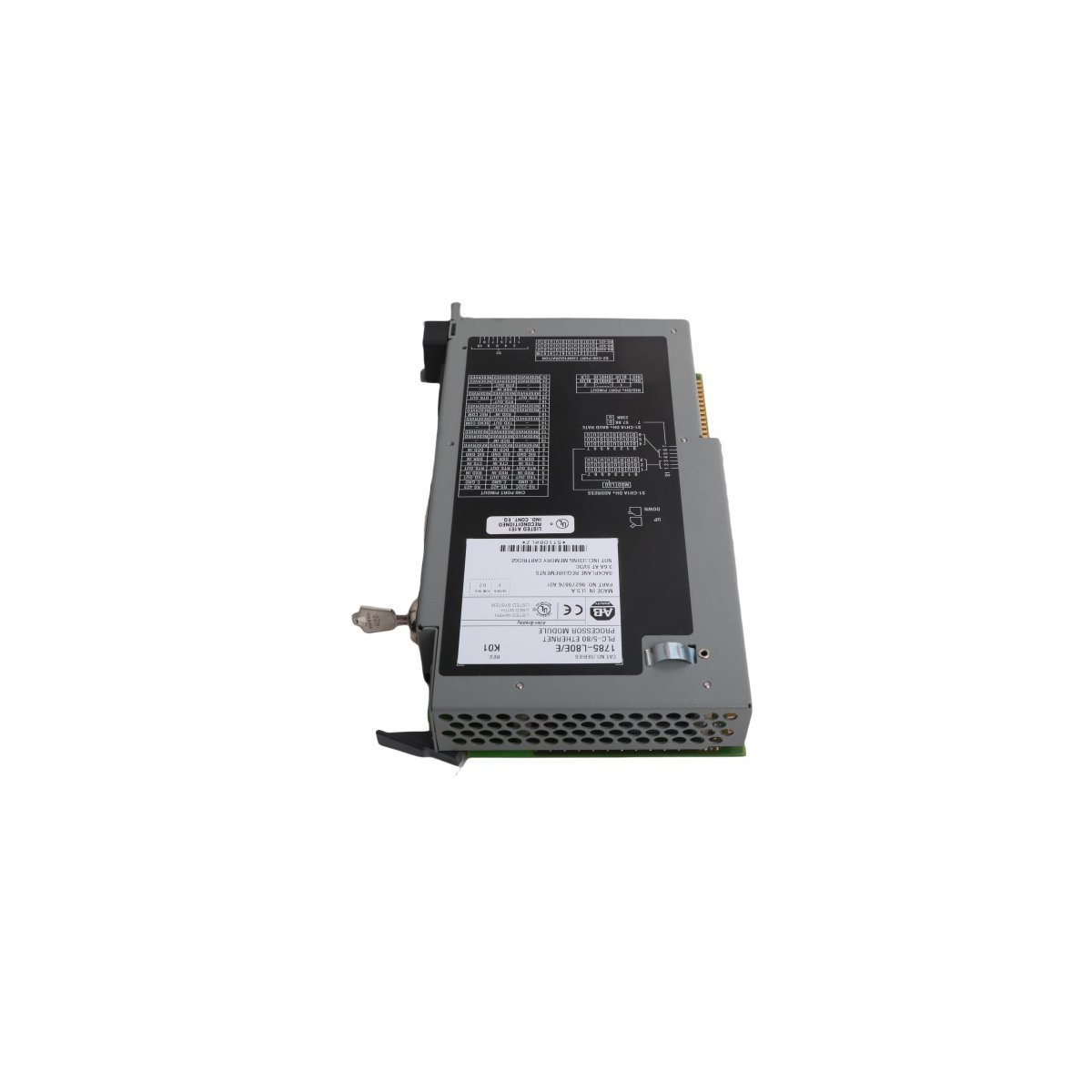

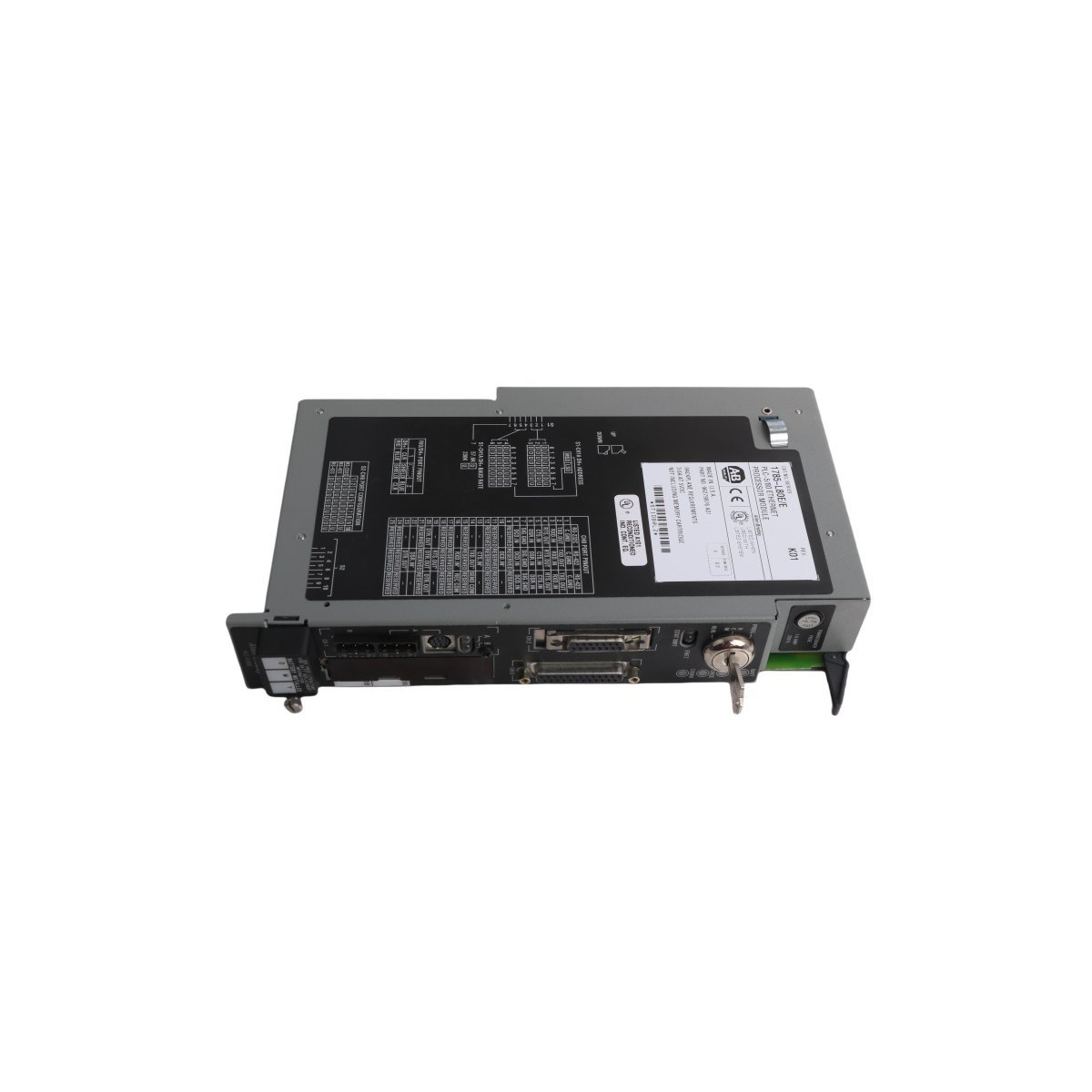

The 1785-L80B serves as a high-capacity central processing unit within the legacy Allen-Bradley PLC-5 ecosystem. This controller excels at orchestrating complex industrial operations by unifying local, extended-local, and remote I/O subsystems into a cohesive network. Because it features 100K words of user memory, the module comfortably handles large-scale ladder logic programs and extensive data storage requirements. Although Rockwell Automation moved this product to discontinued status on July 31, 2017, it remains a critical asset for facilities maintaining reliable, long-term automation infrastructures.

Multi-Channel Communication Architecture

Versatility defines the communication interface of the 1785-L80B. The module provides four high-speed ports, designated as Channels 1A, 1B, 2A, and 2B, which users can independently configure to suit specific site needs. These ports support Data Highway Plus (DH+) for peer-to-peer networking between controllers, as well as Remote I/O (RIO) scanning or adapter modes for managing distributed device clusters. Furthermore, an integrated 25-pin RS-232C serial port (Channel 0) supports ASCII and DF1 protocols, which simplifies the integration of programming terminals, modems, and basic operator interfaces.

Operational Diagnostics and Reliability

Industrial environments demand constant feedback, and the 1785-L80B delivers this through a comprehensive front-panel diagnostic array. Status indicators including PROC, FORCE, BATT, and COMM allow maintenance teams to monitor processor health, active I/O forcing, and communication traffic at a glance. By utilizing these real-time signals, operators can quickly troubleshoot system anomalies and reduce downtime. The hardware reflects the durability of the PLC-5 range, offering a robust mechanical design that withstands the electrical noise and vibration common in heavy manufacturing sectors.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation
• Model: 1785-L80B
• Series: PLC-5/80 Enhanced
• Module Category: CPU / Processor Module
• User Memory: 100,000 Words
• Total I/O Capacity: 3072 Max (Any mix) or 3072 In/3072 Out (Complementary)
• Backplane Current Load: 3.3 Amps at 5V DC
• Communication Ports: 4 Configurable (DH+ or RIO) plus 1 RS-232C (Serial)
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Weight: 1.32 kg
• Dimensions: 4.8 x 15.2 x 27.3 cm
• Origin: USA
