Description

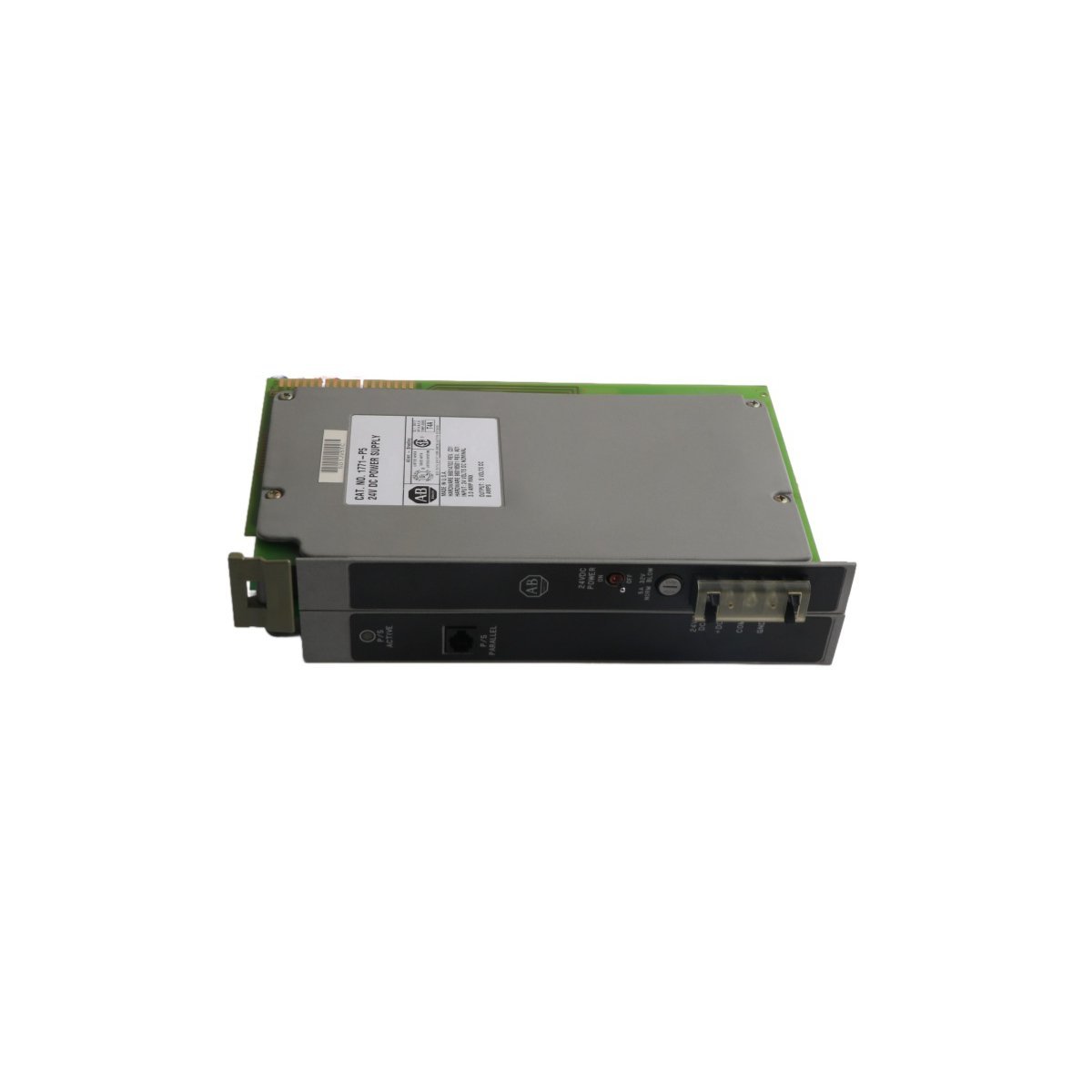

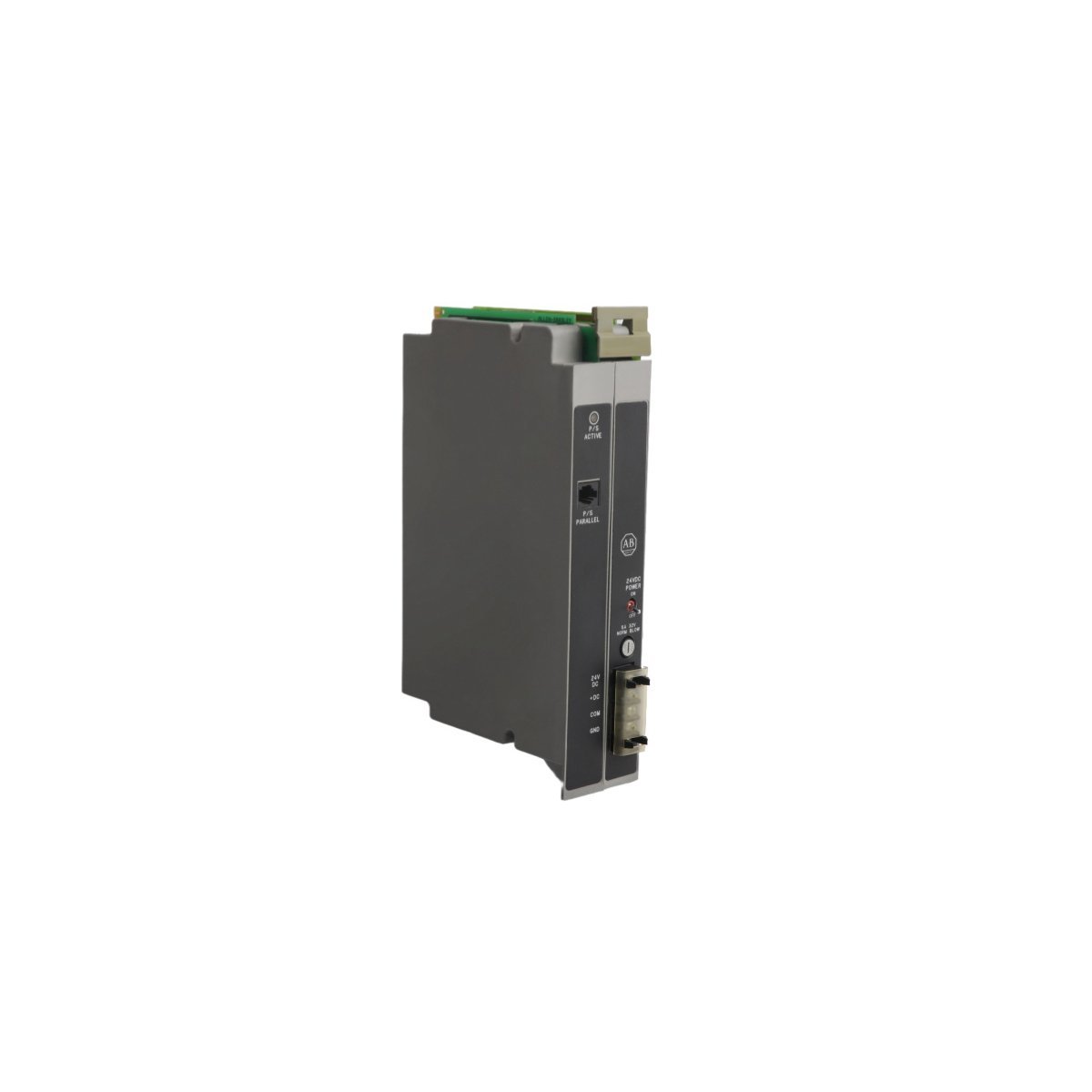

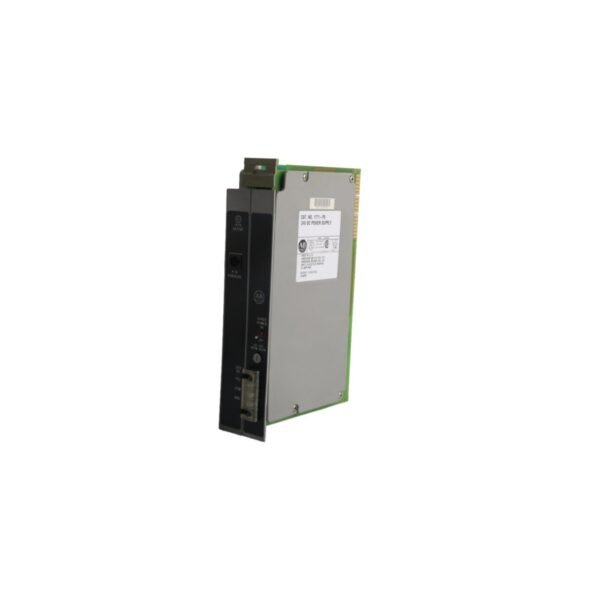

The Allen-Bradley 1771-P5 functions as a high-performance power source for the PLC-5 and 1771 Universal I/O platforms. This module converts a wide-range DC input into a stable 5V DC backplane voltage. It supports the power requirements of various I/O modules and processors within the chassis. Because of its rugged industrial design, it ensures continuous operation for critical control systems. This unit effectively maintains system stability during voltage fluctuations or minor power interruptions.

Core Technical Specifications

Advanced Circuit Protection and Isolation

Safety remains a priority for the 1771-P5 through integrated high-voltage circuit isolation. The module isolates the input power from the chassis ground to prevent electrical noise. Furthermore, an internal 5A normal-blow fuse protects the hardware from overcurrent conditions. The design includes a configurable power loss delay to manage processor shutdowns. Users can adjust this delay to either 13.6ms or 60ms for specific system needs. These features collectively protect expensive backplane components from unexpected electrical faults.

Parallel Configuration and System Scalability

Engineers can increase total output current by connecting two 1771-P5 modules in parallel. This configuration requires a specialized 1771-CT parallel connection cable for synchronized operation. Such a setup provides up to 16A of current for high-density I/O racks. Additionally, a dedicated keying band ensures correct module placement within the chassis. This prevents damage caused by accidental insertion into incompatible slots. The module maintains its full 8A rating across the entire operating temperature range.

Mechanical Integrity and Industrial Certification

The 1771-P5 offers a durable build that withstands the harsh conditions of factory floors. It operates reliably in non-condensing environments with humidity levels reaching 95 percent. The unit holds both UL and CSA certifications for hazardous location use. With a weight of approximately 1.18 kg, it provides a solid and vibration-resistant power solution. Its efficient thermal management allows for a compact size without sacrificing output capacity. This makes it an ideal choice for maintaining legacy PLC-5 automation infrastructures.
