Description

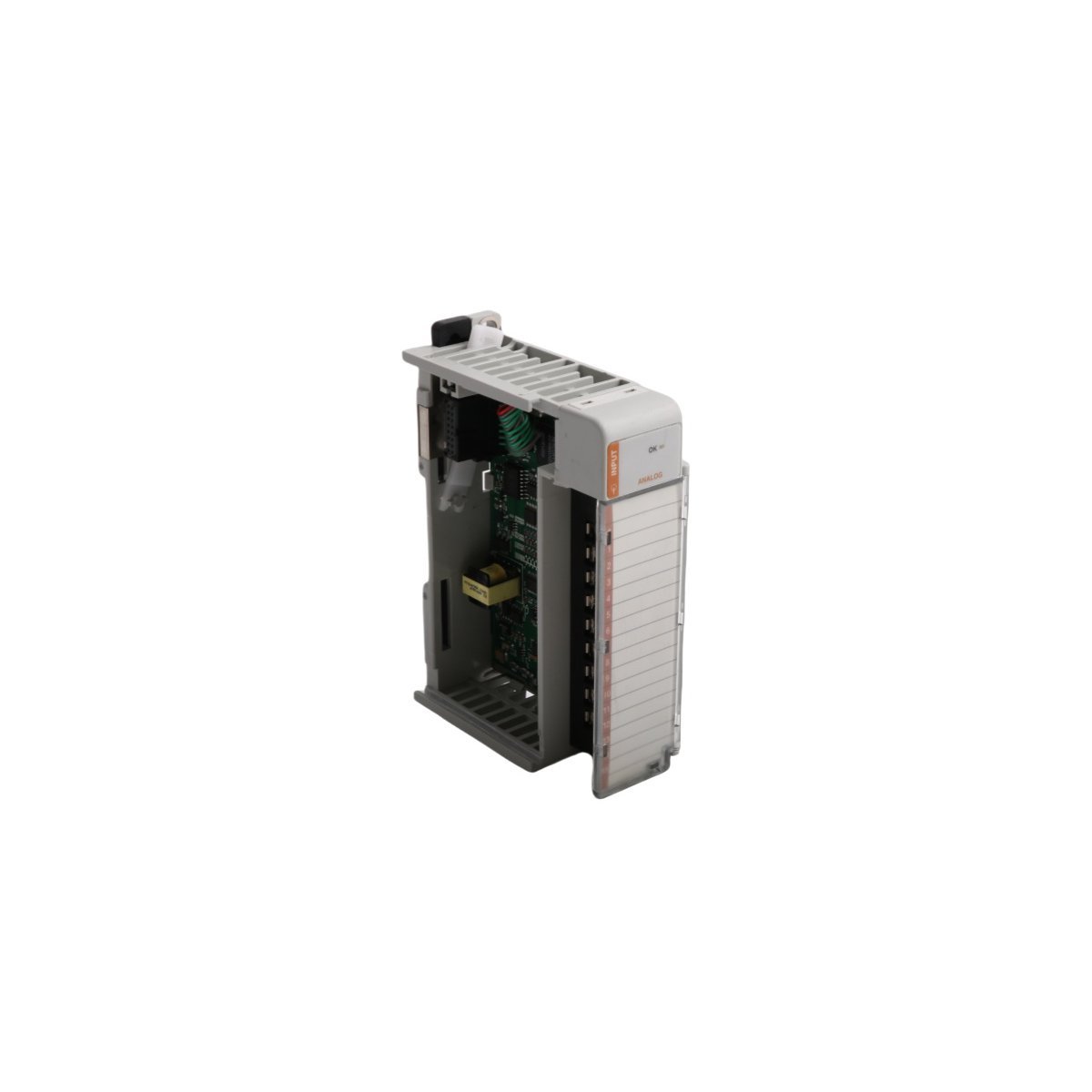

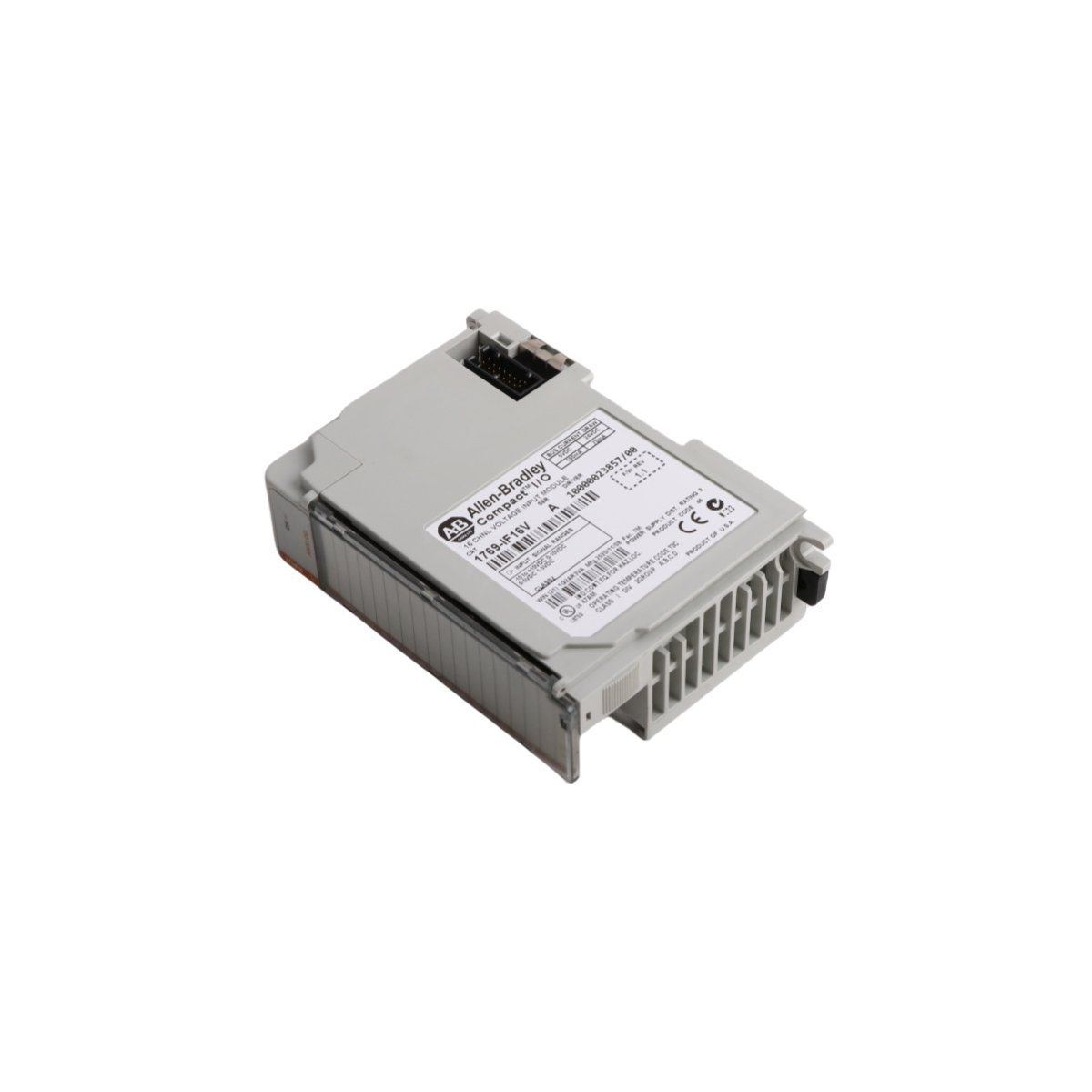

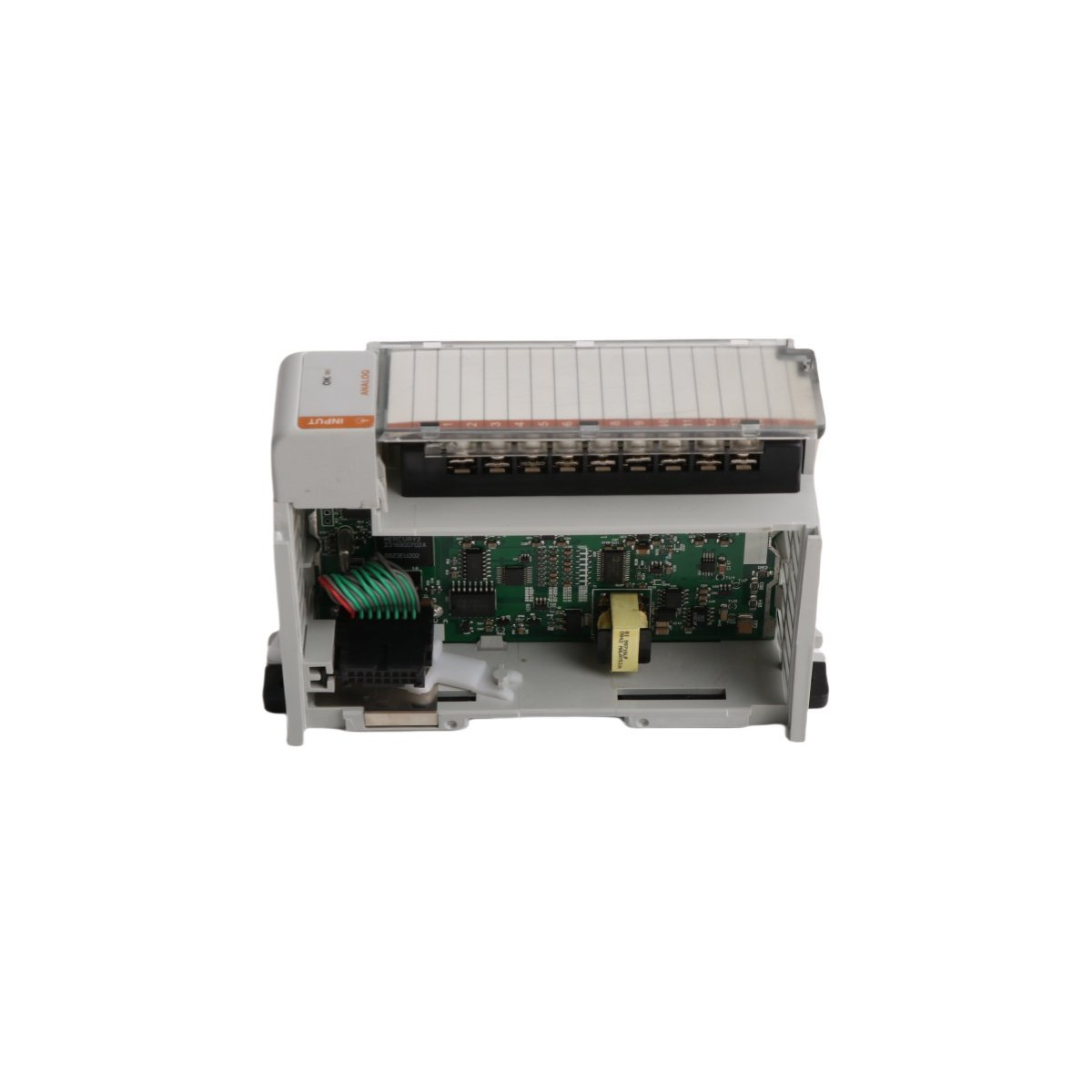

The Allen-Bradley 1769-IF4XOF2 serves as a versatile expansion component for CompactLogix and MicroLogix 1500 controller systems. This combination module integrates both analog input and output capabilities within a single compact footprint. It allows users to monitor four field signals while simultaneously controlling two actuators. Consequently, this hardware provides an economical solution for applications with low-density analog requirements. It effectively streamlines system design by reducing the number of required expansion modules.

Core Technical Specifications

Integrated Signal Processing and Performance

The 1769-IF4XOF2 utilizes a successive approximation analog-to-digital converter for high-speed signal capture. This technology ensures reliable data conversion for standard industrial sensors. Each input channel supports differential wiring to maximize noise immunity in electrical environments. Furthermore, the module handles slight signal over-ranges up to 10.5V DC or 21mA. This headroom prevents data clipping during minor process fluctuations.

The output section utilizes a resistor-string digital-to-analog converter for stable control signals. Voltage outputs drive loads greater than 1kΩ with high stability. Meanwhile, the current outputs effectively source signals into loads up to 300Ω. These outputs respond rapidly to processor commands for efficient machine control.

Installation and Field Wiring

This module mounts easily onto a standard DIN rail or through-panel mounting. It features a removable terminal block to simplify the wiring process. Technicians can replace units without disconnecting individual field wires from the terminals. This design choice significantly reduces maintenance time and prevents potential wiring errors.

The hardware requires an external 24V DC power source to drive field-side transmitters. It does not provide internal loop power for sensors. Therefore, users must ensure the external power supply matches the specific requirements of their field devices. Proper grounding of the analog common terminal ensures signal integrity across all channels.

Industrial Applications and Reliability

Engineers typically deploy the 1769-IF4XOF2 for basic process monitoring tasks. It excels in sensing temperature, pressure, or level where 8-bit resolution suffices. The module carries CE and c-UL certifications for global industrial compliance. Additionally, it withstands the vibrations and thermal changes common in factory environments. Its small size makes it ideal for space-constrained control cabinets and remote I/O stations.
