Description

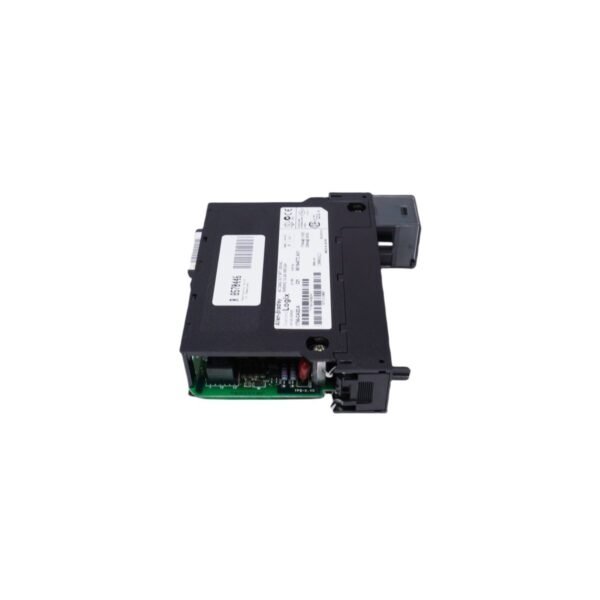

The Allen-Bradley 1756-OA8D functions as a specialized diagnostic output interface for the ControlLogix platform. This module provides eight independent points for switching AC loads across industrial networks. It operates within a voltage range of 74V to 132V AC. Furthermore, the diagnostic features allow the system to detect field-side faults effectively. These capabilities include electronic fusing and no-load detection. Consequently, maintenance teams can identify circuit issues without manual probing. This proactive monitoring ensures higher system availability for critical infrastructure.

Technical Performance and Fusing

The 1756-OA8D delivers high-performance switching with an 11ms response time at 60Hz. Each output point supports a continuous current of 1A at 30°C. However, this capacity derates linearly as the operating temperature increases. The module also handles significant inrush requirements with an 8A surge rating. Additionally, the unit maintains a low off-state leakage current of 3mA. This prevents accidental activation of sensitive downstream components. Built-in electronic protection safeguards the internal circuitry from short circuits. Therefore, the hardware remains resilient during unpredictable electrical events.

Chassis Integration and Safety

This module installs directly into any slot of a standard 1756 ControlLogix chassis. It draws power from the backplane at both 5.1V and 24V DC levels. Moreover, the design features 125V continuous isolation between the outputs and the backplane. This insulation prevents electrical noise from affecting the processor or other modules. Users must utilize a Removable Terminal Block (RTB) for field wiring. The RTB supports user-defined mechanical keying to ensure correct module alignment. Such physical safeguards prevent hardware damage during installation or replacement.

Technical Specifications

Advanced Fault Detection

Diagnostic capabilities make the 1756-OA8D ideal for unmanned or remote applications. The module continuously monitors the health of every connected field device. It reports blown fuses and lost field power to the controller immediately. Furthermore, the unit detects open-wire conditions when the output is in the “off” state. This level of detail reduces the mean time to repair (MTTR). Facilities can prioritize safety while maintaining complex sequencing for motor control. It remains a vital component for sophisticated automation strategies in harsh environments.
