Description

Brief Product Description

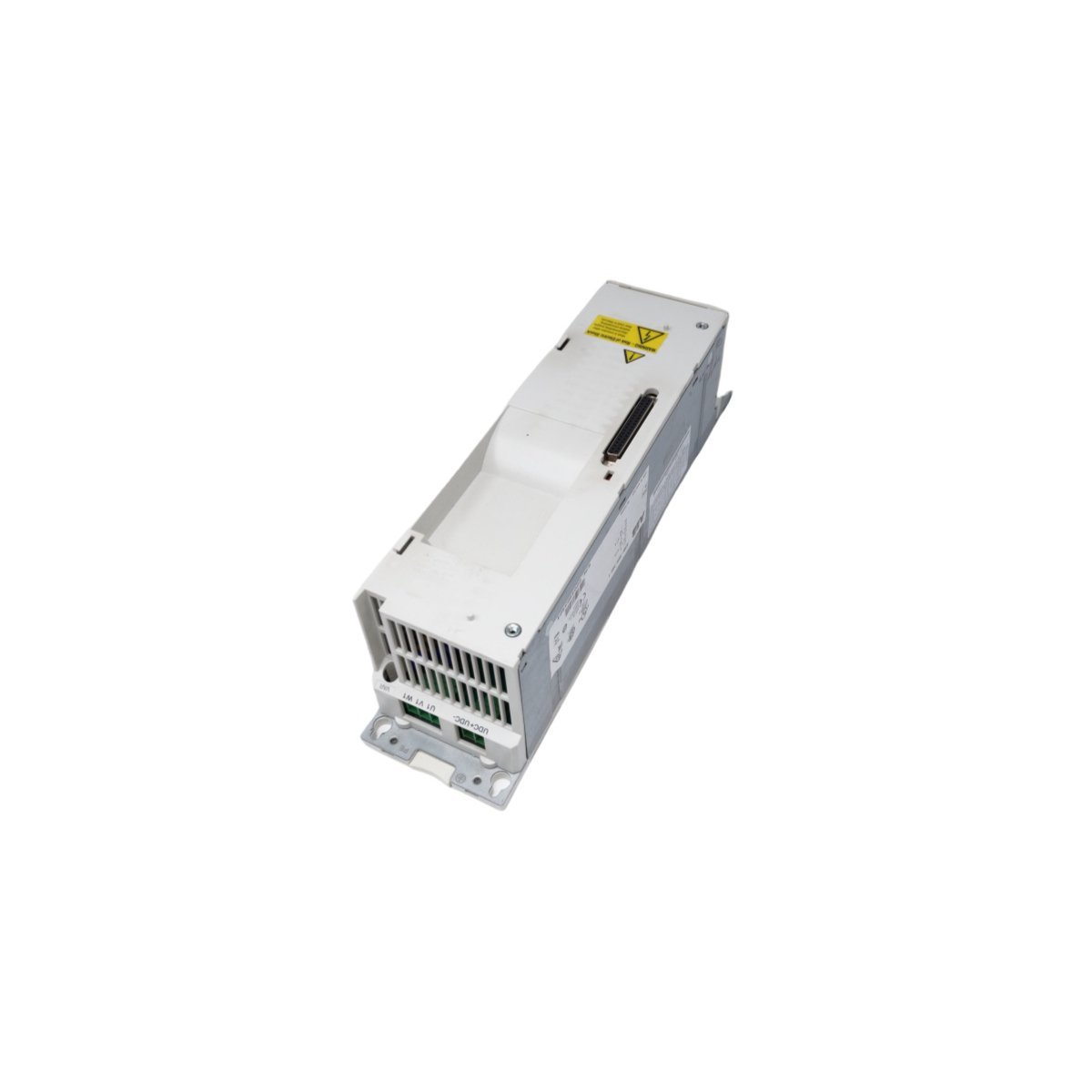

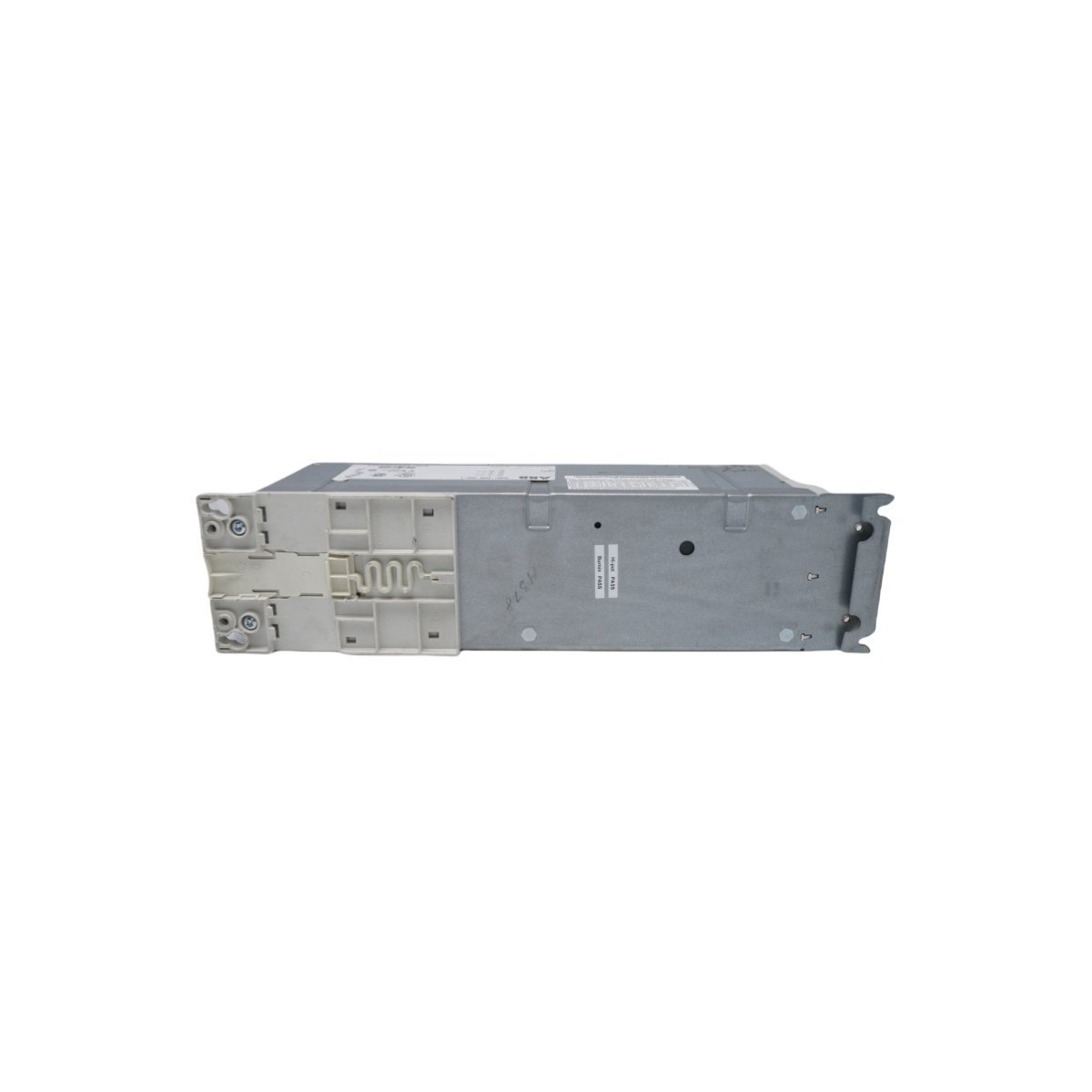

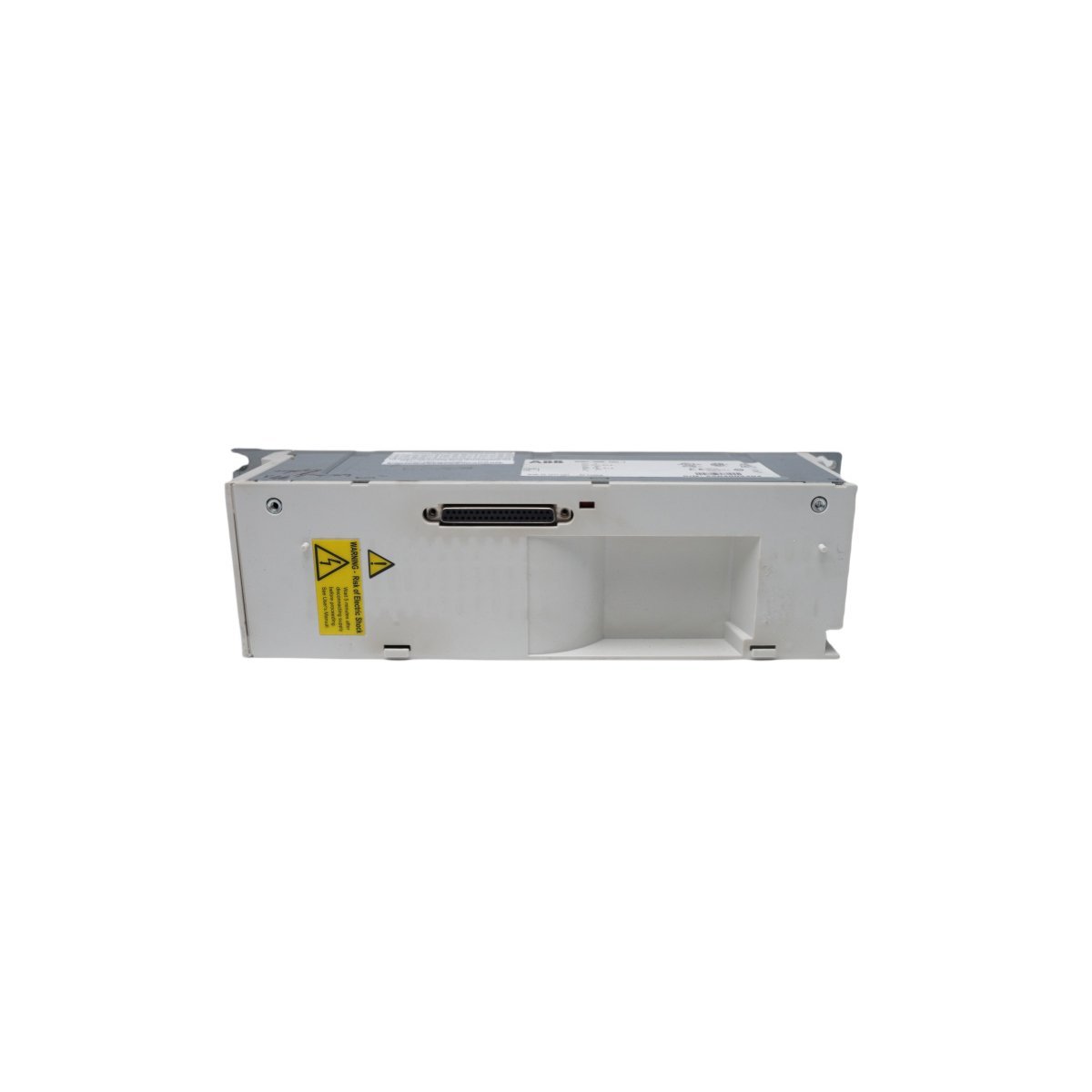

The ABB ACSM1-04AM-04A0-4 is a high-performance 3-phase motion control drive designed for precise motor regulation in demanding industrial automation environments. This controller supports advanced firmware capabilities and integrated safety features to optimize machinery performance and operator protection.

​Product Description

The ABB ACSM1-04AM-04A0-4 functions as a sophisticated motion control module within the ACSM1 series, specifically engineered to manage 3-phase motors with extreme precision. This drive operates efficiently on a 480V supply and maintains stability across a standard industrial frequency range of 48 to 63 Hz. Because it utilizes the UMFI2040 motion control program (or subsequent versions), engineers can deploy complex motion sequences and fine-tune torque response through the PC-based commissioning tool or parameter 9.04. This level of control makes it an essential component for high-speed packaging, material handling, and CNC applications.

Safety Protocols and Operational Integrity

ABB prioritizes system reliability by integrating the Safe Torque Off (STO) function directly into the ACSM1-04AM-04A0-4 hardware. This safety mechanism electronically prevents the power semiconductors from generating the rotational voltage required by the motor, effectively ensuring a safe state without the need for redundant mechanical contactors. To maintain compliance with international safety standards, users must strictly adhere to the wiring diagrams and safety guidelines provided in the ACSM1 technical manuals. Proper installation by qualified personnel ensures the drive handles electrical transients while protecting both the connected machinery and the workforce.

Engineering Versatility and System Diagnostics

The ACSM1-04AM-04A0-4 drive module offers a compact and modular design, facilitating easy installation into various DCS and PLC architectures. Its robust firmware architecture supports real-time monitoring, allowing maintenance teams to verify firmware versions and operational health instantaneously. Moreover, the unit’s thermal management system and rugged construction enable it to perform reliably in harsh industrial climates. By combining high-speed processing with flexible connectivity options, this motor controller streamlines the engineering process and reduces overall system downtime in complex automation tasks.

Technical Specification Table
