Description

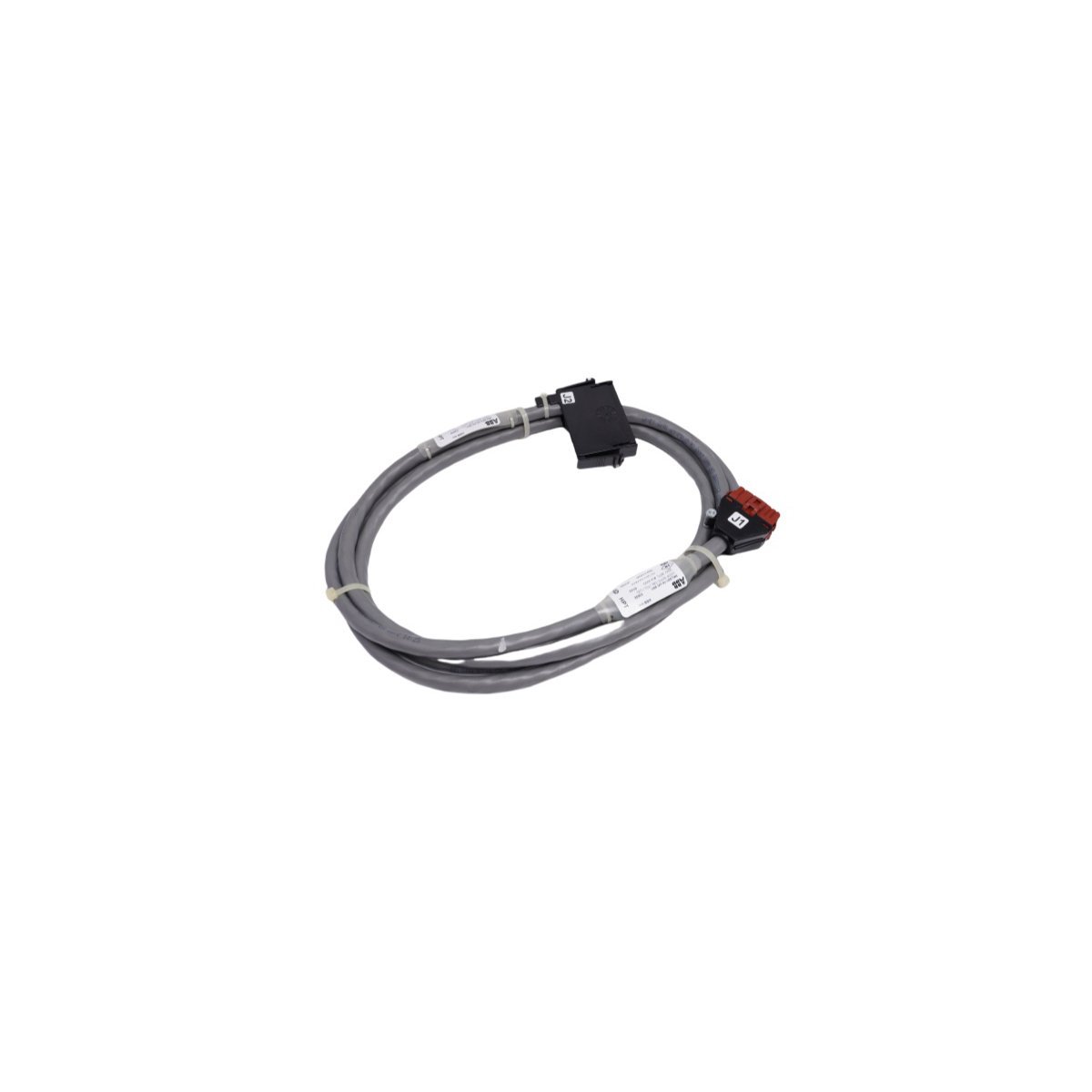

Configured for signal transmission in Bailey Net 90 and Infi 90 DCS platforms, the ABB NKLS01-15 (NKLS01-15 Infi-Net Cable) provides direct physical interconnection for data exchange within the control network.

Hardware Specifications

Industrial Control & Network Determinism

The ABB NKLS01-15 integrates into Bailey and Infi 90 excitation and control architectures primarily through high-speed backplane bus communication. Consequently, to maintain consistent deterministic network performance, the cable utilizes optimized shielding specifications; this specifically ensures precise synchronization with field-oriented control loops. Furthermore, the cable is engineered to handle rigorous I/O density scaling requirements within the control rack. By doing so, it facilitates low-latency command execution. Ultimately, these integrated processes maintain total communication integrity across the system’s Ethernet-based router interfaces, thereby ensuring stable operational throughput.

Frequently Asked Questions

Q: What is the primary function of the NKLS01-15 in a Bailey Net 90 system?

A: The NKLS01-15 serves as a prefabricated loop interface cable, providing a shielded, deterministic data path between network modules and controllers within the DCS architecture.

Q: Can this cable be used in outdoor or harsh environments?

A: The assembly is rated IP67, providing resistance against moisture and dust ingress; however, ensure all termination points are properly sealed and strain-relieved to maintain integrity.

Field Installation Guidelines

• Static Protection: While the cable is passive, ensure that connected network modules are ESD-protected prior to terminating the cable to the backplane or interface ports.
• Routing Constraints: Maintain proper separation between signal cabling and high-voltage power conduits to prevent electromagnetic interference (EMI) from inducing noise into the Infi-Net data streams.
• Bend Radius: Adhere to standard industrial cabling practices; do not exceed the minimum bend radius during installation to prevent internal conductor fatigue or shield damage.
• Termination: Ensure secure seating of the connectors on both ends. Use locking mechanisms where provided to prevent intermittent disconnections caused by vibration.
