Description

Brief Product Description

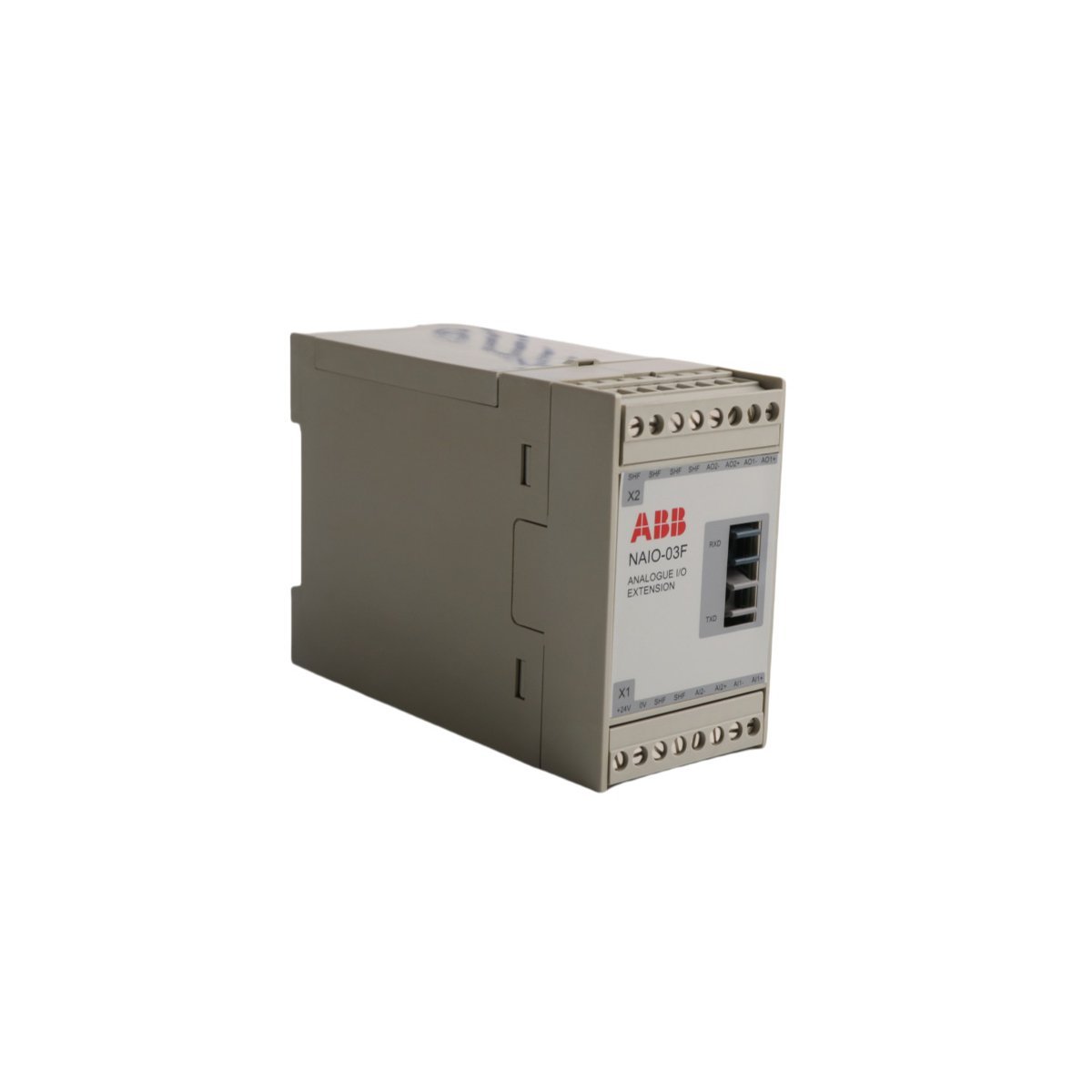

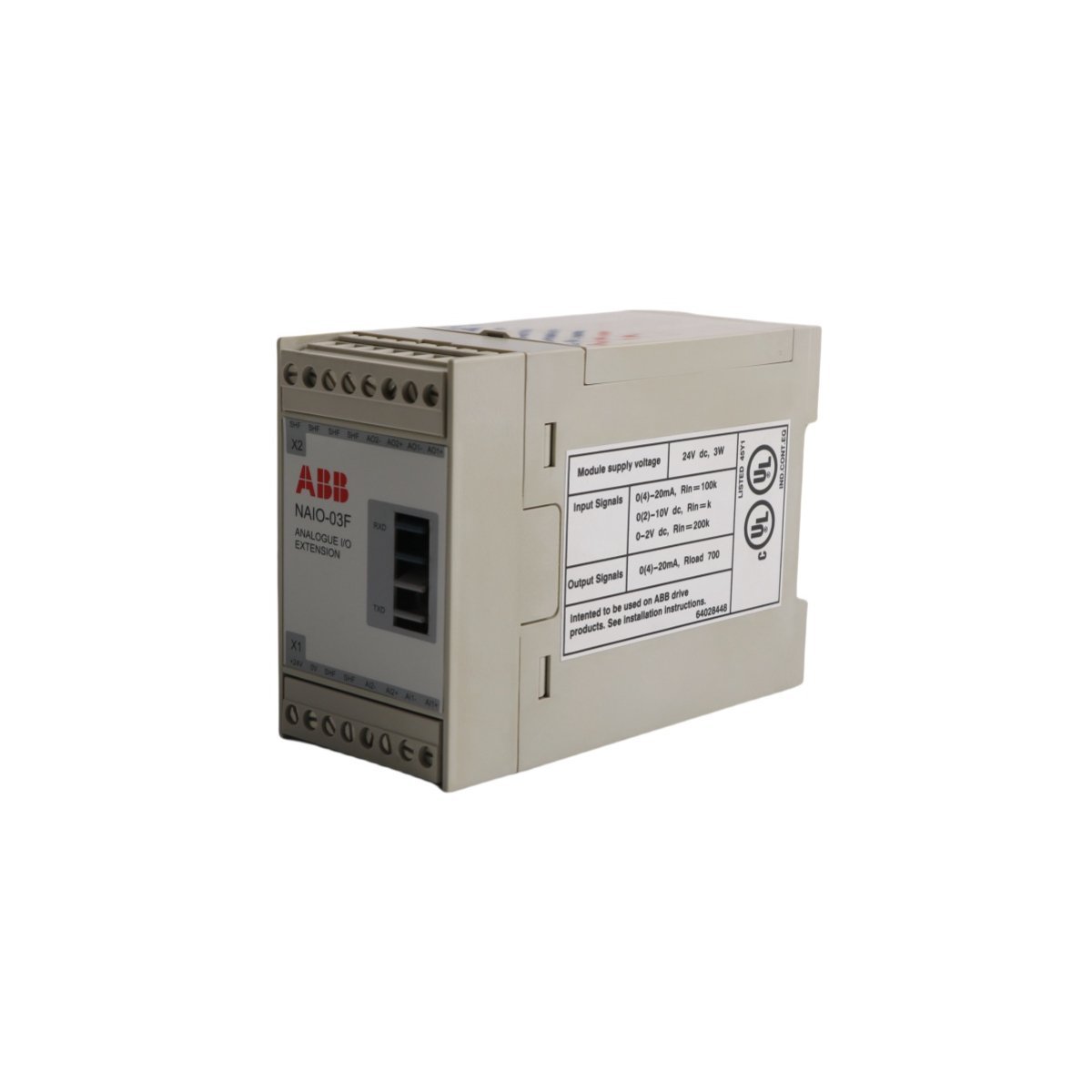

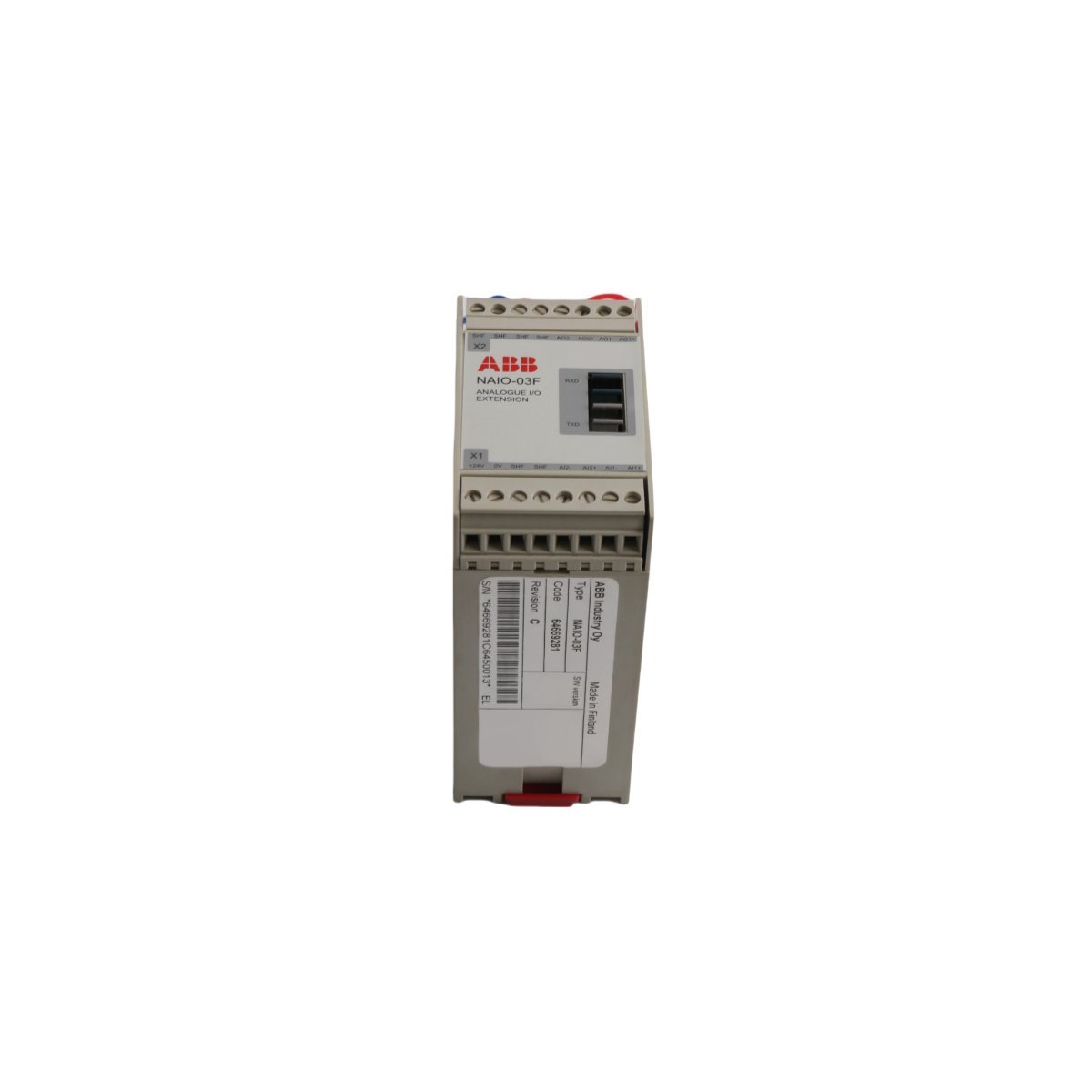

The ABB NAIO-03F is a high-precision analogue I/O extension module designed to expand the signal interfacing capabilities of ABB industrial drives and control systems. This integrated option kit facilitates the simultaneous handling of multiple analog inputs and outputs to ensure accurate process monitoring and motor control.

​Product Description

The ABB NAIO-03F functions as a dedicated expansion interface, specifically engineered to increase the point density of analog signals within a Distributed Control System (DCS) or standalone drive environment. By integrating this module, engineers can capture a broader range of field data and transmit precise control variables to external actuators. The NAIO-03F eliminates the need for complex external signal converters by providing a direct, high-integrity path for analog data acquisition and command execution.

Signal Processing and System Integration

This extension module provides a versatile mix of analog inputs and outputs, typically supporting standard industrial voltage and current ranges. Because the NAIO-03F utilizes advanced filtering and high-resolution conversion circuitry, it maintains exceptional signal stability even in electrically noisy industrial settings. The unit arrives as a complete “SP KIT,” which simplifies the installation process for maintenance teams. Furthermore, the module establishes a high-speed communication link with the host controller, ensuring that I/O refreshes occur with minimal latency to support real-time process adjustments.

Industrial Build Quality and Versatility

ABB manufactures the NAIO-03F to withstand the rigors of continuous operation in sectors such as power generation, chemical processing, and large-scale manufacturing. The compact form factor allows for high-density mounting on control rails, effectively optimizing cabinet space. Transitioning to a modernized infrastructure becomes more cost-effective with this module, as it provides a scalable path for adding I/O capacity without replacing the core control hardware. Its robust architecture and global compliance make it a reliable choice for mission-critical automation tasks worldwide.

Technical Specification Table
