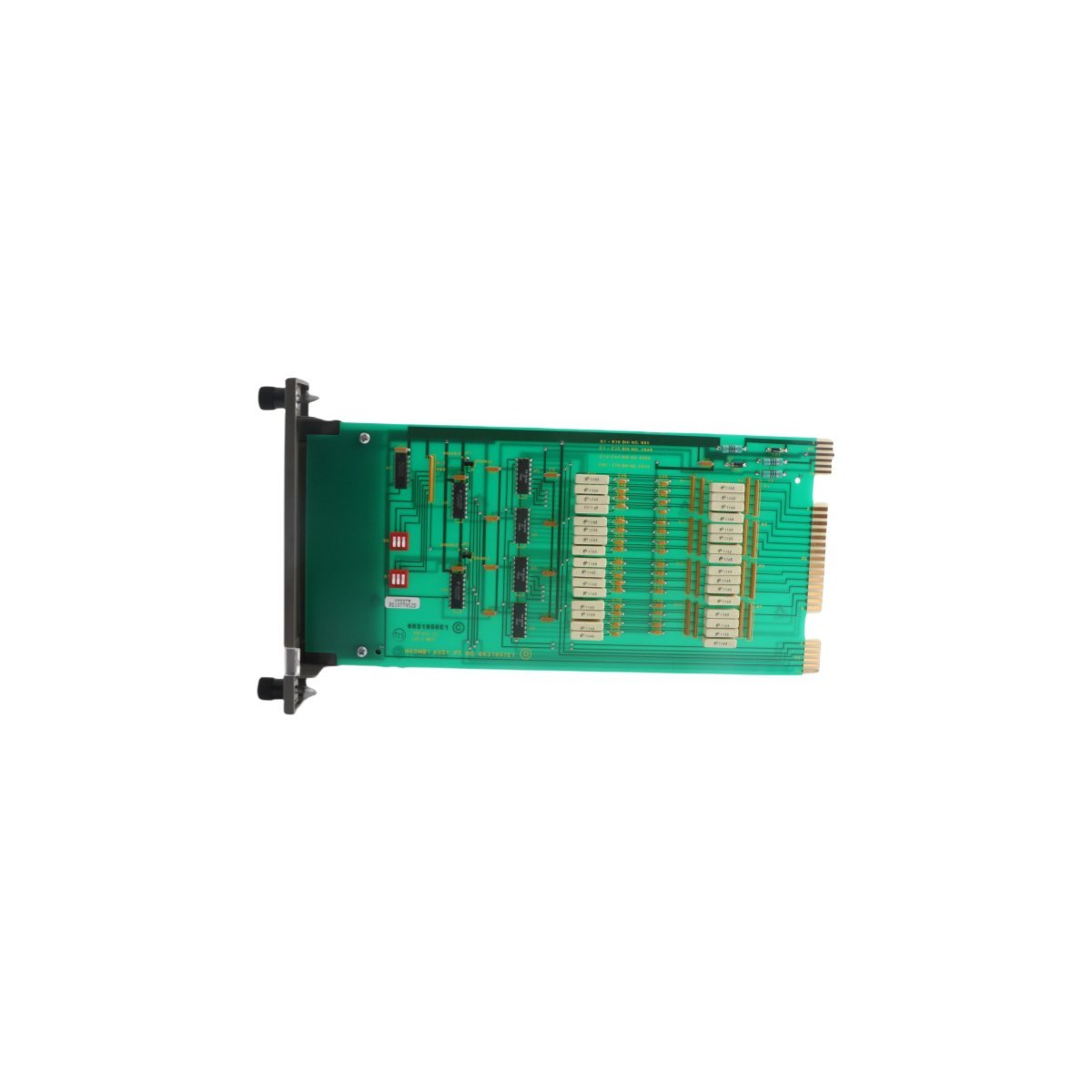

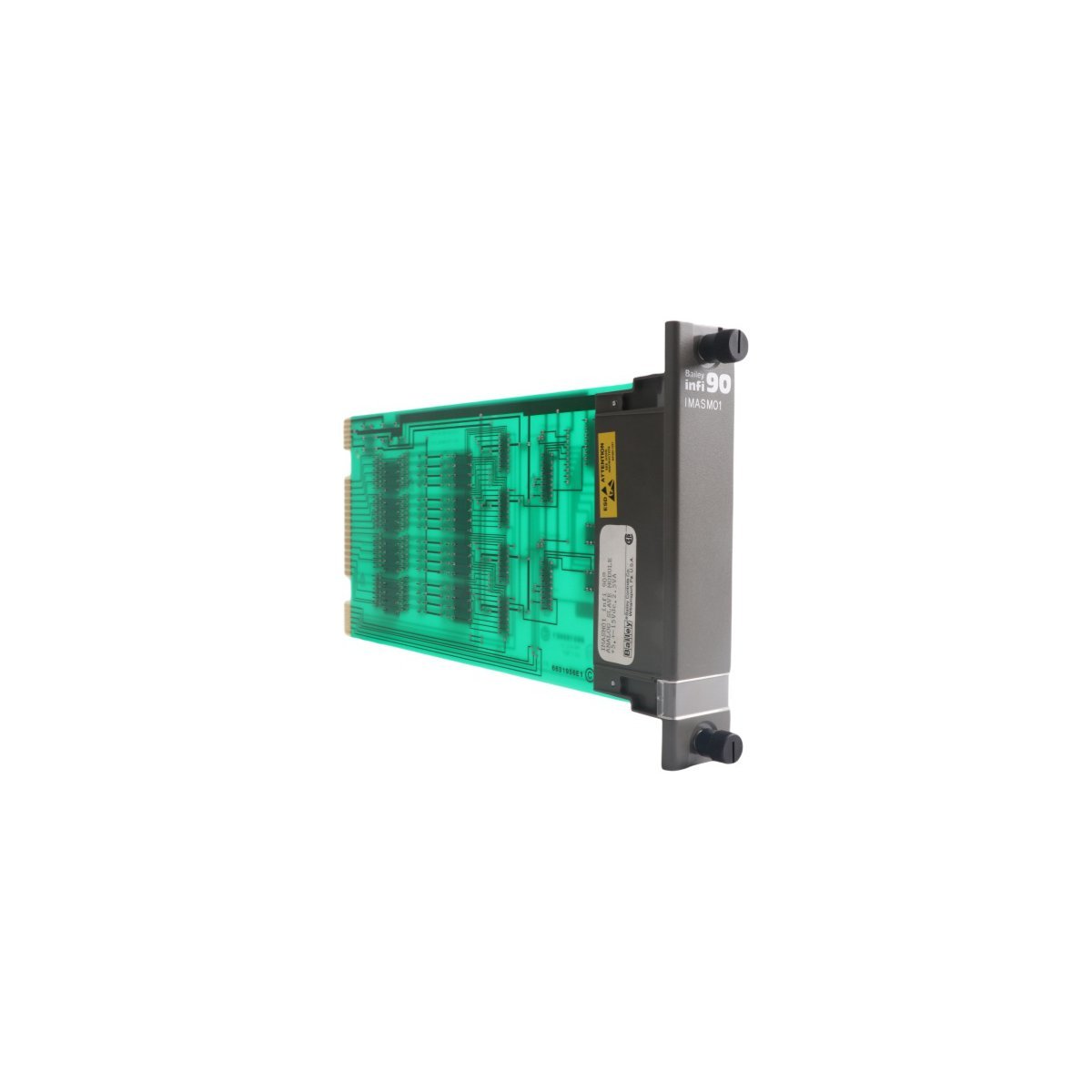

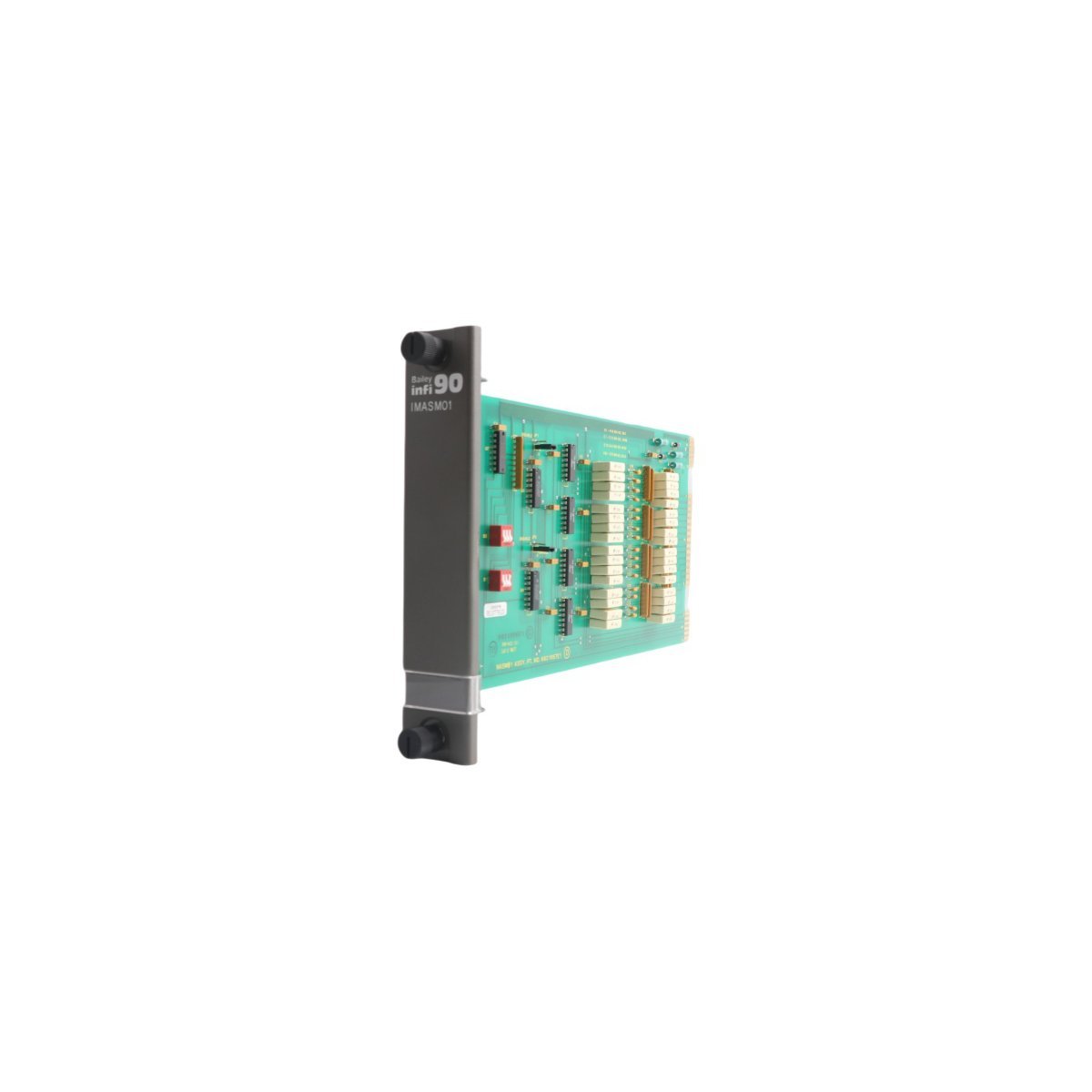

The ABB IMASM01 functions as a specialized analog input slave module within the Symphony Enterprise Management and Control System. This board interfaces directly with the Harmony Rack (HR) series to process field-side analog data. It accurately converts various process variables into digital signals for the controller. Consequently, it supports critical monitoring of temperature, pressure, and flow in real-time. This module belongs to the renowned Bailey Infi 90 product line. It remains a staple for maintaining legacy DCS infrastructure with modern reliability.

Technical Specifications and Data

Functional Features and Hardware Integrity

The IMASM01 utilizes high-grade electronic components to ensure signal stability in high-vibration areas. Its modular architecture simplifies the expansion of I/O points within existing racks. Furthermore, the board features efficient heat dissipation pathways to prevent thermal stress during long-term use. Each channel undergoes rigorous galvanic isolation to shield the system from external electrical noise. This protection effectively prevents data corruption and hardware damage from field surges. Additionally, the unit facilitates hot-swap maintenance to reduce unplanned facility downtime.

Process Application and Integration

Operators deploy the IMASM01 in power generation and large-scale manufacturing plants. It integrates seamlessly with Harmony controllers to provide high-speed data updates. Moreover, the hardware design ensures full compatibility with standard Bailey Infi 90 communication buses. Detailed onboard diagnostics provide instant feedback regarding the operational health of the input loops. This capability allows technicians to troubleshoot field wiring issues without extensive manual testing. The Swedish manufacturing origin guarantees adherence to strict international quality and durability standards.
